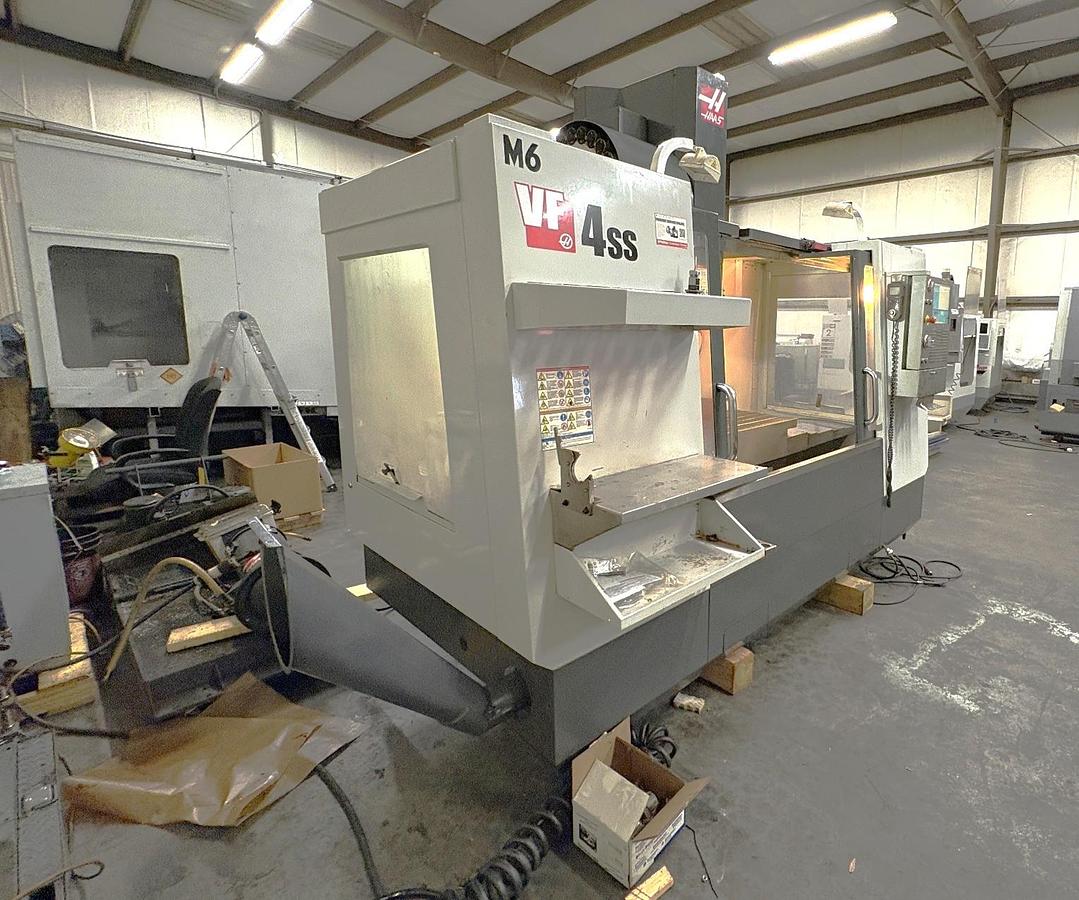

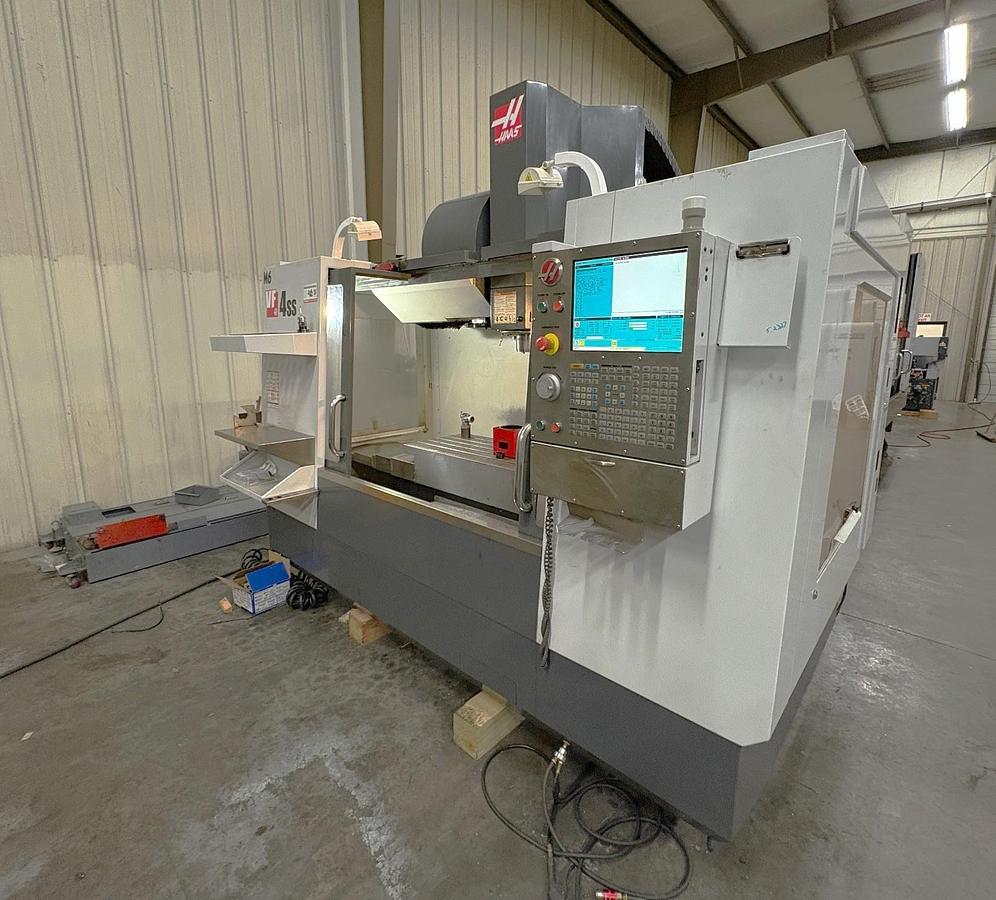

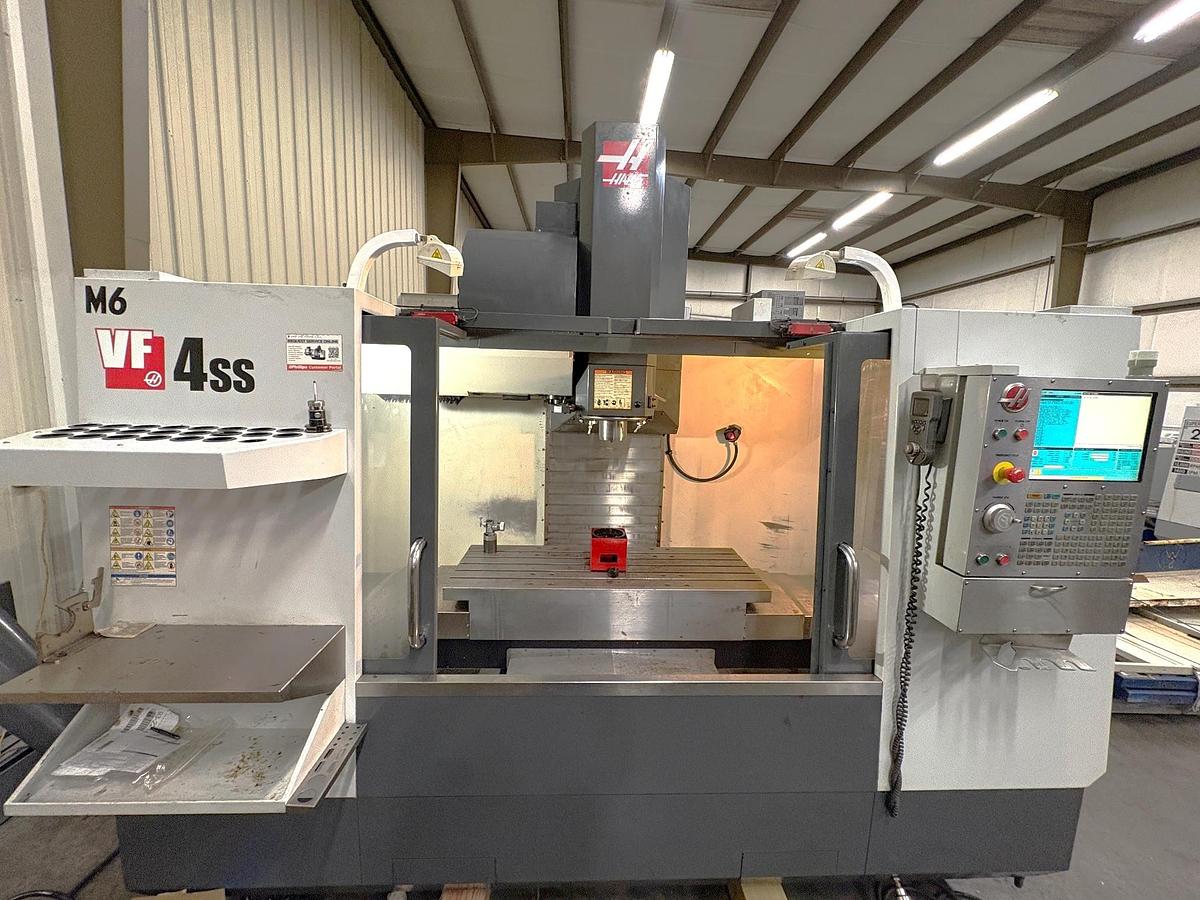

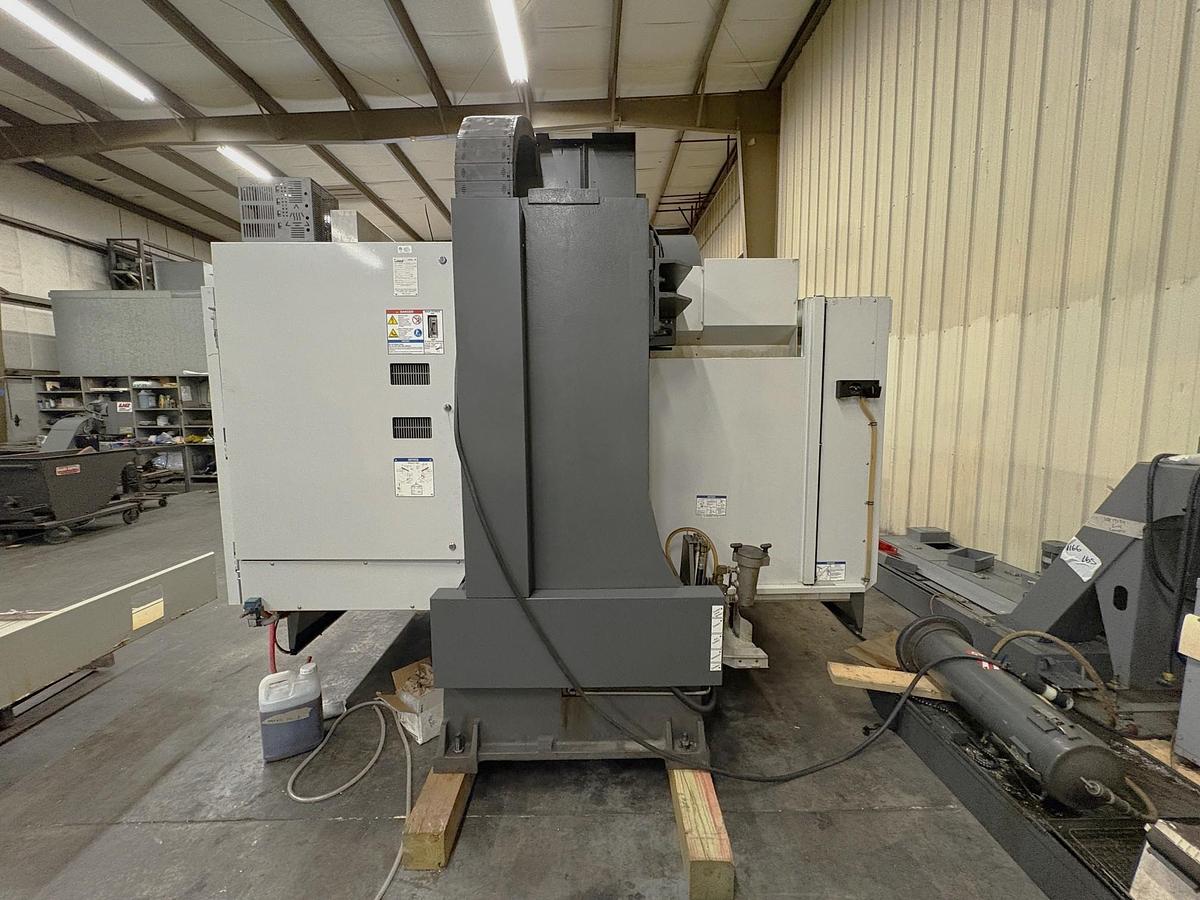

2012 Haas VF4SS with both 4th & 5th Axis Drive, Wireless Probing, Thru Spindle Coolant, HSM, Chip Auger
2012 Haas VF4SS with both 4th & 5th Axis Drive, Wireless Probing, Thru Spindle Coolant, HSM, Chip Auger
Contact us for price
Location:South Carolina
or
Call (863) 439-6066
Description
24+1 Position Side Mounted Tool Changer
Through the Spindle Coolant
Haas Wireless Tool & Part Probing
4th Axis Drive & Wiring
5th Axis Drive & Wiring
Auger Style Chip Conveyor
High Speed Machining
High Intensity Lighting
Remote Jog Handle
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Rigid Tapping
Coolant System with Tank & Pump
USB Port Interface
RS 232C Port Interface for DNC Operation
Inline Direct Drive 12,000 RPM Spindle
Wired 208V - 230V Electrics
Specifications
| Manufacturer | Haas |
| Model | VF4SS |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120345 |
| Table size | 52" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 50" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 24 + 1 Position Side Mounted ATC |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 152" x 99" x 106" |
| Machine weight (approximately) | 13,800 lbs. |
