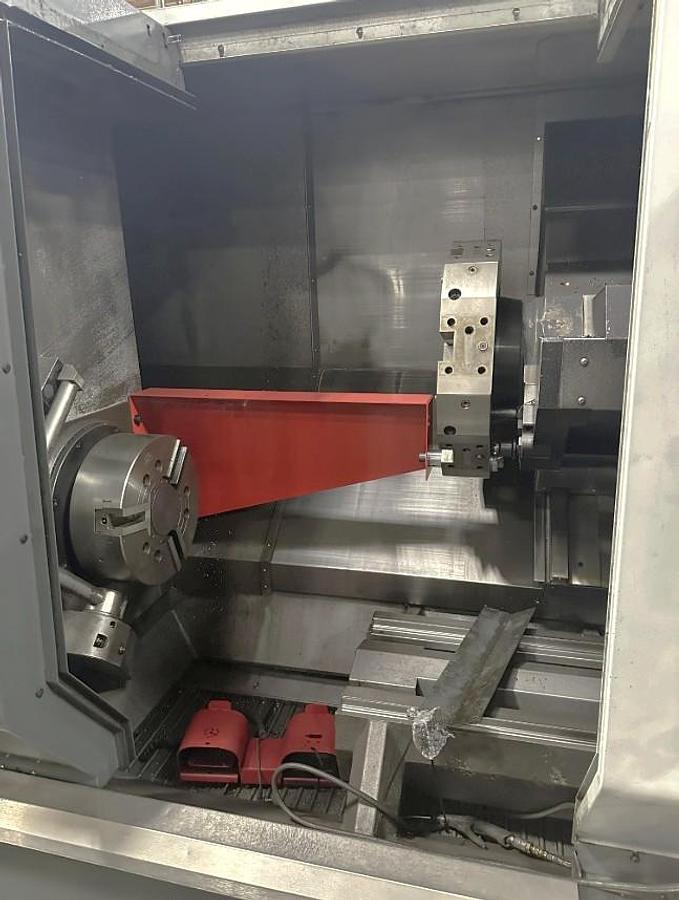

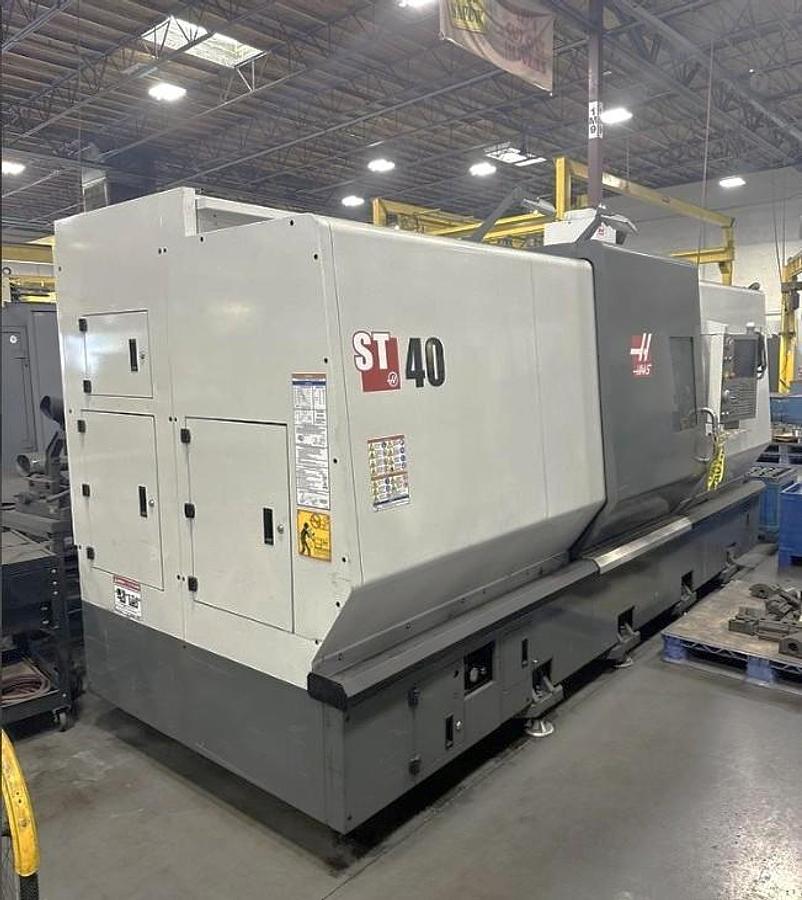

2015 Haas ST-40 with Live Milling/C Axis, Tool Presetter, Tailstock, 4" Bar Capacity, 15" Hyd Chuck, Chip Conveyor
2015 Haas ST-40 with Live Milling/C Axis, Tool Presetter, Tailstock, 4" Bar Capacity, 15" Hyd Chuck, Chip Conveyor
$89,950 (USD)
Location:Arizona
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
High Torque Live Milling/Drilling Capability

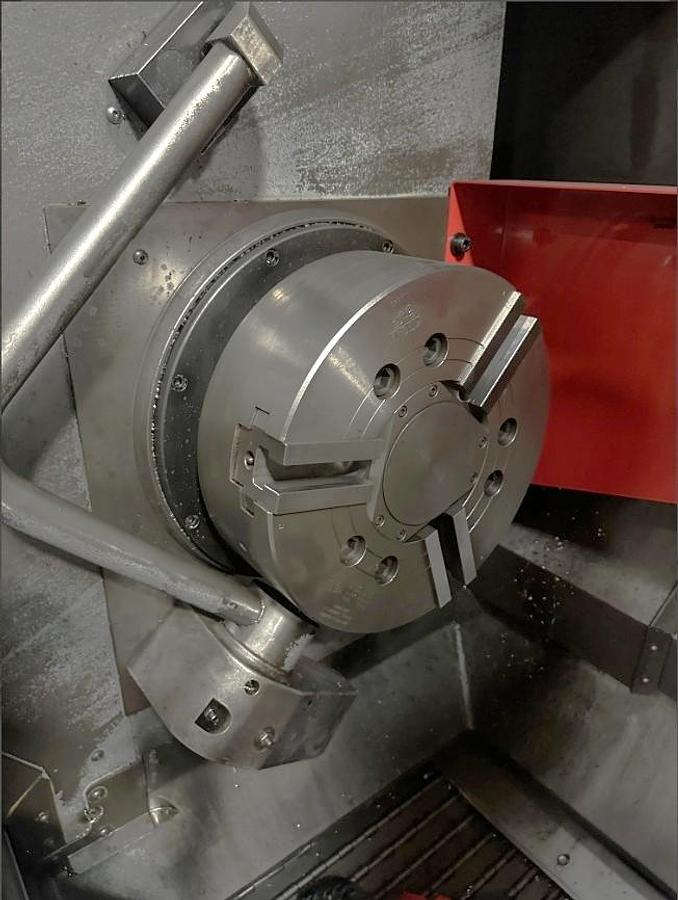

15" 3 Jaw Hydraulic Chuck
Chip Conveyor - Belt Style
Tool Presetter

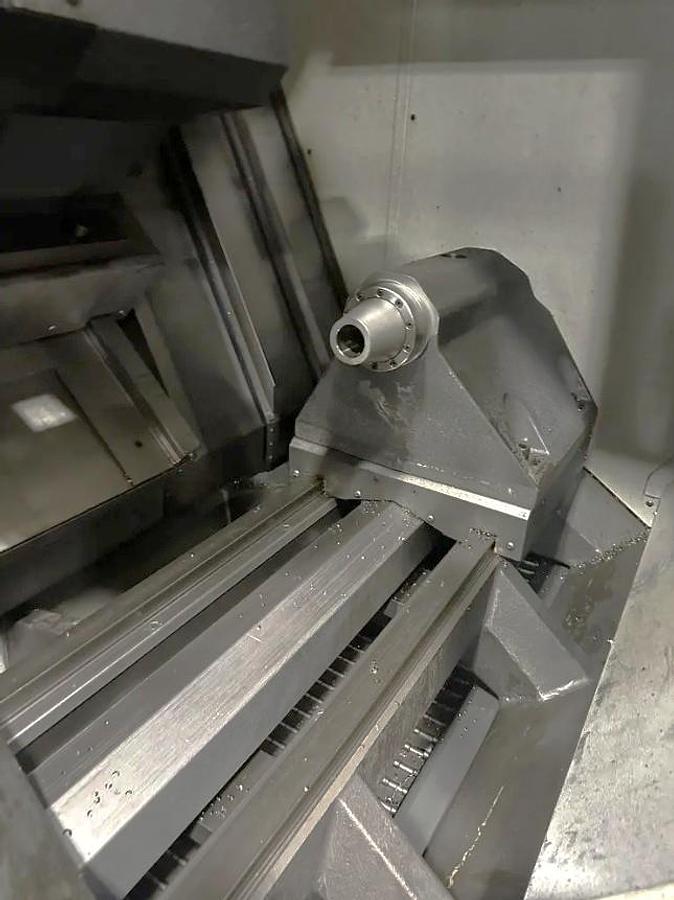

Programmable Tailstock
1000 PSI High Pressure Coolant Extra Performance Package with 55 HP Spindle Motor

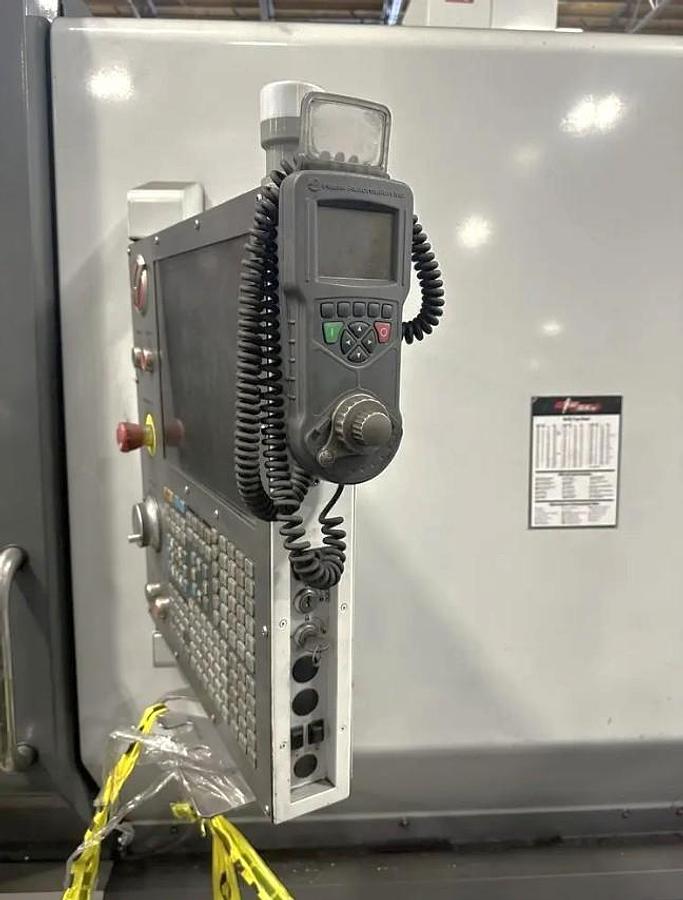

Remote Jog Handle
High Intensity Lighting
8 Spare M Functions
User Definable Macros
Haas Intuitive Programming System
750 MB Expanded Programming Memory

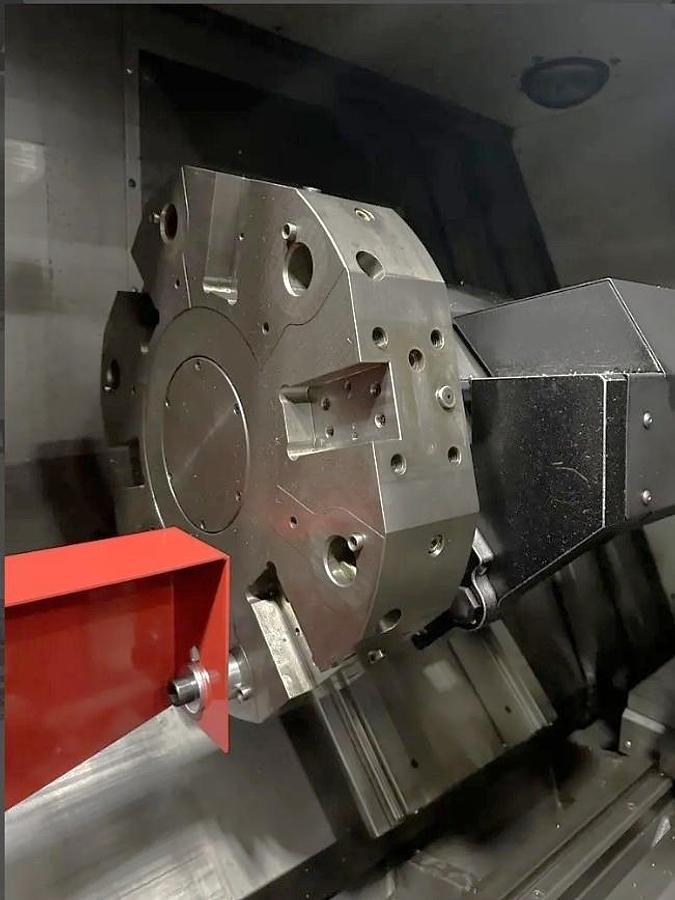

Hybrid VDI/BOT Turret 2 Speed Geared Headstock
USB Port Interface RS 232 Port Interface Rigid Tapping

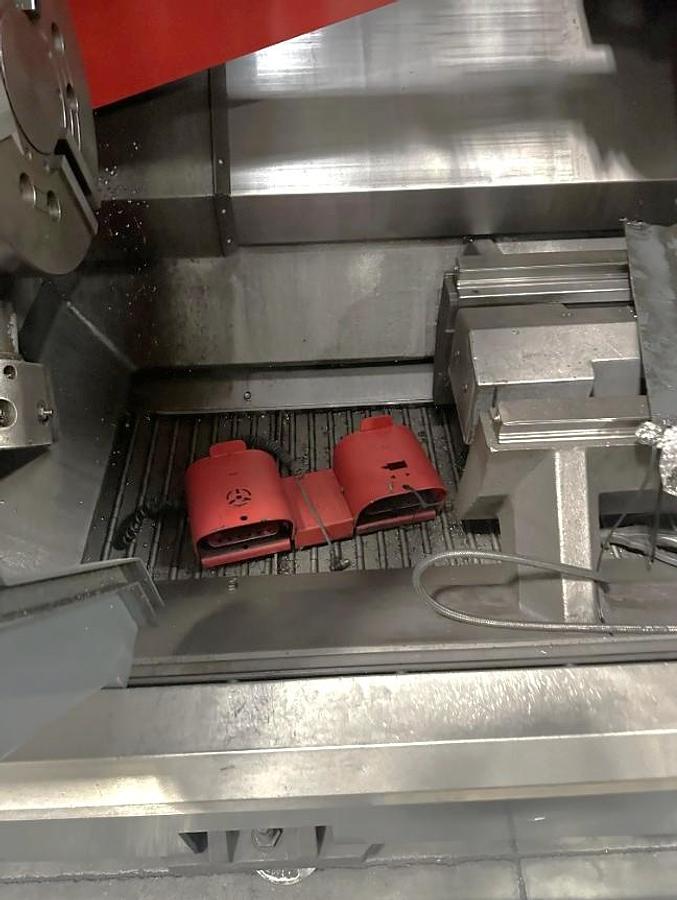

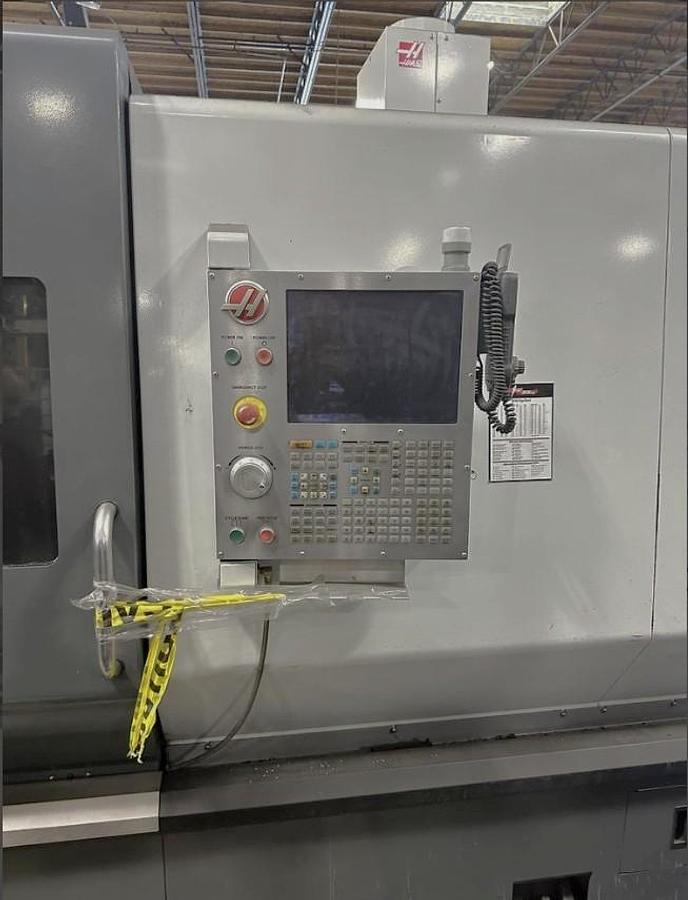

Dual Foot Pedals for Chuck Jaws and Tailstock 15" Color LCD Monitor

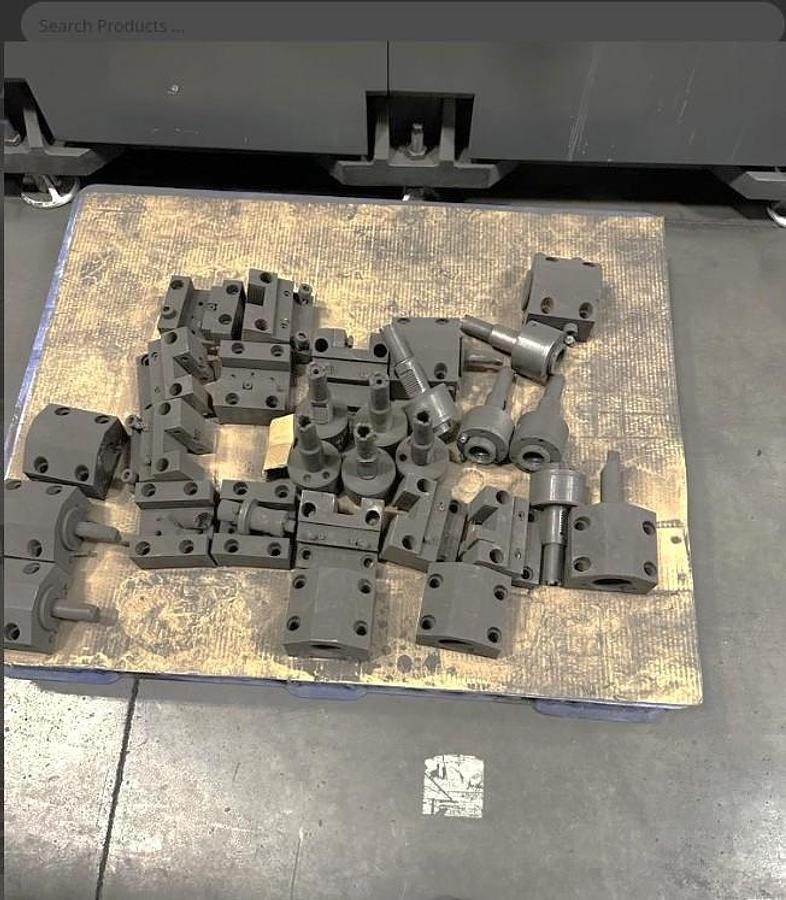

All Available Tooling as seen in Photos
Wired 195/260V Electric
Specifications
| Manufacturer | Haas |
| Model | ST-40 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 120344 |
| Control | Haas CNC Control |
| Chuck Size | 15" 3-Jaw |
| Maximum Swing | 34.5" |
| Maximum Swing Over Cross Slide | 25.5" |
| Distance Between Centers | 44" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 44" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8" / 4.62" / 4" |
| Spindle Speed | 2,400 RPM |
| Spindle Motor | 55 HP |
| Milling Spindle Speed | 6,000 RPM |
| Number of Turret Positions | 12 Position Hybrid Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Center | #5 MT |
| Machine Dimensions LxWxH | 217" x 94" x 105" |
| Machine Weight | 27,000 lbs |
