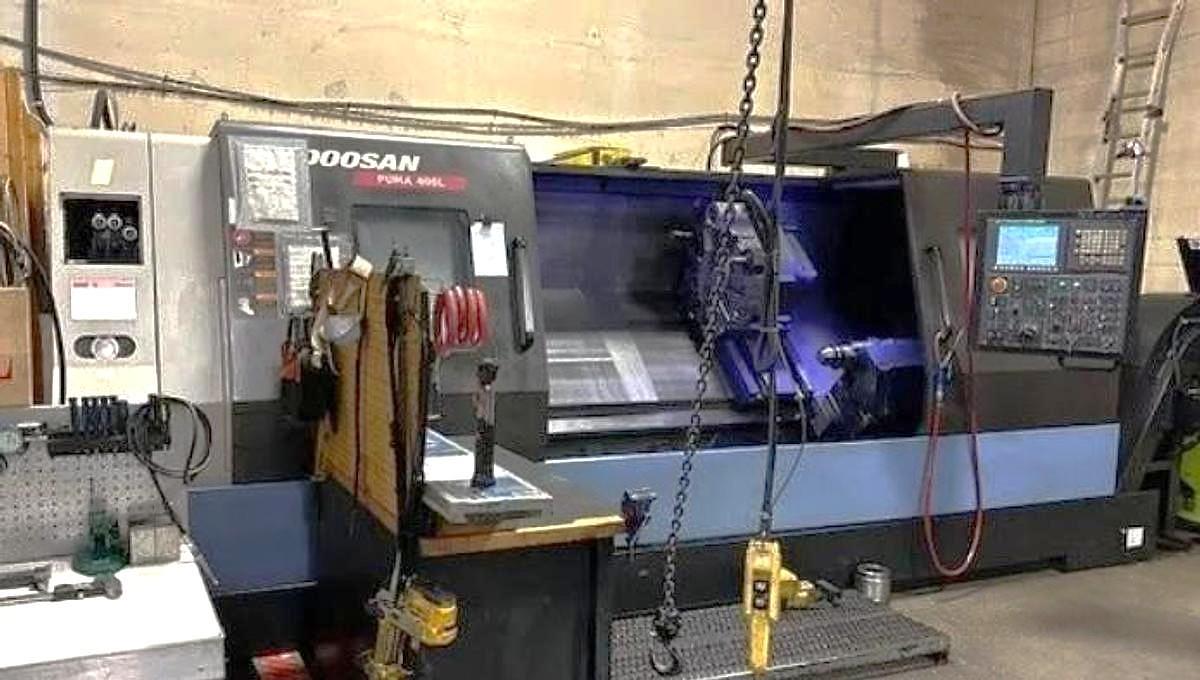

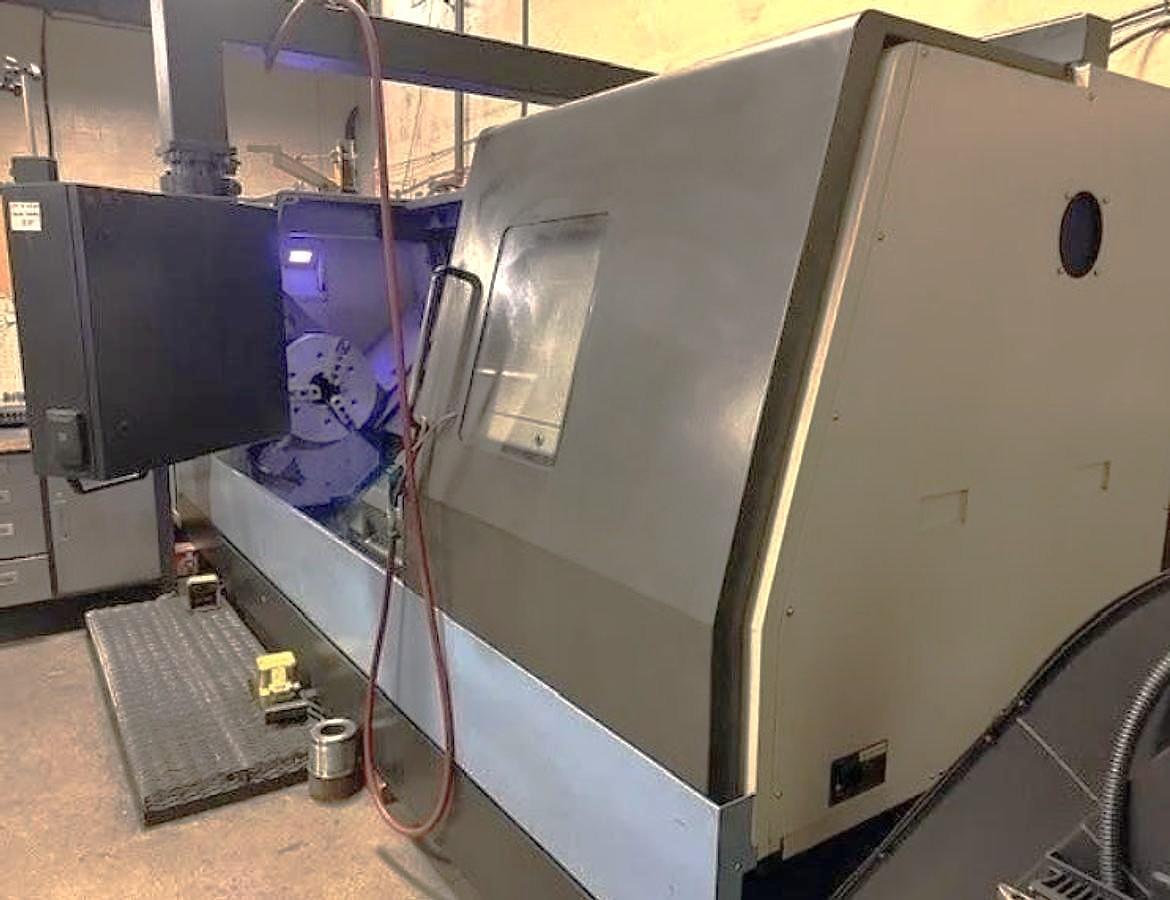

2014 Doosan Puma 400LC with 21" Hyd Chuck, 7.1" Bore w/ 6.5" Bar Capacity, Programmable Tailstock, Chip Conveyor, Toolsetter
2014 Doosan Puma 400LC with 21" Hyd Chuck, 7.1" Bore w/ 6.5" Bar Capacity, Programmable Tailstock, Chip Conveyor, Toolsetter
Contact us for price
Location:Alberta, Canada
or
Call (863) 439-6066
Description
Chip Conveyor 21" 3 Jaw Hydraulic Chuck Programmable Tailstock
Tool Presetter 3.5" Floppy Disk Interface RS 232 Port Interface Coolant System with Tank & Pump

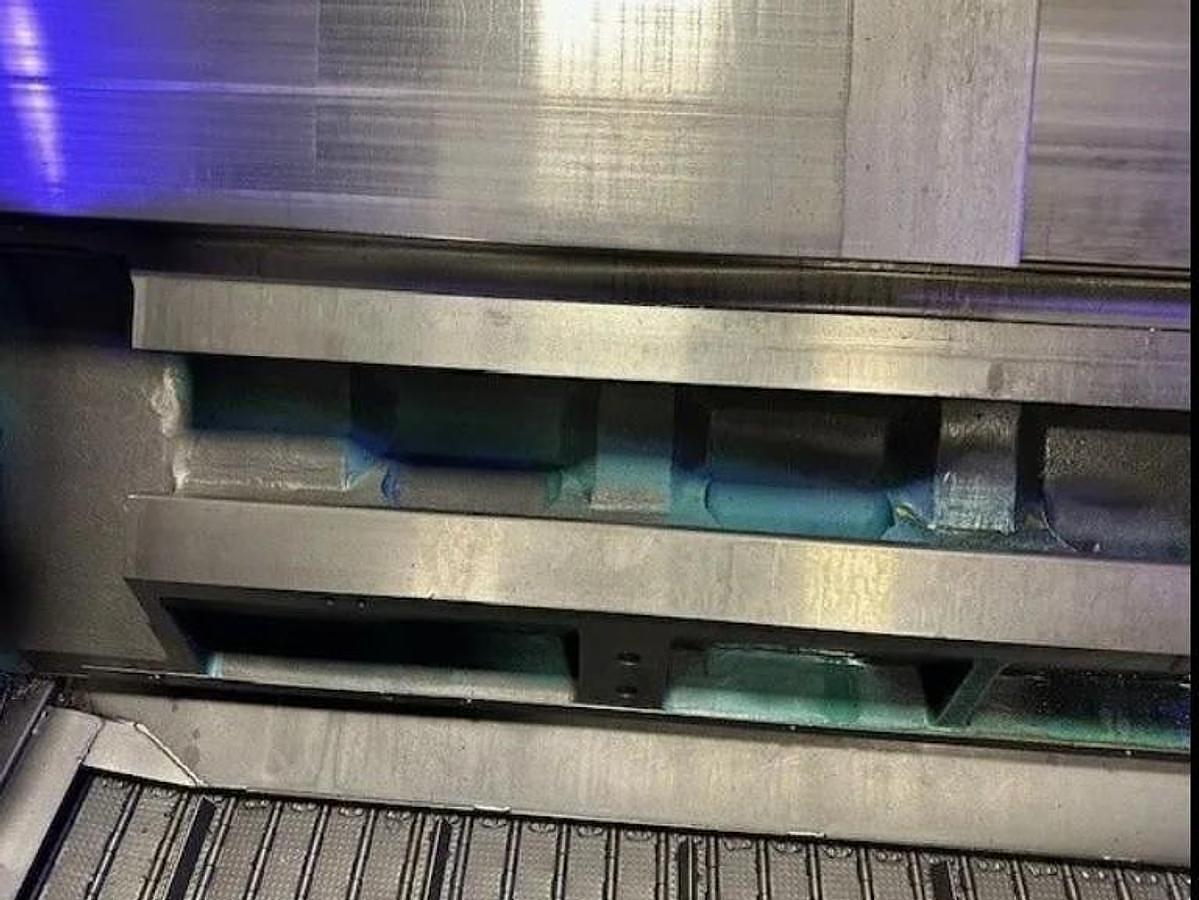

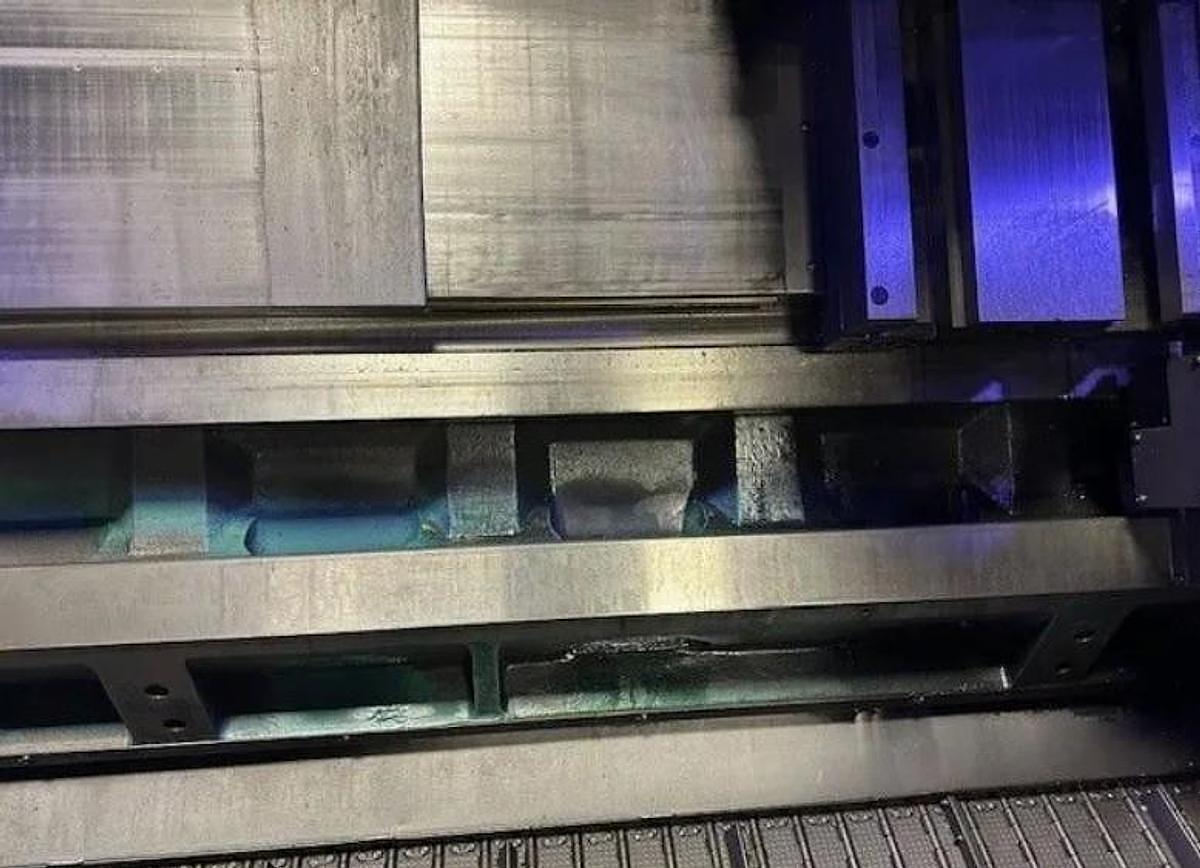

Boxed Way Construction on Slant Bed All Available Tooling All Available Manuals

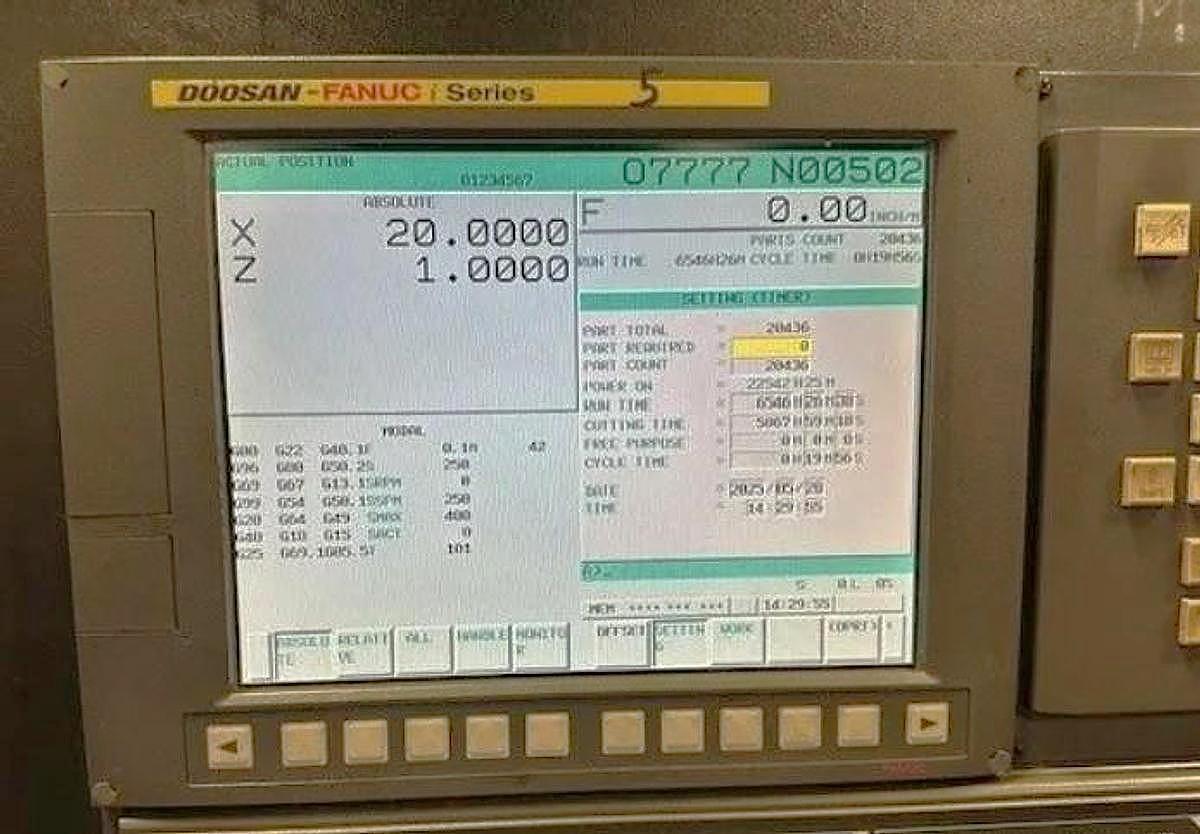

**Showing 22,542 Power On Hours**
**6,546 Run Time Hours**
**5,867 Cutting Hours**
Specifications
| Manufacturer | Doosan |
| Model | Puma 400LC |
| Year | 2014 |
| Condition | Used |
| Stock Number | 120331 |

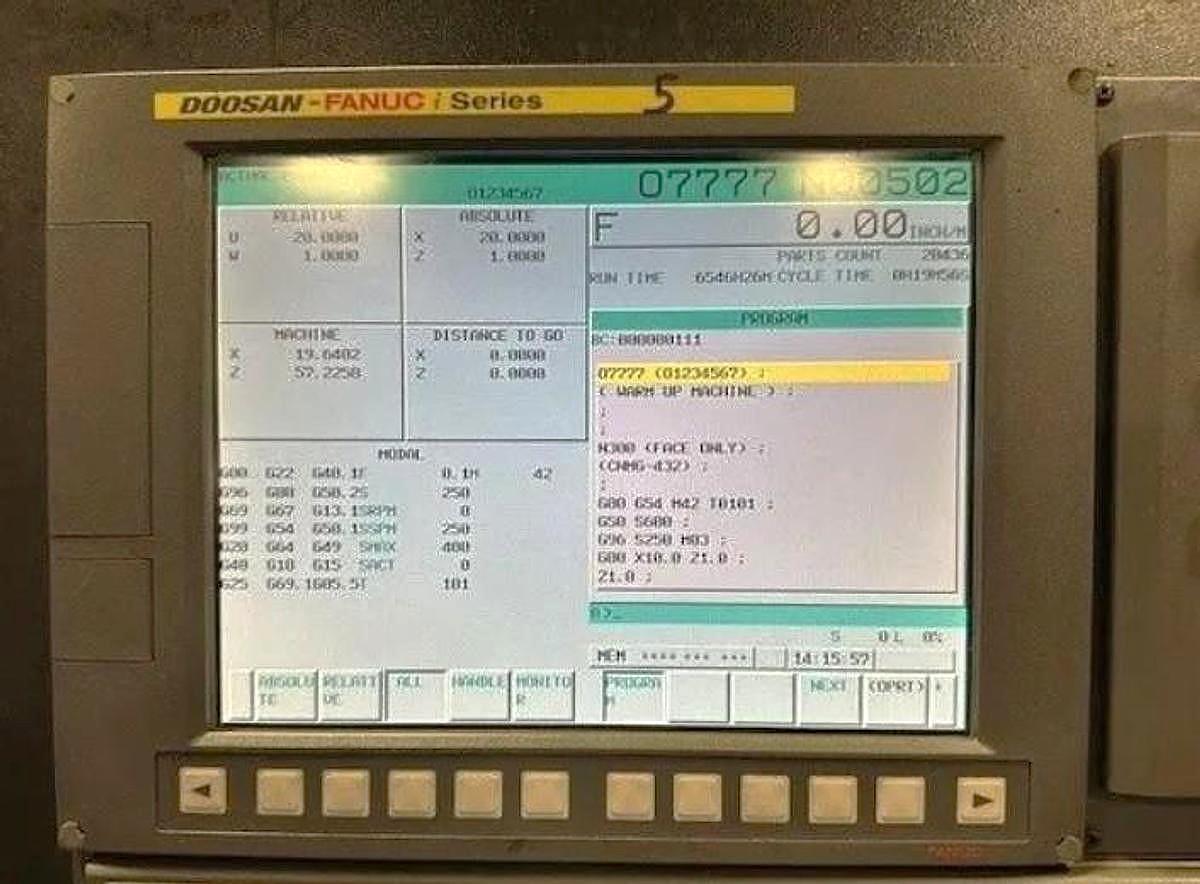

| Control | Fanuc i Series Control |
| Chuck Size | 21" Hydraulic Chuck |
| Maximum Swing | 30.31" |
| Maximum Turning Diameter | 23.2" |
| Maximum Turning Length | 81.7" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 14.25" |
| Z-Axis Travel | 84.84" |
| Spindle Nose / Spindle Bore | A2-11" / 7.1" |
| Spindle Speeds | 2,000 RPM |
| Spindle Motor | 35 HP |

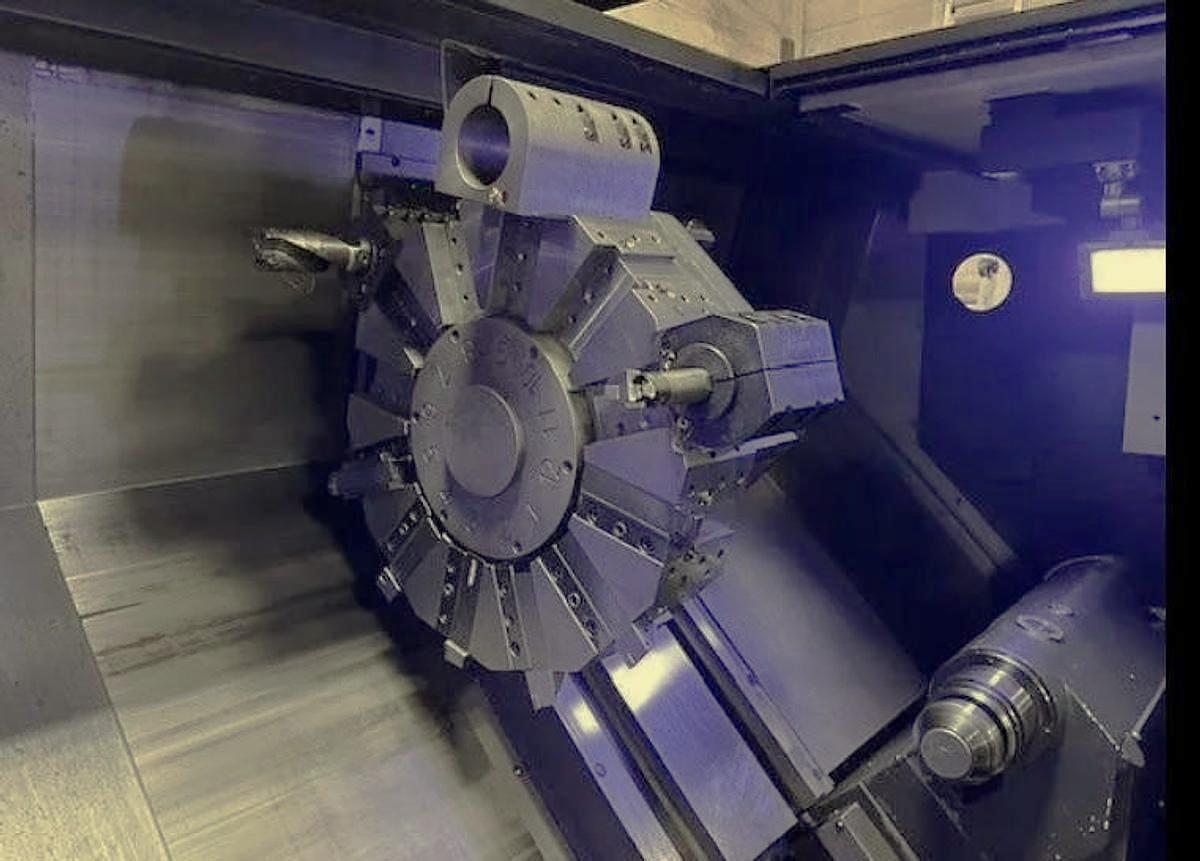

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 790 IPM |
| Tailstock Quill Diameter / Center | 4.7" / MT #5 |
| Tailstock Quill Travel | 4.7" |
| Machine Dimensions | 225"x97"x91" |
| Machine Weight | 24,250 lbs. |
