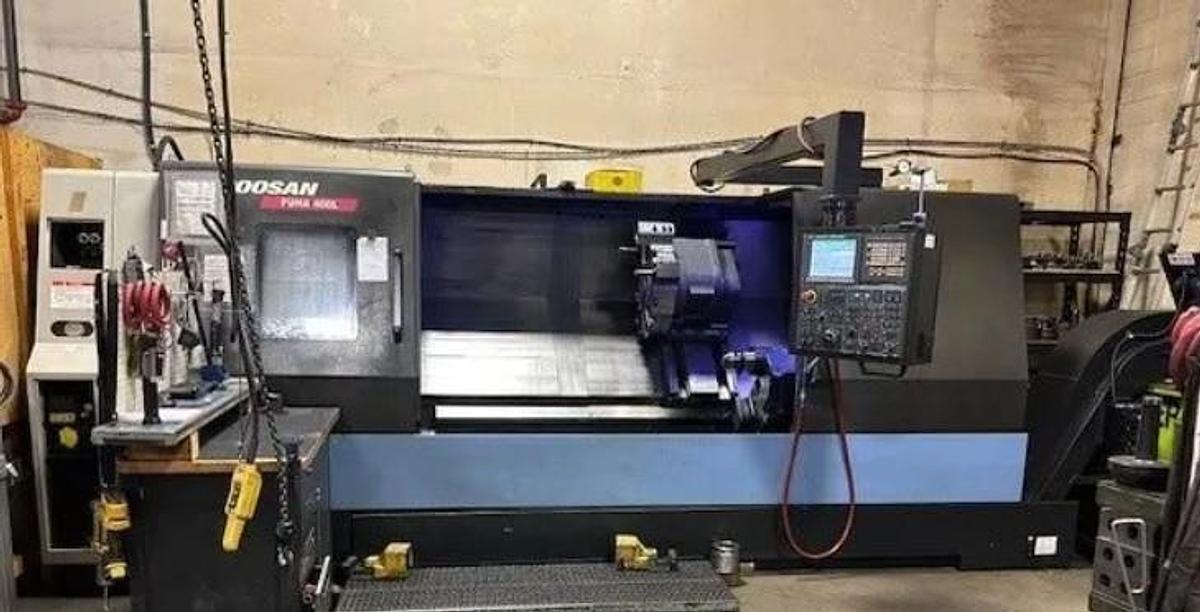

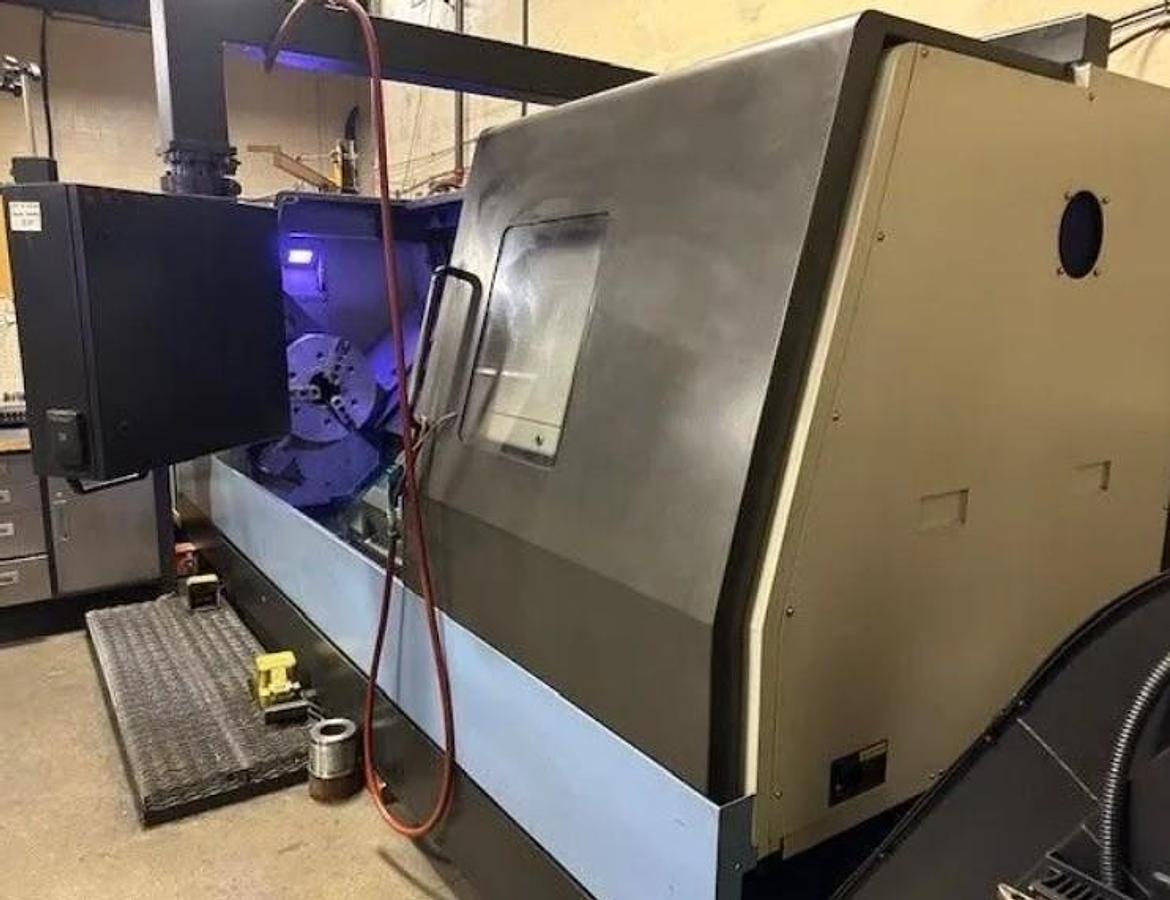

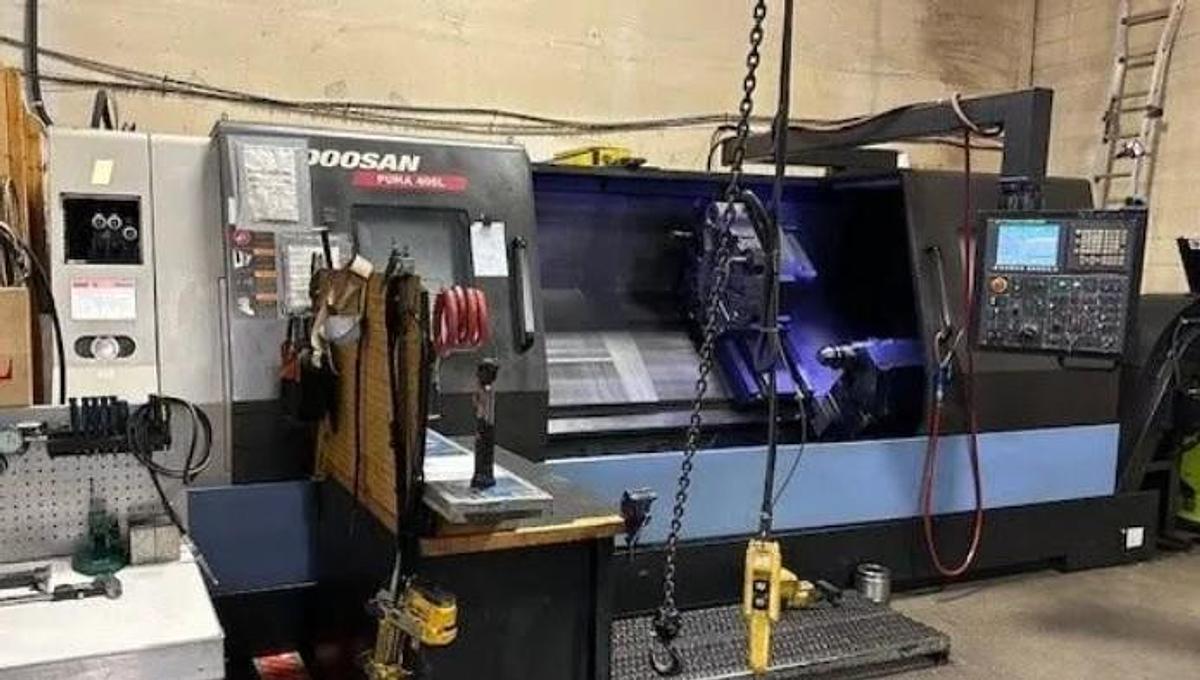

2014 Doosan Puma 400LC, 21" Hydrualic Chuck, Steady Rest, Programmable Tailstock, Chip Conveyor
2014 Doosan Puma 400LC, 21" Hydrualic Chuck, Steady Rest, Programmable Tailstock, Chip Conveyor
Contact us for price
Location:Alberta, Canada
or
Call (863) 439-6066
Description

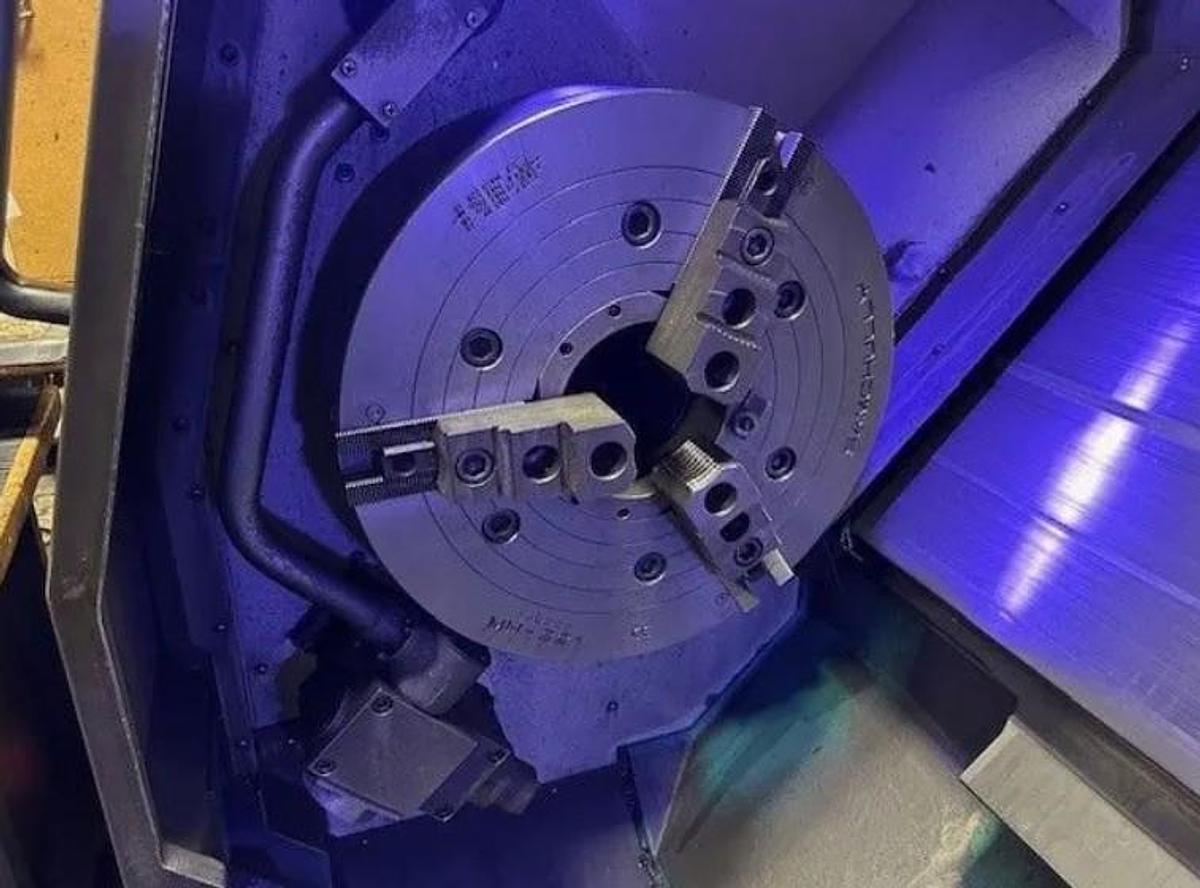

Chip Conveyor 21" 3 Jaw Hydraulic Chuck Programmable Tailstock
Manual Steady Rest
Tool Presetter 3.5" Floppy Disk Interface RS 232 Port Interface Coolant System with Tank & Pump

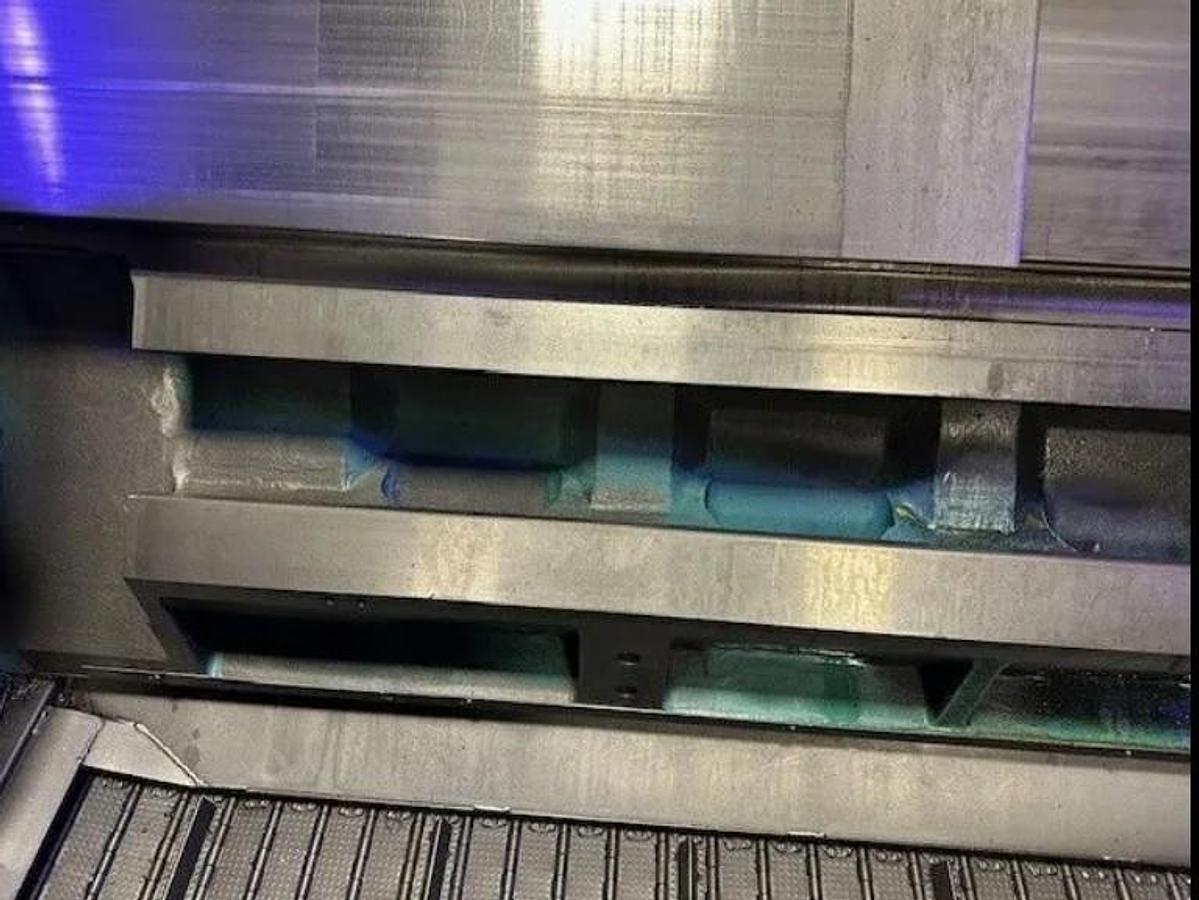

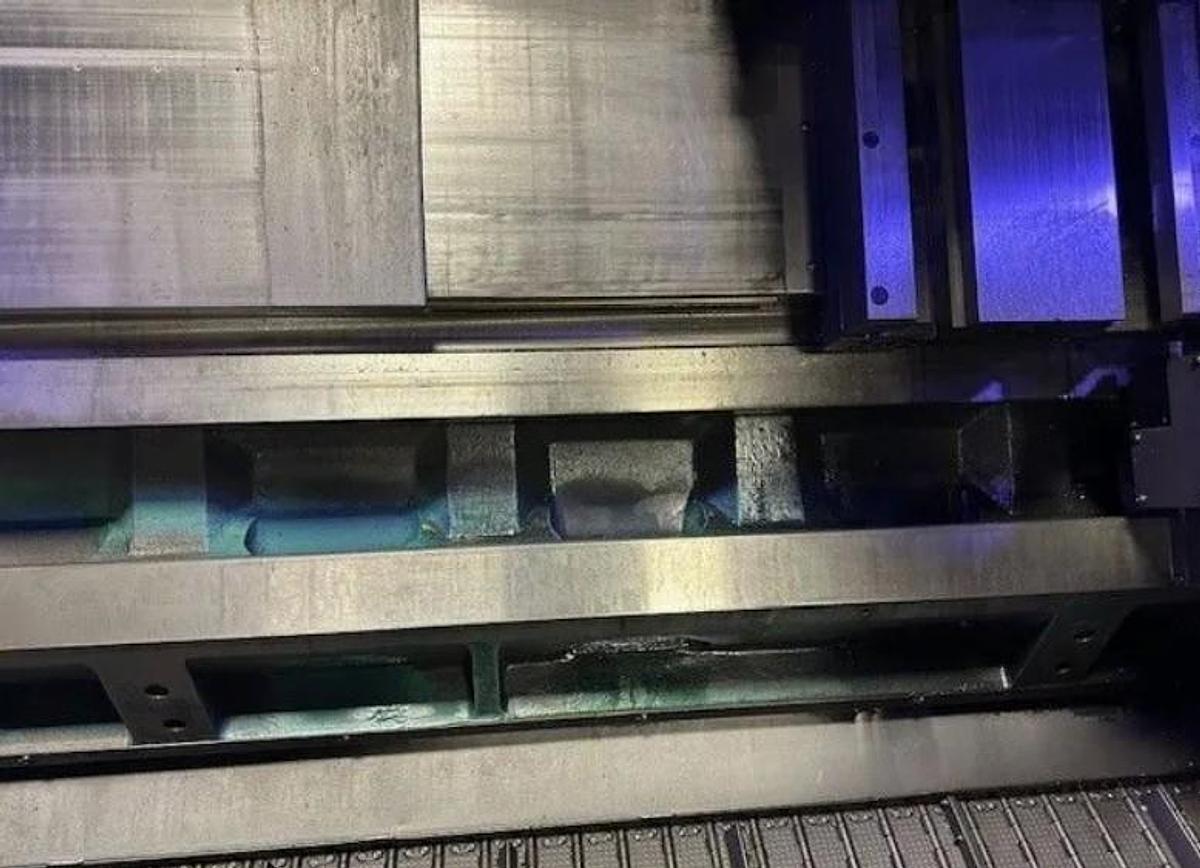

Boxed Way Construction on Slant Bed All Available Tooling All Available Manuals
Specifications
| Manufacturer | Doosan |
| Model | Puma 400LC, 21" Hydrualic Chuck, Steady Rest, Programmable Tailstock, Chip Conveyor |
| Year | 2014 |
| Condition | Used |
| Stock Number | 120331 |

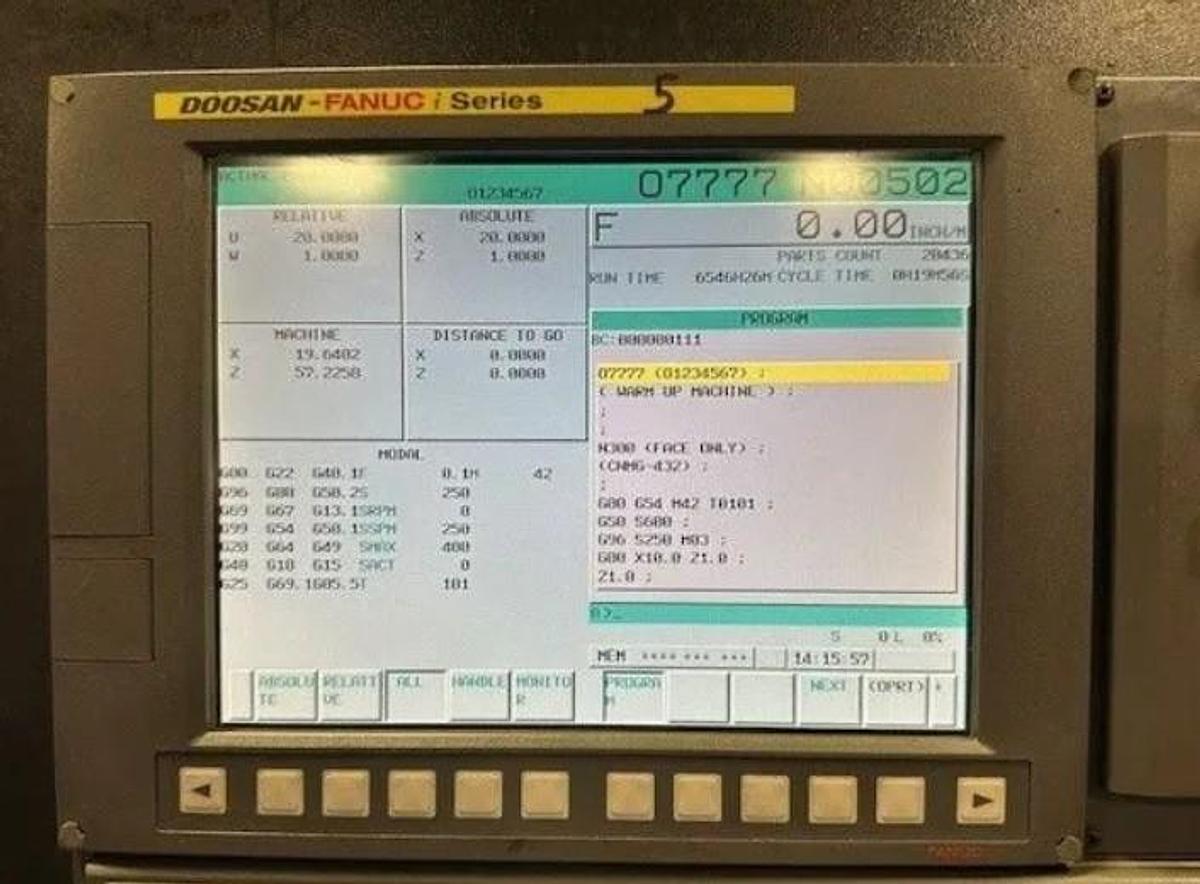

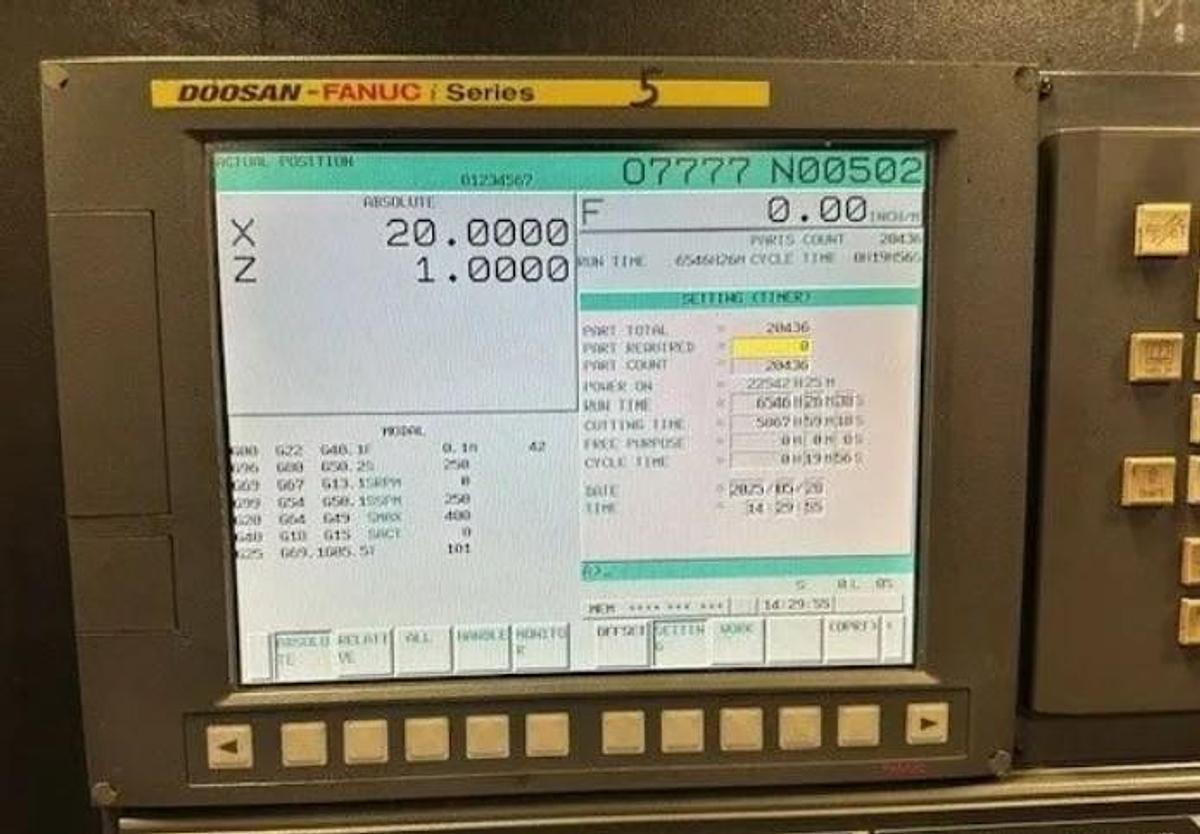

| Control | Fanuc Oi-TD |
| Chuck Size | 21" Hydraulic Chuck |
| Maximum Swing | 30.31" |
| Maximum Turning Diameter | 23.2" |
| Maximum Turning Length | 81.7" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 14.25" |
| Z-Axis Travel | 84.84" |
| Spindle Nose / Spindle Bore | A2-11" / 7.1" |
| Spindle Speeds | 2,000 RPM |
| Spindle Motor | 35 HP |

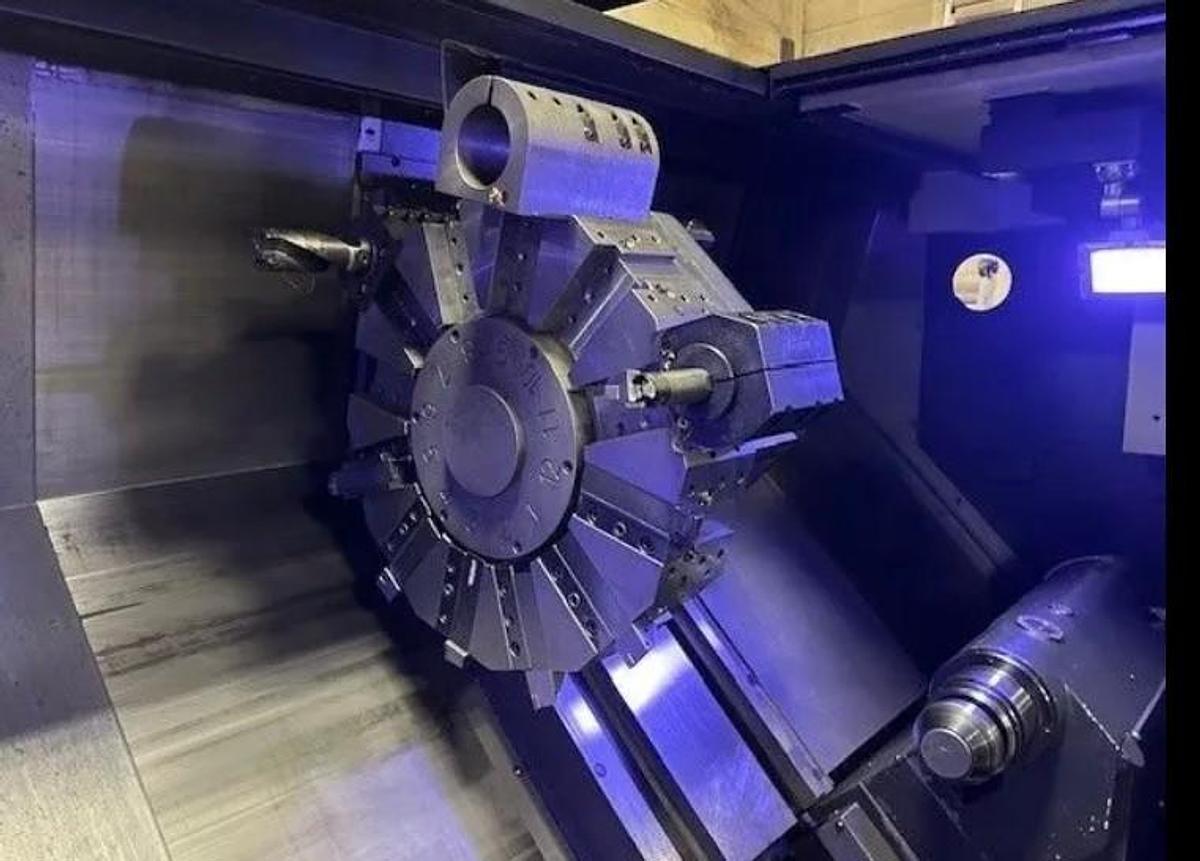

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 790 IPM |

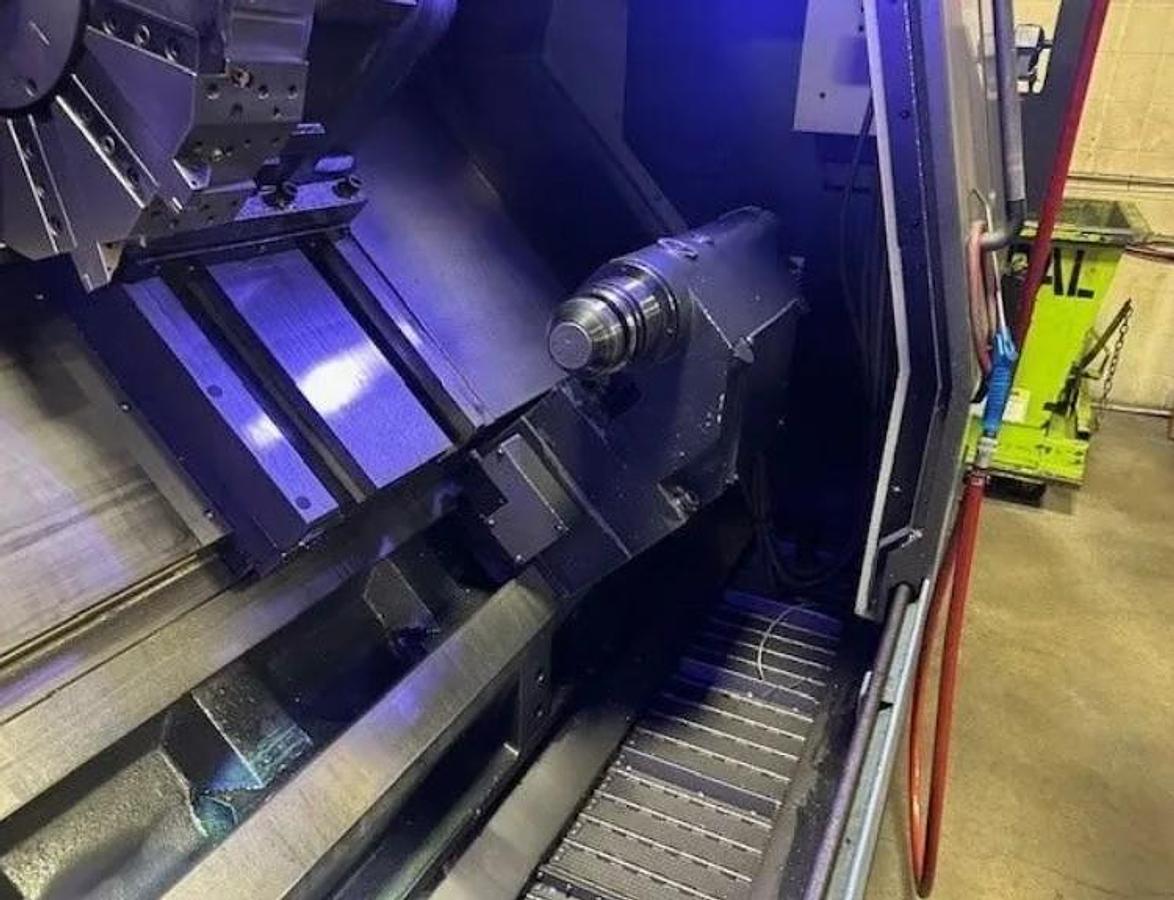

| Tailstock Quill Diameter / Center | 4.7" / MT #5 |
| Tailstock Quill Travel | 4.7" |
| Machine Dimensions | 225"x97"x91" |
| Machine Weight | 24,250 lbs. |
