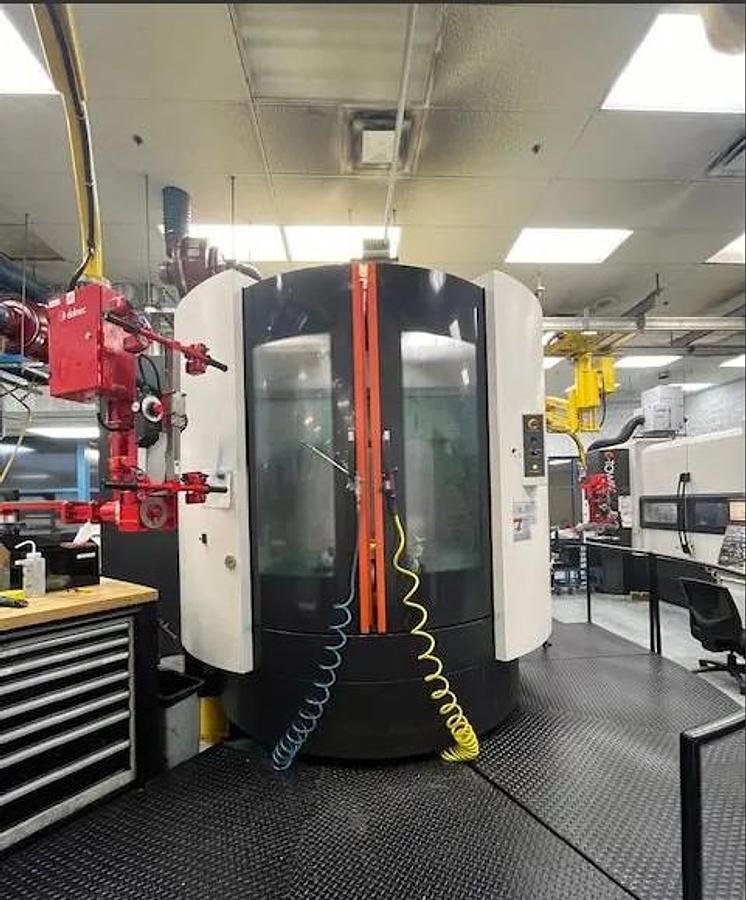

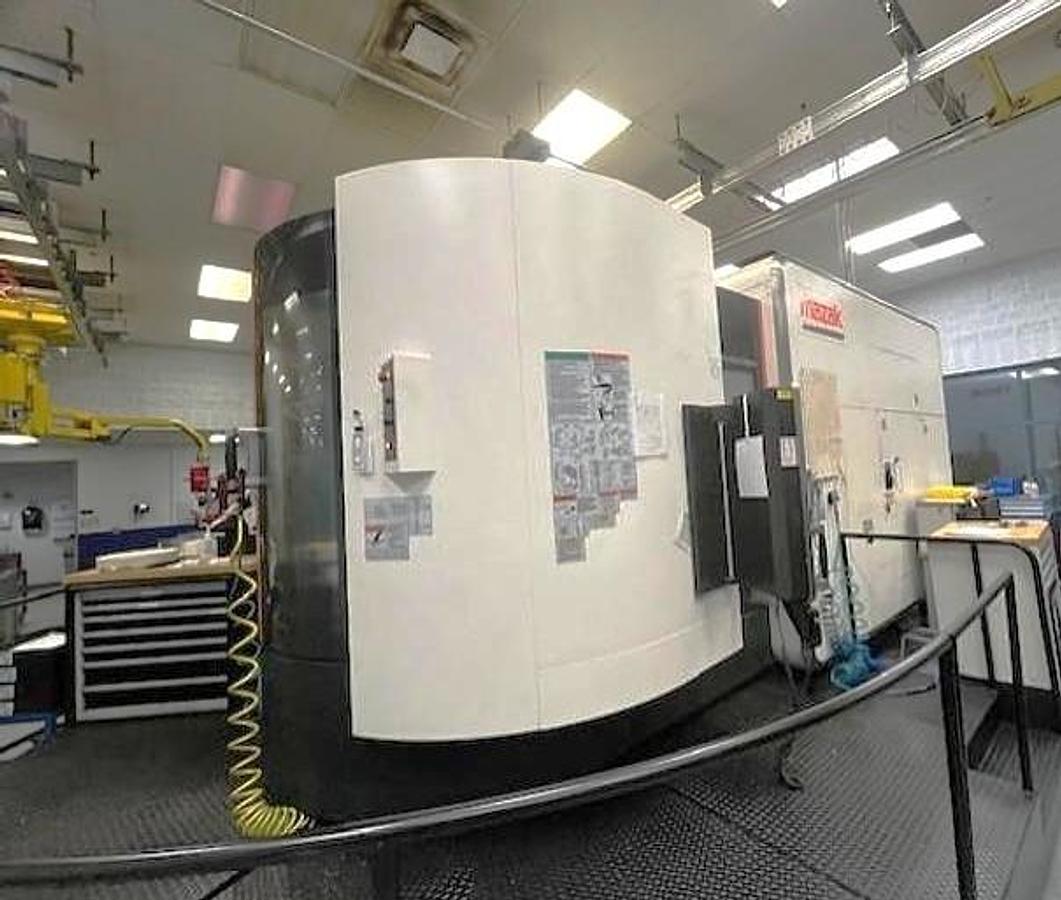

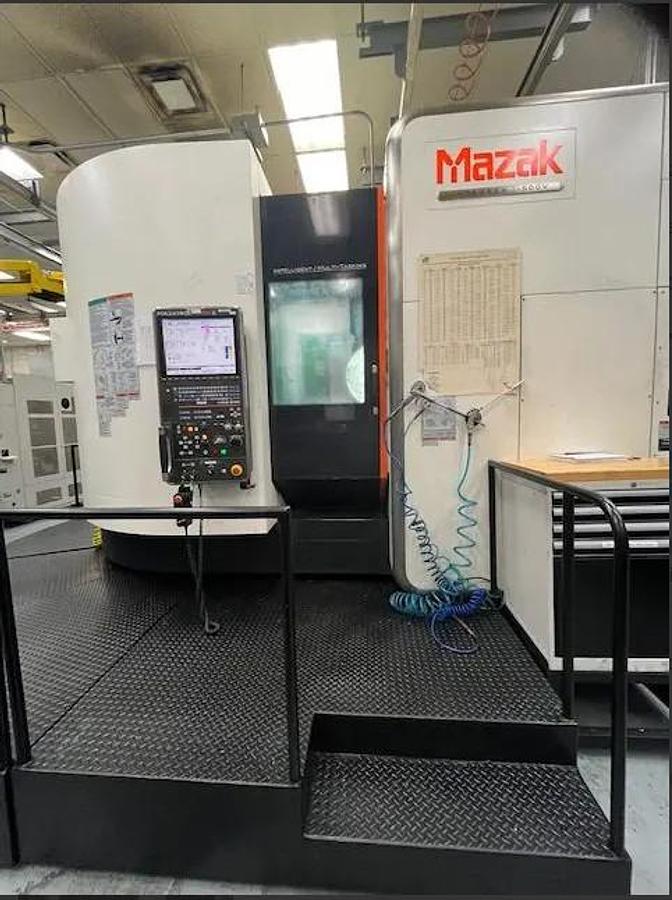

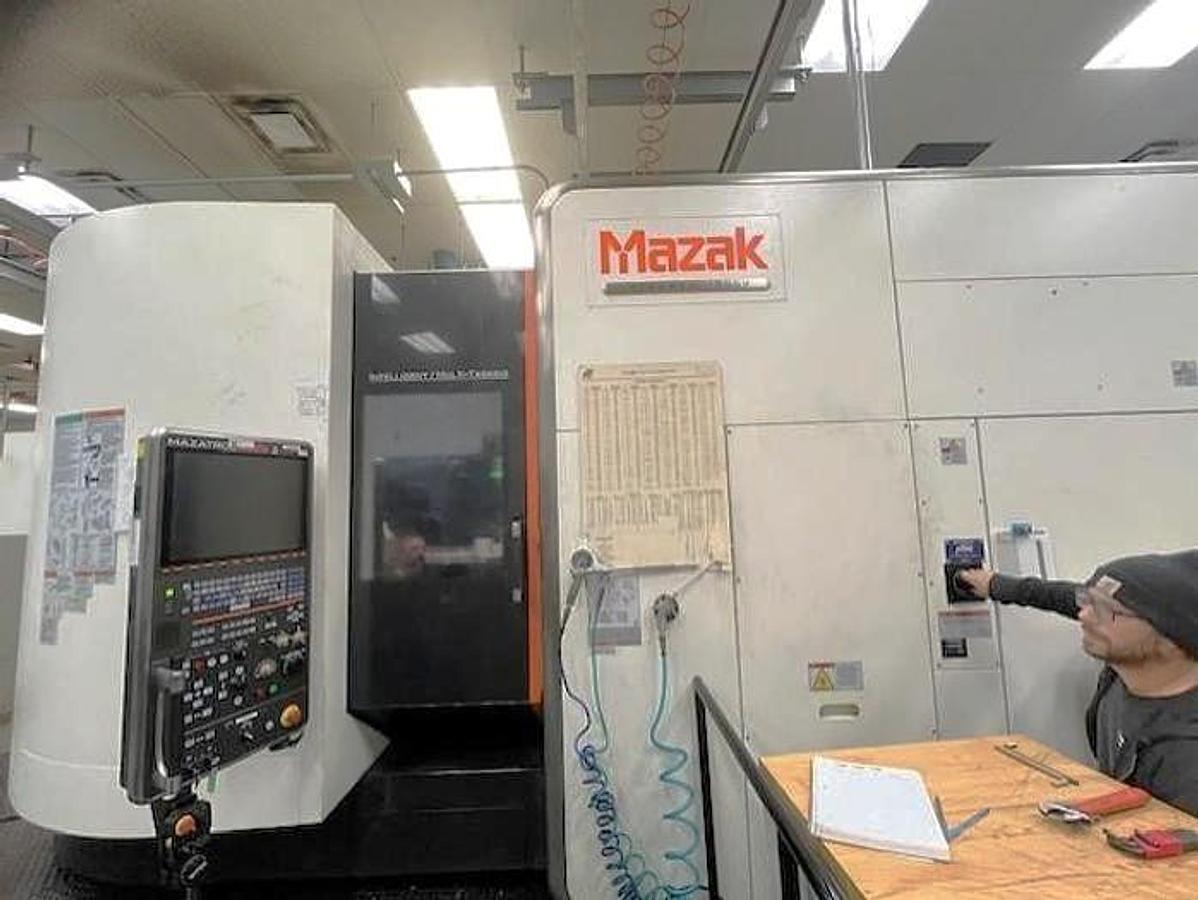

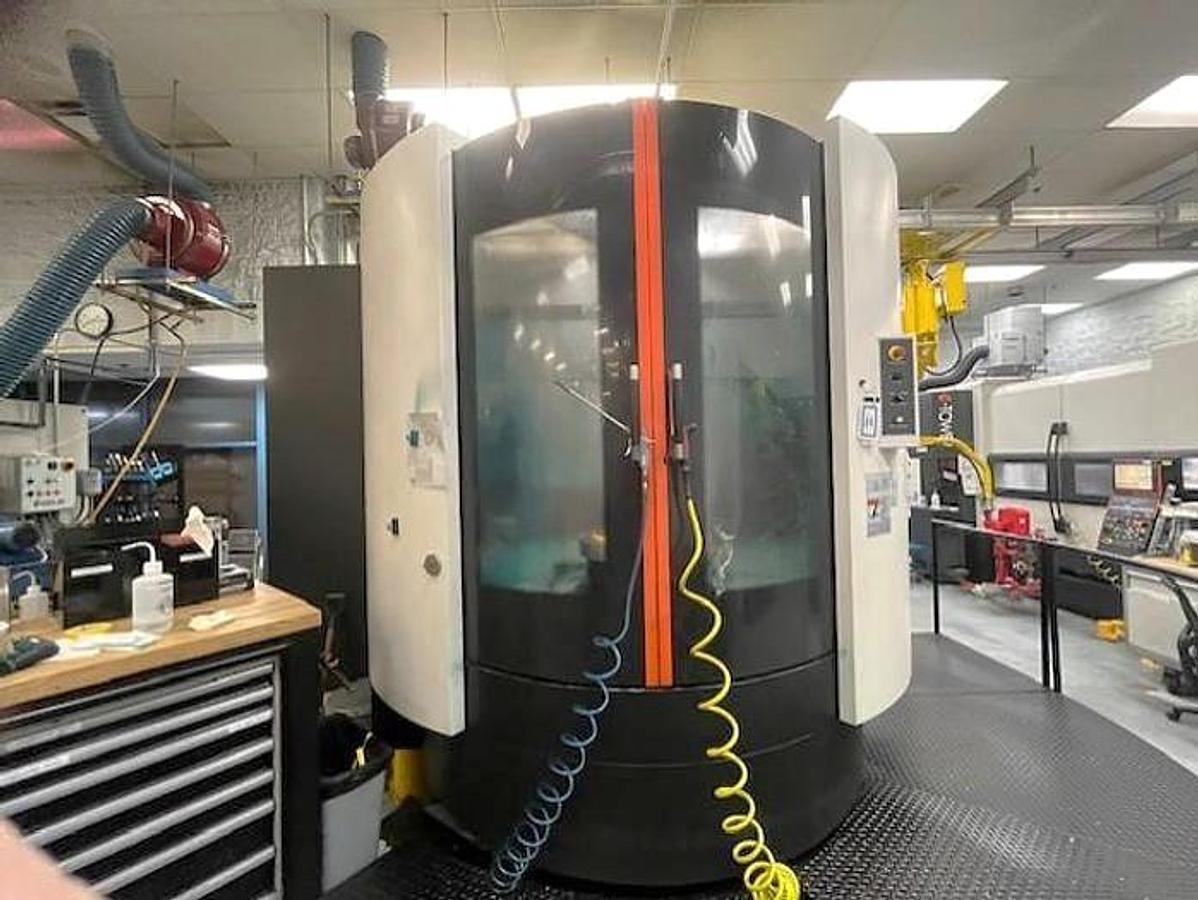

2012 Mazak Integrex i-500V 5 Axis with 2 Pallet Changer, 80 Station ATC, HPC 1000 PSI, Full 4th Rotary, Probing
2012 Mazak Integrex i-500V 5 Axis with 2 Pallet Changer, 80 Station ATC, HPC 1000 PSI, Full 4th Rotary, Probing
Contact us for price
Location:Arizona
Description
5 Axis 2-Pallet Changer System

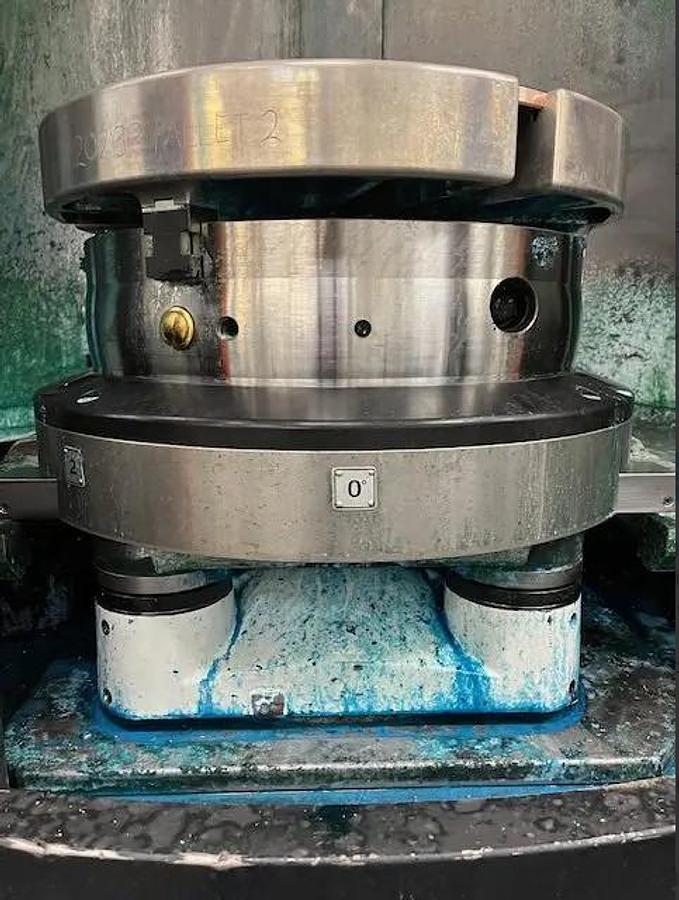

24" Diameter Location Bore Tap Pallet
B Axis Tilting Head

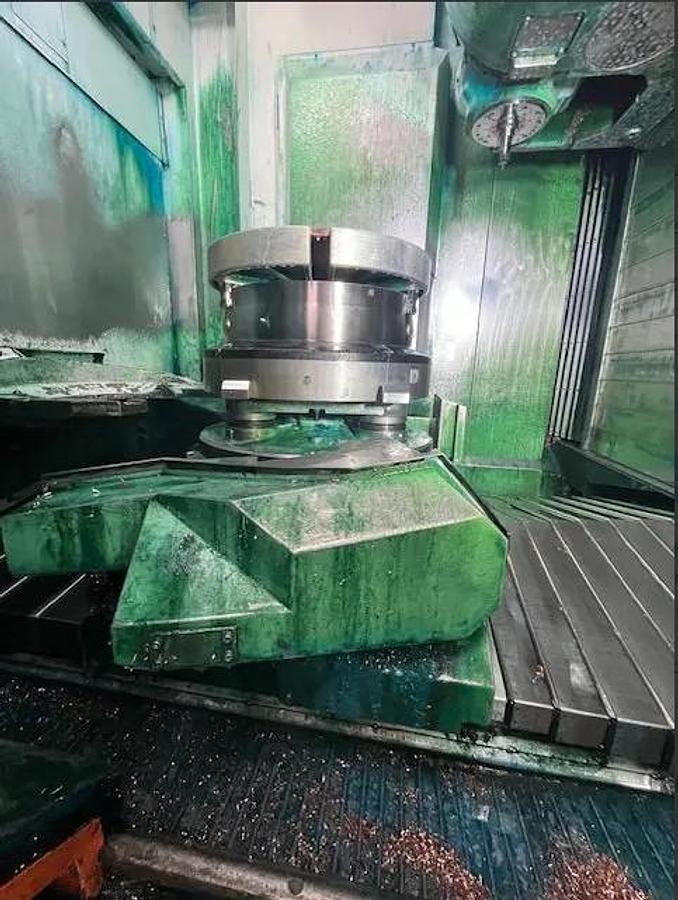

Full C Axis Table Rotation
Table Can Function as VTL with up to 1000 RPM Speeds
Chip Conveyor

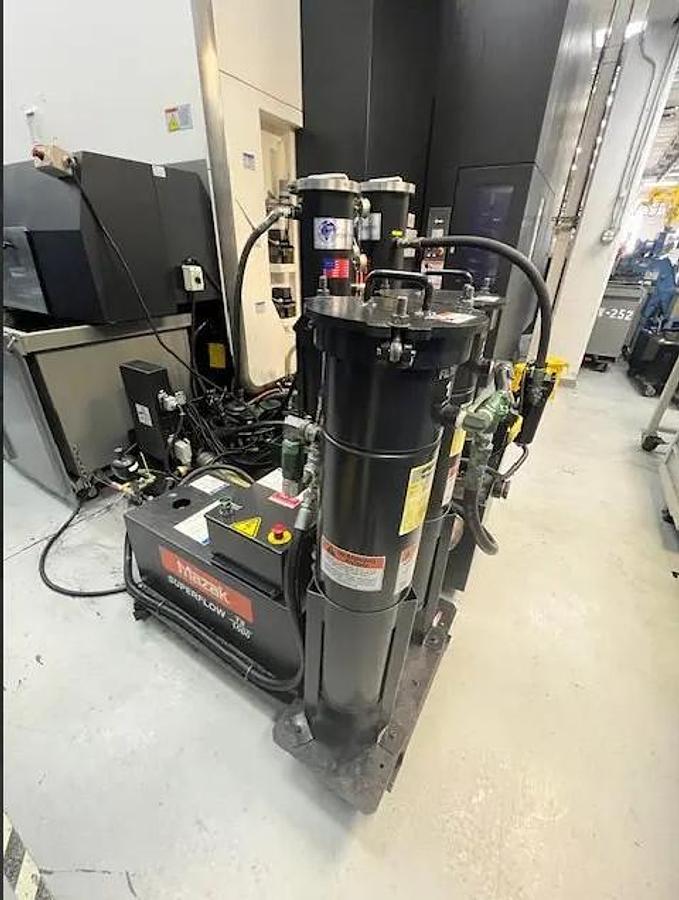

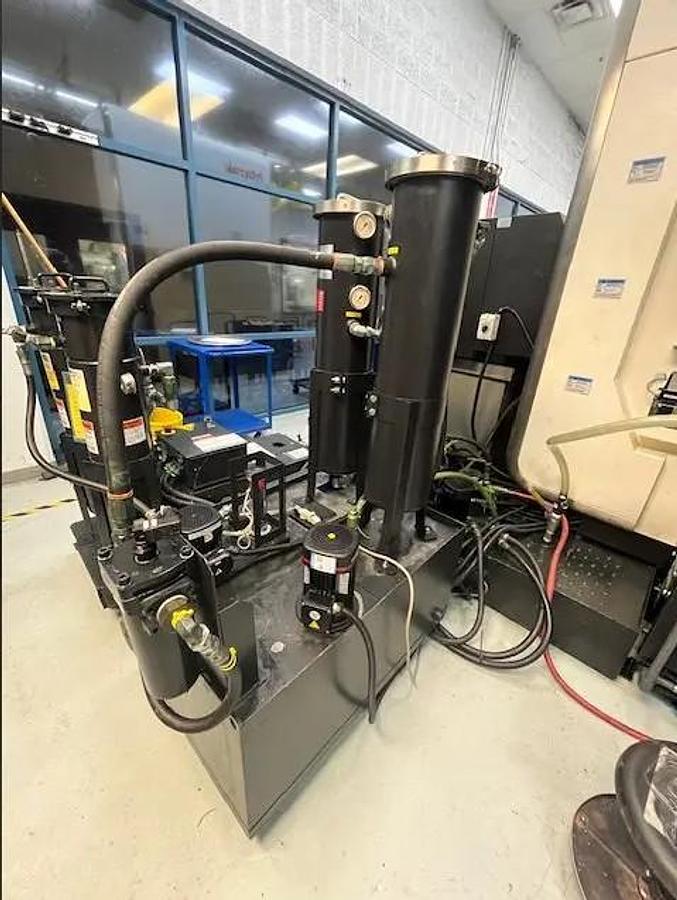

Superflow TB/1000 High Pressure Coolant
Tool Radius Compensation 5-Axis
EIA/ISO Function 5 Axis Simultaneous
B Axis Mill Spindle Synchronous Tapping w/o Tool
Rigid Tapping
Remote Manual Pulse Generator
Manual Rotation of 2 Pallet Changer Loading System
Auto Tool Length Measurement (Tool Probing)
Renishaw Part Probing
Prep for Monitoring System B (MP600 Probe)
Work Measuring System RMP600 Ready
Safety Cover for 2 Pallet Changer
Scale Feedback for X,Y&Z
Spindle Chiller Unit
MT Connect Preparation
Laser Mill Tool Measure NC4 Full W/O Software
Double Internal Wear Resistant Conveyors
Prep for Flash Tool System
Prep for Visual Tool ID/Data Management
Tool Tip Point Control / 5-Axis Simultaneous
Coolers for Ballscrews

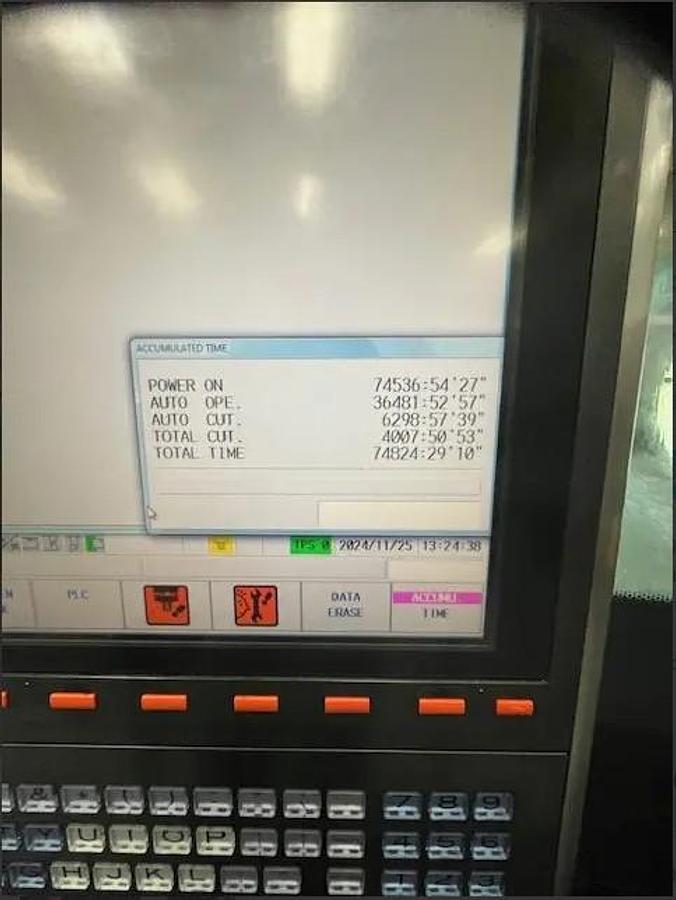

**Total Cutting Hours 4,007**
Specifications
| Manufacturer | Mazak |
| Model | Integrex i-500V |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120329 |
| Machine Control | Mazatrol Matrix 2 Control |
| Pallet Size | 24" Diameter |
| Maximum Load on Pallet | 1,940 lbs |
| Maximum Workpiece Diameter / Height | 28.74" / 39.37" |
| Maximum Machining Diameter | 28.74" |
| X-axis travel | 43.31" |
| Y-Axis Travel | 31.5" |
| Z-Axis Travel | 35.43" |
| B-Axis Tilt Movement | -30 Degrees to +120 Degrees |
| C-Axis Rotation | .0001 Degrees (Table) |
| Table Spindle Speed | 1,000 RPM |
| Table Motor | 40 HP |
| Spindle Taper | CAT 40 |
| Milling Spindle Speed | 12,000 RPM |
| Milling Spindle Motor | 30 HP |
| Tool Magazine Capacity | 80 Station ATC |
| Machine Dimensions LxWxH | 294"x157"x137" |
