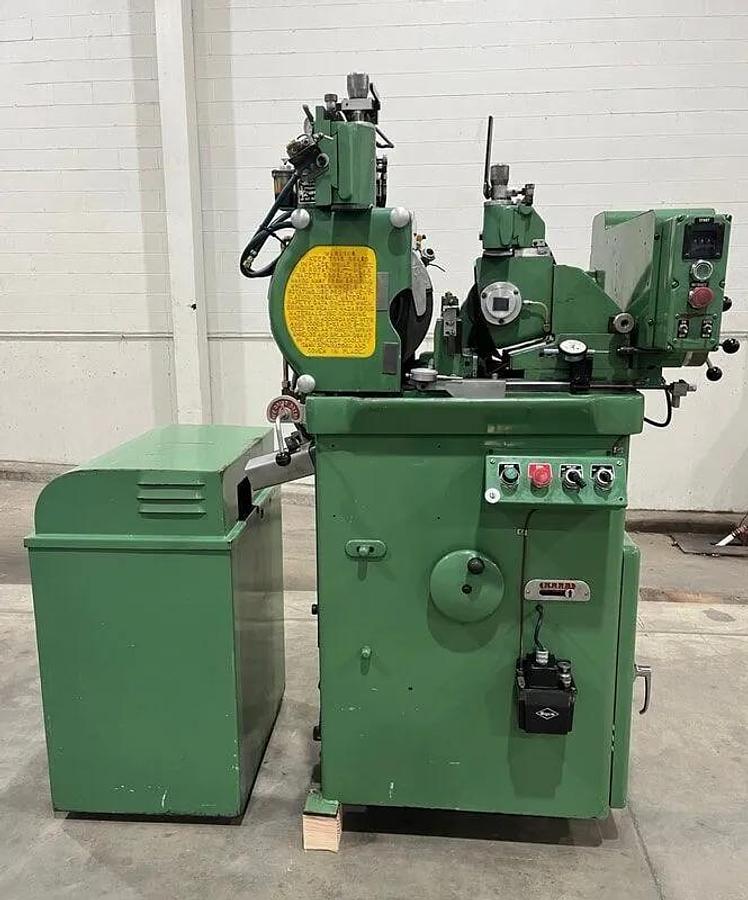

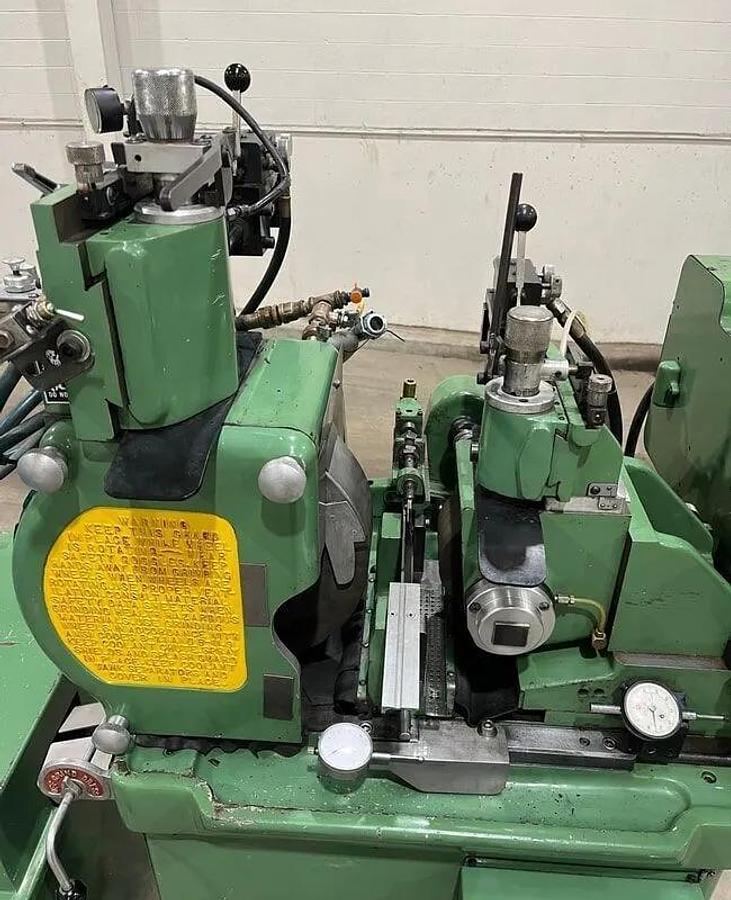

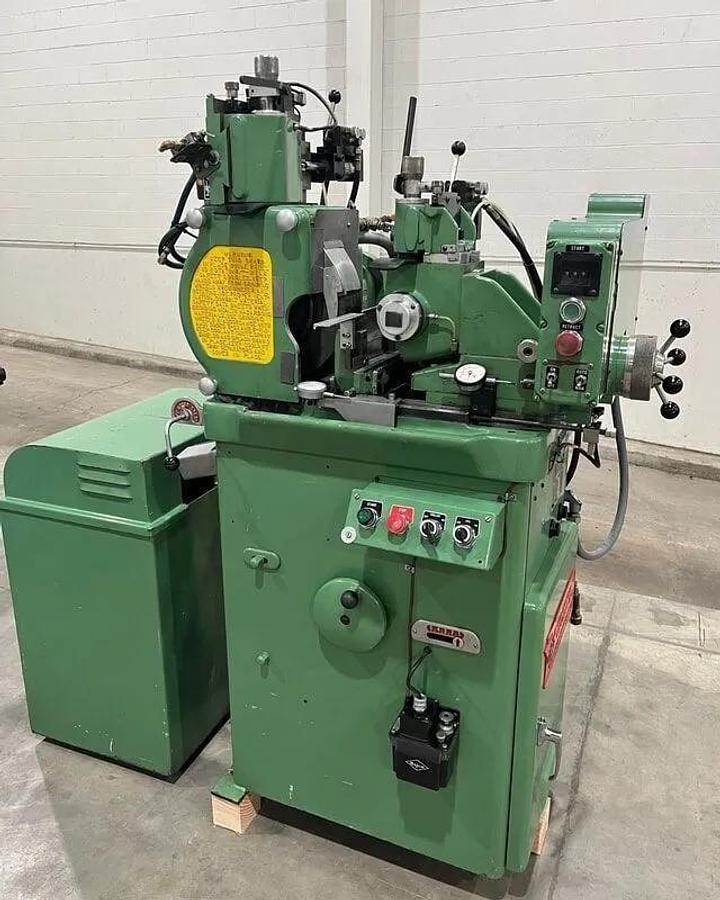

1999 Royal Master TG-12X3 Centerless Grinder 0.004 - 1.5" Diameter Capacity, Auto Cycle Attachment, Work Rest
1999 Royal Master TG-12X3 Centerless Grinder 0.004 - 1.5" Diameter Capacity, Auto Cycle Attachment, Work Rest
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description
Automatic Cycle Attachment
Work Rest
Hydraulic Profile Dressers for Grinding and Regulating Wheels
Royal Master Coolant System
Trabon Lubrication System
Work Light
Books & Manuals
Specifications
| Manufacturer | Royal Master |
| Model | TG-12X3 |
| Year | 1999 |
| Condition | Used |
| Stock Number | 120327 |
| Electrics | 230V / 3 Ph / 60 Hz |
| Regulating Wheel Spindle Speeds | 25 - 480 RPM Variable |
| Grinding Wheel Spindle Speed | 2,040 RPM |
| Size of Regulating Wheel - Maximum | 6" |
| Size of Regulating Wheel - Minimum | 4" |
| Grinding Wheel Size - Maximum | 12" |
| Grinding Wheel Size - Minimum | 10" |
| Size of Grinding Wheel | 3" W x 5" Bore |
| Grinding Capacity | 0.004" - 1.5" |
| Machine Weight - Approximate | 2,500 lbs. |
