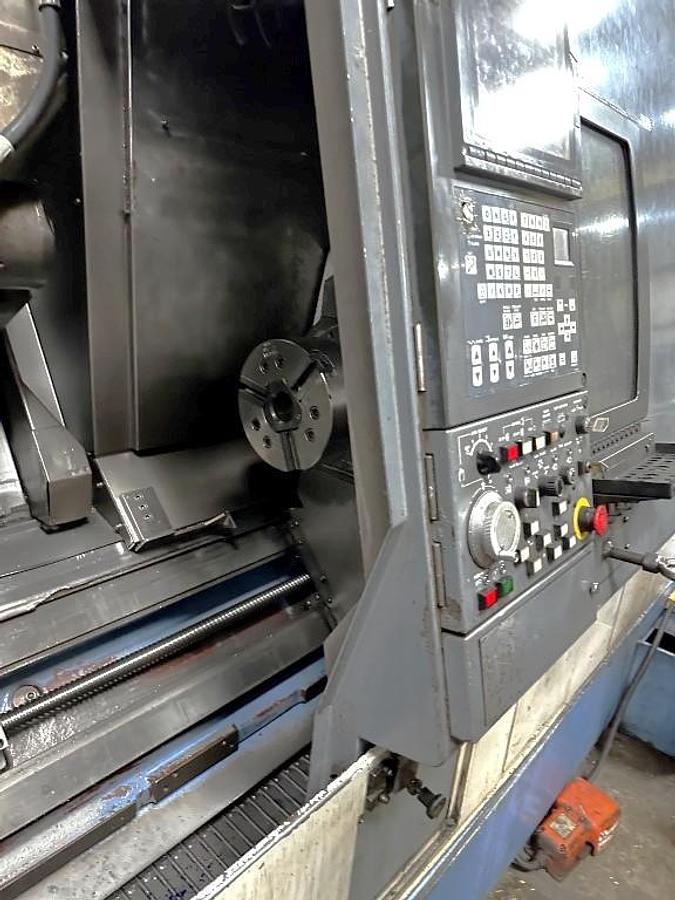

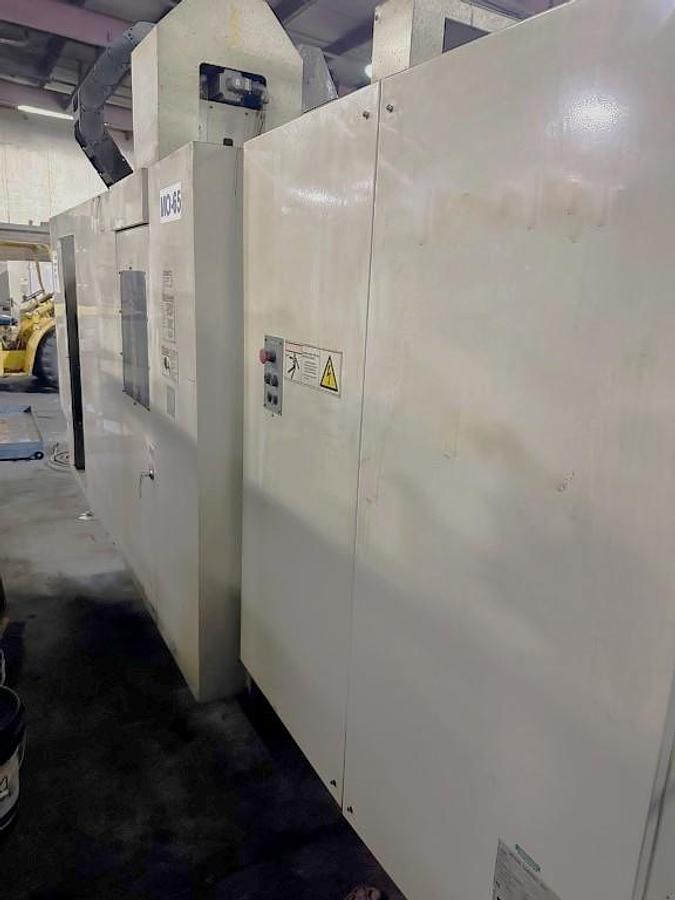

2000 Mazak Integrex 300SY with C Axis/Milling, Y Axis, Subspindle, 3" Bar Capacity, 40" Centers, Chip Conveyor, Toolsetter
2000 Mazak Integrex 300SY with C Axis/Milling, Y Axis, Subspindle, 3" Bar Capacity, 40" Centers, Chip Conveyor, Toolsetter
Contact us for price
Location:Ohio
or
Call (863) 439-6066
Description

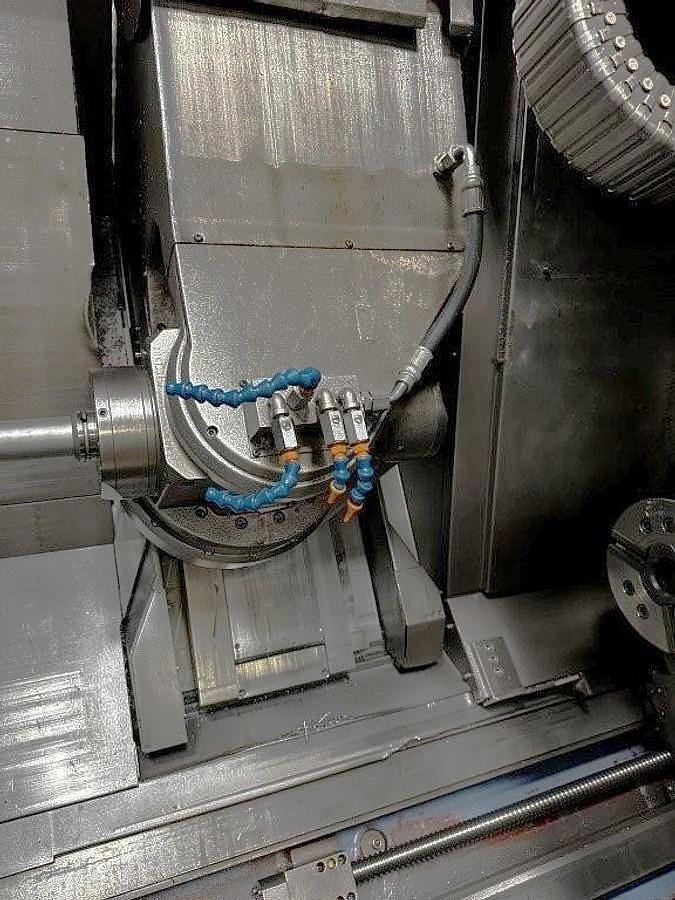

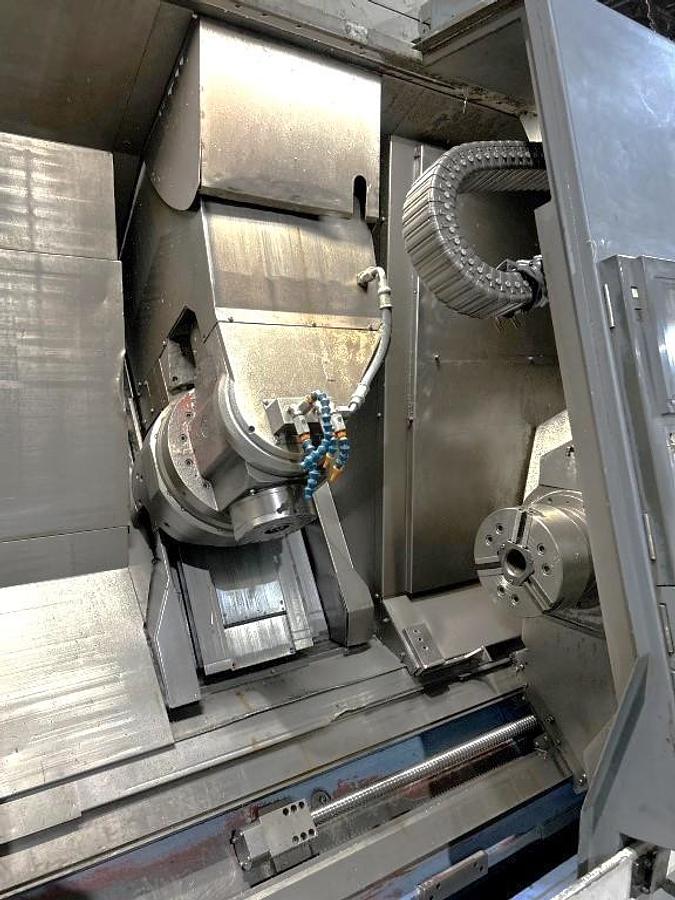

B-Axis Pendulum Style Turret Head
Y-Axis Capability
Full C-Axis Spindle Rotation
Milling / Drilling Capability
Subspindle
Chip Conveyor
10" 3 Jaw Hydraulic Chuck on Main Spindle
10" 3 Jaw Hydraulic Chuck on Sub Spindle
Automatic Tool Eye
Rigid Tapping
Wired 440V Currently
Multi Tap Transformer
All Available Manuals
**All spindles sound excellent**
Specifications
| Manufacturer | Mazak |
| Model | Integrex 300SY |
| Year | 2000 |
| Condition | Used |
| Stock Number | 120326 |
| Machine Control | Mazatrol Fusion 640MT |
| Chuck Sizes Main / Subspindle | 10" 3-Jaw Hydraulic / 10" 3-Jaw Hydraulic |
| Maximum Swing Over Cross Slide | 13.8" |
| Maximum machining diameter | 24" |
| Distance Between Centers | 40" |
| X-Axis Travel | 22.83" |
| Y-Axis Travel | +/- 4.13" |
| Z-Axis Travel | 43.11" |
| B-Axis Tilt Movement | 225 Degrees at .001 Increments |
| C-Axis Rotation | .001 Degree |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8 / 3.46" / 3" |
| Spindle Speed | 4,000 RPM |
| Spindle Motor | 40 HP / 30 HP |
| Subspindle Nose / Bore / Bar Capacity | A2-8" / 2.99" / 2.5" |
| Subspindle Speed | 4,000 RPM |
| Milling Spindle Speed | 10,000 RPM |
| Milling Spindle Motor | 20 HP |
| Tool Magazine Capacity | 40 Station Tool Changer |
| Rapid Traverse Rates (X, Y, Z) | 1181 IPM / 590 IPM / 1181 IPM |
| Machine Dimensions LxWxH | 207"x118"x110" |
| Machine Weight | 26,600 lbs |
