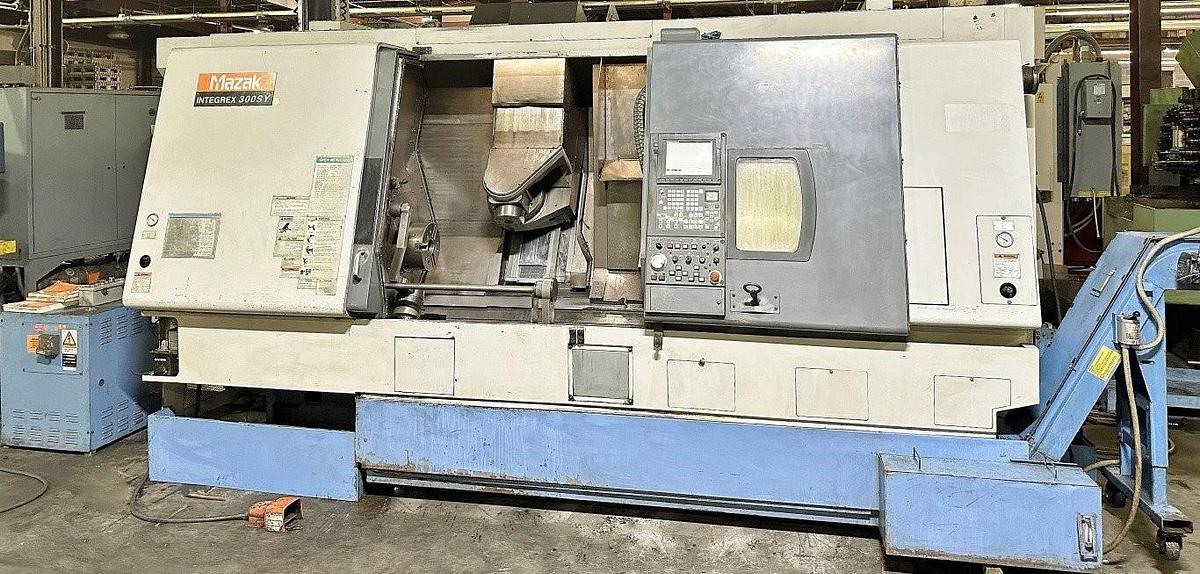

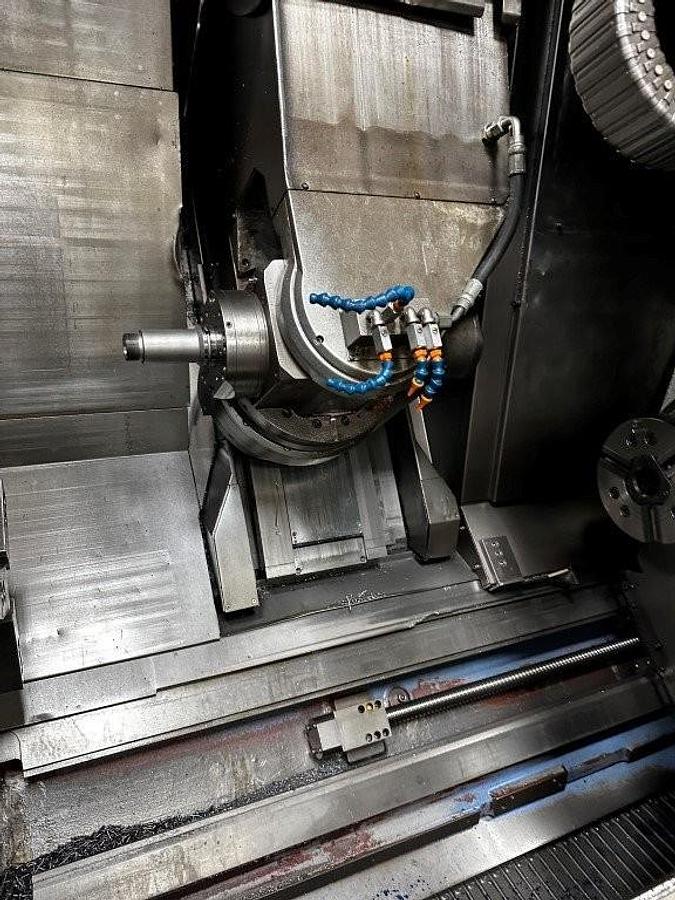

2000 Mazak Integrex 300SY
2000 Mazak Integrex 300SY
Contact us for price
Location:Ohio
or
Call (863) 439-6066
Description
Automatic Tool Eye

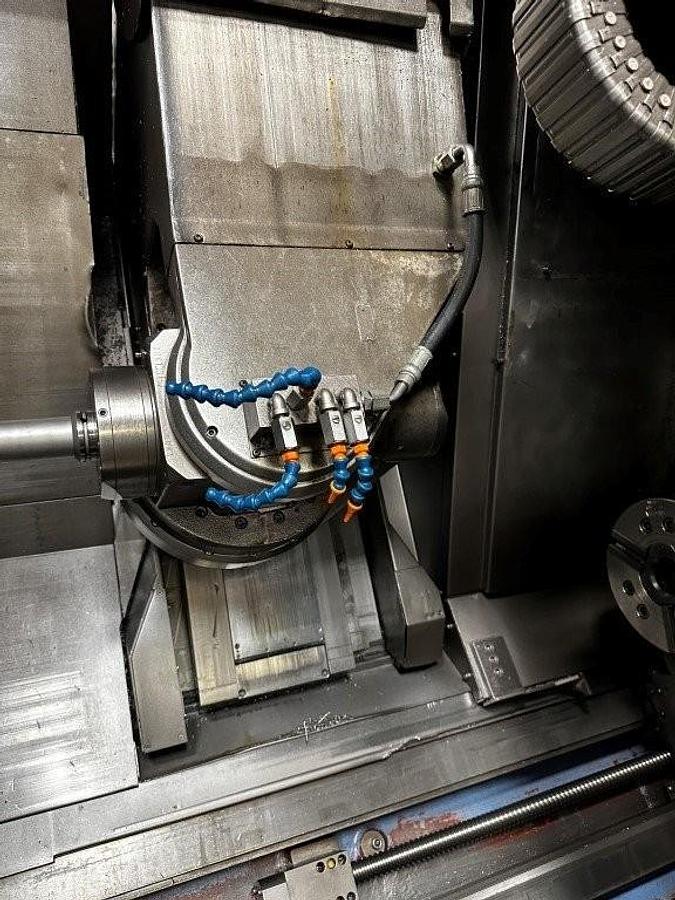

B-Axis Pendulum Style Turret Head
Y-Axis Capability

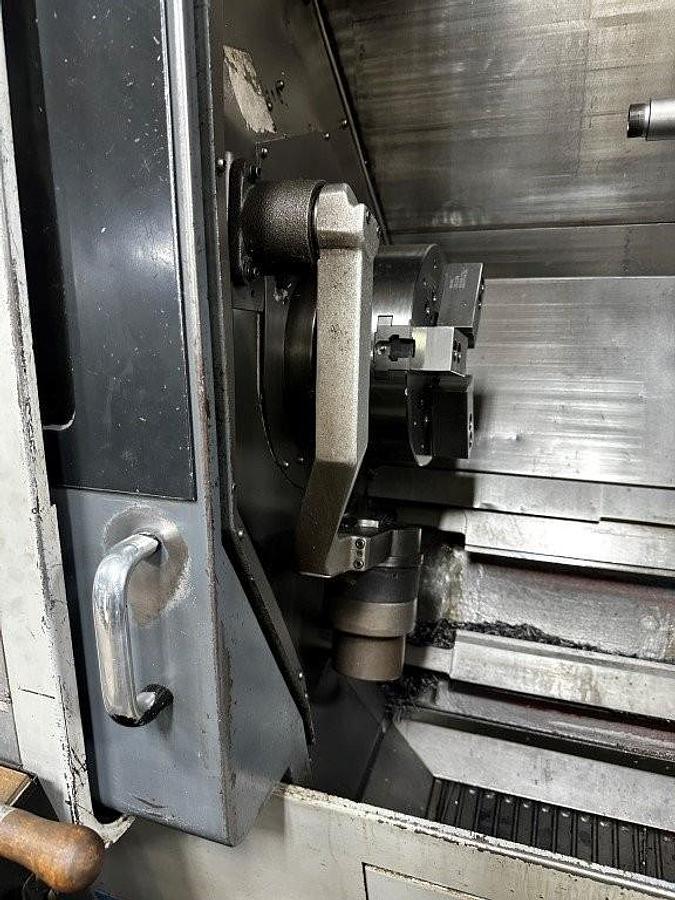

Full C-Axis Subspindle
Rigid Tapping

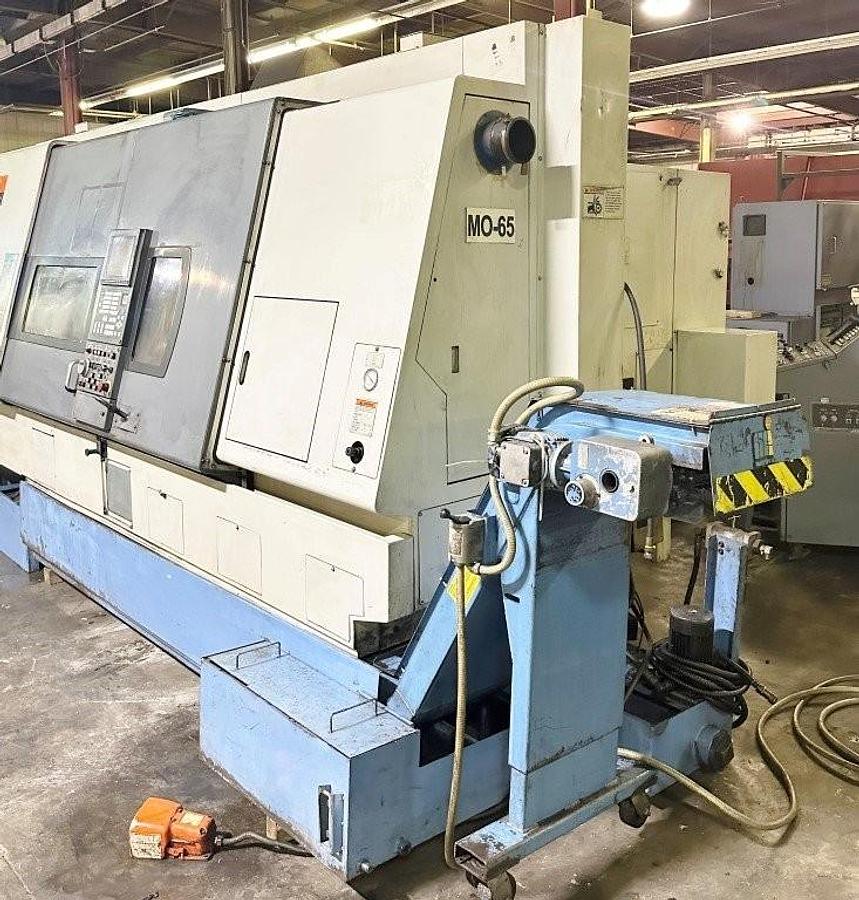

Chip Conveyor
Wired 440V
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Integrex 300SY |
| Year | 2000 |
| Condition | Used |
| Stock Number | 120326 |

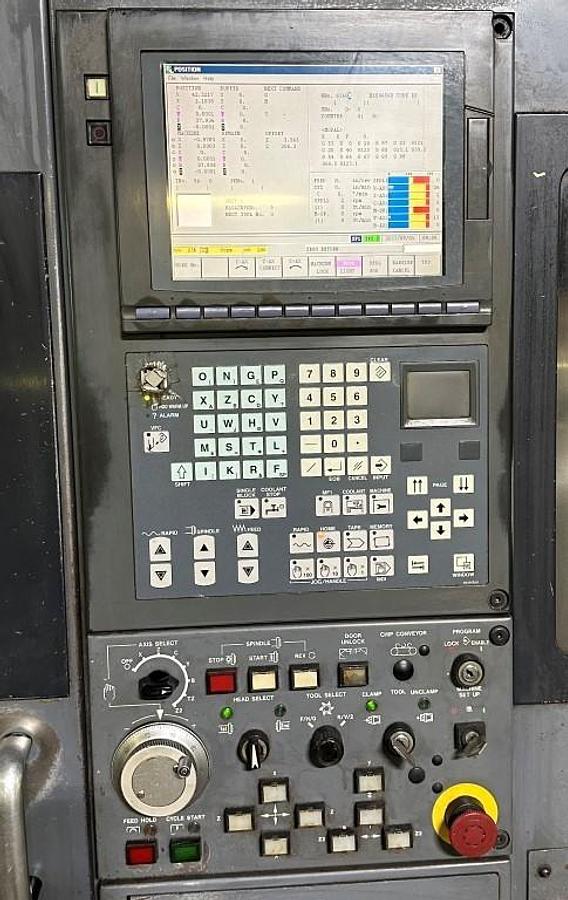

| Machine Control | Mazatrol Fusion 640MT |
| Chuck Sizes Main / Subspindle | 12" 3-Jaw Hydraulic / 10" 3-Jaw Hydraulic |
| Maximum Swing Over Cross Slide | 13.8" |
| Maximum machining diameter | 24" |
| X-Axis Travel | 22.83" |
| Y-Axis Travel | +/- 4.13" |
| Z-Axis Travel | 43.11" |
| Distance Between Centers | 40" |
| C-Axis Rotation | .001 Degree |
| B-Axis Tilt Movement | 225 Degrees at .001 Increments |
| Spindle Speed | 3,500 RPM |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8 / 3.46" / 3" |
| Spindle Motor | 40 HP / 30 HP |
| Tool Magazine Capacity | 40 atc |
| Milling Spindle Speed | 6,000 RPM |
| Milling Spindle Motor | 20 HP |
| Subspindle Nose / Bore / Bar Capacity | A2-8 / 2.99" / 2.5" |
| Subspindle Speed | 3,500 RPM |
| Rapid Traverse Rates (X, Y, Z) | 1181 IPM / 590 IPM / 1181 IPM |
| Machine Dimensions LxWxH | 207"x118"x110" |
| Machine Weight | 26,600 lbs |
