2019 Tsugami M08SY Live Tooling, Y-Axis, Sub Spindle, Barfeed
2019 Tsugami M08SY Live Tooling, Y-Axis, Sub Spindle, Barfeed
Contact us for price
Location:California
or
Call (863) 439-6066
Description
Rigid Tapping
Tool Eye
Chip Conveyor
Status Lights

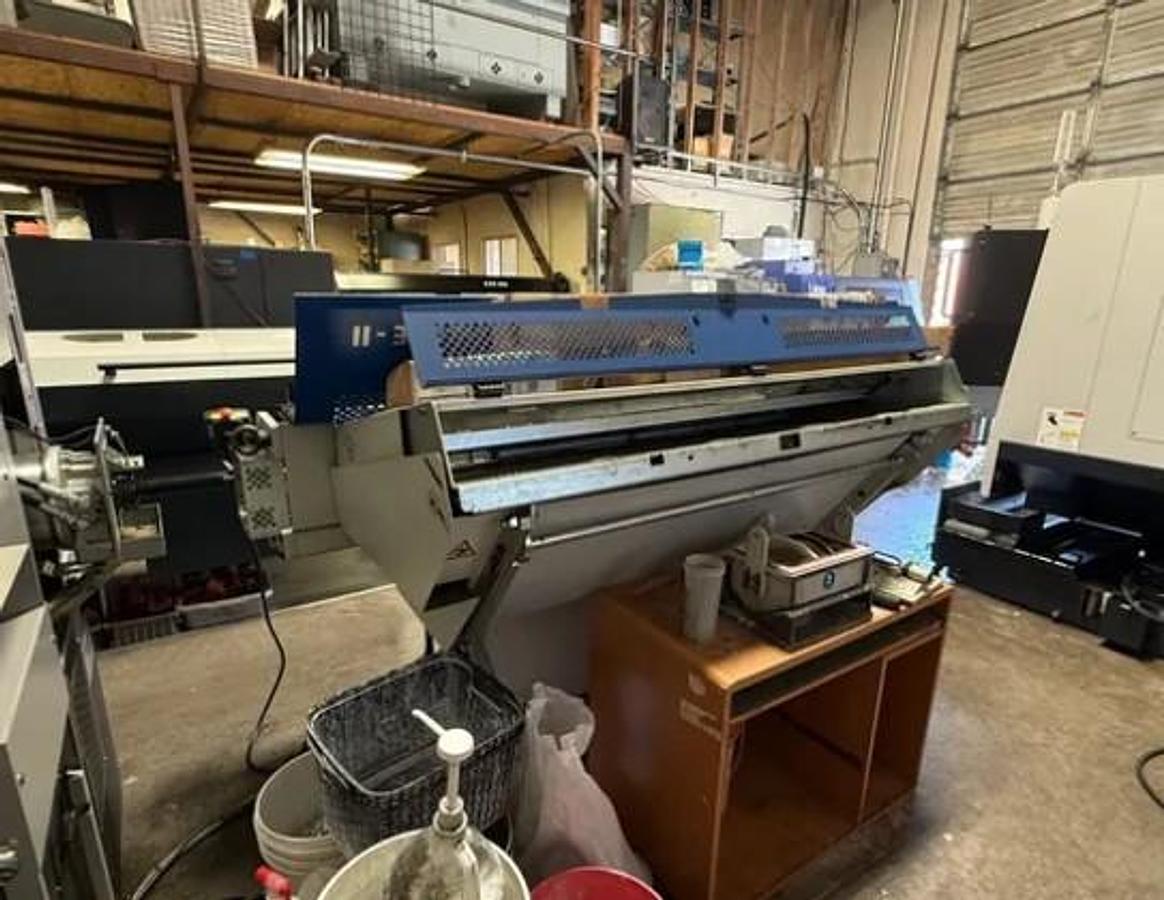

Barfeed
Parts Catcher

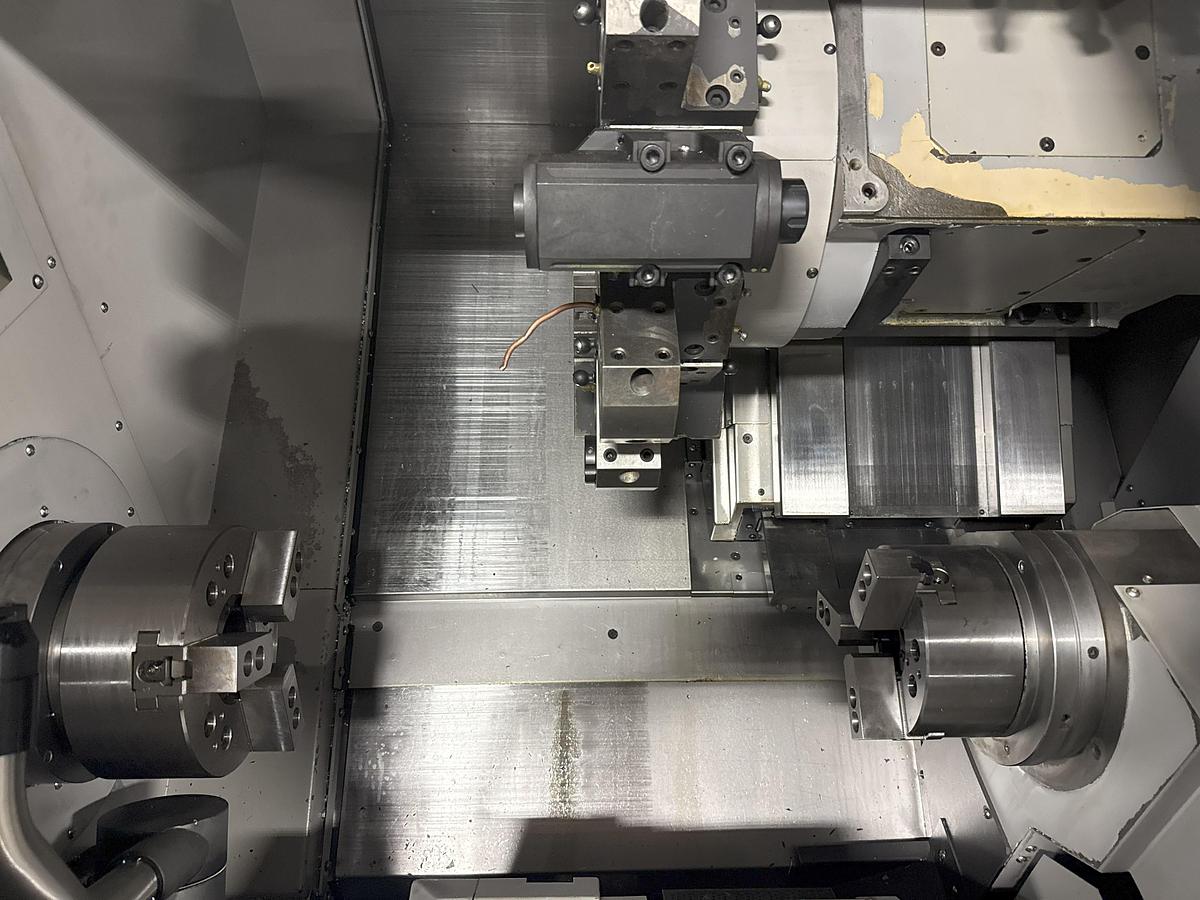

SubSpindle
All Available Manuals

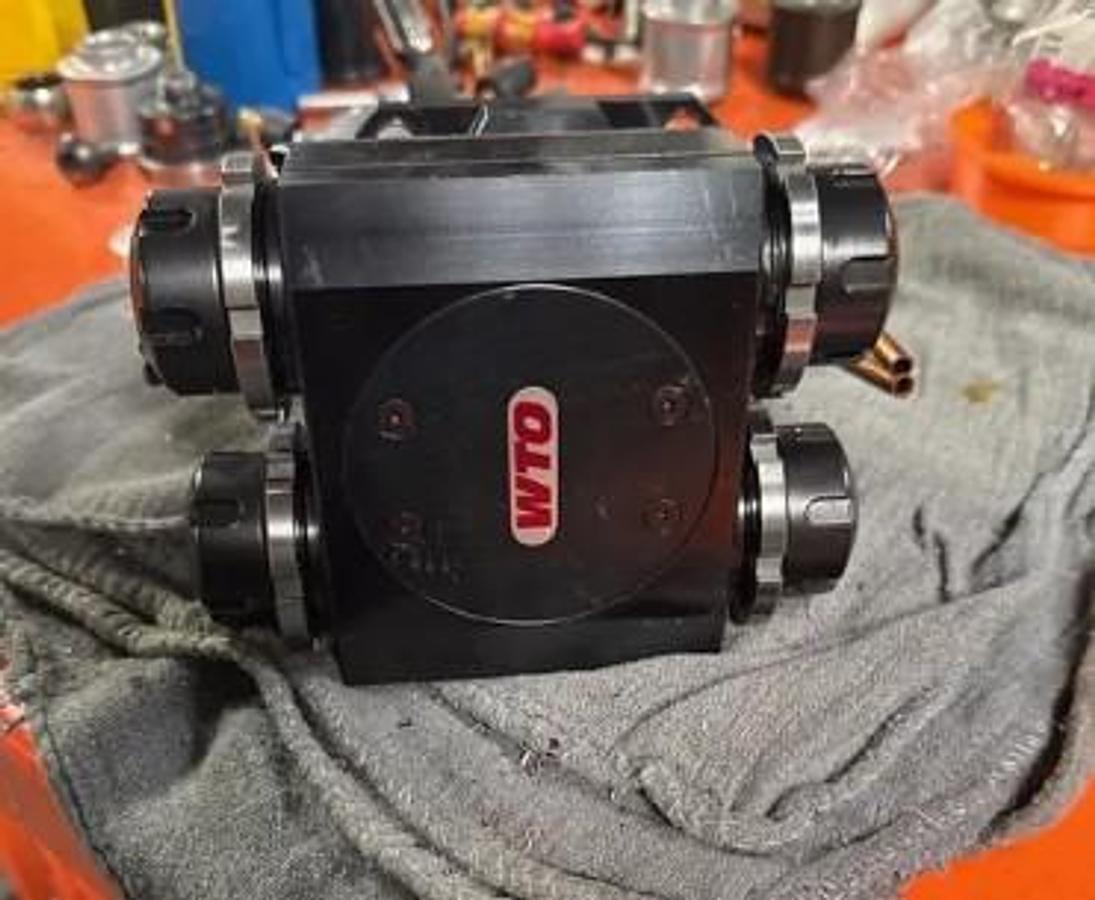

2- Axial Live Tool Holders
2-Radial Live Tool Holders
Complete Tooling Package of Static Tooling
Specifications
| Manufacturer | Tsugami |
| Model | M08SY Live Tooling, Y-Axis, Sub Spindle, Barfeed |
| Year | 2019 |
| Condition | Used |
| Stock Number | 120320 |
| Machine Control | Fanuc Oi-TF |

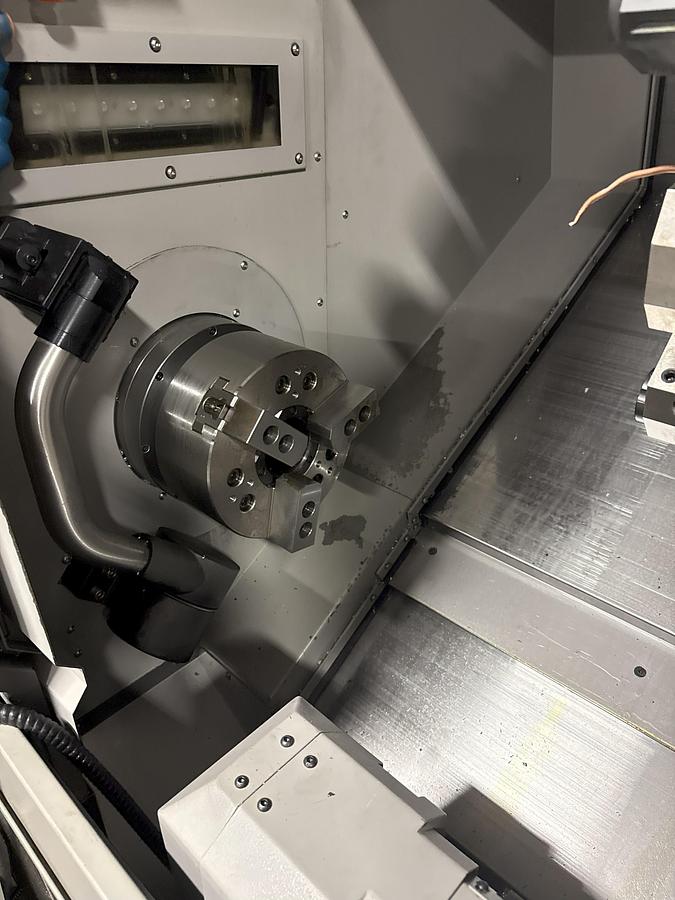

| Chuck Sizes Main / Subspindle | 8" 3-Jaw / 6" 3-Jaw |
| Maximum Turning Diameter | 11.02" |
| Maximum turning length | 14.96" |
| Distance Between Centers | 19.92" |
| X-Axis Travel | (X1, X2, X3) 8.7" |
| Y-Axis Travel | (Y1, Y2, Y3) 3.94" |
| Z-Axis Travel | (Z1, Z2, Z3) 15.75" |
| C-Axis Rotation | Main & Subspindle .001 Degees |
| W-Axis Travel | 19.92" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6 / 2.87" / 2.56" (Subspindle) 140 Flat / 2.5" / 2.04" |

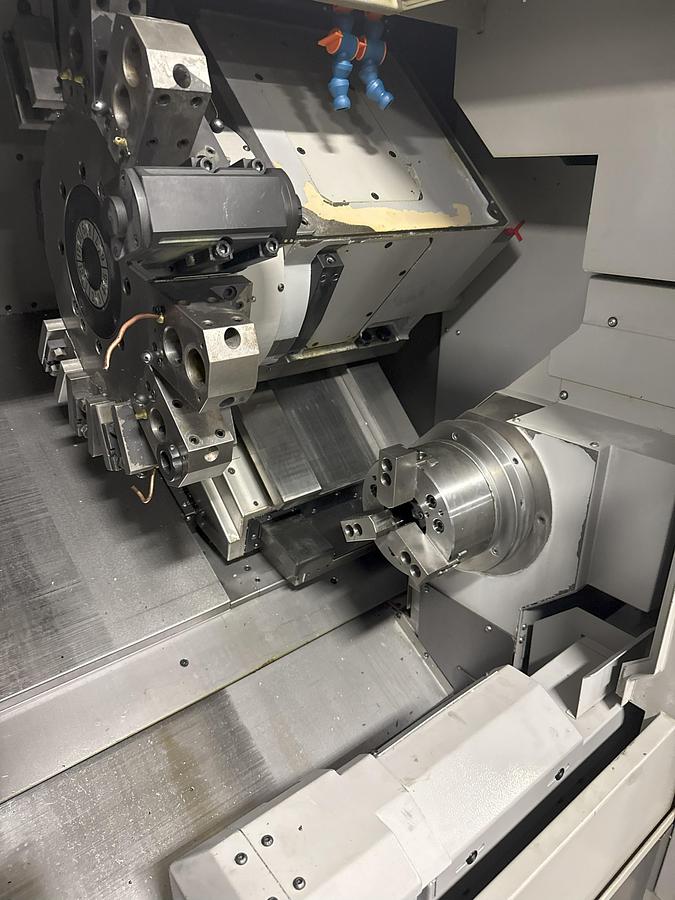

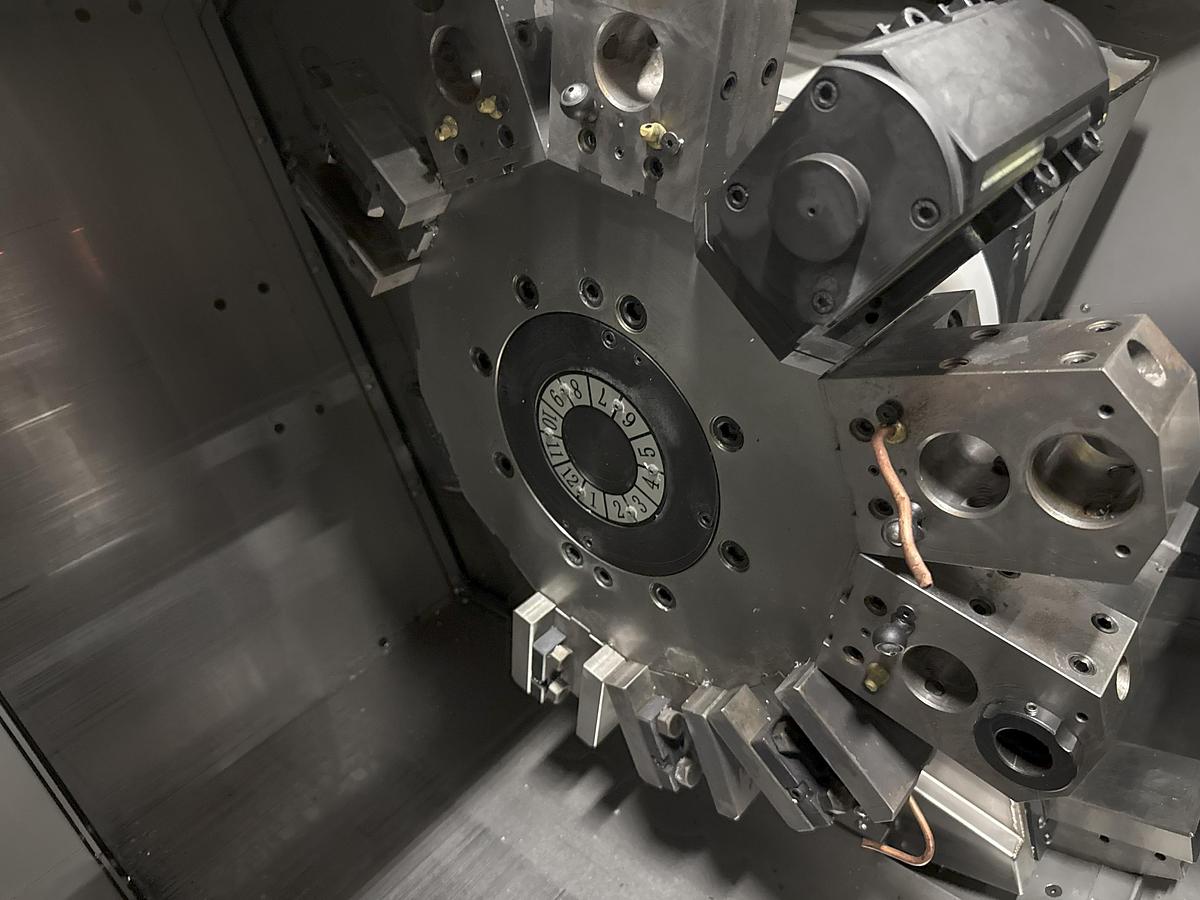

| Number of Turret Positions | 12 |
| Milling Spindle Speed | 4,500 RPM Both Spindles |
| Spindle Motor | 15 hp Subspindle 10 hp |
| Rapid Traverse Rates (X, Y, Z) | 945 IPM / 472 IPM / 1062 IPM |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 5 HP |
| Machine Dimensions LxWxH | 106"x74"x75" |
| Machine Weight | 13,228 lbs |
