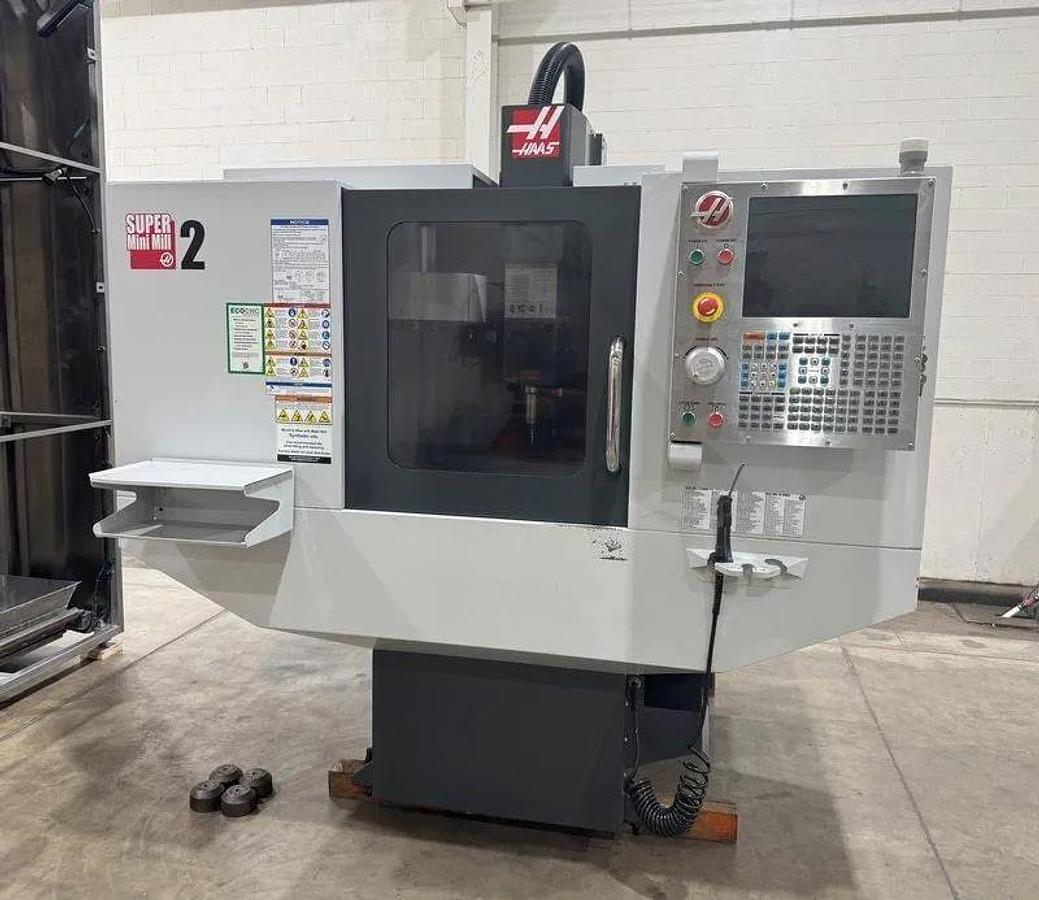

2011 Haas Super Mini Mill 2 , WIPS Renishaw Part & Tool Probe, Wired for 4th Axis, Rigid Tapping, High-Speed Machining, 20 hp
2011 Haas Super Mini Mill 2 , WIPS Renishaw Part & Tool Probe, Wired for 4th Axis, Rigid Tapping, High-Speed Machining, 20 hp
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description
Haas Intuitive Programming
WIPS Renishaw Part & Tool Prove
Optical Machine Interface
750MB Memory
Hi-Speed Machining
Rigid Tapping
20 hp
40 Gallon Coolant Tank
4th Axis Ready
Mist System
Work Light
RS 232 Port Interface
All Available Manuals
Miscellaneous CAT 40 Tooling
Cycle Start Time 390 Hours
Feed Cutting Time 253 Hours
Specifications
| Manufacturer | Haas |
| Model | Super Mini Mill 2 , WIPS Renishaw Part & Tool Probe, Wired for 4th Axis, Rigid Tapping, High-Speed Machining, 20 hp |
| Year | 2011 |
| Condition | Used |
| Stock Number | 120318 |
| Machine Control | Haas CNC Control |
| Table Size | 40" x 14" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 14" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 15,000 RPM |
| Spindle Motor | 20 HP |
| Rapid Traverse Rates | 1200 IPM |
| Tool Magazine Capacity | 10 Station ATC |
| Distance Spindle Nose to Table Top | 4" - 18" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 91"x88"x100" |
| Machine Weight | 6,000 lbs |
