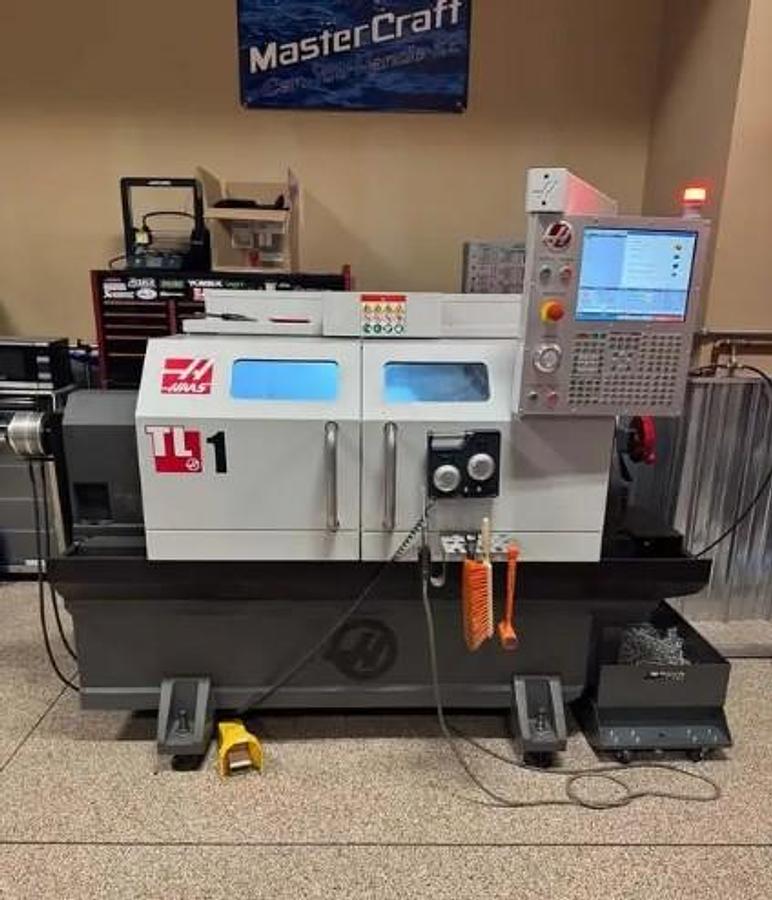

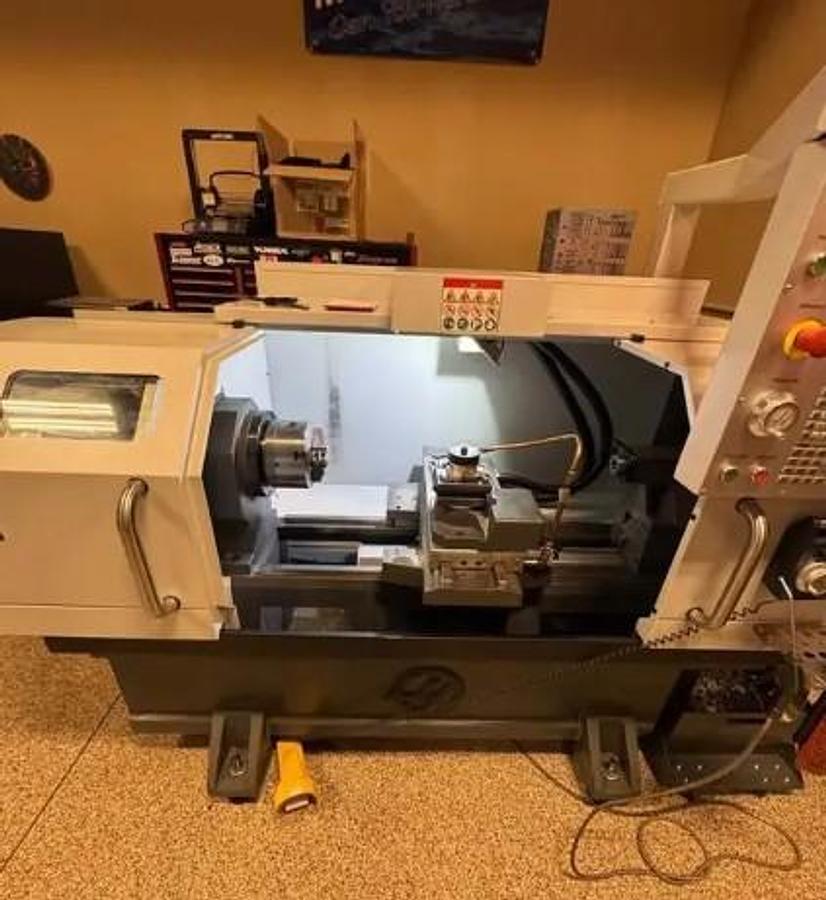

2018 Haas TL-1 with 8" Chuck, 4,000 RPM, 4 Station Indexable Turret, Tailstock, Coolant System, Remote Jog Handle
2018 Haas TL-1 with 8" Chuck, 4,000 RPM, 4 Station Indexable Turret, Tailstock, Coolant System, Remote Jog Handle
$36,500 (USD)
Location:Utah
or
Call (863) 439-6066
Description

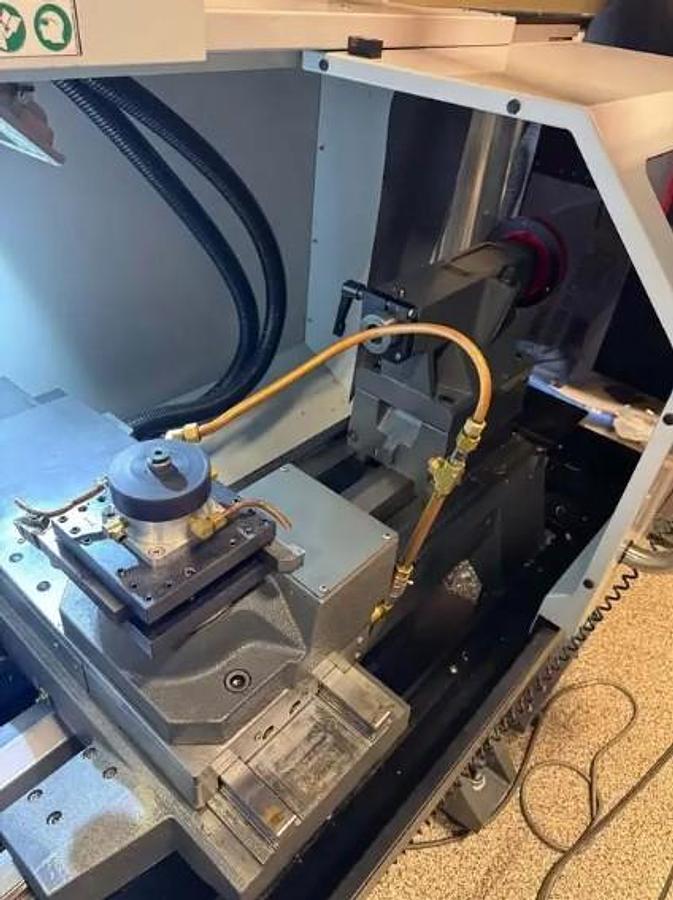

4 Way Indexable Turret
Tailstock

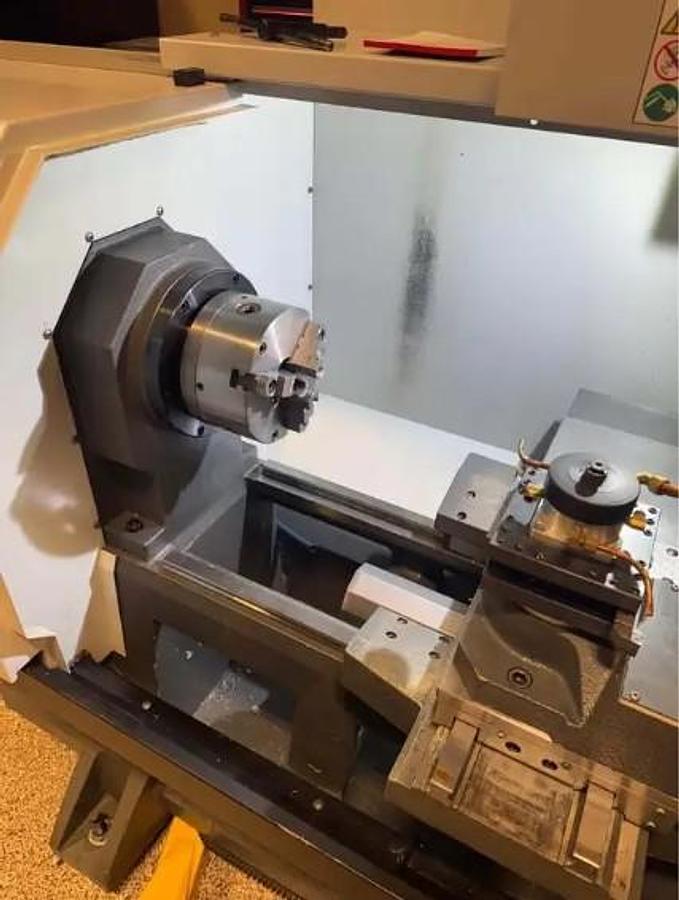

4,000 RPM Spindle Option 8" 3 Jaw Manual Chuck

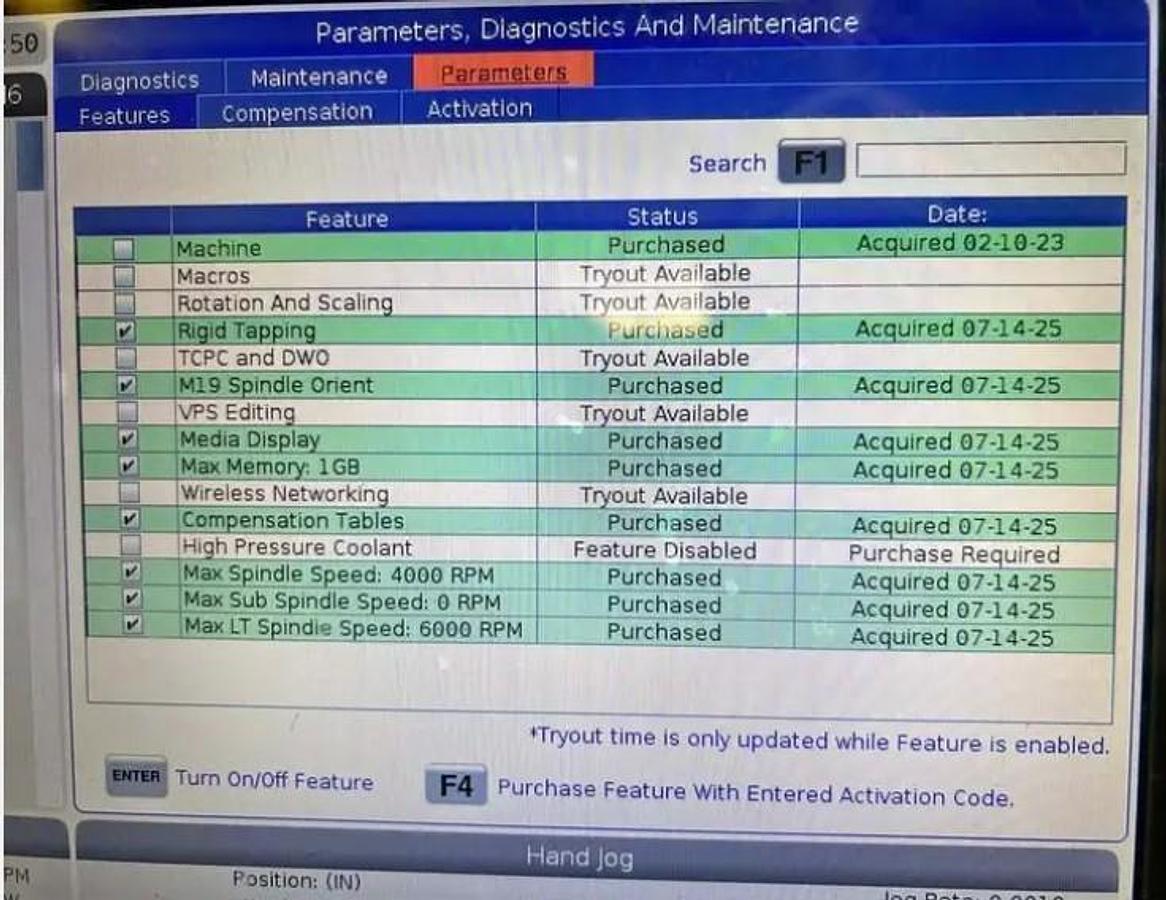

Electronic Handwheels Rigid Tapping
Spindle Orientation
Haas Visual Part Programming Software Coolant System with Tank & Pump Integral Chip-Flow Channel Full Enclosure Doors
USB Port Interface RS 232 Port Interface
Media Display
Compensation Tables
1 GB Programming Memory
Work Light
Machine is wired 220V / 3 Phase Electrics

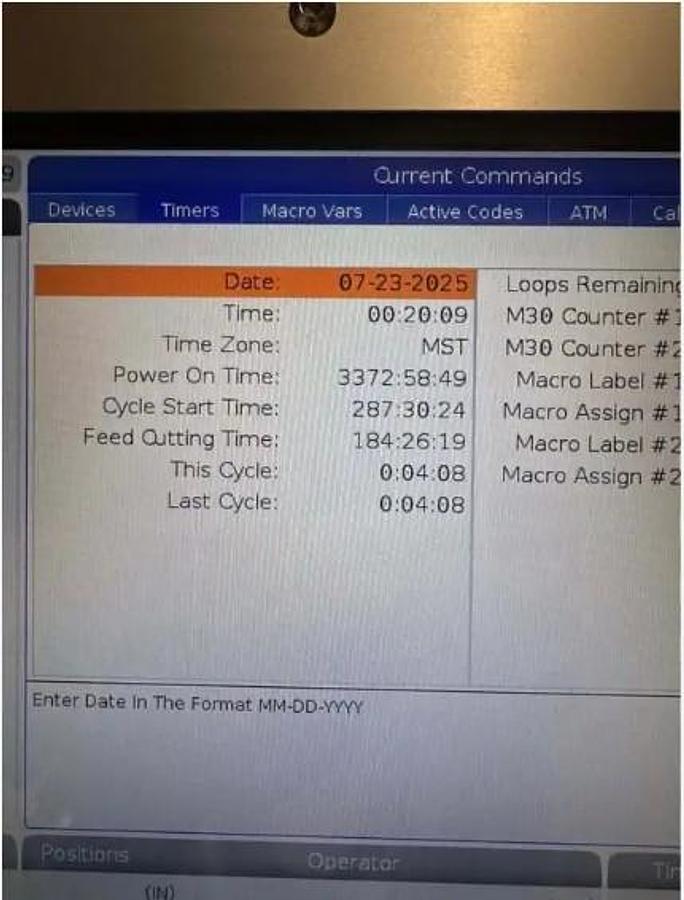

**Power On Hours 3,372**
**Cycle Start Hours 287**
**Feed Cutting Hours 184**
**This machine is in outstanding condition with little use**
**Price new as equipped at $58,960**
Specifications
| Manufacturer | Haas |
| Model | TL-1 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 120316 |
| Control | Haas CNC Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 8.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 3,000 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | 4 Station Turret |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 88" x 56" x 75" |
| Machine Weight | 4,100 lbs. |
