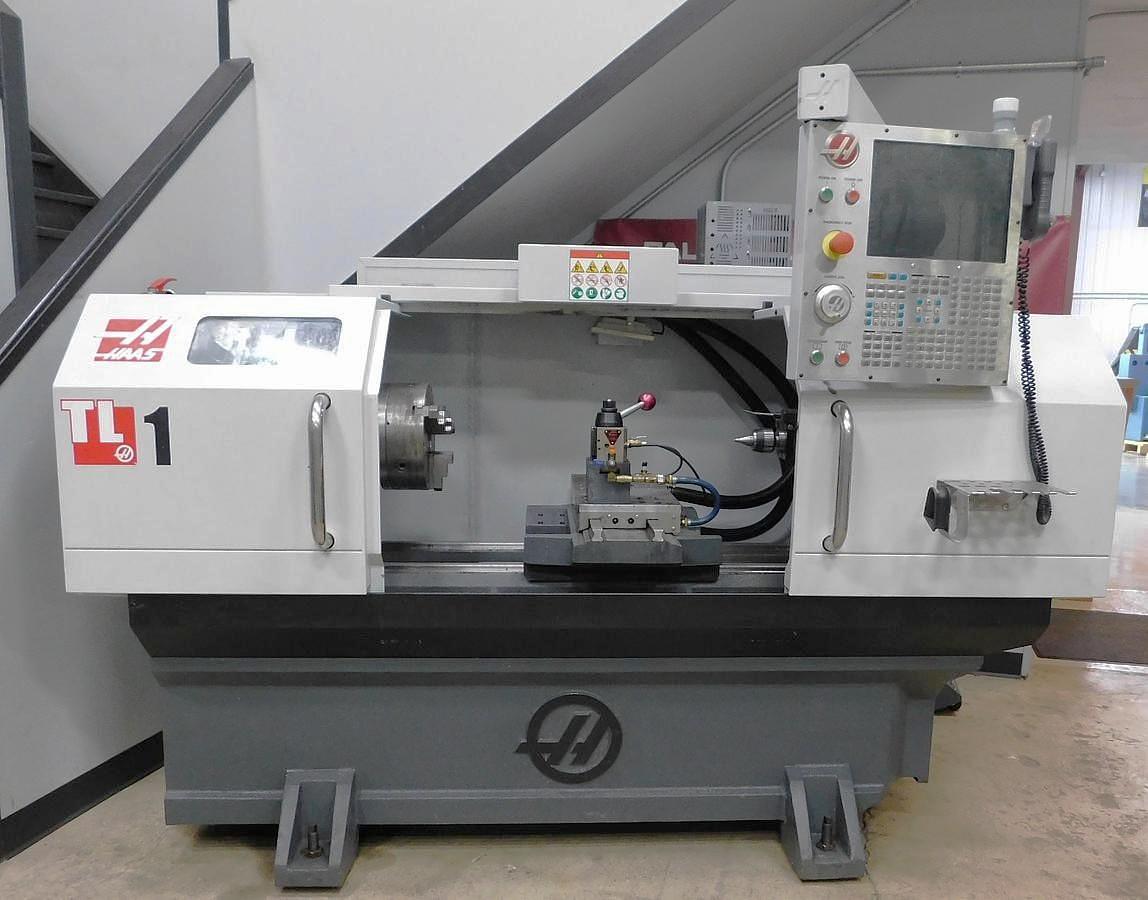

2017 Haas TL-1 with 3" Big Bore Spindle, A2-6" Spindle Nose, Tailstock, Tool Post, Coolant, Remote Jog Handle
2017 Haas TL-1 with 3" Big Bore Spindle, A2-6" Spindle Nose, Tailstock, Tool Post, Coolant, Remote Jog Handle
$29,950 (USD)
Location:Iowa
or
Call (863) 439-6066
Description
3" Big Bore Spindle with A2-6" Spindle Nose
10" 3 Jaw Manual Samchully Chuck
Quick Change Tool Post
Tailstock Remote Jog Handle
Haas Visual Part Programming Software Coolant System with Tank & Pump Integral Chip-Flow Channel Full Enclosure Doors
RS 232 Port Interface
Work Light
Machine is wired 220V Three Phase Power Only
** Price new as equipped at over $50,000**
Specifications
| Manufacturer | Haas |
| Model | TL-1 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 120315 |
| Control | Haas CNC Control |
| Chuck Size | 10" 3 Jaw Chuck |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 8.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-6" / 3.00" |
| Spindle Speeds | 1,800 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | Tool Post |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 88" x 56" x 75" |
| Machine Weight | 4,500 lbs. |
