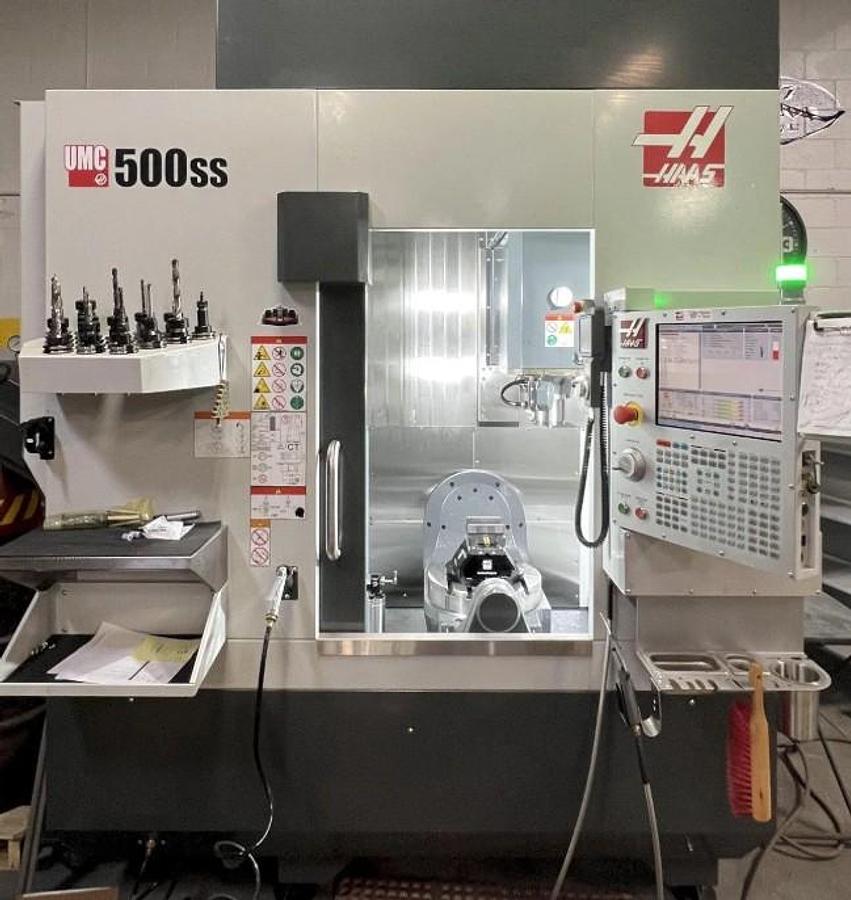

2022 Haas UMC-500SS Remote Jog Handle, Coolant Thru the Spindle, WIPS Renishaw Part & Tool Probe, Chip Conveyor
2022 Haas UMC-500SS Remote Jog Handle, Coolant Thru the Spindle, WIPS Renishaw Part & Tool Probe, Chip Conveyor
Contact us for price
Location:Wisconsin
or
Call (863) 439-6066
Description

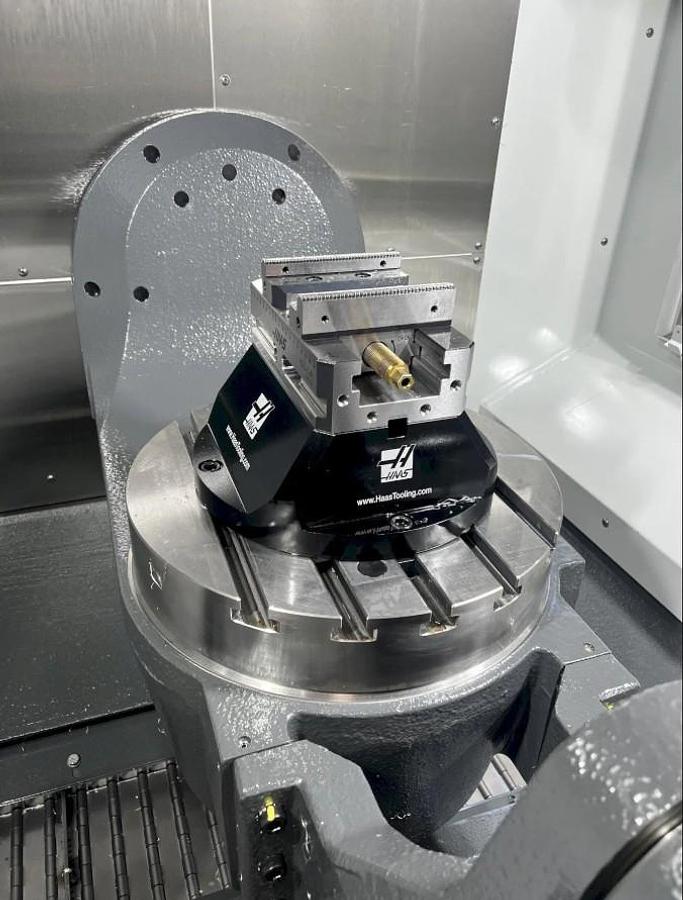

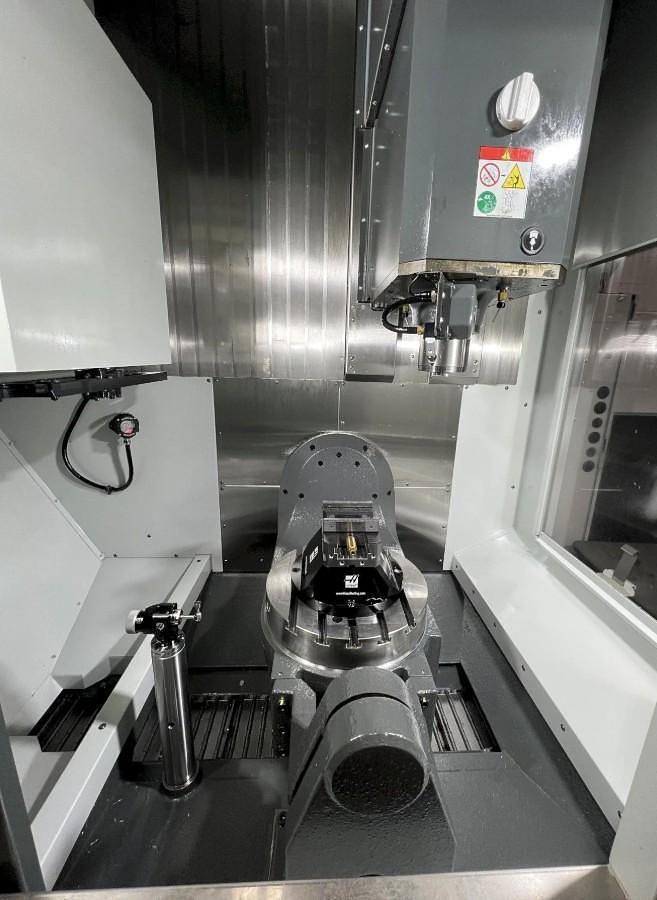

Trunnion Style 5th Axis Table
Coolant Through the Spindle
Renishaw Probing with Tool & Part Probing
Chip Conveyor

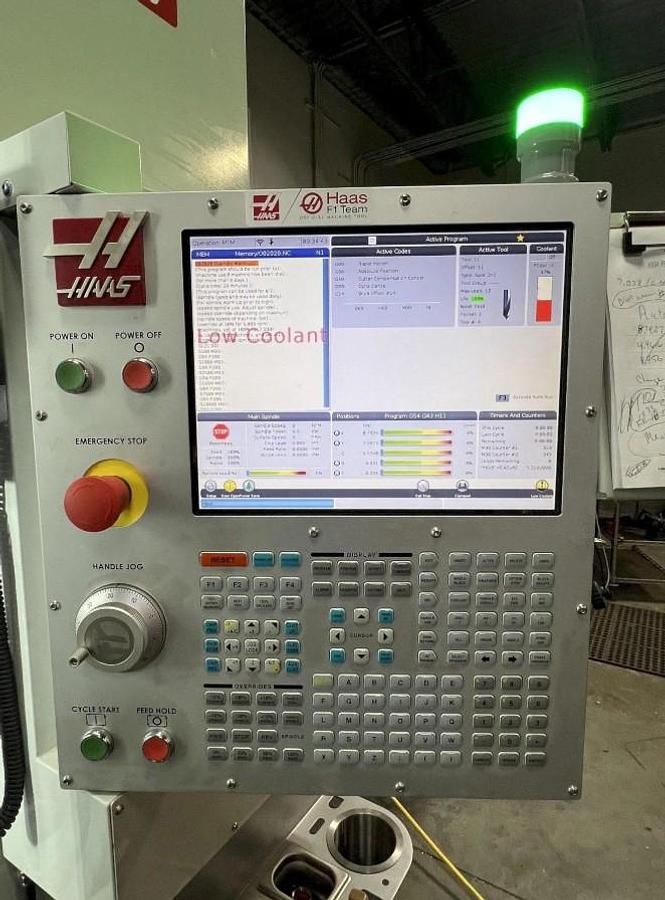

Remote Jog Handle
User Definable Macros
Coordinate Rotation & Scaling
Spindle Orientation
Rigid Tapping
High Speed Machining
VPS Editing
Media Display
Compensation Tables
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Wired 220V 3-Phase

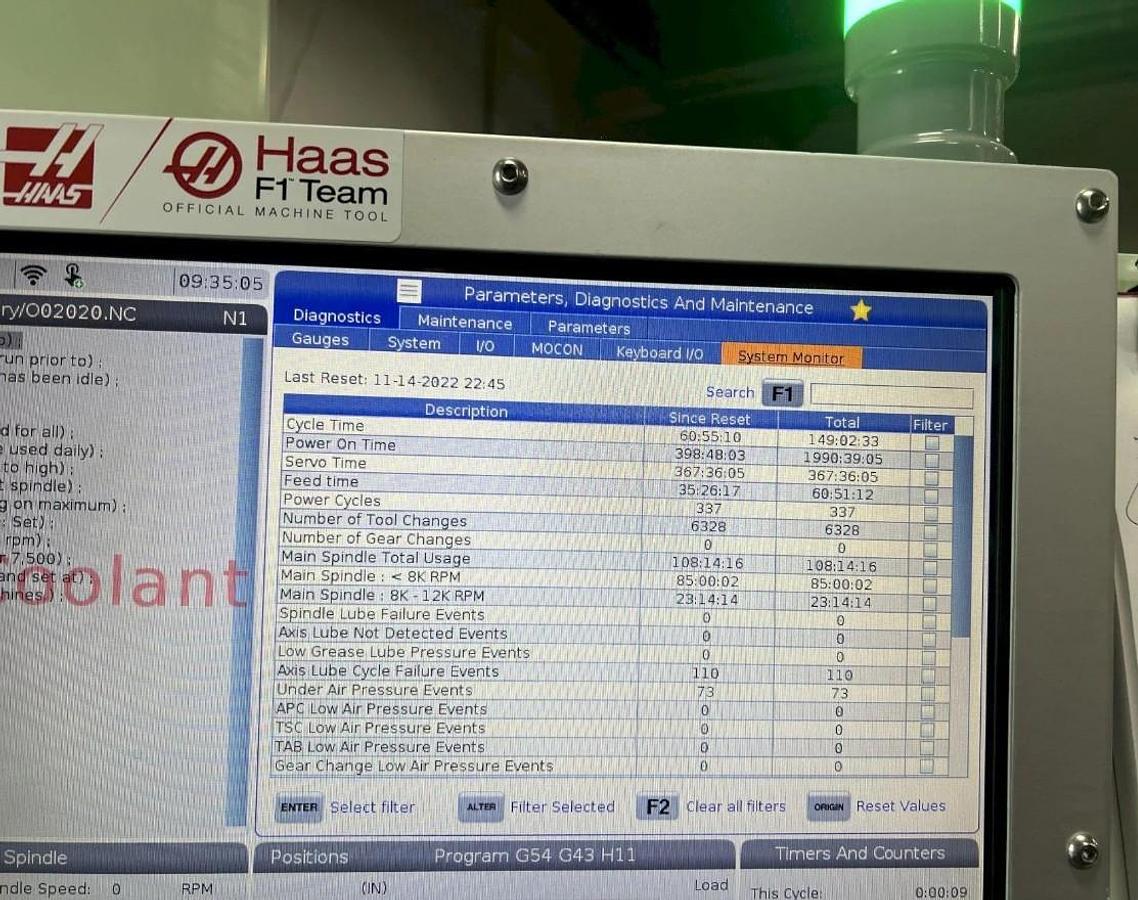

**Power On Time - 398 Hours**
**Cycle Start Time - 60 Hours**
**Feed Cutting Time - 35 Hours**
Specifications
| Manufacturer | Haas |
| Model | UMC-500SS Remote Jog Handle, Coolant Thru the Spindle, WIPS Renishaw Part & Tool Probe, Chip Conveyor |
| Year | 2022 |
| Condition | Used |
| Stock Number | 120313 |
| Table size | 15.7" Diameter |
| Table load capacity | 500 lbs |
| X axis travel | 24" |
| Y axis travel | 16" |
| Z axis travel | 16" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 20" |
| Tool magazine | 30 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 120" x 98" x 110" |
| Machine weight | 13,500 lbs |
