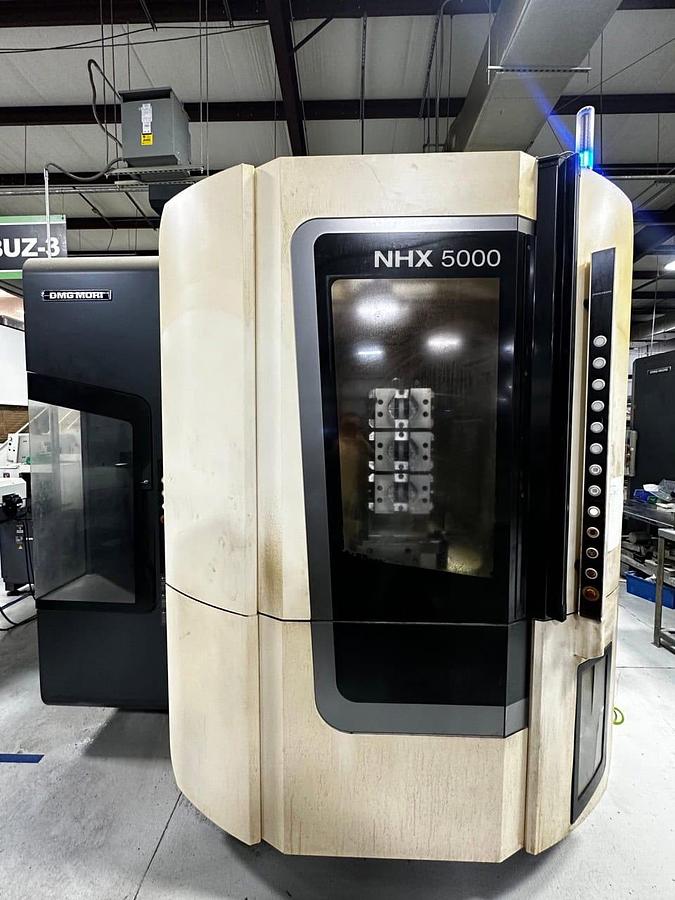

2017 DMG Mori NHX-5000, Full 4th, 60 atc, Chip Conveyor, Coolant Thru the Spindle, 15k rpm Spindle
2017 DMG Mori NHX-5000, Full 4th, 60 atc, Chip Conveyor, Coolant Thru the Spindle, 15k rpm Spindle
$129,500 (USD)
Location:Wisconsin
or
Call (863) 439-6066
Description
2 Pallet Changer System Full 4th Axis Rotary Table Coolant Through the Spindle

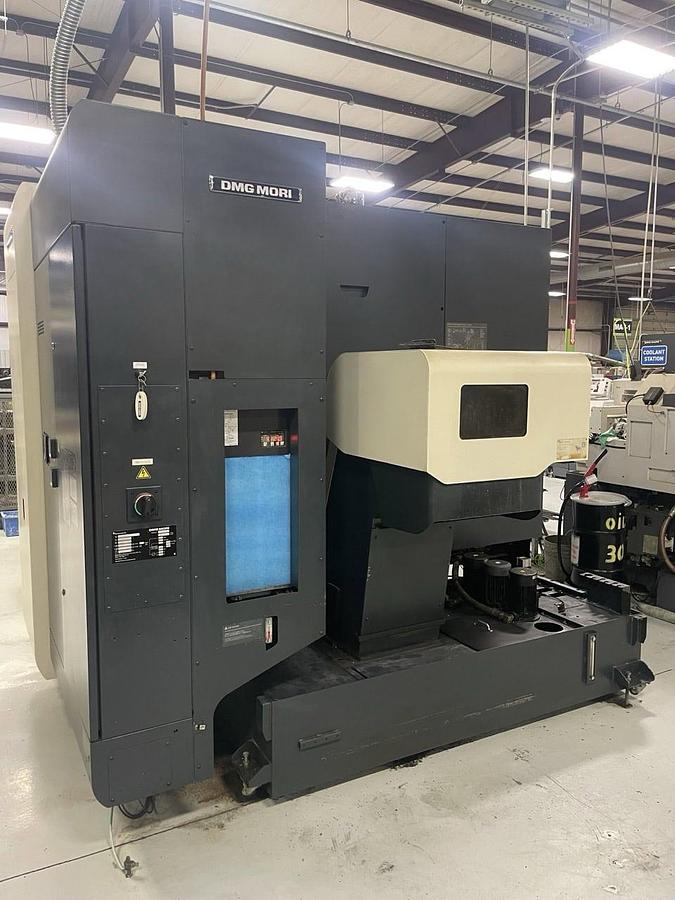

Chip Conveyor

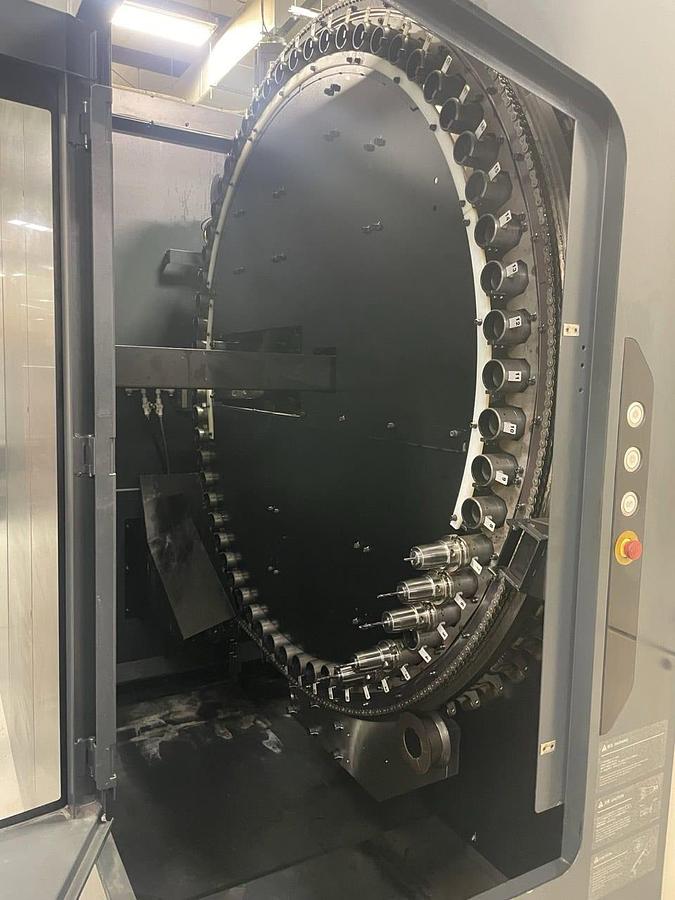

60 Station Tool Changer
15,000 RPM Spindle
Metrol Measuring System
Flood Coolant Rigid Tapping
Custom Macros
Spindle Orientation
Pallet Seat Detection
USB Port Interface
RS 232 Port Interface All Available Manuals
Specifications
| Manufacturer | DMG Mori |
| Model | NHX-5000, Full 4th, 60 atc, Chip Conveyor, Coolant Thru the Spindle, 15k rpm Spindle |
| Year | 2017 |
| Condition | Used |
| Stock Number | 120304 |

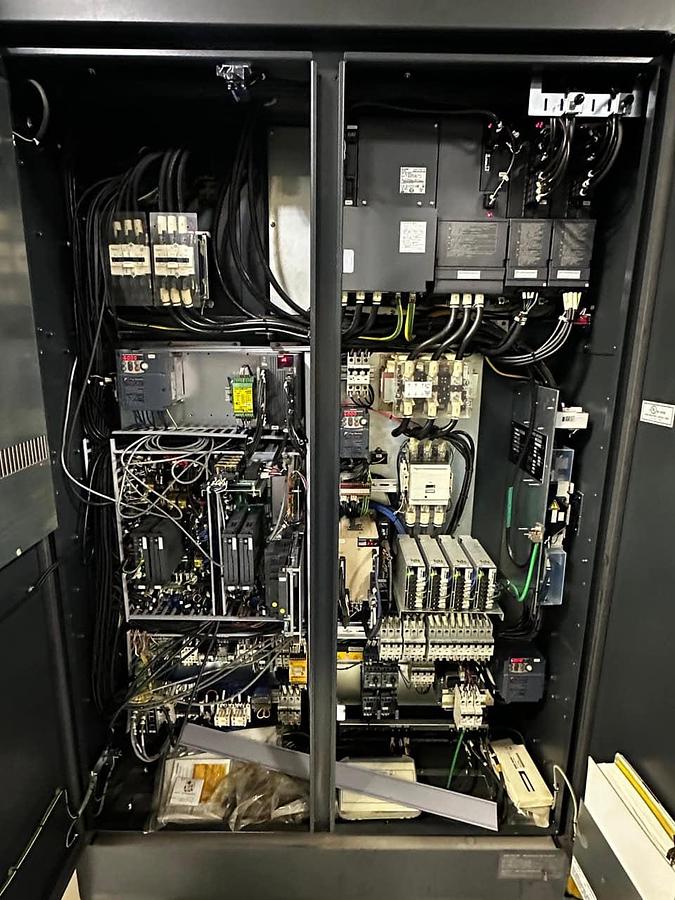

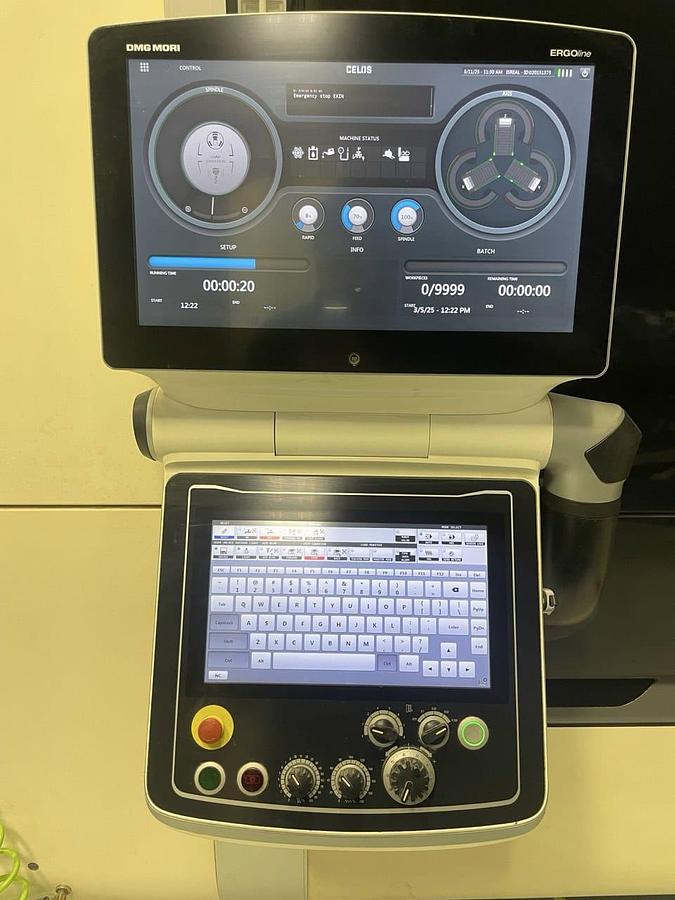

| Machine Control | Mitsubishi M730BM with MAPPS |

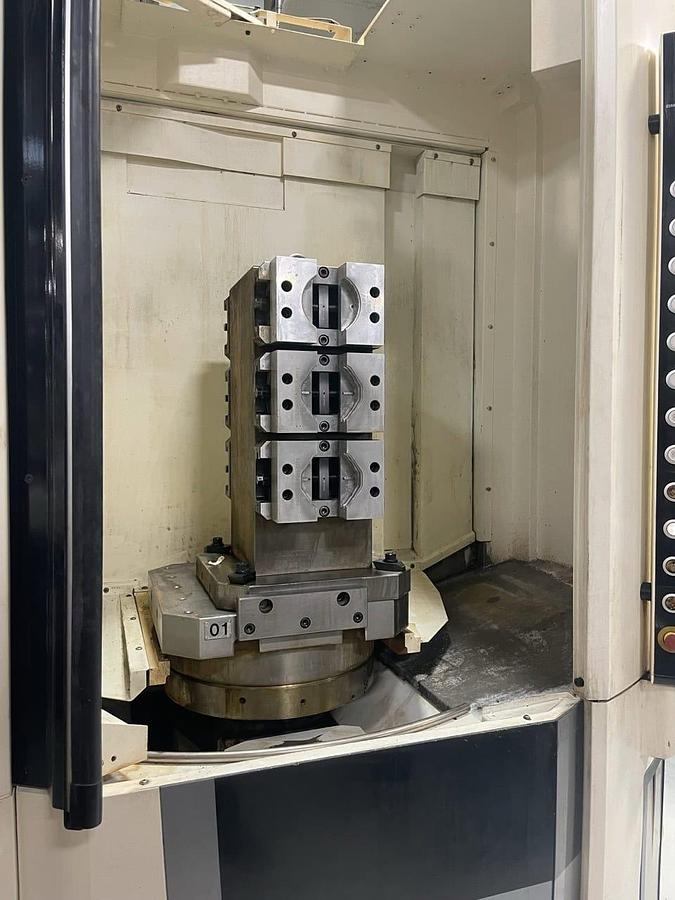

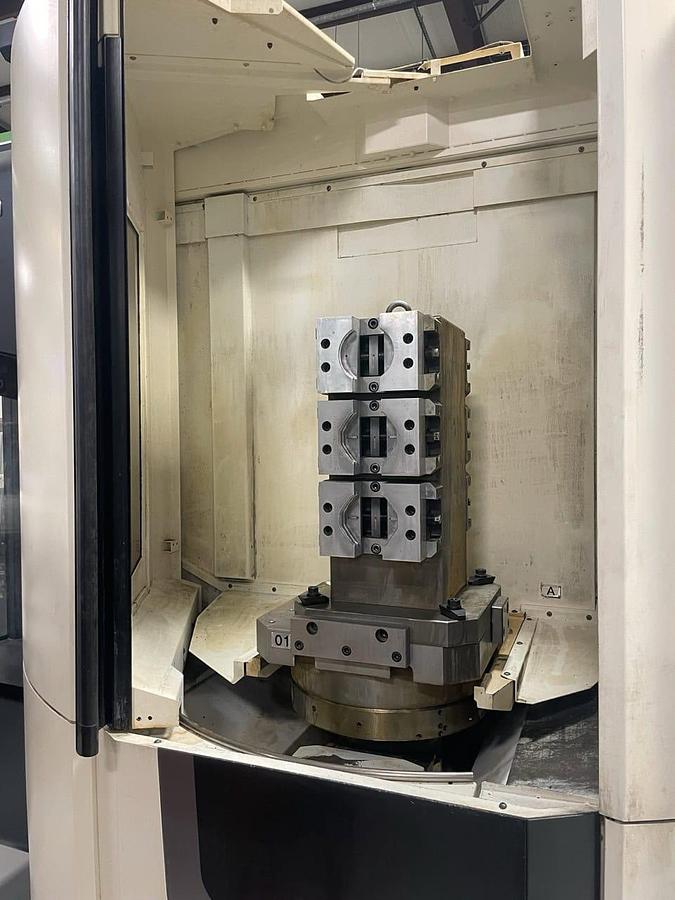

| Pallet Size / Number of Pallets | 19.7" x 19.7" / 2 Pallets |
| Maximum Weight on Table | 882 lbs. |
| Maximum Workpiece Height | 35.4" |
| Pallet Indexing | .001 Degrees |
| X-Axis Travel | 28.7" |
| Y-Axis Travel | 28.7" |
| Z-Axis Travel | 34.5" |

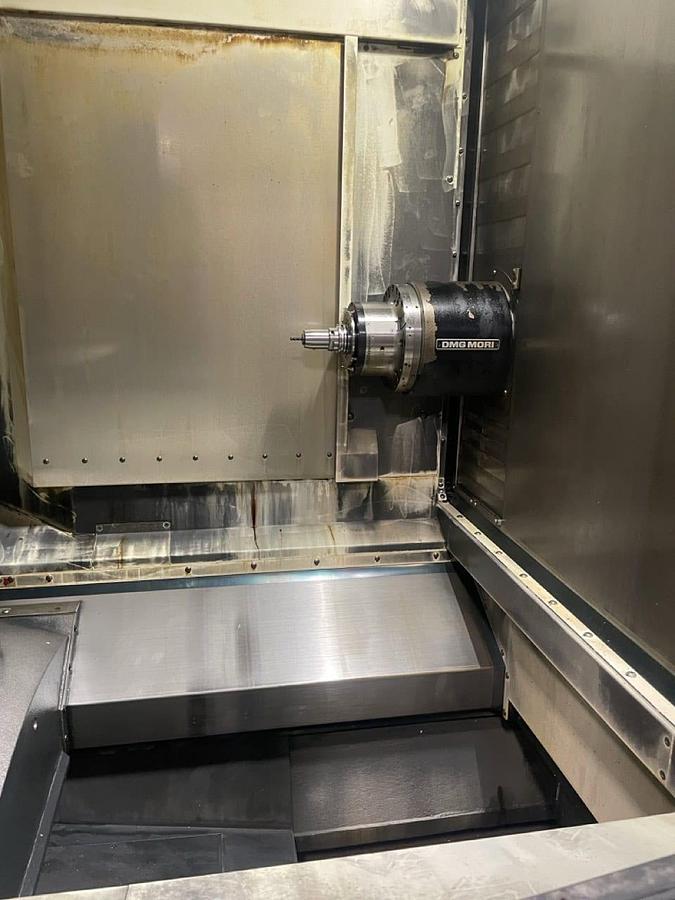

| Spindle Nose | #40 Taper |
| Spindle Speed | 15,000 RPM |
| Spindle Motor | 40 HP |
| Tool Magazine Capacity | 60 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 6.6" / 17.7" / 18 lbs. |
| Rapid Traverse Rates | 2,362 IPM |
| Cutting Feedrates | 984 IPM |
| Machine Dimensions LxWxH | 215" x 132" x 122" |
| Machine Weight | 33,000 lbs |
