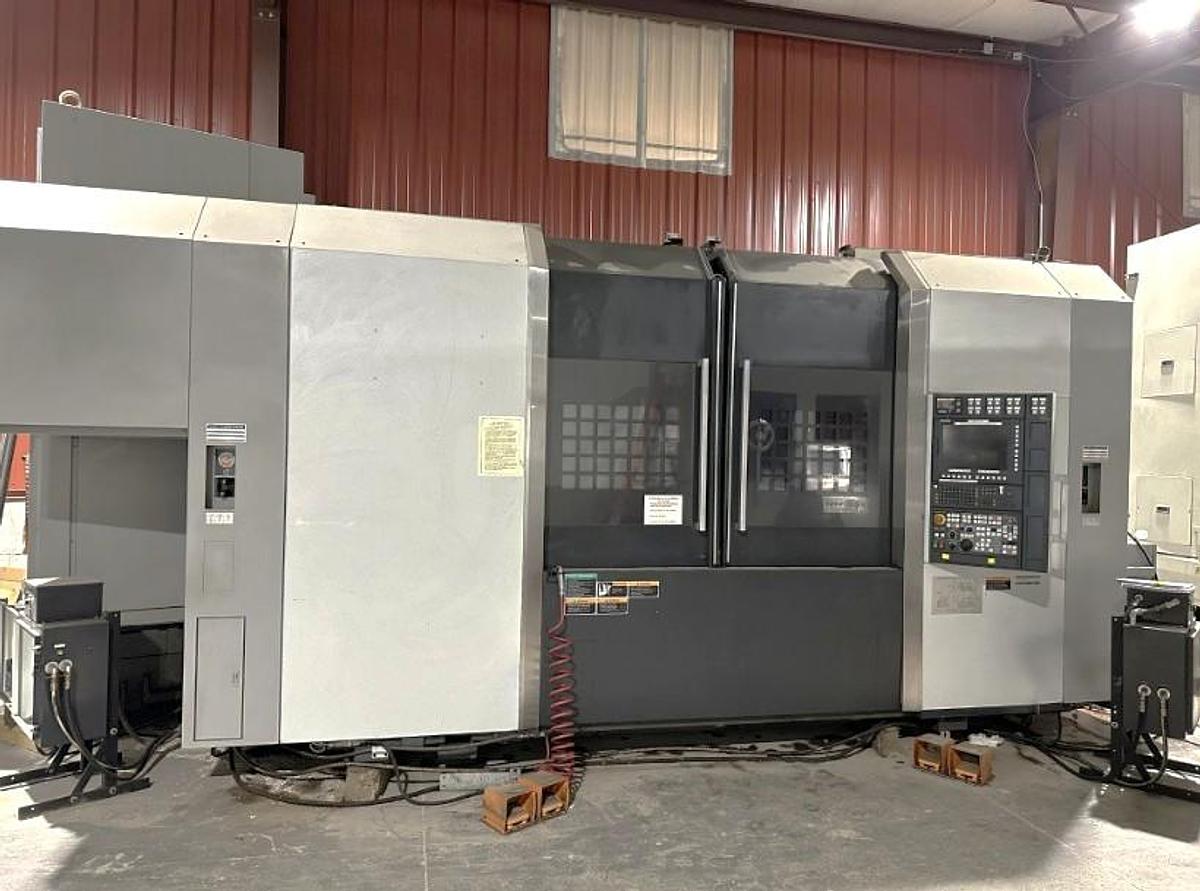

2007 Mori Seiki NT-4300/1500S w/ B Axis Pend. Head, C Axis-Both Spndls., Milling, Y Axis, 240 ATC, (2) 12" Chks, 3.5" Bar Cap
2007 Mori Seiki NT-4300/1500S w/ B Axis Pend. Head, C Axis-Both Spndls., Milling, Y Axis, 240 ATC, (2) 12" Chks, 3.5" Bar Cap
$119,500 (USD)
Location:Idaho
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation - Both Spindles Live Milling/Drilling Capability

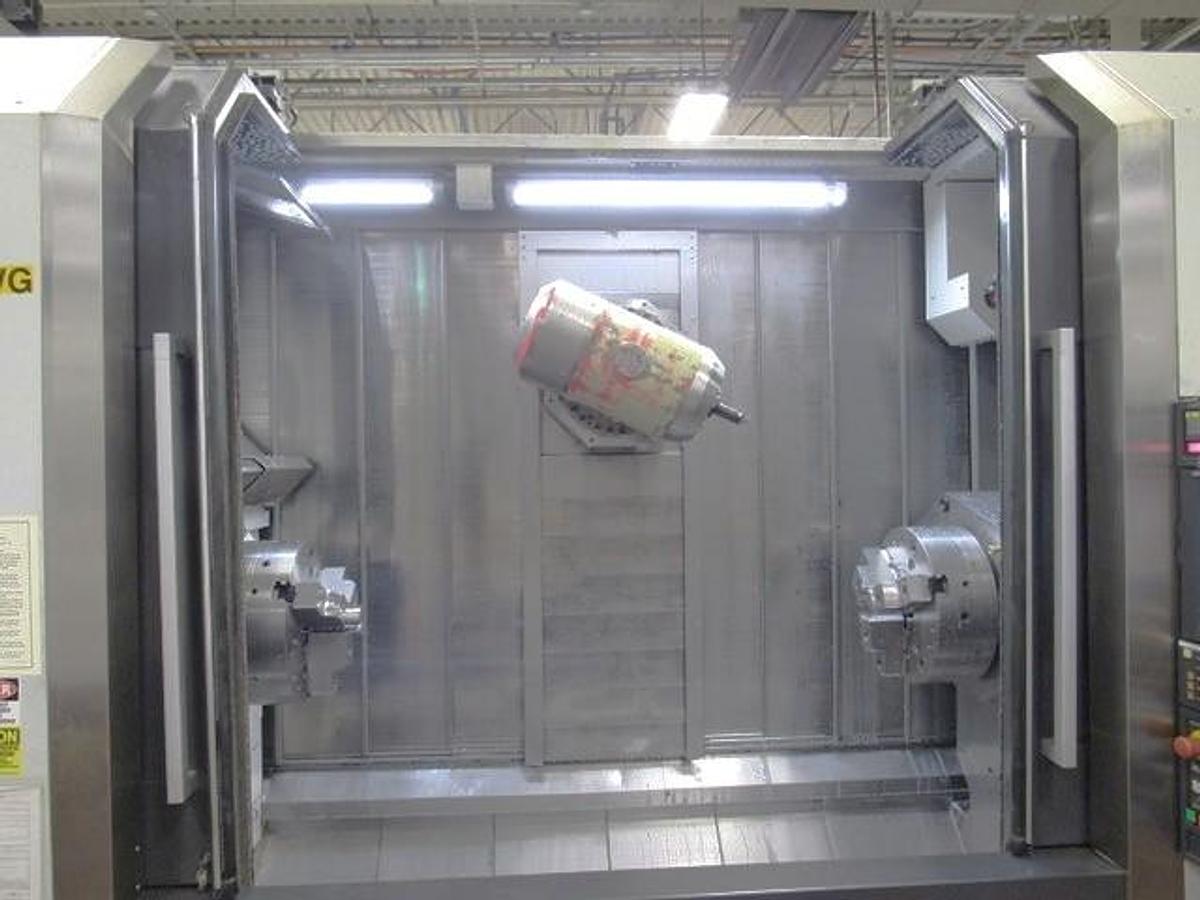

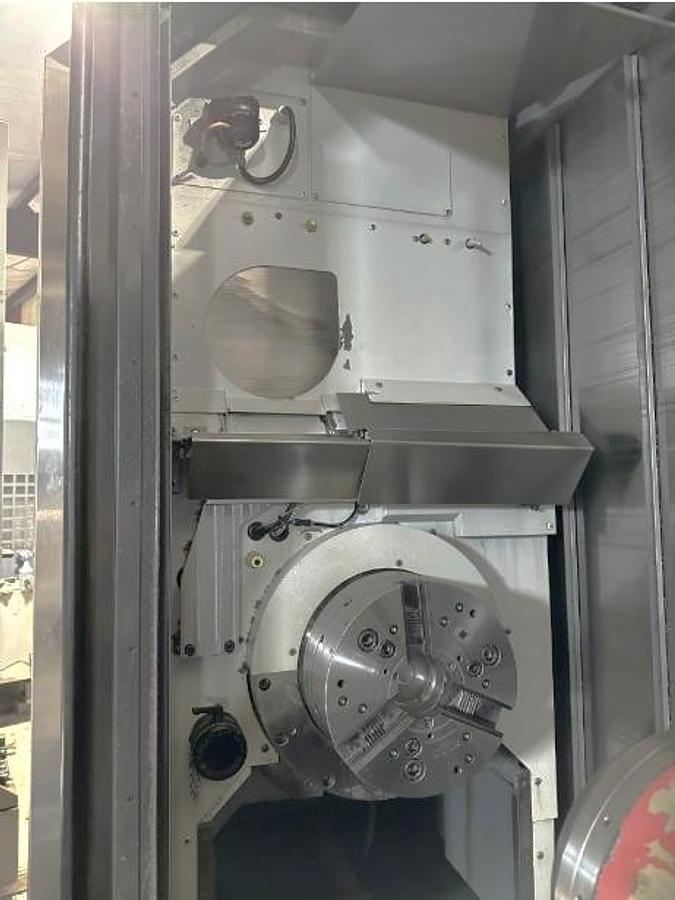

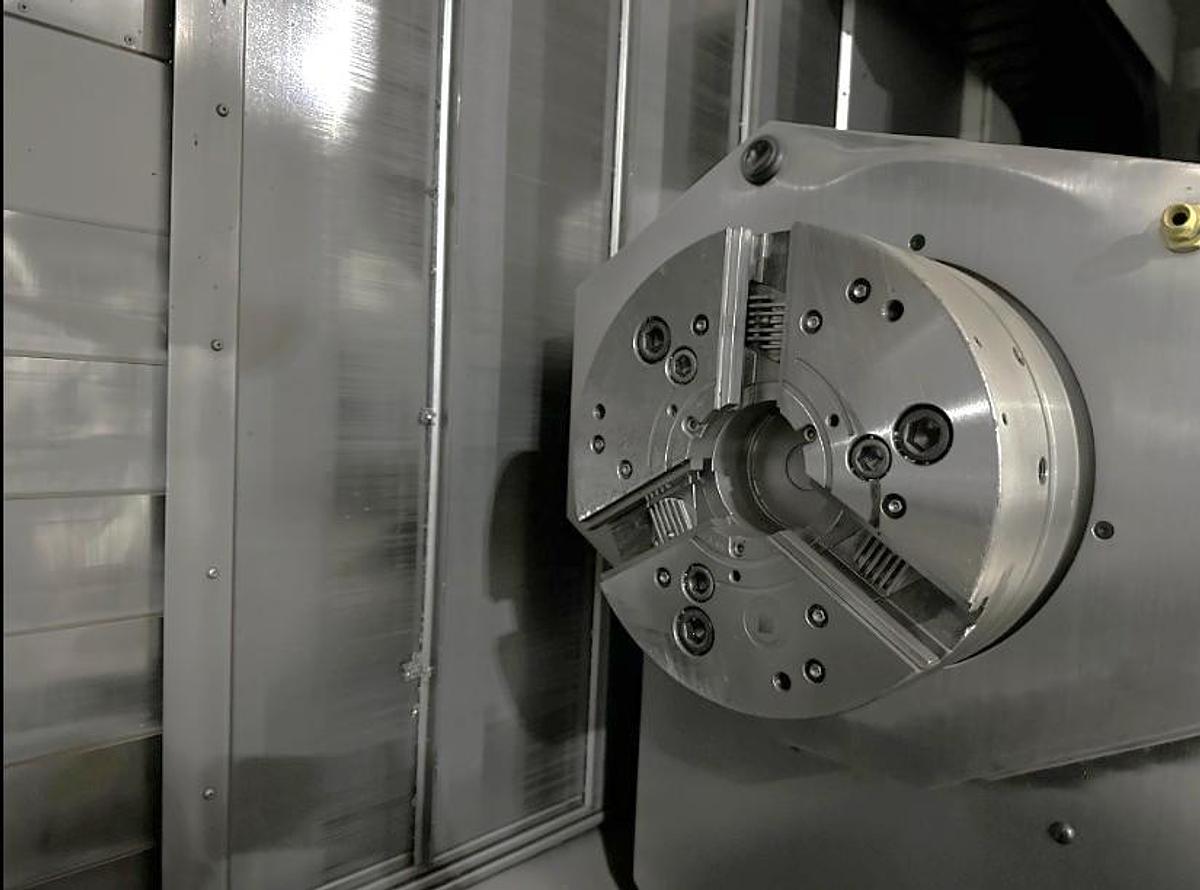

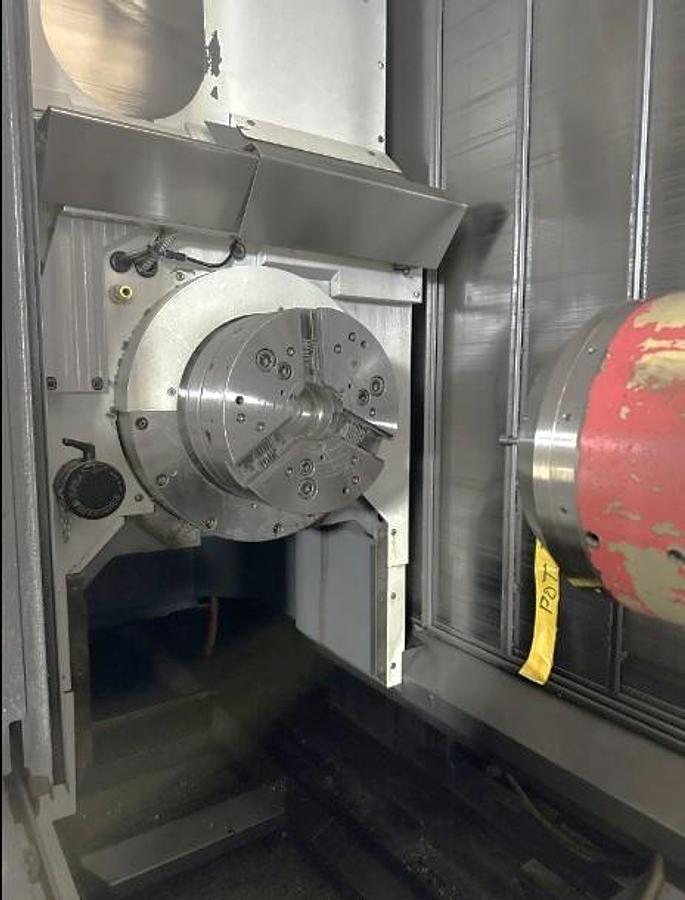

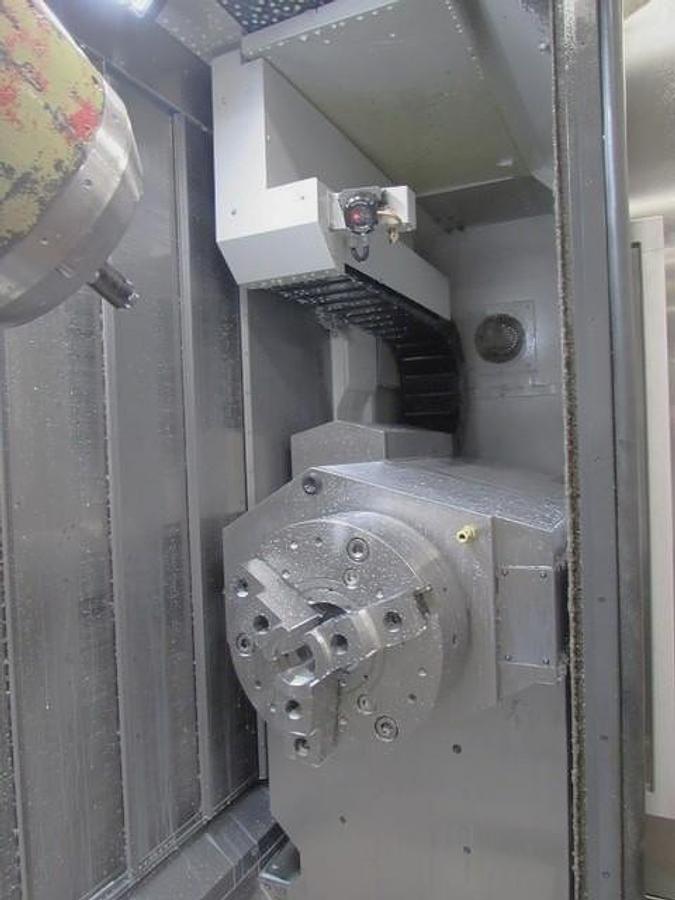

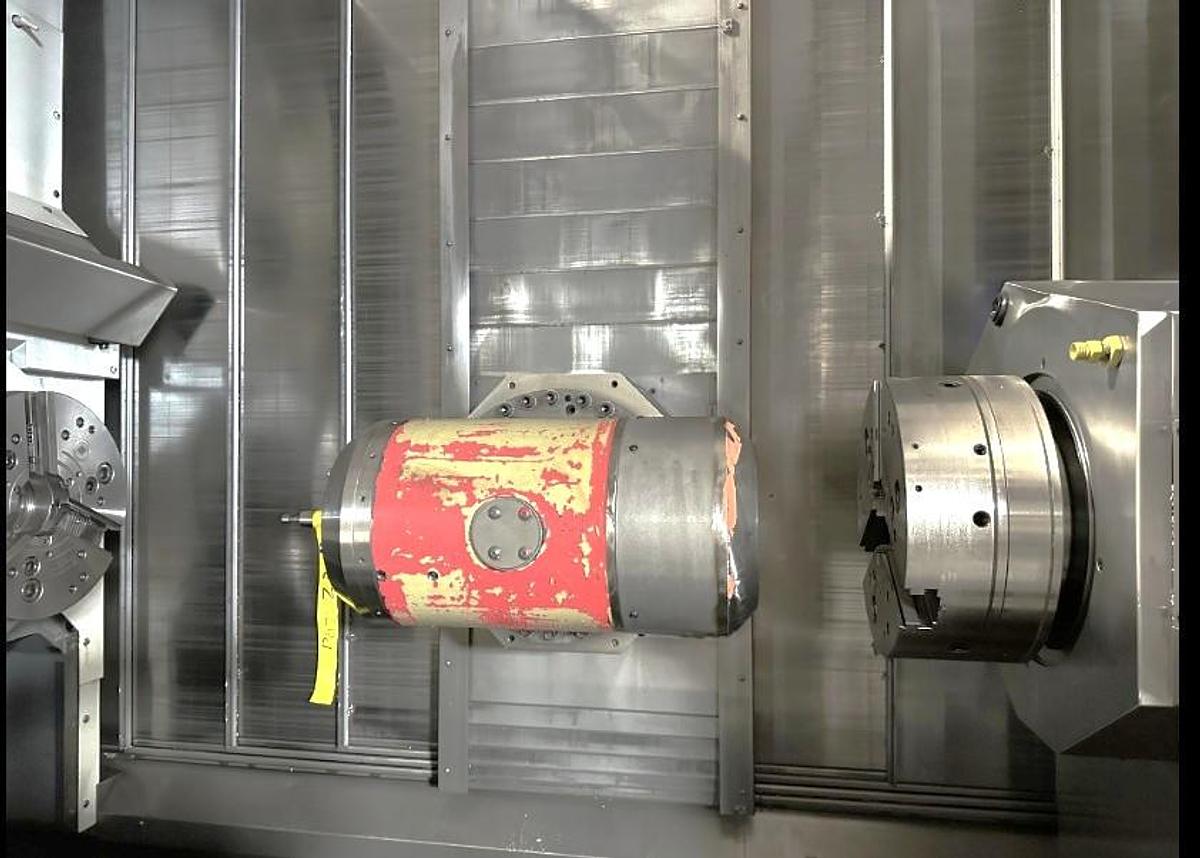

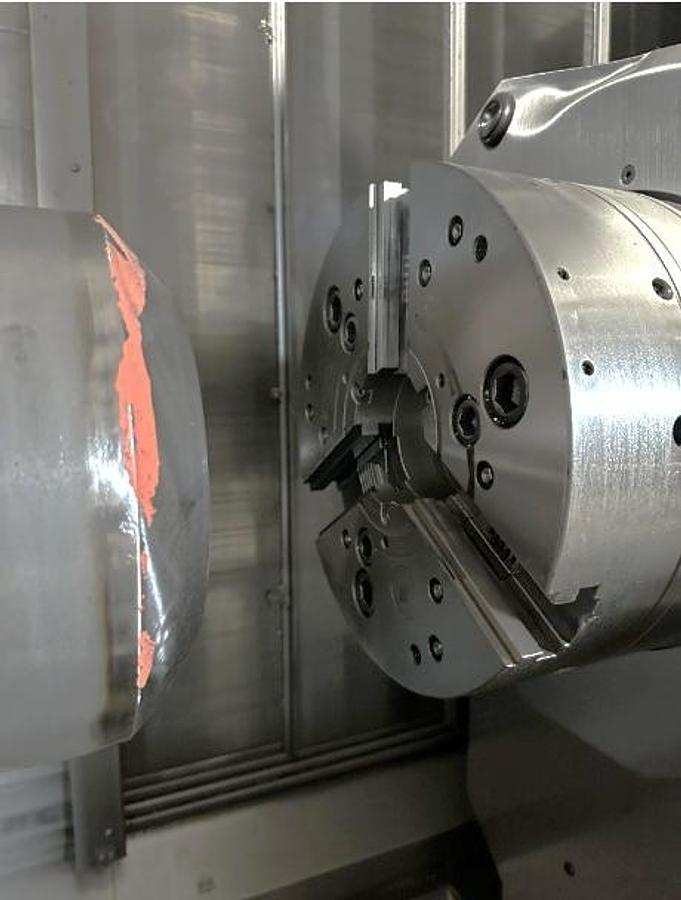

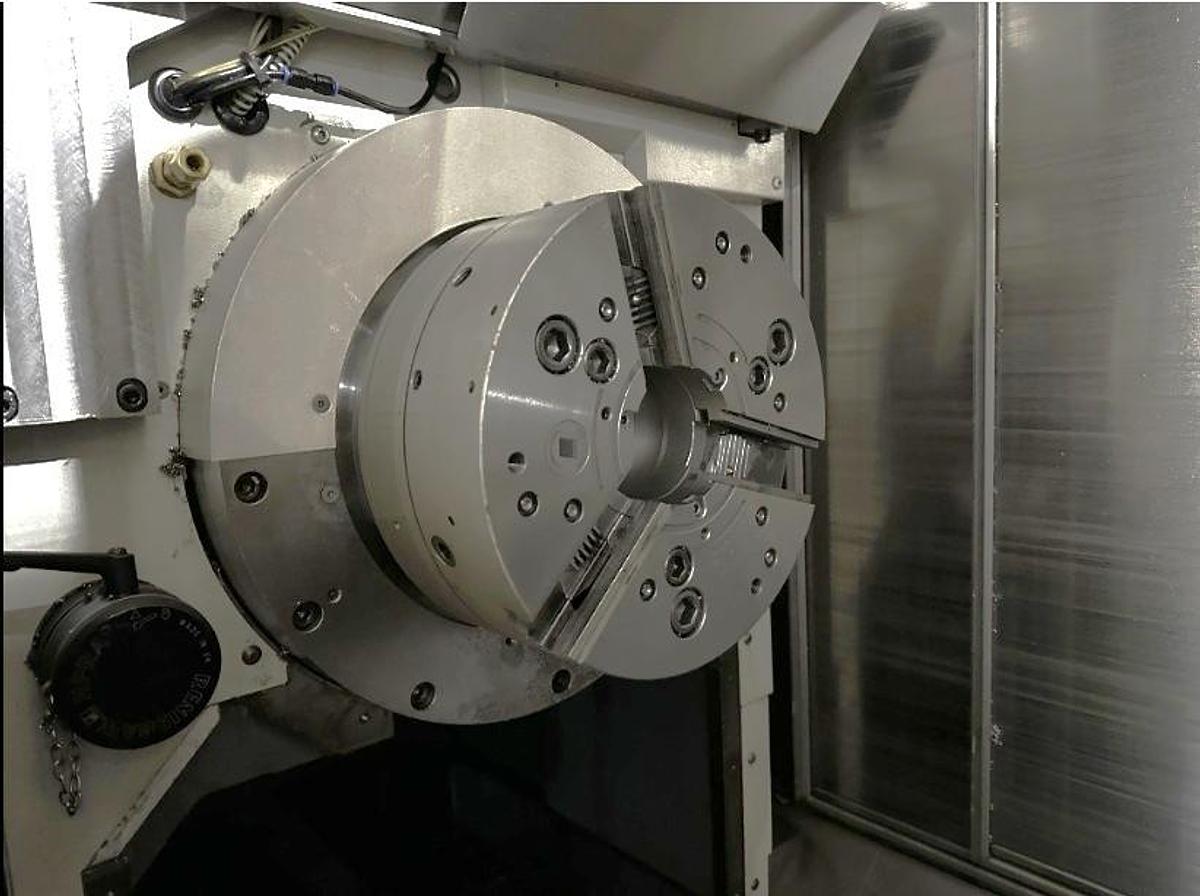

Subspindle Y Axis Capability B Axis Pendulum Style Head (2) 12" 3 Jaw Hydraulic Chucks - Both Spindles

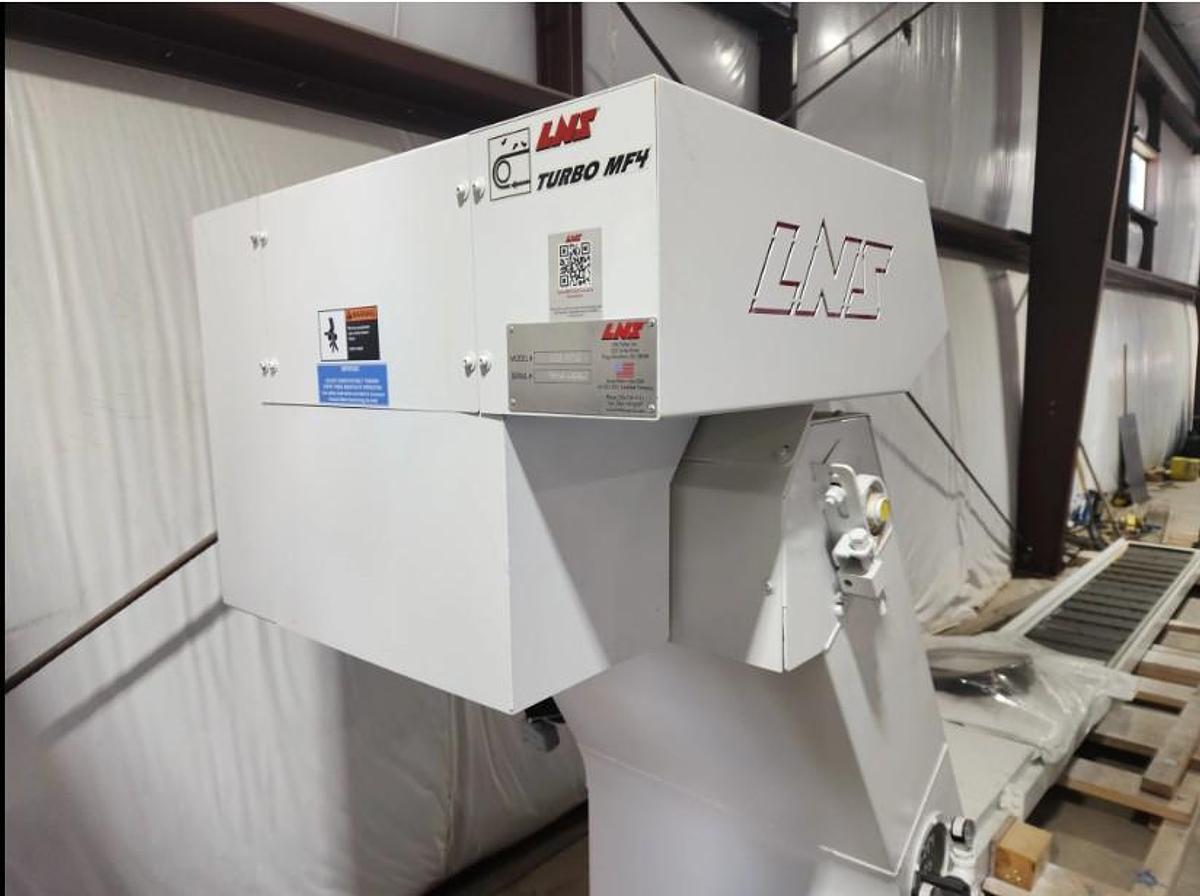

Chip Conveyor 240 Position Tool Changer

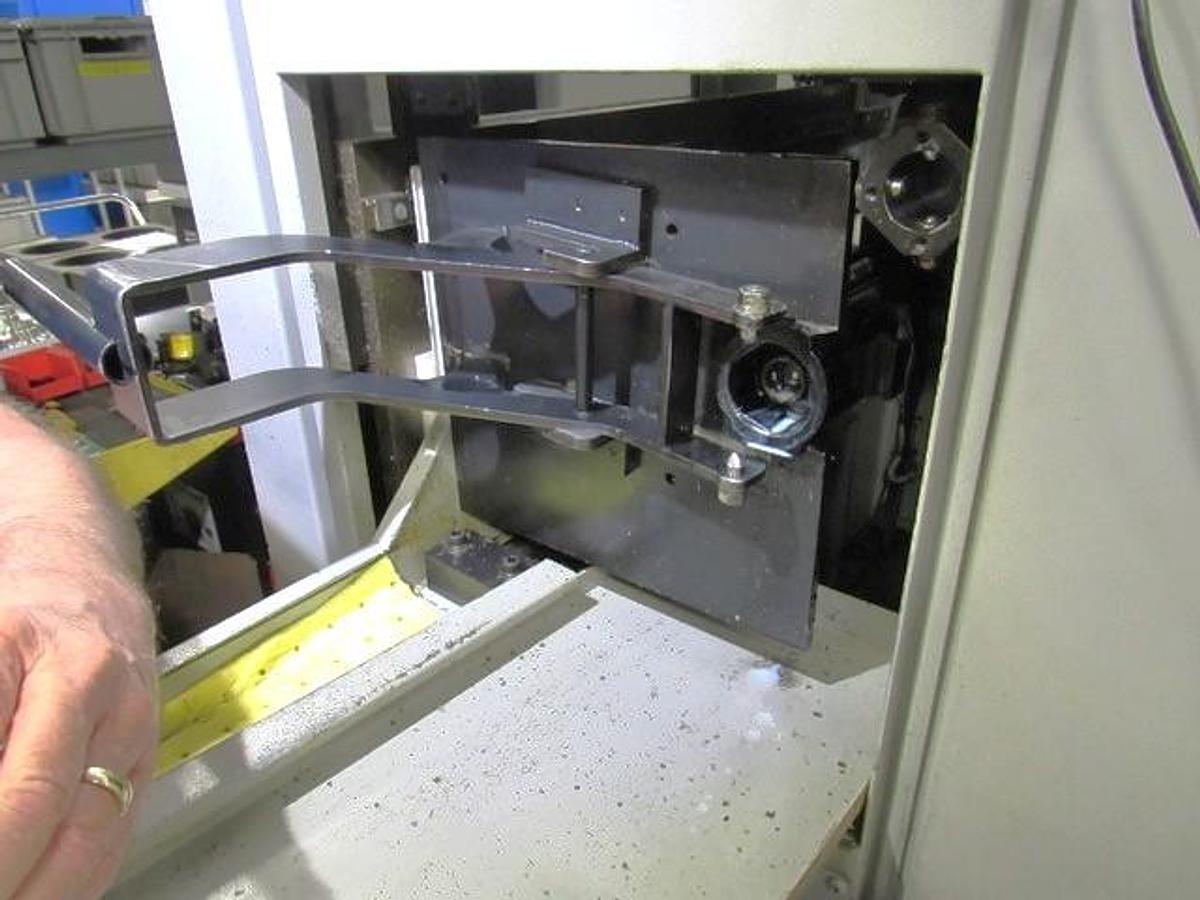

Tool Presetter
Renishaw Probing - Both Spindles

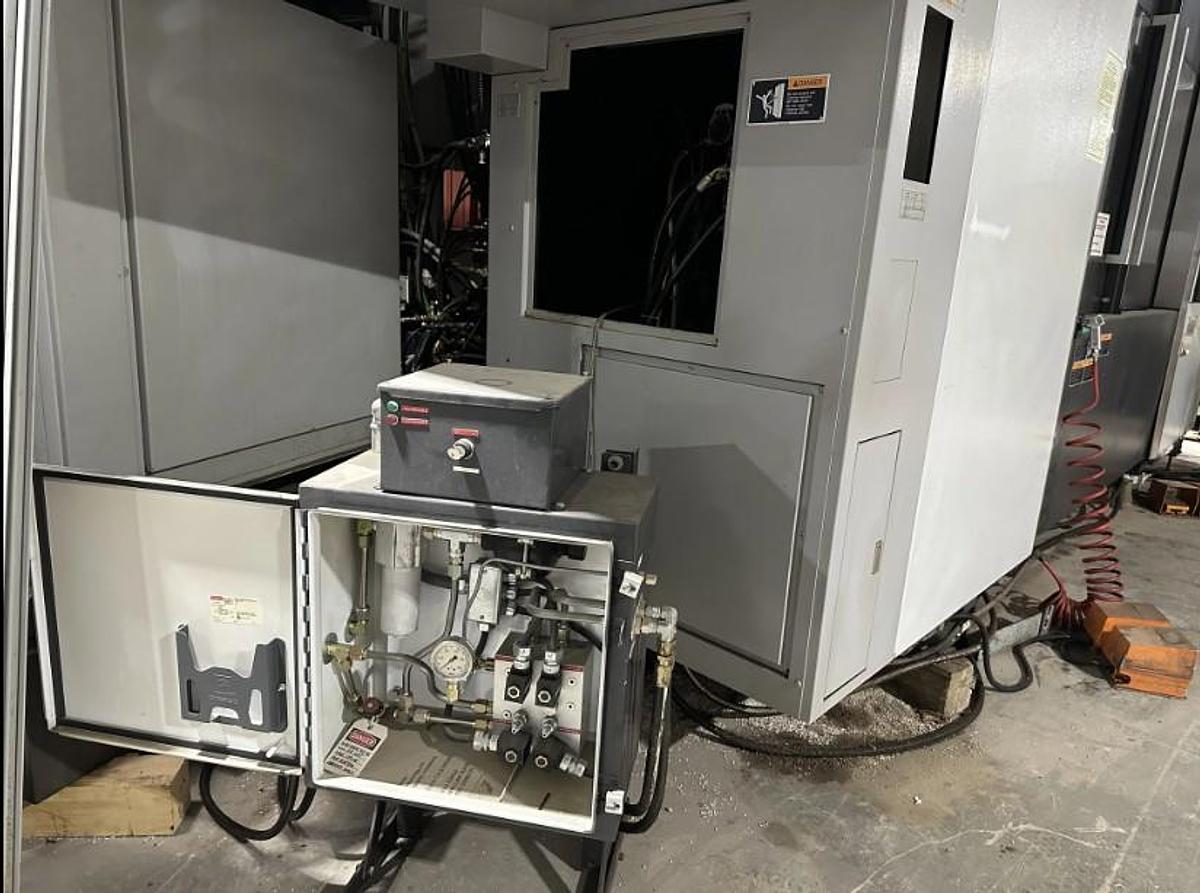

High Pressure Coolant Systemn
Rigid Tapping
Spindle Orientation
Complete Coolant System w/ Tank & Pumps
Card Interface RS 232 Port Interface
USB Port Interface
Specifications
| Manufacturer | Mori Seiki |
| Model | NT-4300/1500S |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120299 |

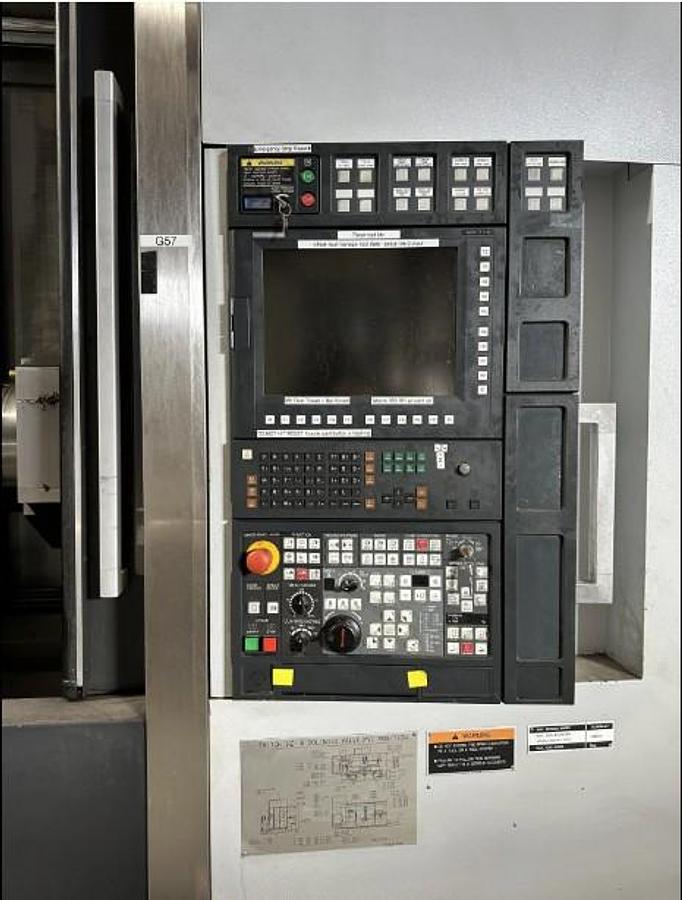

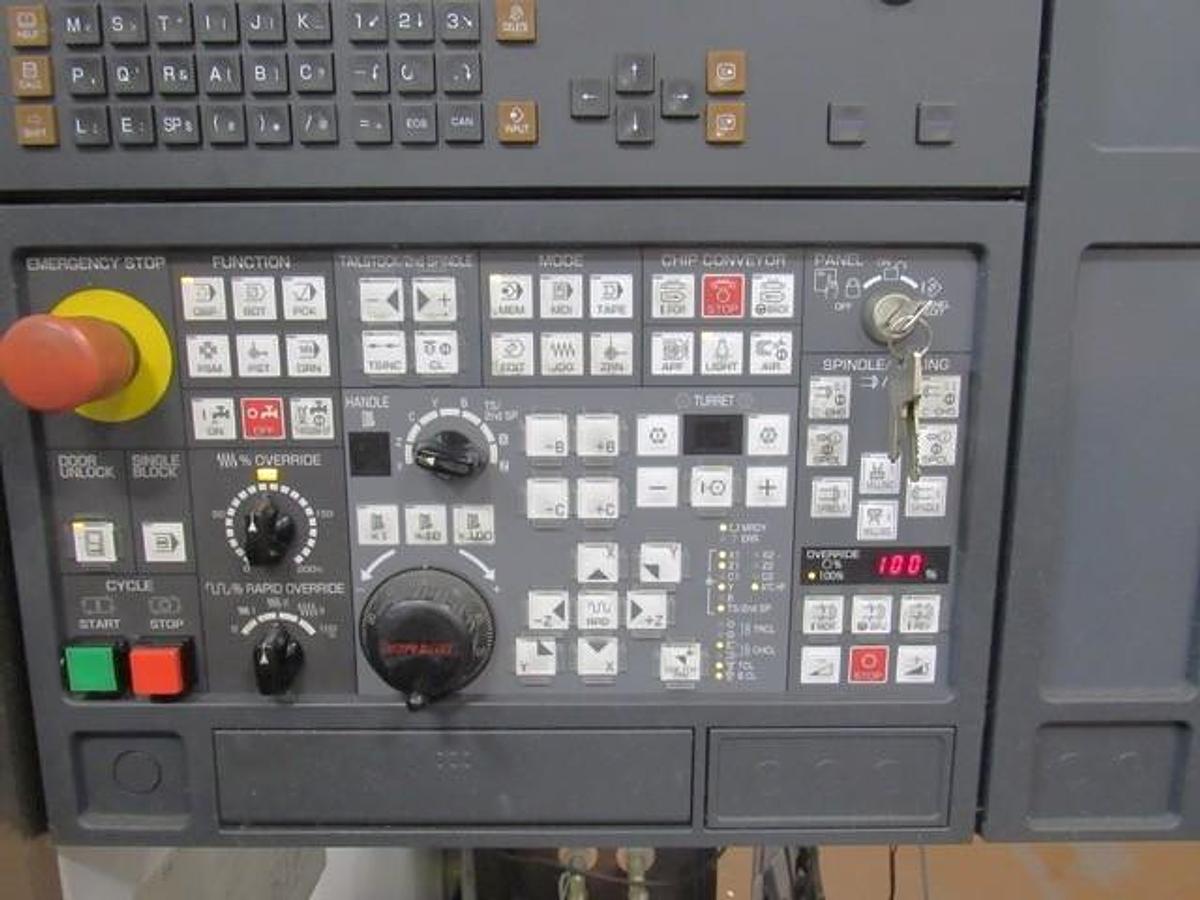

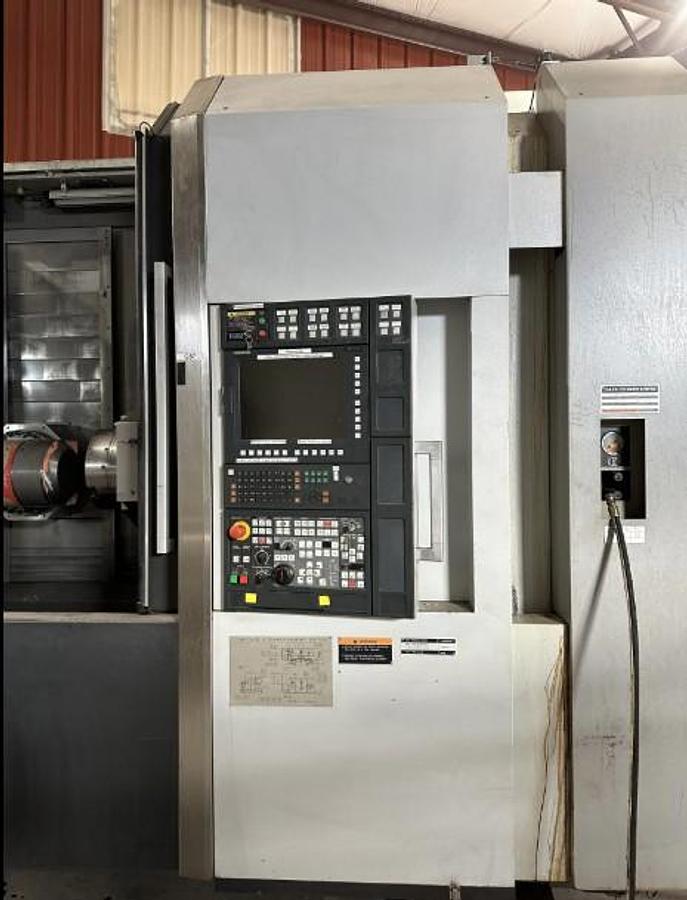

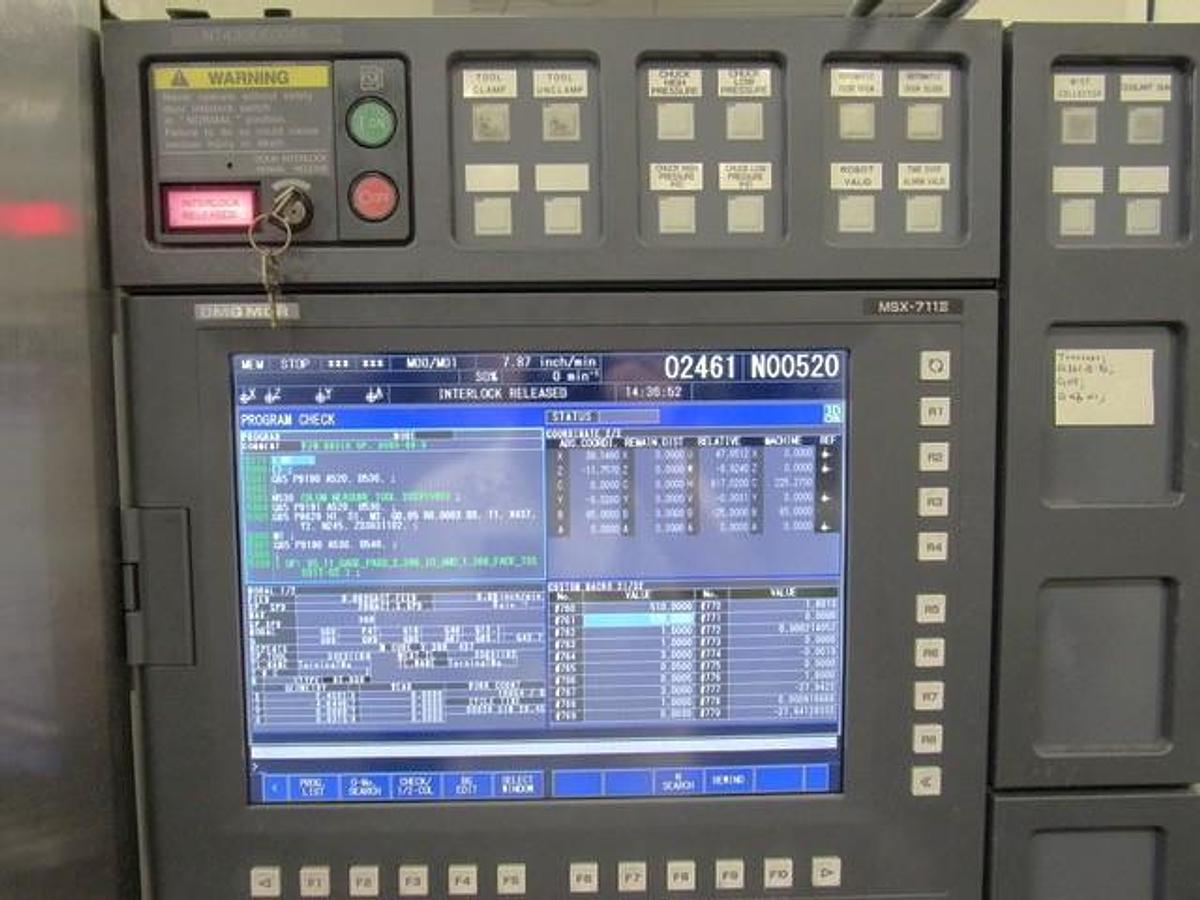

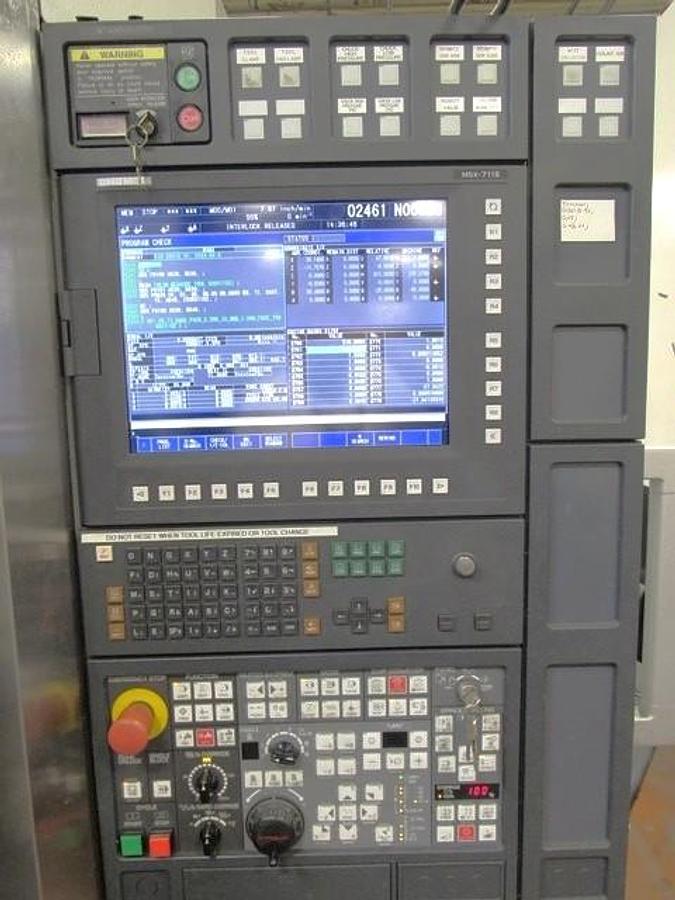

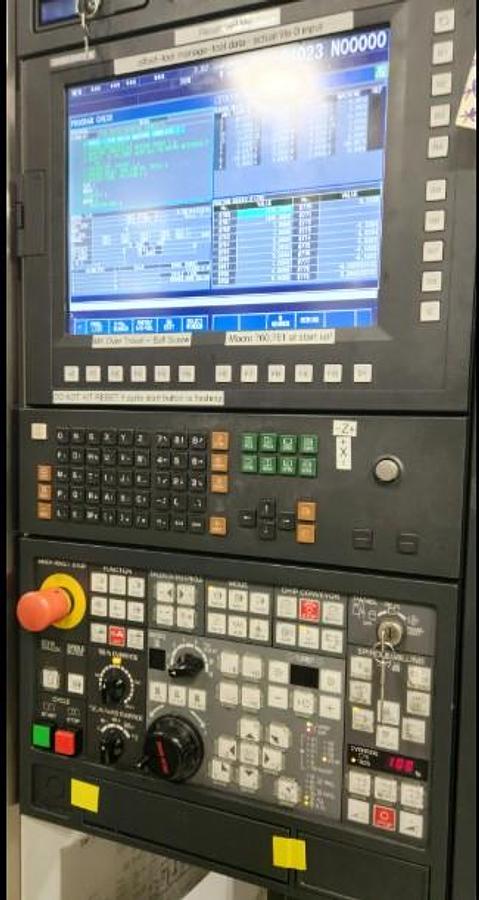

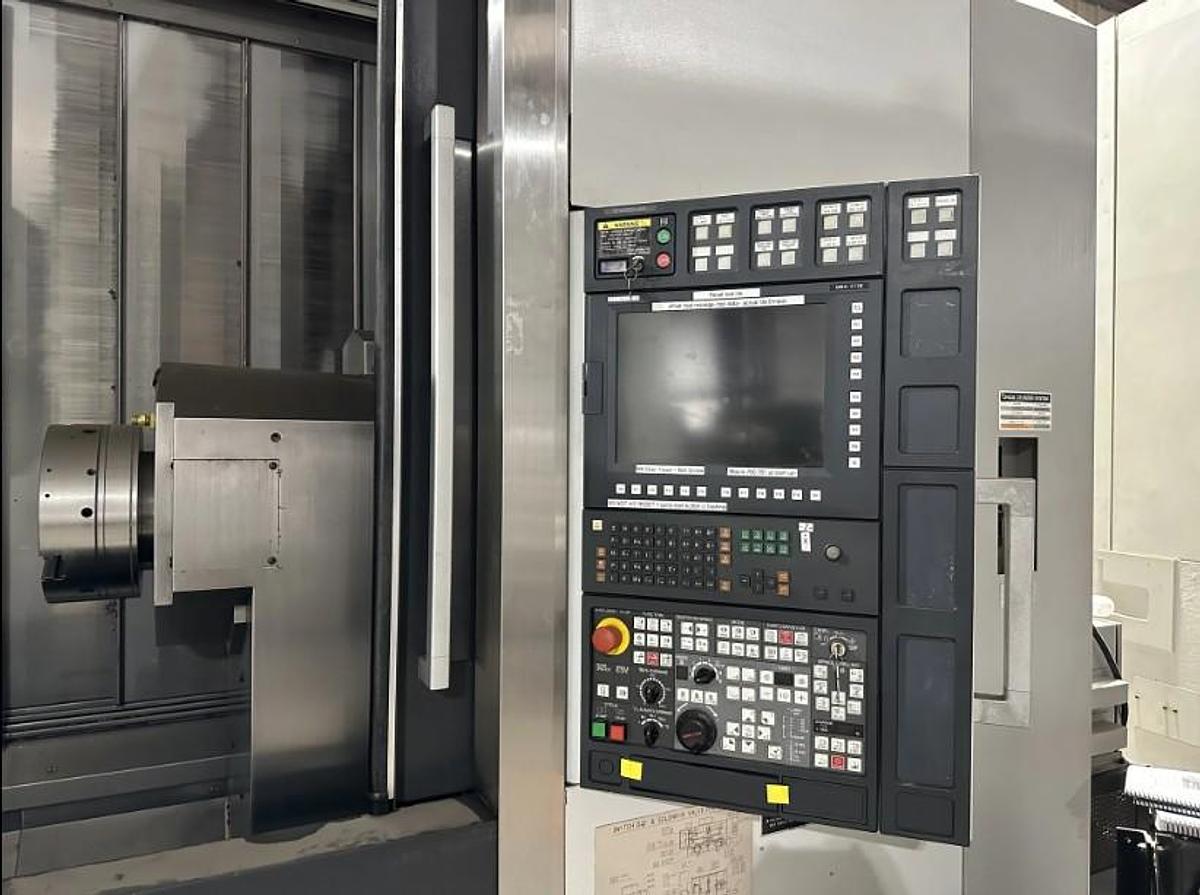

| Control | Mori Seiki MSX-711 IV CNC Control |
| Chuck Sizes Main / Subspindle | 12" 3 Jaw Hyd. / 12" 3 Jaw Hyd. |
| Maximum Swing | 28.74" |
| Maximum Turning Diameter | 28.7" |
| Maximum Turning Length | 58.9" |
| Maximum Distance Between Centers | 73.3" |
| Maximum Bar Capacity | 3.54" |
| X-Axis Travel | 29.53" |
| Y-Axis Travel | +/- 8.27" |
| Z-Axis Travel | 61.02" |
| B-Axis Tilt Movement | +/- 120 Degrees in .0001 Degree Movement |
| C-Axis Rotation | .001 Degree - Both |
| Spindle Nose / Spindle Bore | A2-8" / 4.13" - Both |
| Spindle Speed | 2,500 RPM - Both |
| Spindle Motor | 40 HP - Both |

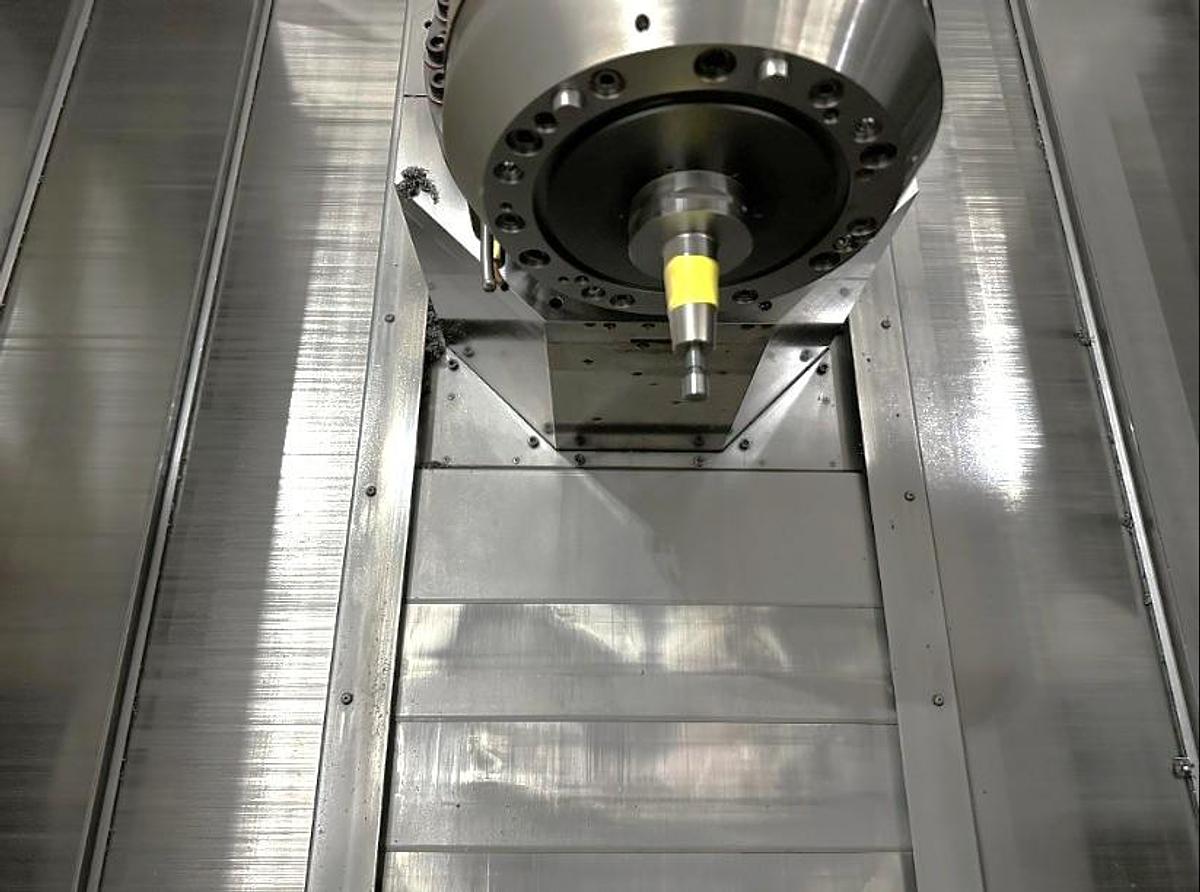

| Milling Spindle Taper | Capto C6 |
| Milling Spindle Speed / Milling Spindle Motor | 12,000 RPM / 24.7 HP |

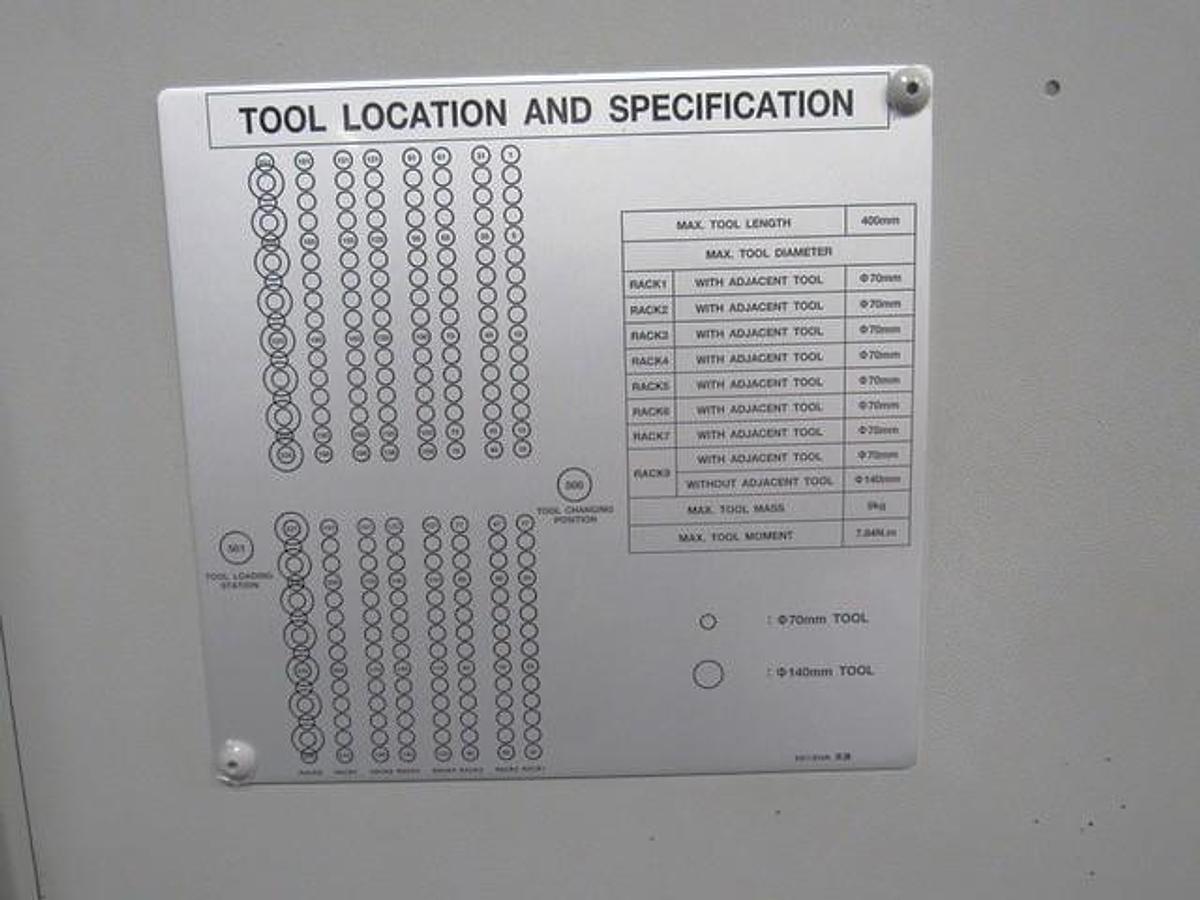

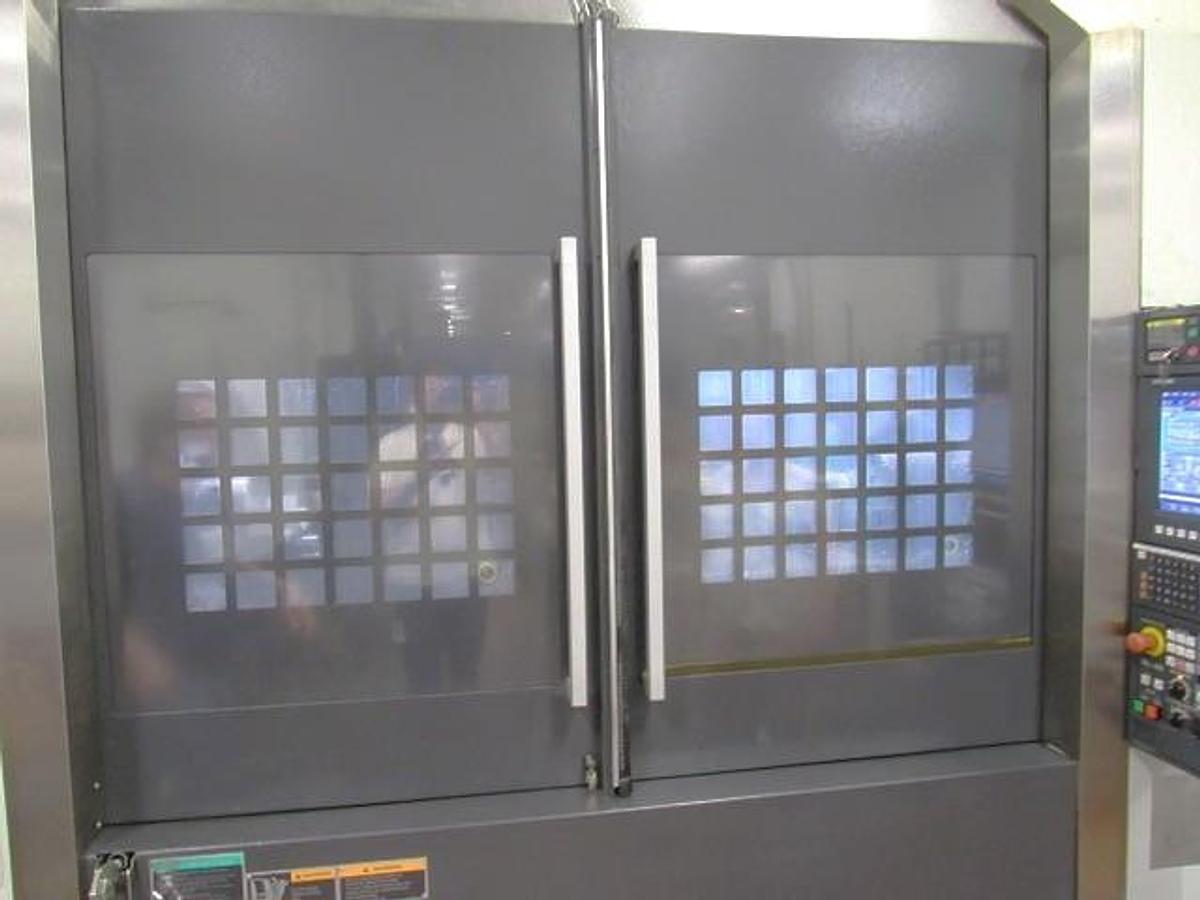

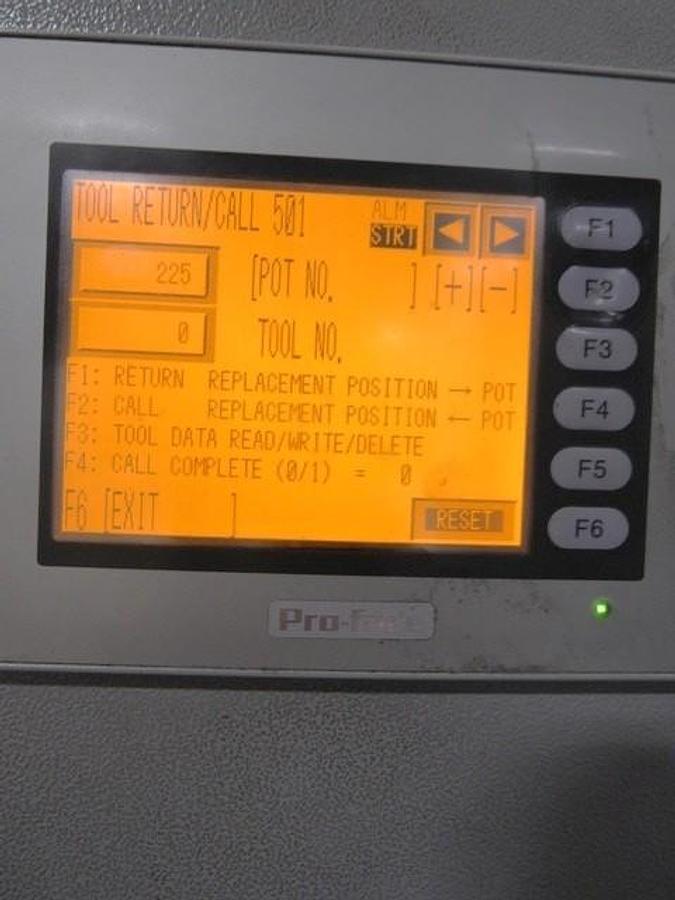

| Number of Tool Positions | 240 Station ATC |
| Maximum Tool Diameter / Length / Weight | 5.5" / 15.7" / 22 lbs. |
| Rapid Traverse Rates (X, Y, Z) | 1968 IPM / 1181 IPM / 1968 IPM |
| Machine Dimensions | 180" x 114" x 99" |
| Machine Weight | 62,250 lbs. |
