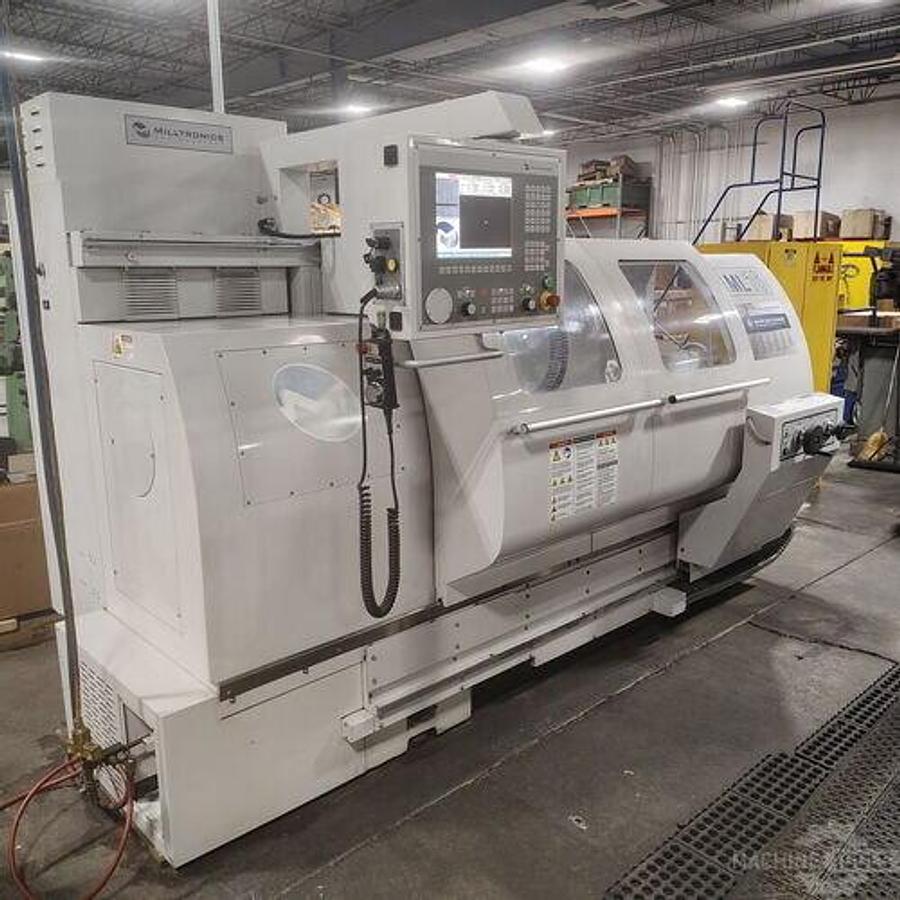

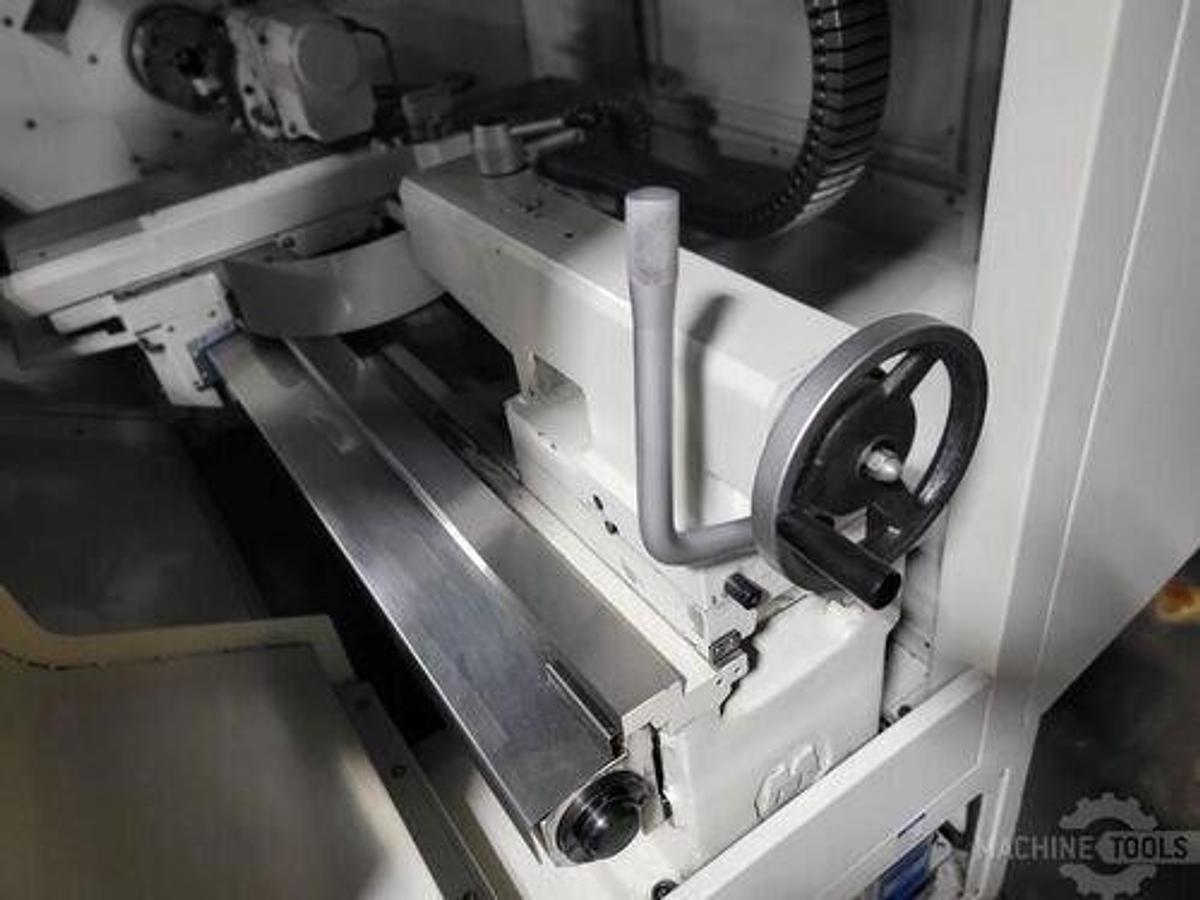

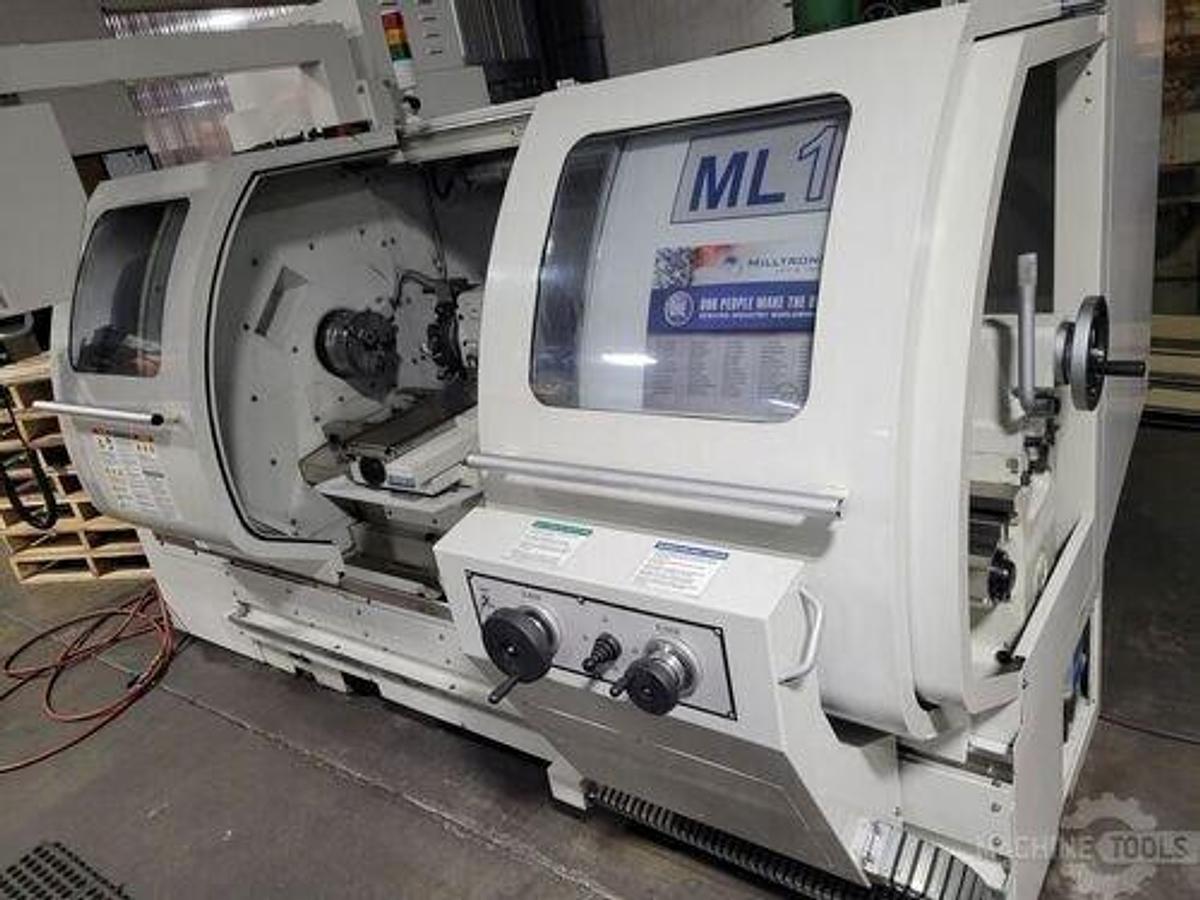

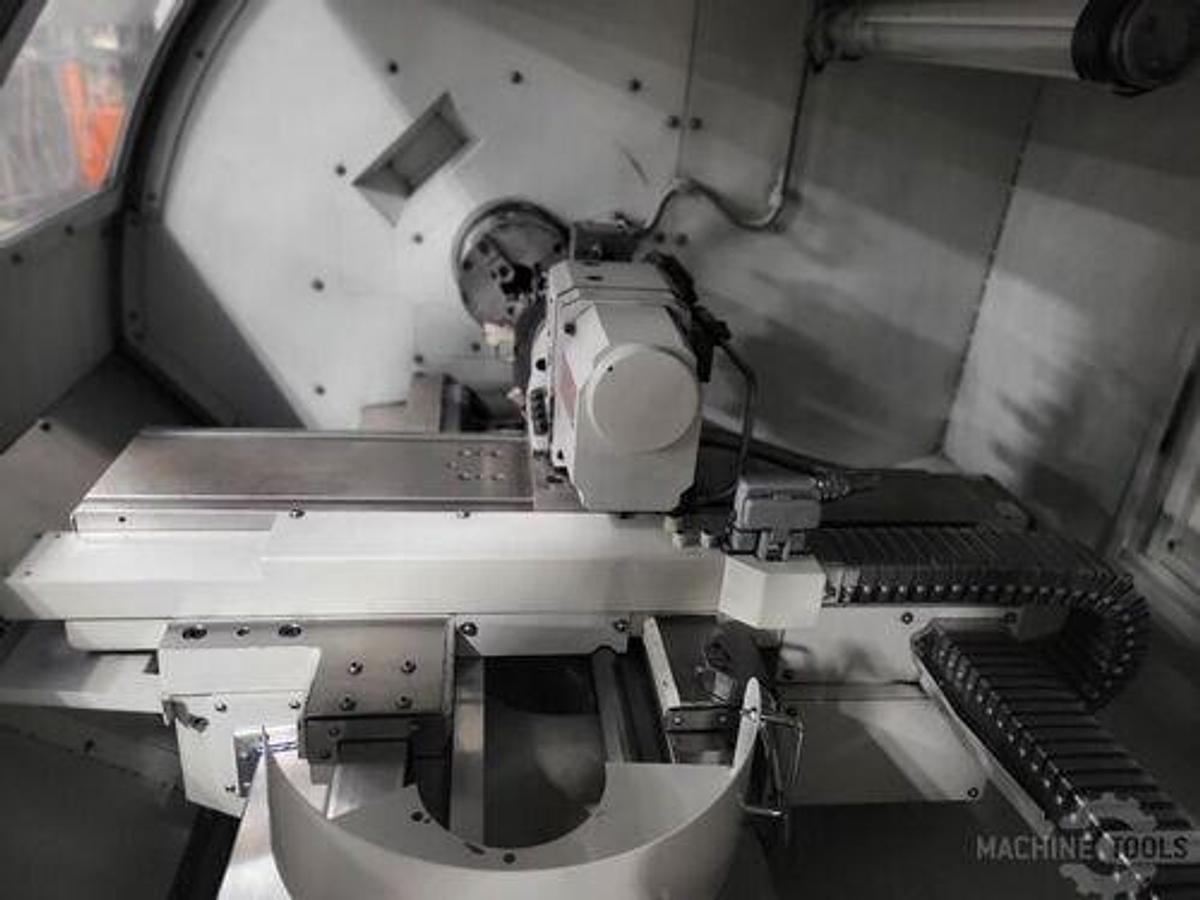

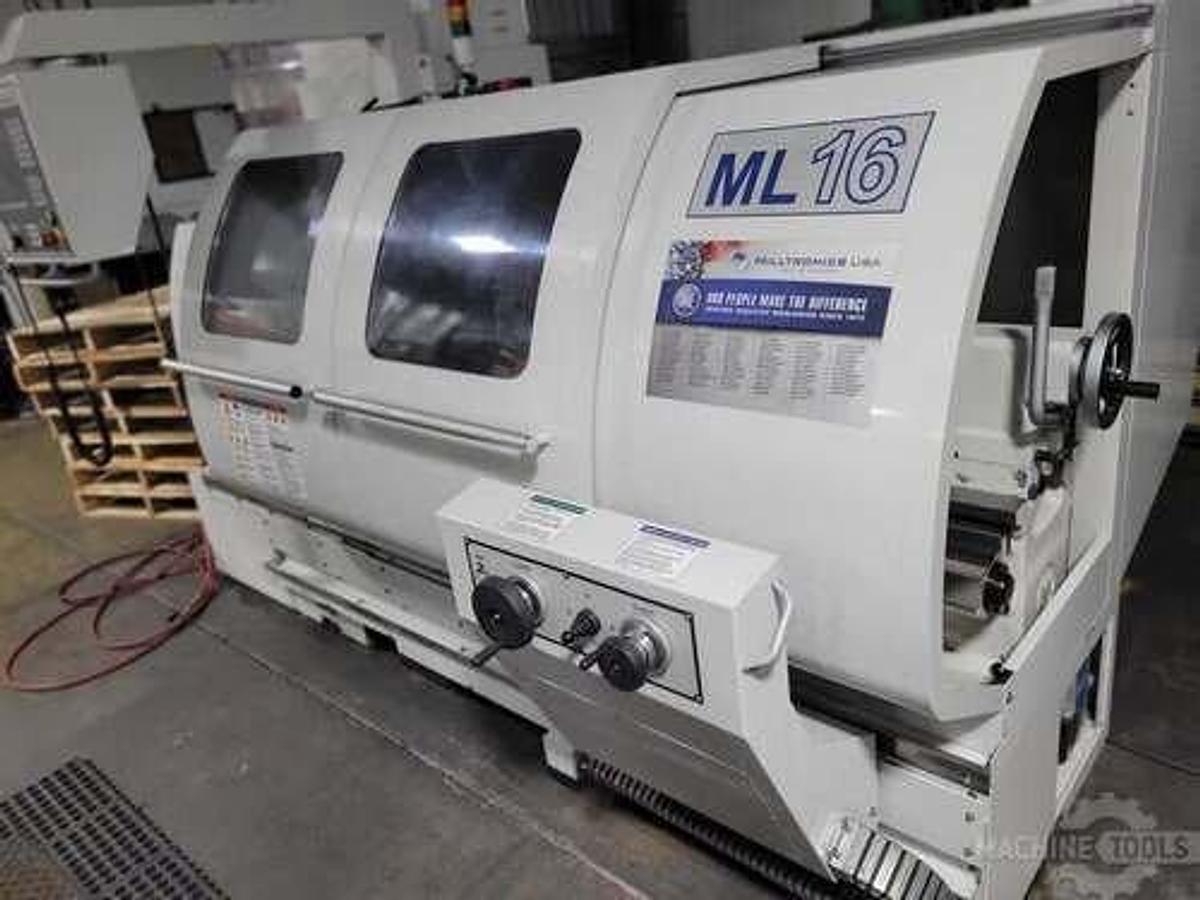

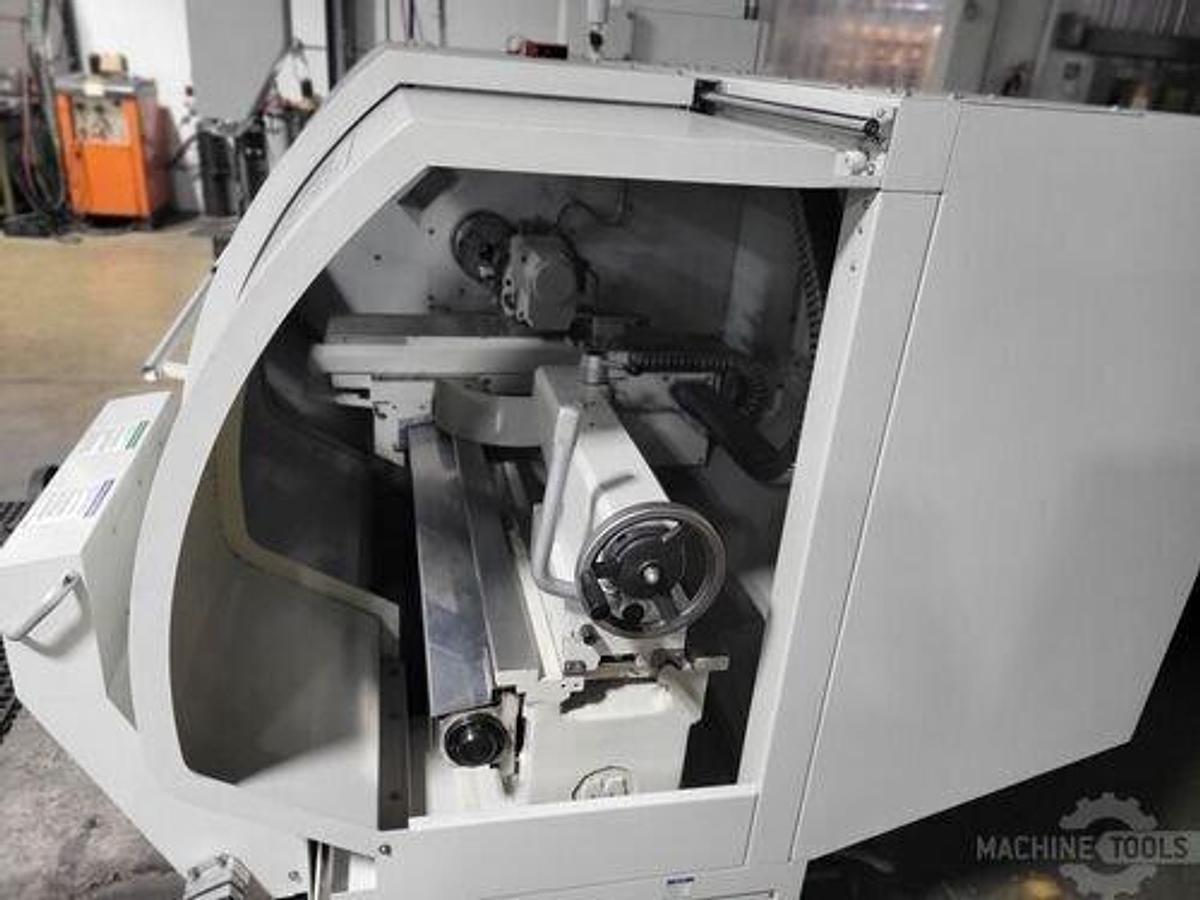

2015 Milltronics ML16/40 8-Station Turret
2015 Milltronics ML16/40 8-Station Turret
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description
10" 3 Jaw Hydraulic Chuck
Utilizes Both G Code and Conversational Type Programming
1GB Storage
Enhanced CPU w/Bloch Processing Speed of 2000 BPS with Enhanced Jerk Control and Look Ahead
Auto DXF File Import
3-D Part & Wire Frame Tool Path Graphics & Solid Modeling Graphics
USB
Heavy Duty Eight Position Turret
Gap Bed
Tailstock
Electronic Hand Wheels for Manual Operation
Coolant System with Pump
Hardened / Ground Ways
RS 232 Port Interface
All Available Manuals
208-240 Volts / 3 Phase 60 Amps
Specifications
| Manufacturer | Milltronics |
| Model | ML16/40 8-Station Turret |
| Year | 2015 |
| Condition | Used |
| Stock Number | 120288 |
| Machine Control | PC Based 8200 B CNC Control |
| Chuck Size | 10" 3-Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 25" |
| Bed Gap | 12.75" |
| Maximum Swing over Gap | 25.9" |
| Maximum Machining Length | 48" |
| X-Axis Travel | 11.01" |
| Z-Axis Travel | 44.5" |
| Subspindle Nose / Bore / Bar Capacity | A2-5"/ 2.05" / 2" |
| Spindle Speeds | 10 - 4,000 RPM |
| Spindle motor | 12 HP |
| Turret Type | 8 Station Turret Bi-Directional |
| Rapid Traverse Rates | 500 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.55" / 6" / #4 MT |
| Machine Dimensions LxWxH | 120"x83"x80" |
| Machine Weight | 6,000 lbs |
