2012 Haas ST-40 with Tailstock, 15" Hydraulic Chuck, 4" Bar Capacity, Tool Presetter, Chip Conveyor
2012 Haas ST-40 with Tailstock, 15" Hydraulic Chuck, 4" Bar Capacity, Tool Presetter, Chip Conveyor
$59,950 (USD)
Location:Wisconsin
or
Call (863) 439-6066
Description

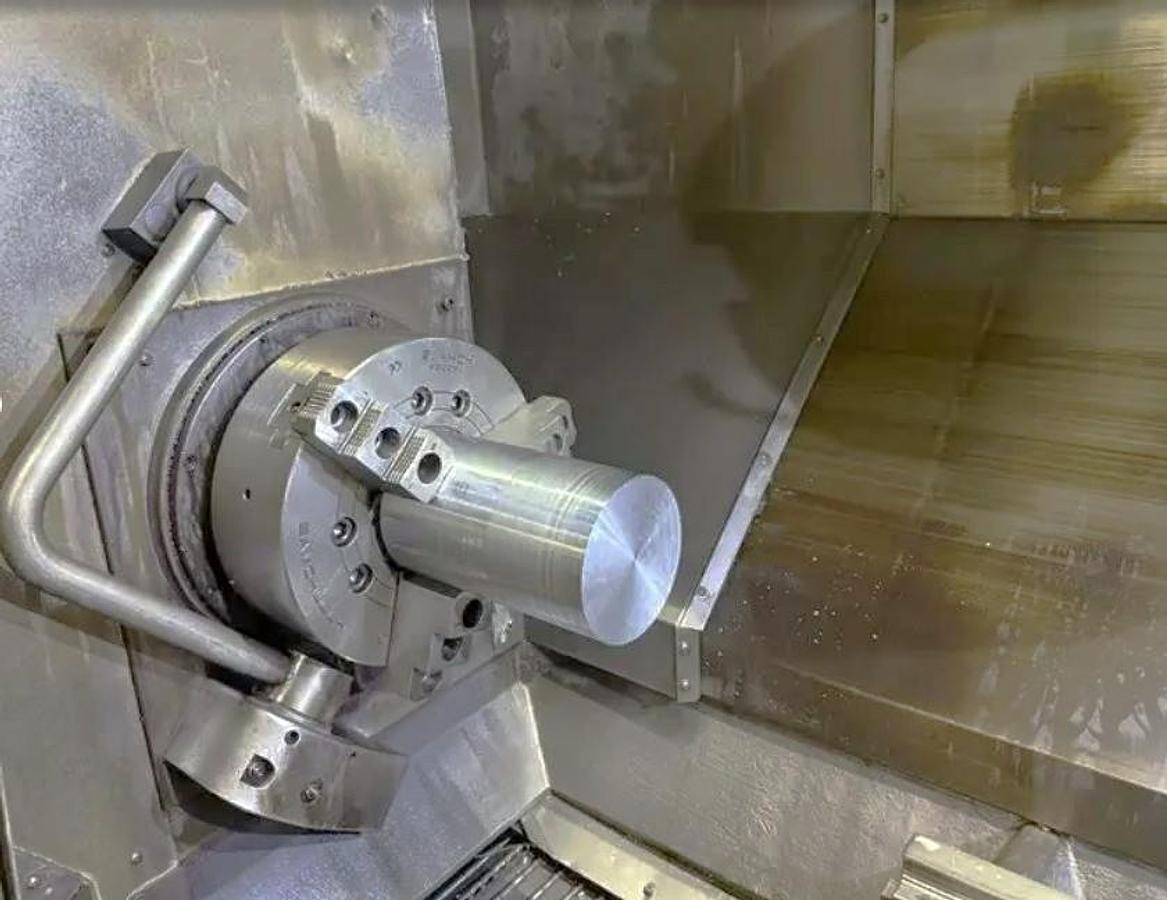

15" 3 Jaw Hydraulic Chuck
Tool Presetter Chip Conveyor - Belt Style
Fully Programmable Tailstock
Intuitive Programming System
Remote Jog Handle USB Port Interface RS 232 Port Interface Rigid Tapping 15" Color LCD Monitor All Available Tool Blocks

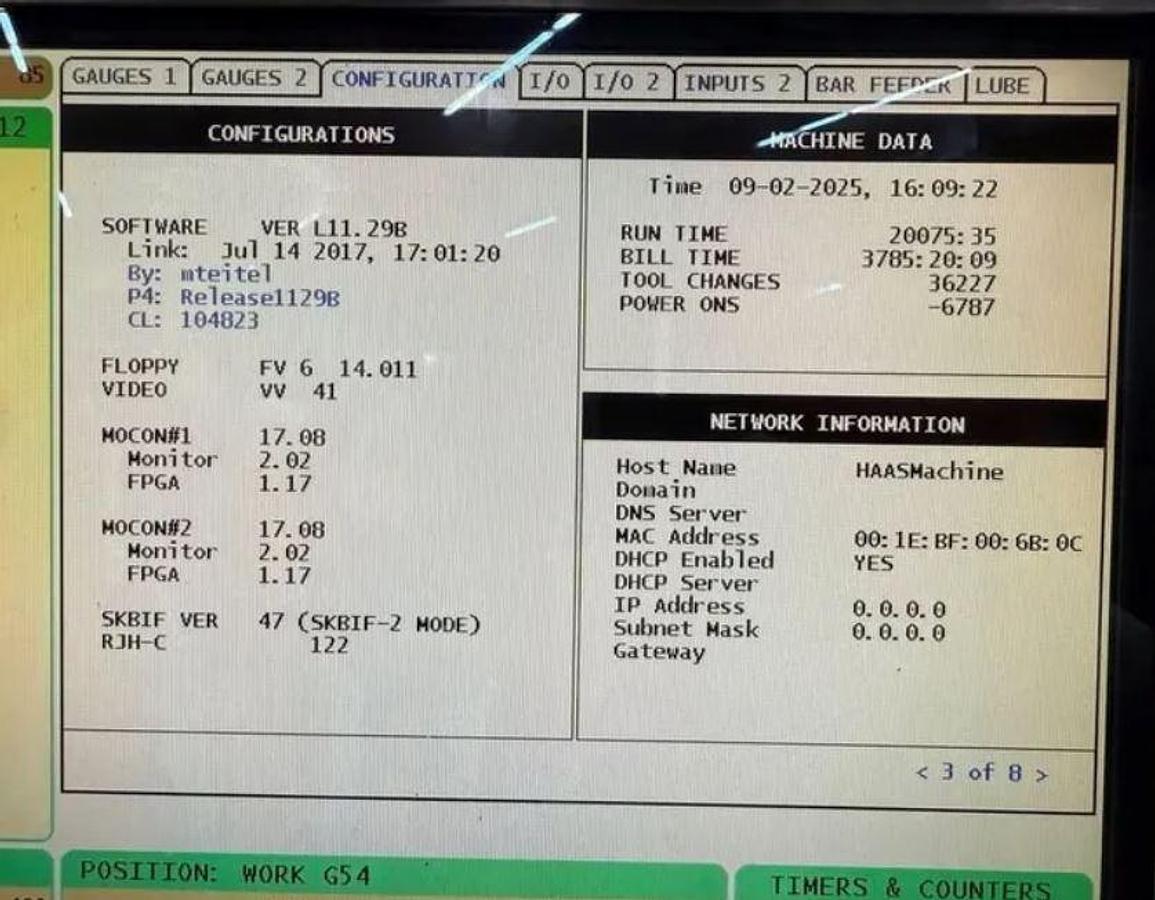

**Machine Run Time (power on) Hours 20,075**
**Estimated Spindle Cut Hours 8,000**
Specifications
| Manufacturer | Haas |
| Model | ST-40 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120285 |
| Control | Haas CNC Control |
| Chuck Size | 15" Hyd Chuck |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25.5" |
| Distance Between Centers | 44" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 44" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8" / 4.62" / 4" |
| Spindle Speed | 2,400 RPM |
| Spindle Motor | 40 HP |

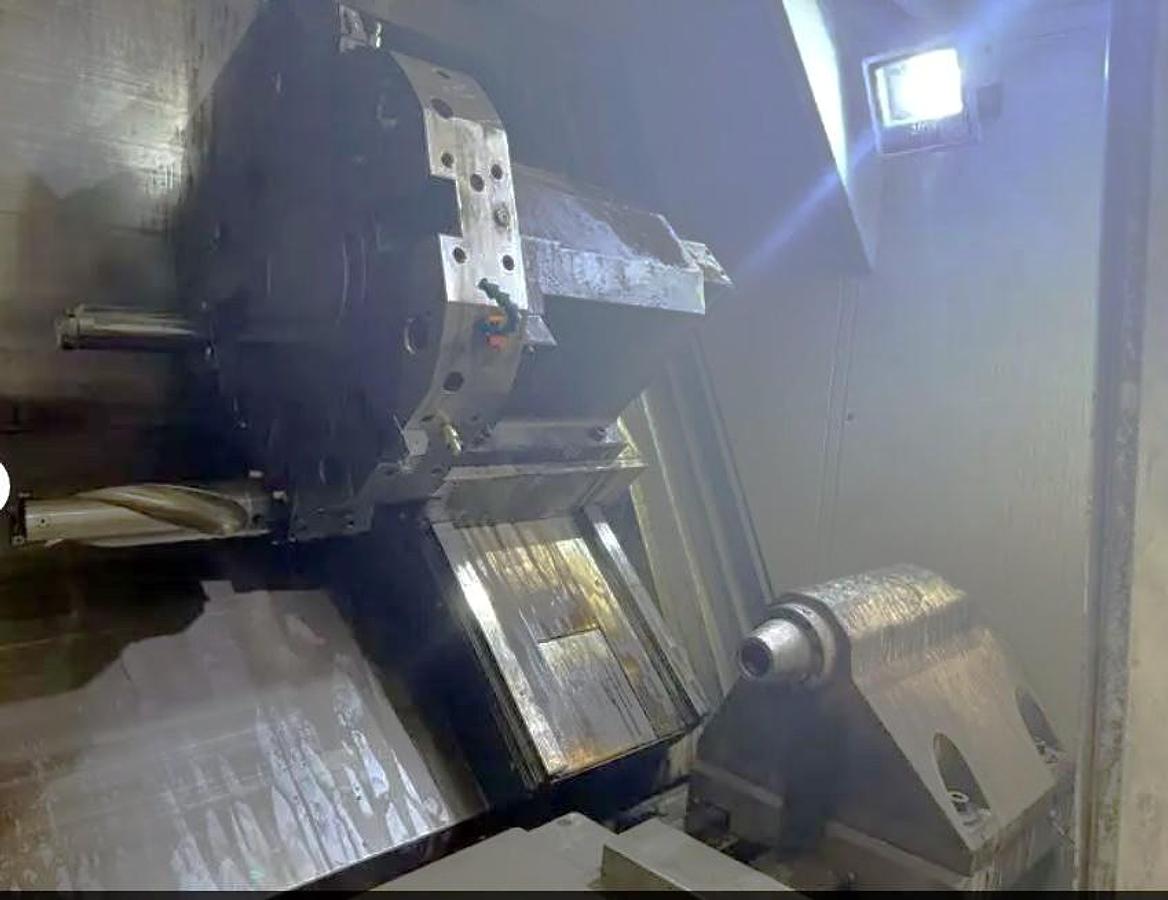

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Center | #5 MT |
| Machine Dimensions LxWxH | 150"x77"x74" |
| Machine Weight | 27,000 lbs |
