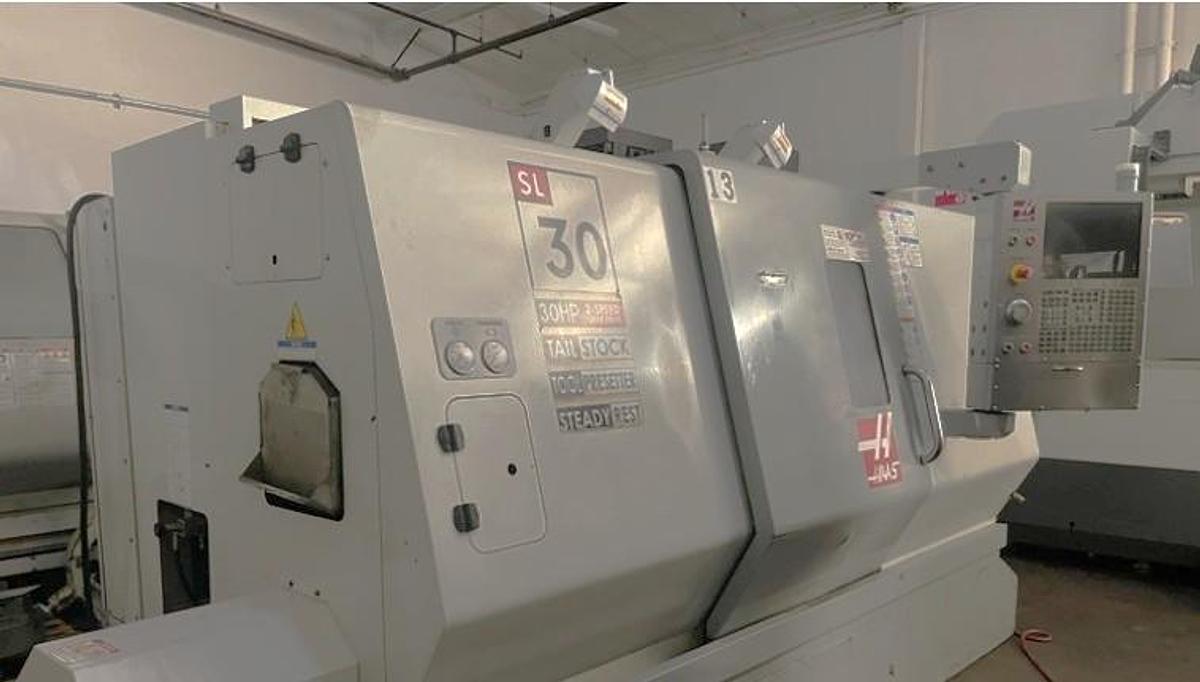

2007 Haas SL-30T with Tailstock, 2 Spd Gearbox, Tool Presetter, Steady Rest, 10" Chuck, 3" Bar Capacity
2007 Haas SL-30T with Tailstock, 2 Spd Gearbox, Tool Presetter, Steady Rest, 10" Chuck, 3" Bar Capacity
Contact us for price
Location:California
or
Call (863) 439-6066
Description
10" 3 Jaw Hydraulic Chuck
Programmable Tailstock
Tool Presetter
Steady Rest
High Intensity Lighting
2 Speed Gearbox
Block Style Turret
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Foot Pedals for Chuck Jaws & Tailstock Quill
Wired 208/230V Electrics
Miscellaneous Chuck Jaws
**There are not tool holders or chip conveyor with this machine**
Specifications
| Manufacturer | Haas |
| Model | SL-30T |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120282 |
| Machine Control | Haas CNC Control |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 30" |
| Maximum Swing Over Cross Slide | 14.5" |
| Maximum Cutting Diameter | 14.5" |
| Maximum Turning Length | 34" |
| Maximum Bar Capacity | 2.5" |
| Distance Between Centers | 39" |
| X-Axis Travel | 11.3" |
| Z-Axis Travel | 34" |
| Spindle Nose / Spindle Bore | A2-6" / 3.00" |
| Spindle Speeds | 20 - 3,400 RPM |
| Spindle Motor | 30 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Body Travel / Taper | 33.5" / MT #4 |
| Machine Dimensions LxWxH | 129" x 66" x 74" |
| Machine Weight | 14,000 lbs |
