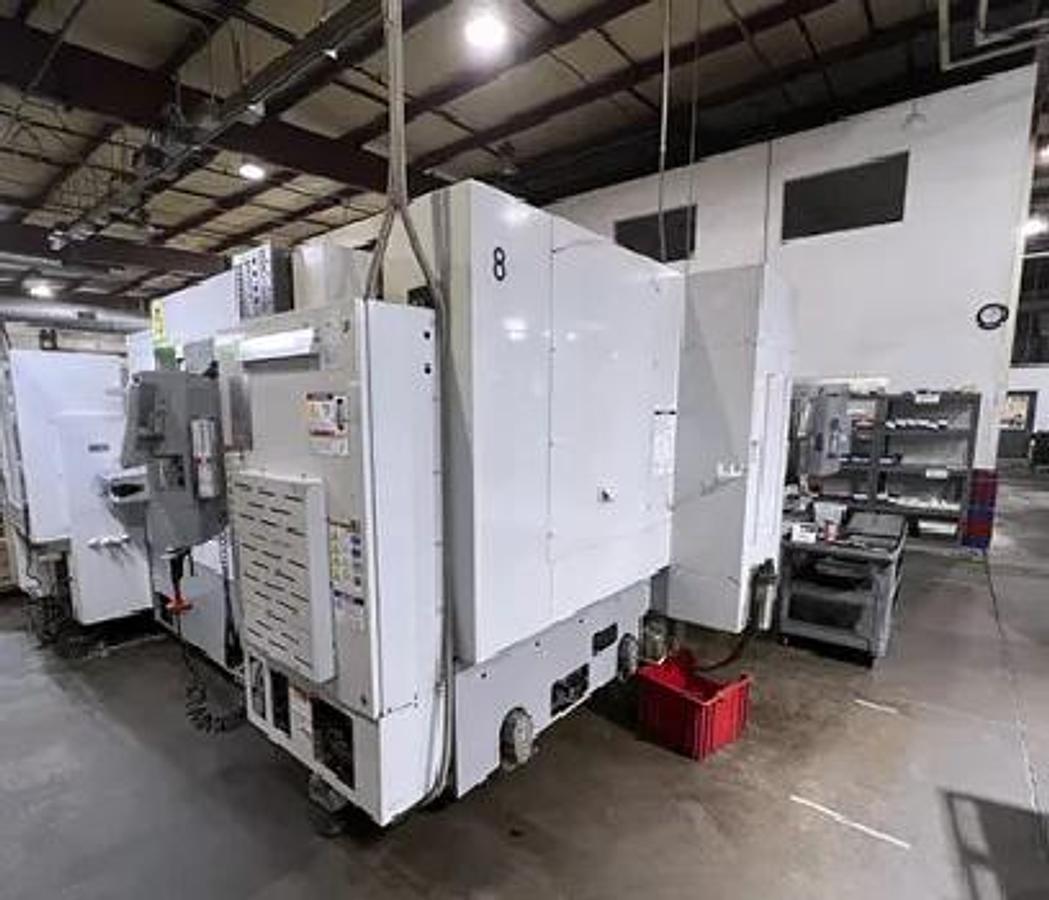

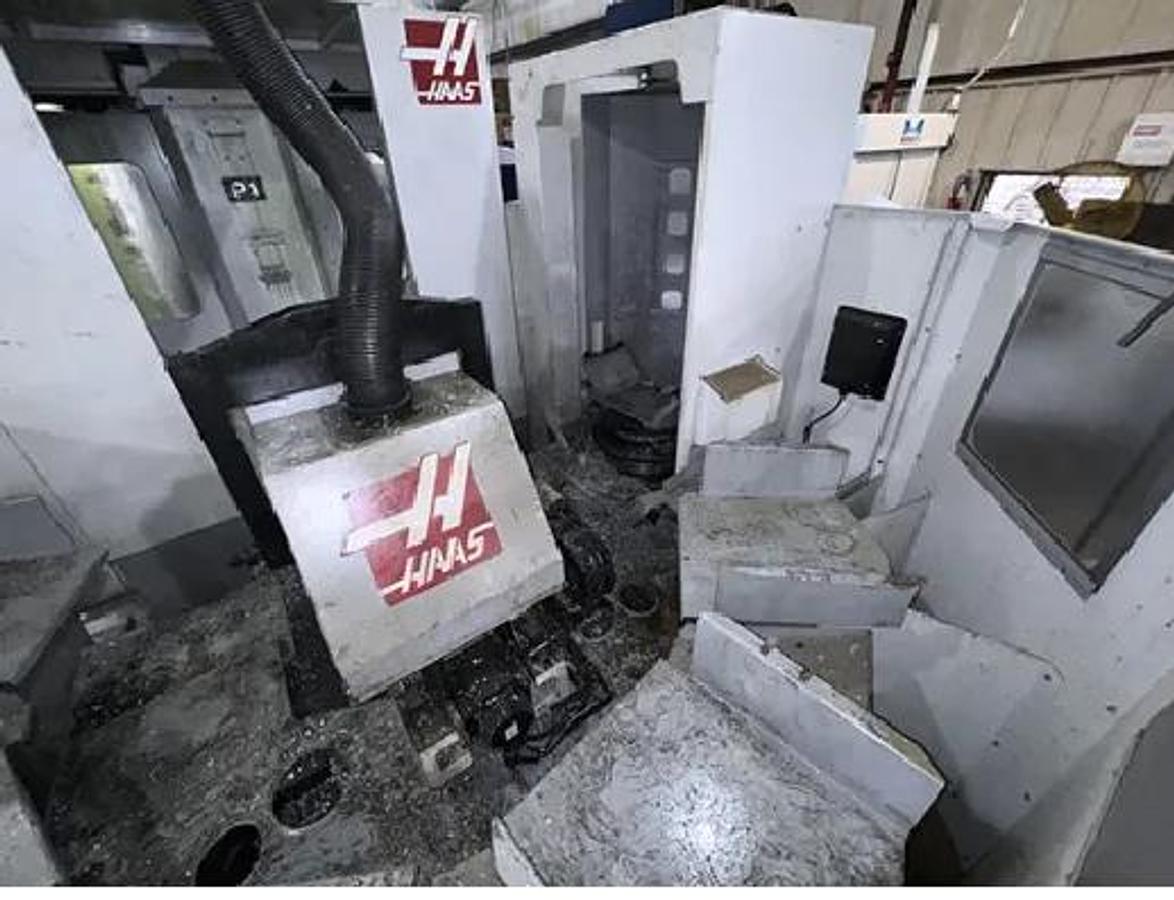

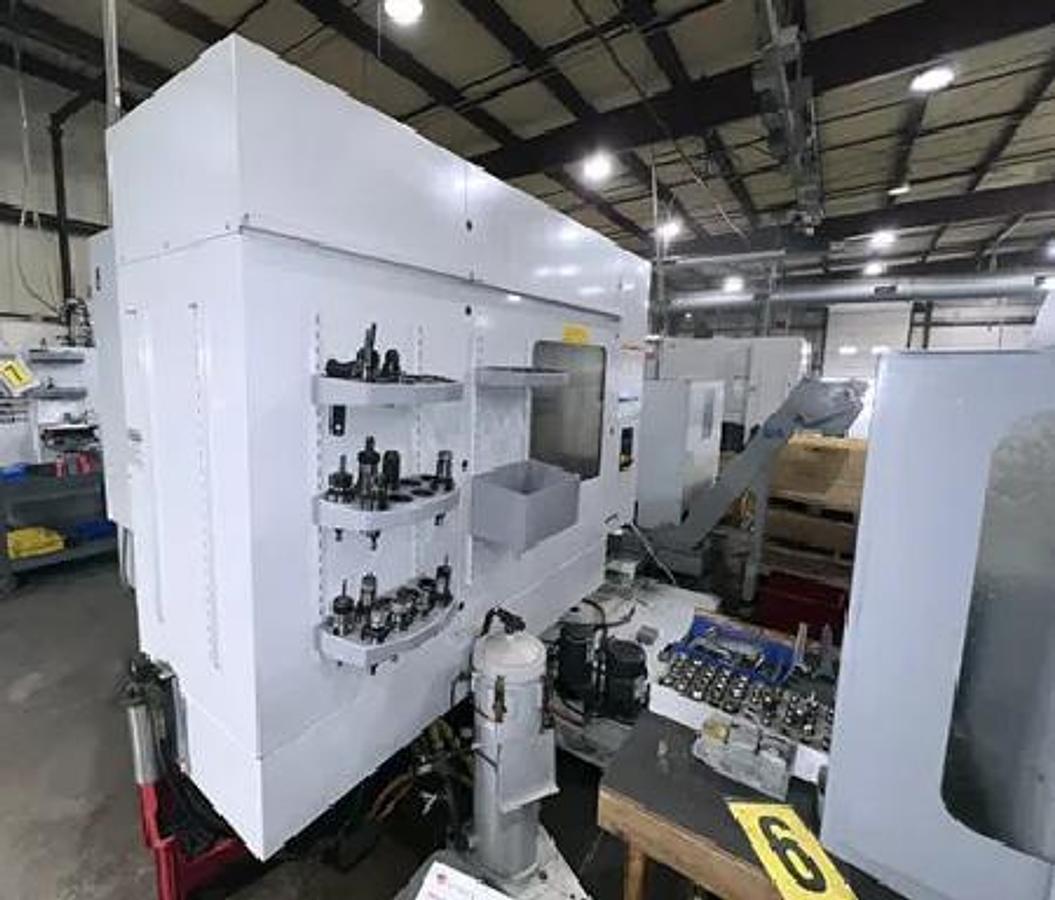

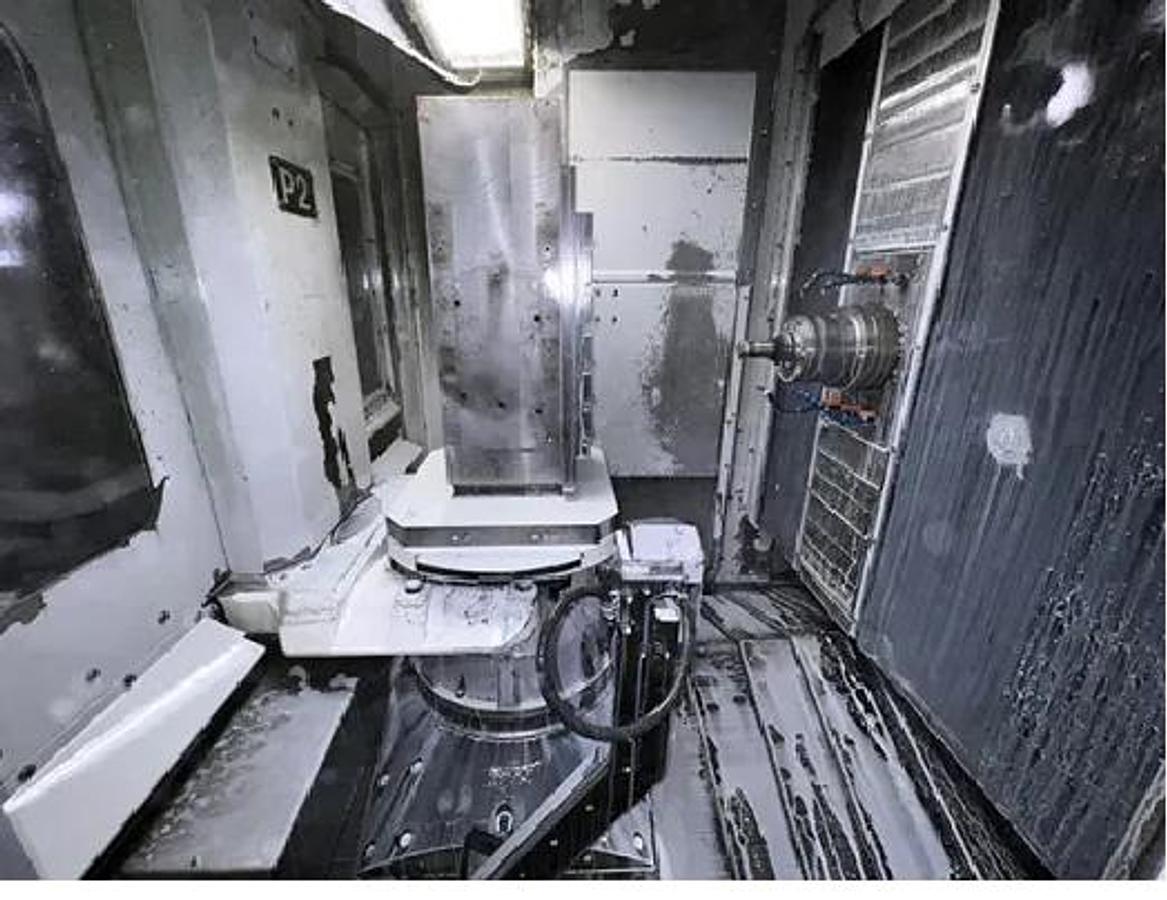

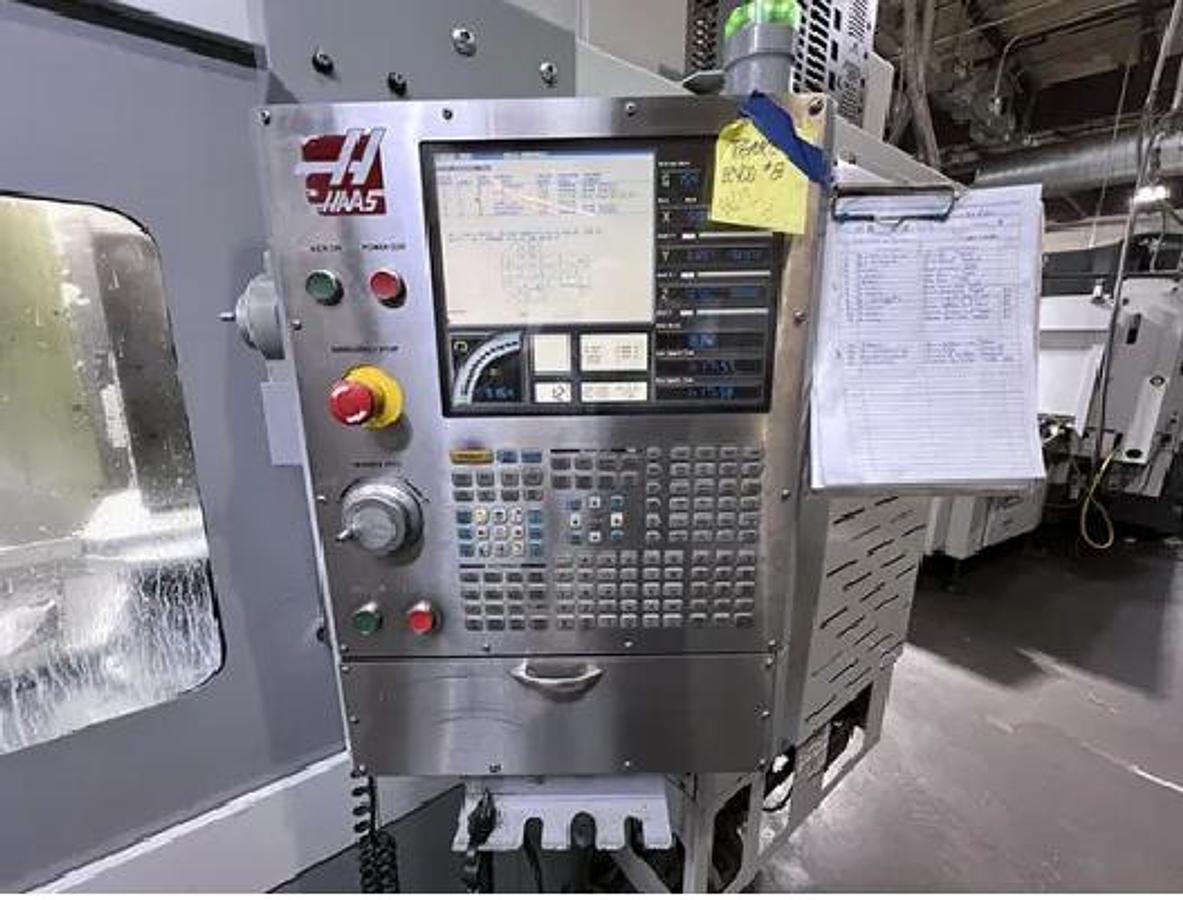

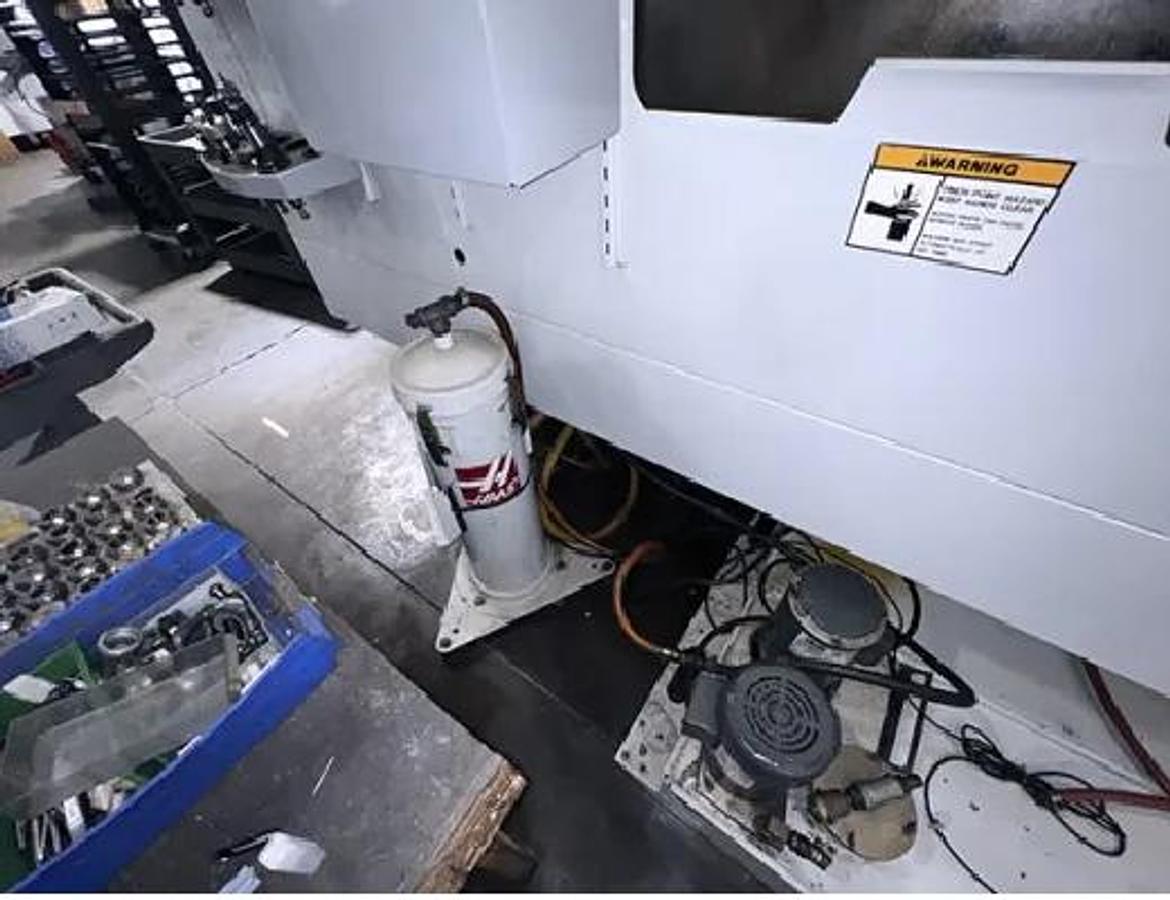

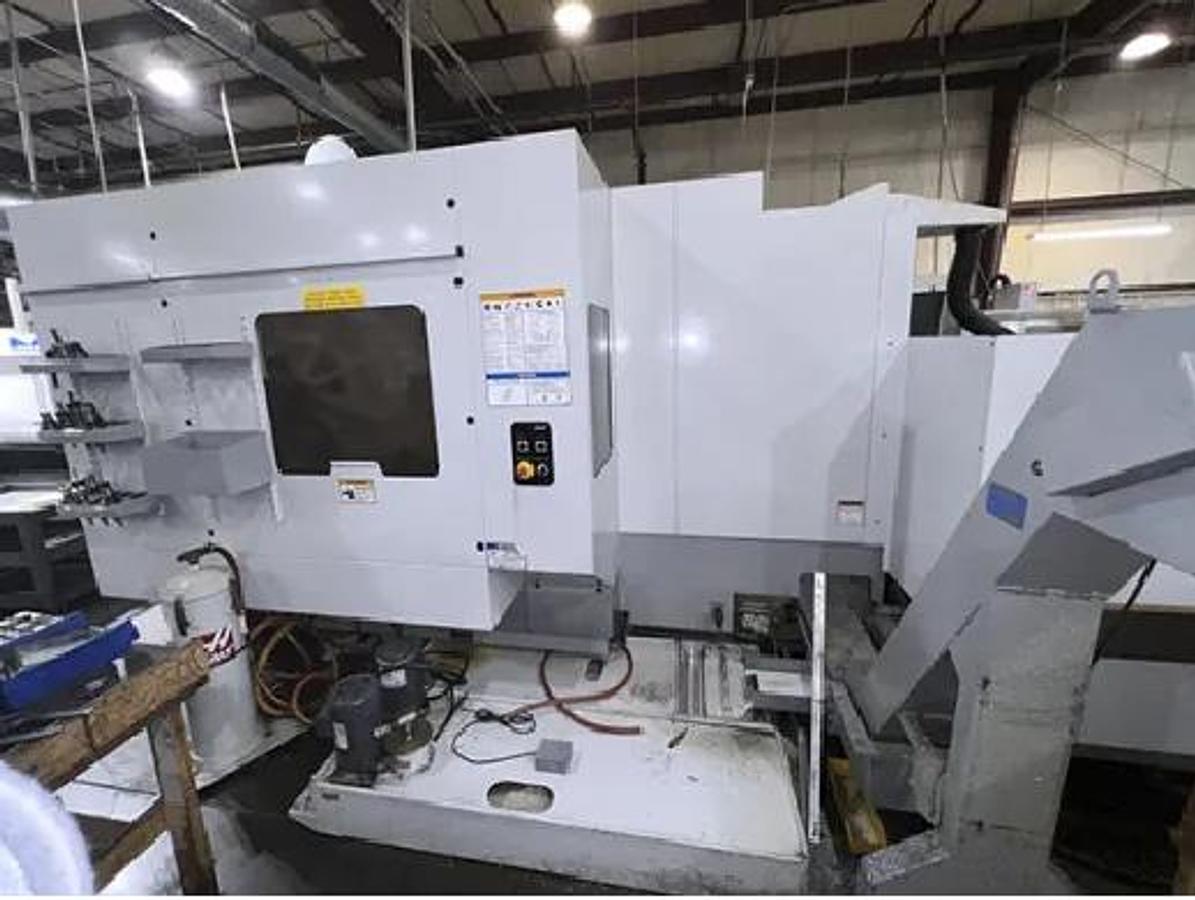

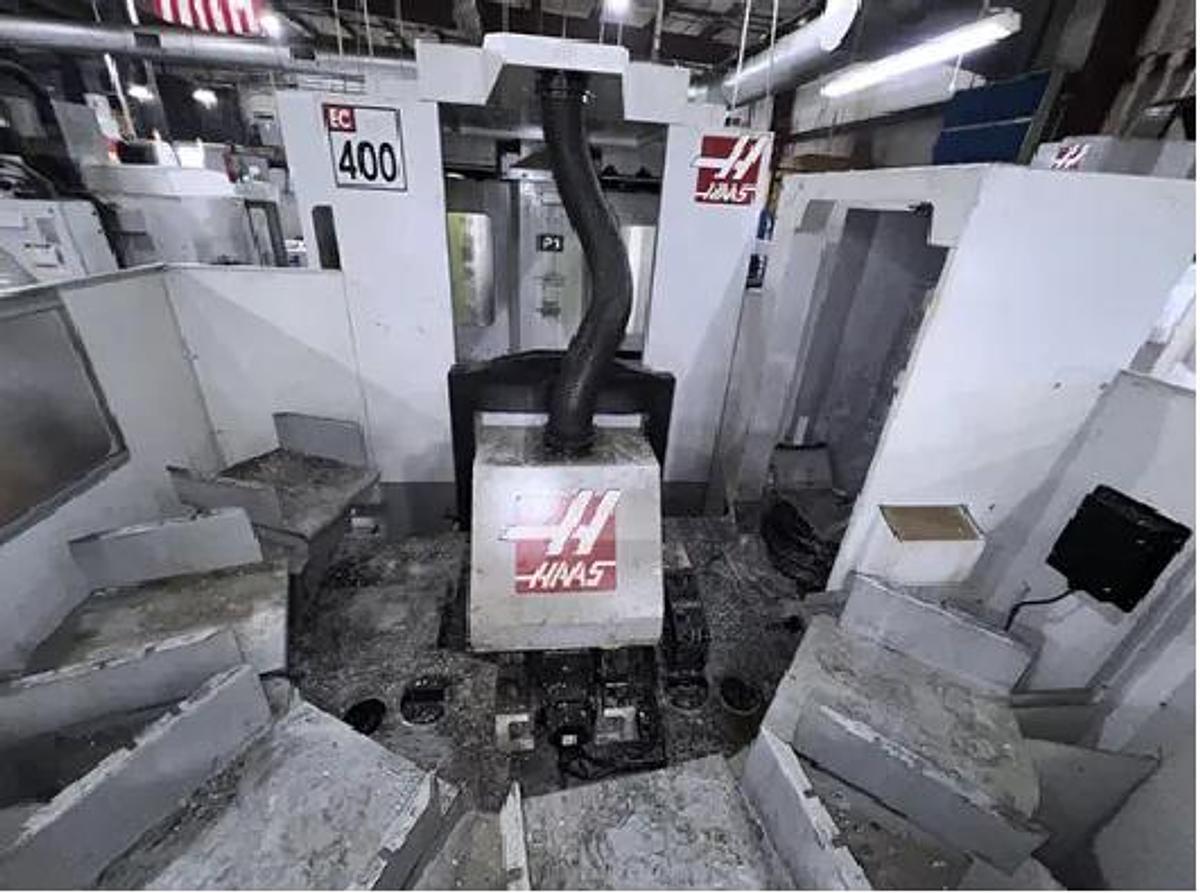

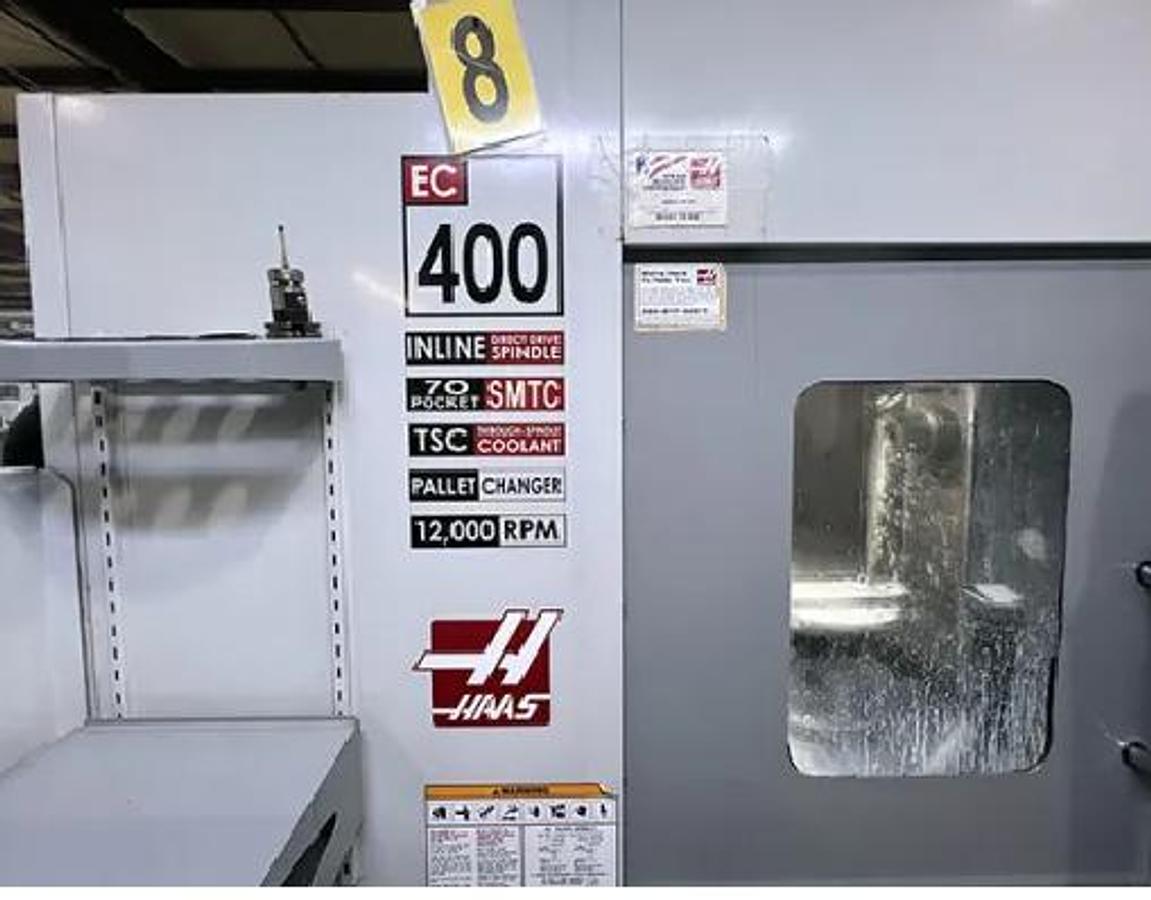

2006 Haas EC-400 6-Pallet Pool, WIPS, Coolant Thru, Chip Conveyor, 70 atc, Remote Jog Handle
2006 Haas EC-400 6-Pallet Pool, WIPS, Coolant Thru, Chip Conveyor, 70 atc, Remote Jog Handle
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description

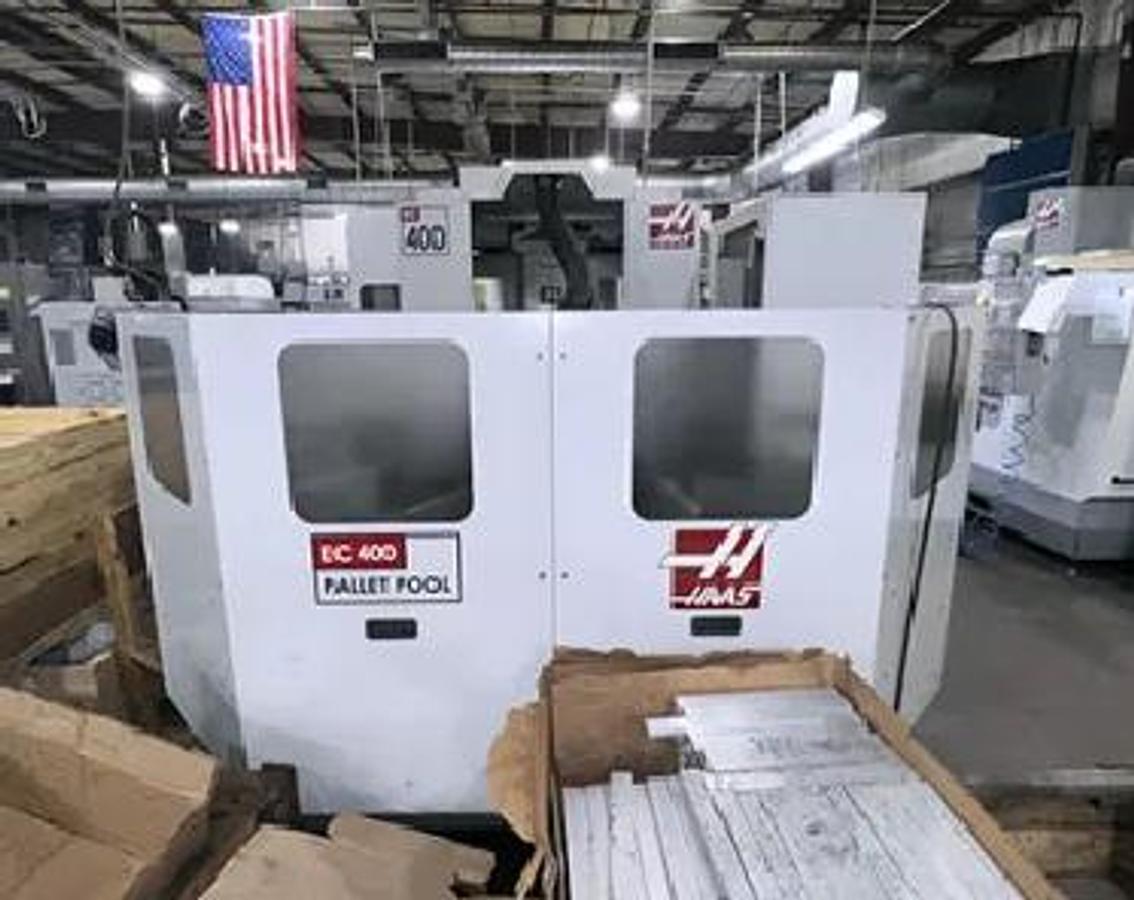

6 Pallet Pool Configuration
WIPS Renishaw Part & Tool Probe
Inline Spindle
70 Station Tool Changer
Coolant Thru the Spindle - 300 PSI
Through the Tool Air Blast
Remote Jog Handle
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Visual Part Program Storage
Chip Conveyor
Ethernet Interface
USB Port Interface
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | EC-400 6-Pallet Pool, WIPS, Coolant Thru, Chip Conveyor, 70 atc, Remote Jog Handle |
| Year | 2006 |
| Condition | Used |
| Stock Number | 120275 |
| Machine Control | Haas |
| Table Size / Number of Pallets | 15.75" x 15.75" / 6 Pallet Changer |
| Maximum Table Load | 880 lbs |
| Pallet Indexing | 1 Degree |
| X-Axis Travel | 20" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Speed | 12,000 RPM |
| Spindle Taper | CAT 40 |
| Spindle Motor | 30 HP Vector Direct Drive |
| Tool Magazine Capacity | 70 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs |
| Rapid Traverse Rates | 1,400 IPM |
| Cutting Feedrates | 833 IPM |
| Machine Dimensions LxWxH | 202" x 102" x 113" |
| Pallet Pool Dimensions | 127" x 91" x 85" |
| Machine Weight | 31,200 lbs all together |
