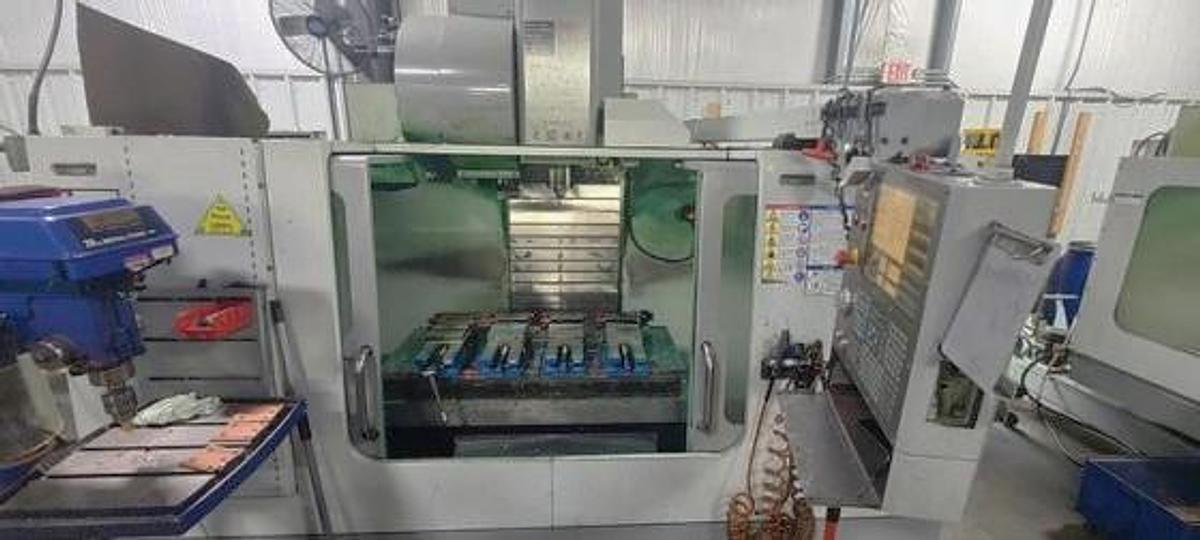

2008 Haas VF3
2008 Haas VF3
$29,950 (USD)
Location:Tennessee
or
Call (863) 439-6066
Description
4th Axis Drive & Wiring
Auger Style Chip Conveyor
Haas Probing Package
Coolant Through the Spindle (not functioning, getting precharge error)
Auxillary Coolant Filter System
24 Station Side Mounted Tool Changer
Programmable Coolant Nozzle
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Visual Quick Code Programming
2 Speed Gearbox
High Speed Machining
1000 IPM Rapids
1 MB Expanded Memory
Rigid Tapping
Remote Jog Handle (not functioning, getting axis conflict error)
USB Port Interface
RS 232 Port Interface
Specifications
| Manufacturer | Haas |
| Model | VF3 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 120273 |
| Table Size | 48" x 18" |
| Maximum Table Load | 3,500 lbs |
| X-Axis Travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 25" |
| Distance Spindle Nose to Table Top | 4" - 29" |
| Spindle Taper | CAT 40 |
| Spindle Motor | 20 HP |
| Spindle Speed | 7,500 RPM - 2 Speed Gearbox |
| Tool Magazine Capcity | 24 Station Side Mounted ATC |
| Rapid Traverse Rates | 1000 IPM |
| Maximum Tool Diameter / Length / Weight | 3.5" / 13" / 12 lbs |
| Machine Dimensions LxWxH | 118"x98"x118" |
| Machine Weight | 12,500 lbs |
