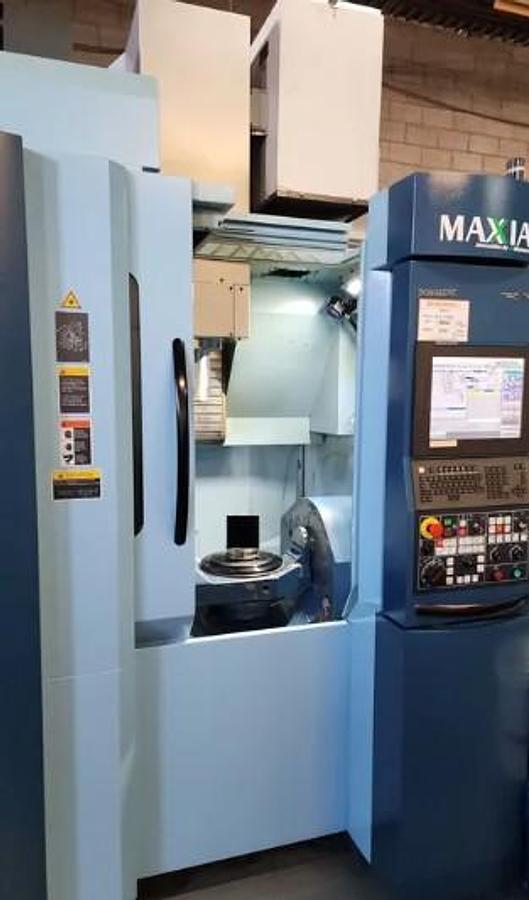

2020 Matsuura MX-330 5X PC w/ 10 Pallet FMS, 90 ATC, CTS, Probing, 20,000 RPM
2020 Matsuura MX-330 5X PC w/ 10 Pallet FMS, 90 ATC, CTS, Probing, 20,000 RPM
Contact us for price
Location:Quebec City, Canada
or
Call (863) 439-6066
Description
10 Pallet FMS System
Tool & Part Probe
20,000 RPM Spindle Option
Thru the Spindle Coolant - 300 PSI
90 Station Tool Changer
Mist Collector
Air Dryer
Chip Auger
All Available Manuals
**Approximately 6,000 Hours**
Specifications
| Manufacturer | Matsuura |
| Model | MX-330 5X PC w/ 10 Pallet FMS |
| Year | 2020 |
| Condition | Used |
| Stock Number | 120270 |
| Machine Control | Matsuura G-Tech 31i |
| Table Size / Number of Pallets | 9.84" Diameter / 10 Pallet System |
| Maximum Workpiece | 13" Diameter x 12.6" High |
| Maximum Table Load | 176 lbs |
| X-Axis Travel | 18.31" |
| Y-Axis Travel | 17.13" |
| Z-Axis Travel | 22.05" |
| Spindle Taper | BT 40 |
| Spindle Speed | 20,000 RPM |
| Spindle Motor | 33 HP |
| Tool Magazine Capacity | 90 Station Tool Changer |
| Rapid Traverse Rates | 1,574 IPM |
| Machine Dimensions LxWxH | 123.7"x73.42"x113.42" w/o the Pallet System |
| Machine Weight | 14,000 lbs |
