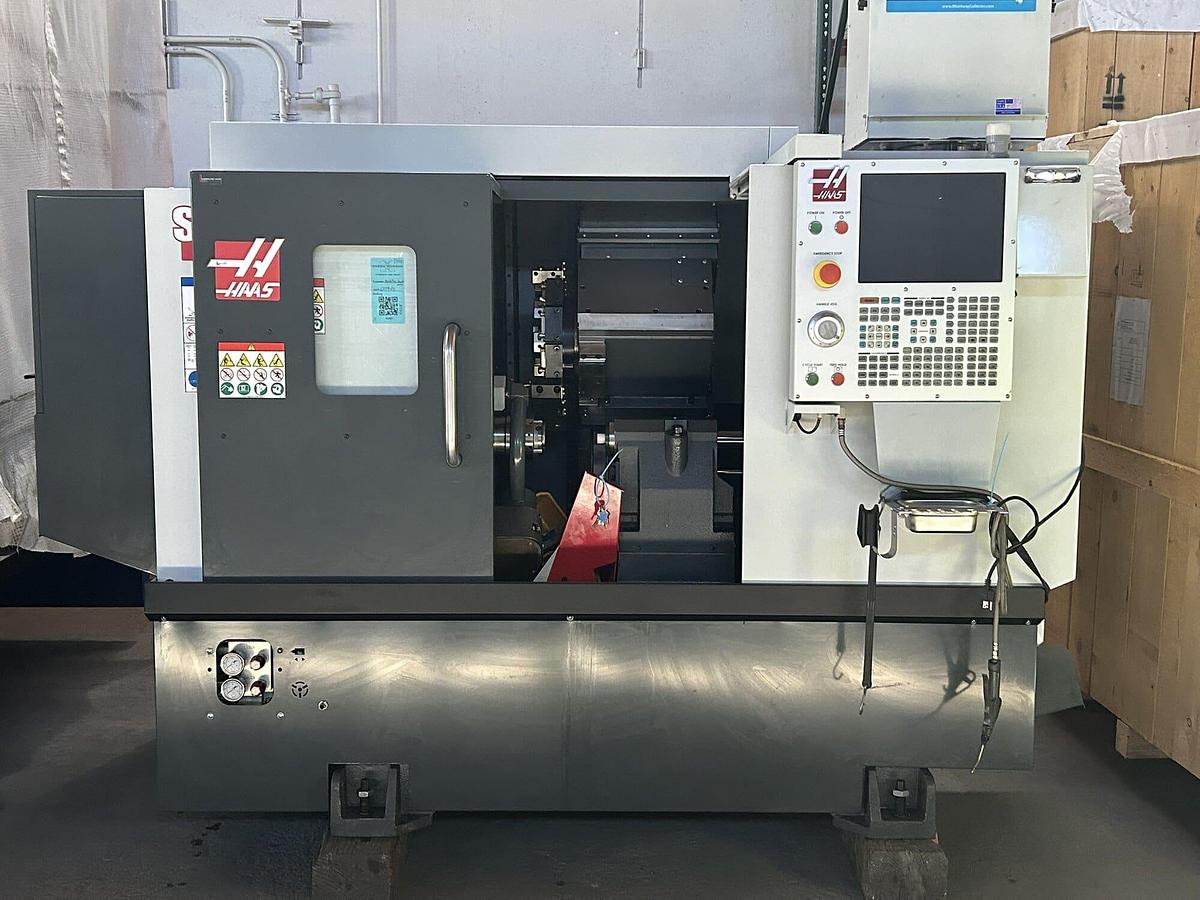

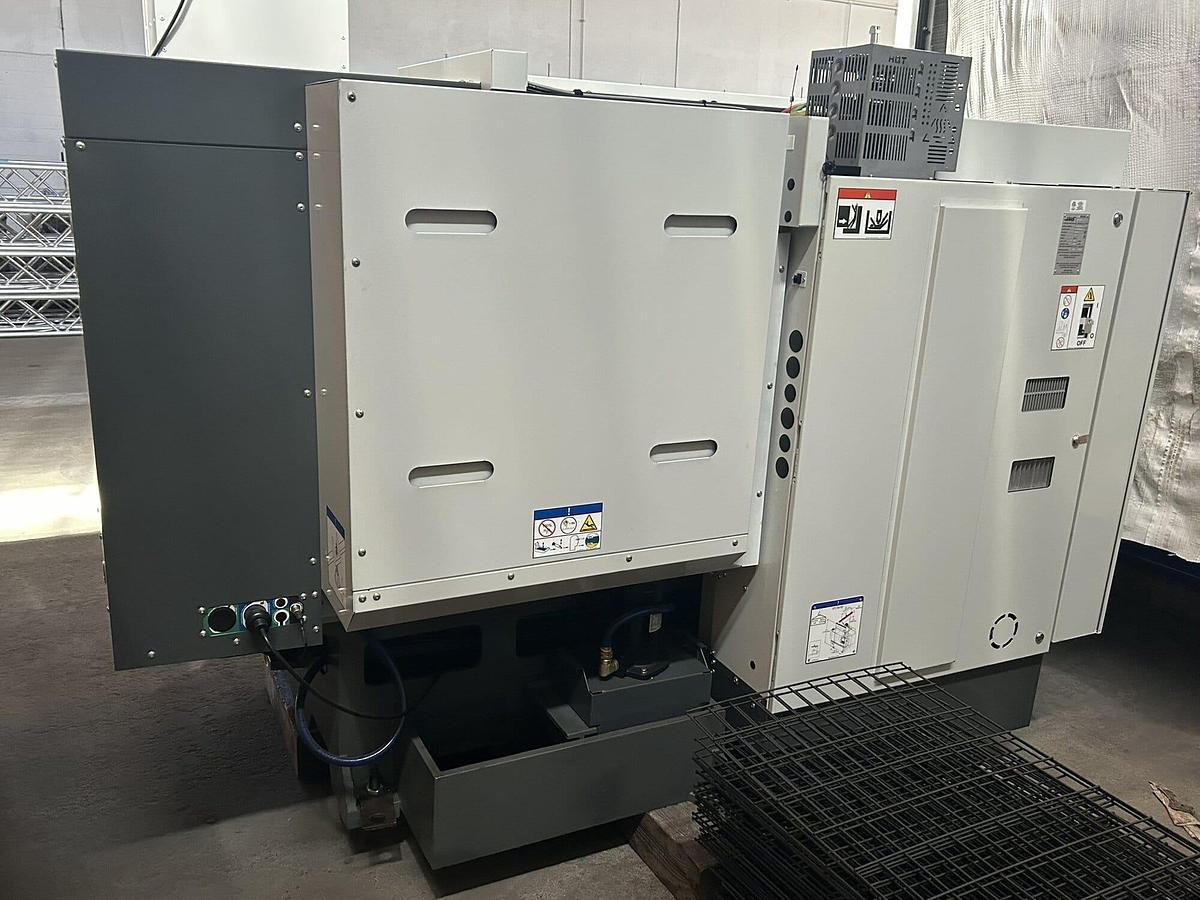

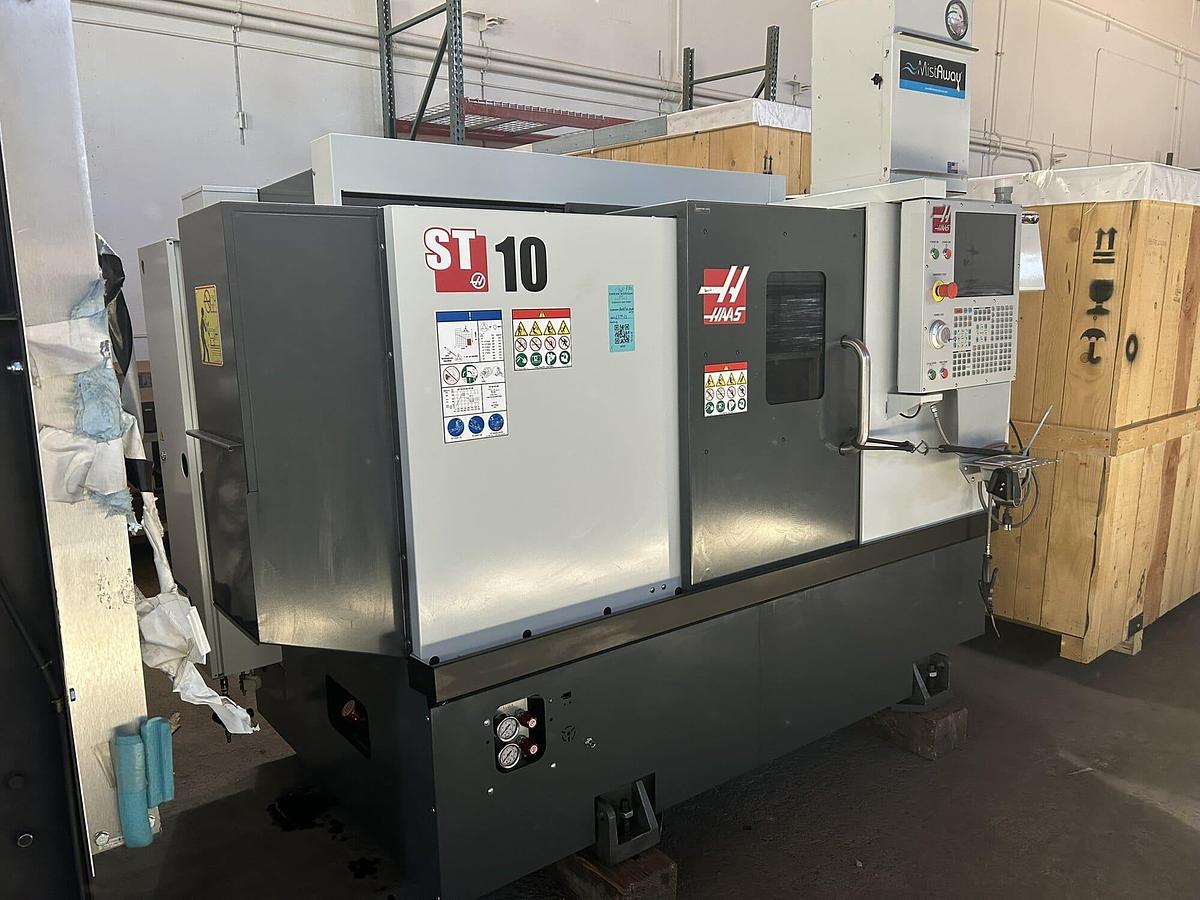

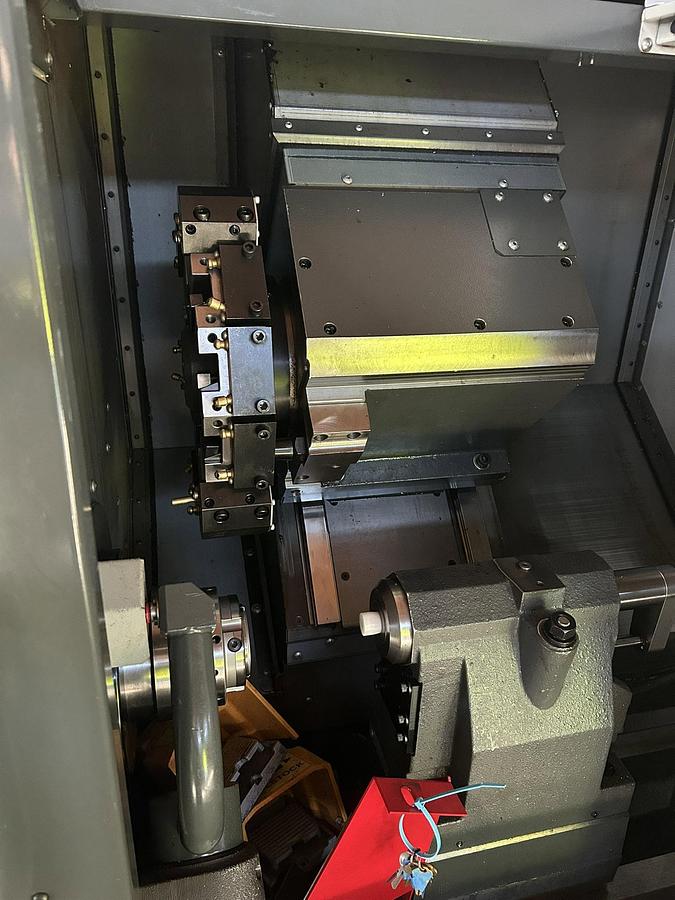

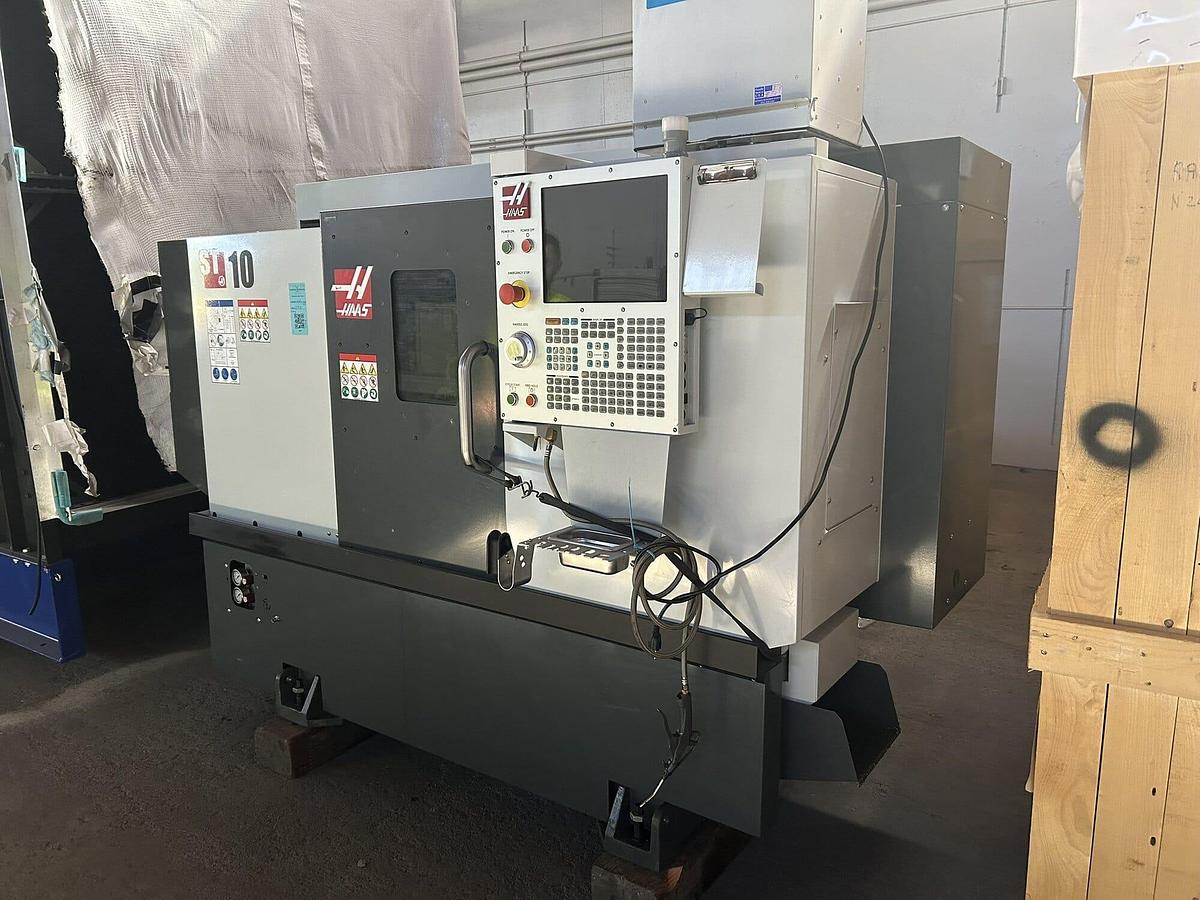

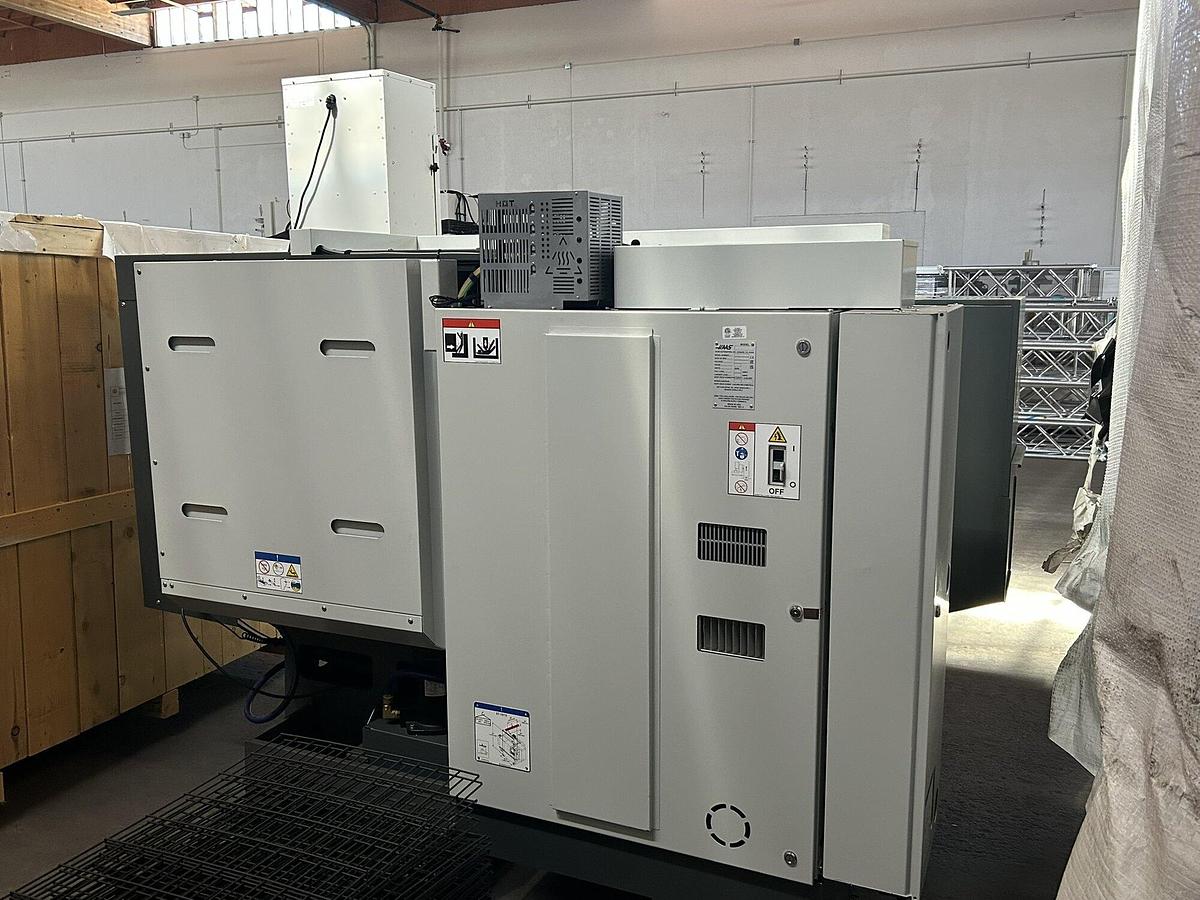

2022 Haas ST-10
2022 Haas ST-10
Contact us for price
Location:Washington, DC
or
Call (863) 439-6066
Description
6.5" 3 Jaw Hydraulic Chuck
Automatic Tool Presetter
Tailstock
User Definable Macros
Ethernet Interface
VPS
Wifi Connect
Haas Connect
Visual Part Programming System
Rigid Tapping
Transformer
220V 3-Phase Power
1.75" Spindle Liner Kit
15" LCD Color Monitor
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | ST-10 |
| Year | 2022 |
| Condition | Used |
| Stock Number | 120267 |
| Machine Control | Haas CNC Control |
| Chuck Size | 6.5" / 1.75" Thru hole |
| Maximum Swing | 25.25" |
| Maximum Swing Over Cross Slide | 16.25" |
| Maximum Machining Diameter | 14" |
| Maximum Machining Length | 14" |
| X-Axis Travel | 7.88" |
| Z-Axis Travel | 14" |
| Spindle Nose / Bore / Bar Capacity | A2-5" / 2.31" / 1.75" |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 15 HP |
| Number of Turret Positions | 12 Bolt on Style Turret |
| Spindle Torque | 75 ft/lbs. |
| Rapid Traverse Rates | 1,200 IPM |
| Machine Dimensions LxWxH | 92"x55"x69" |
| Machine Weight | 6,420 lbs |
