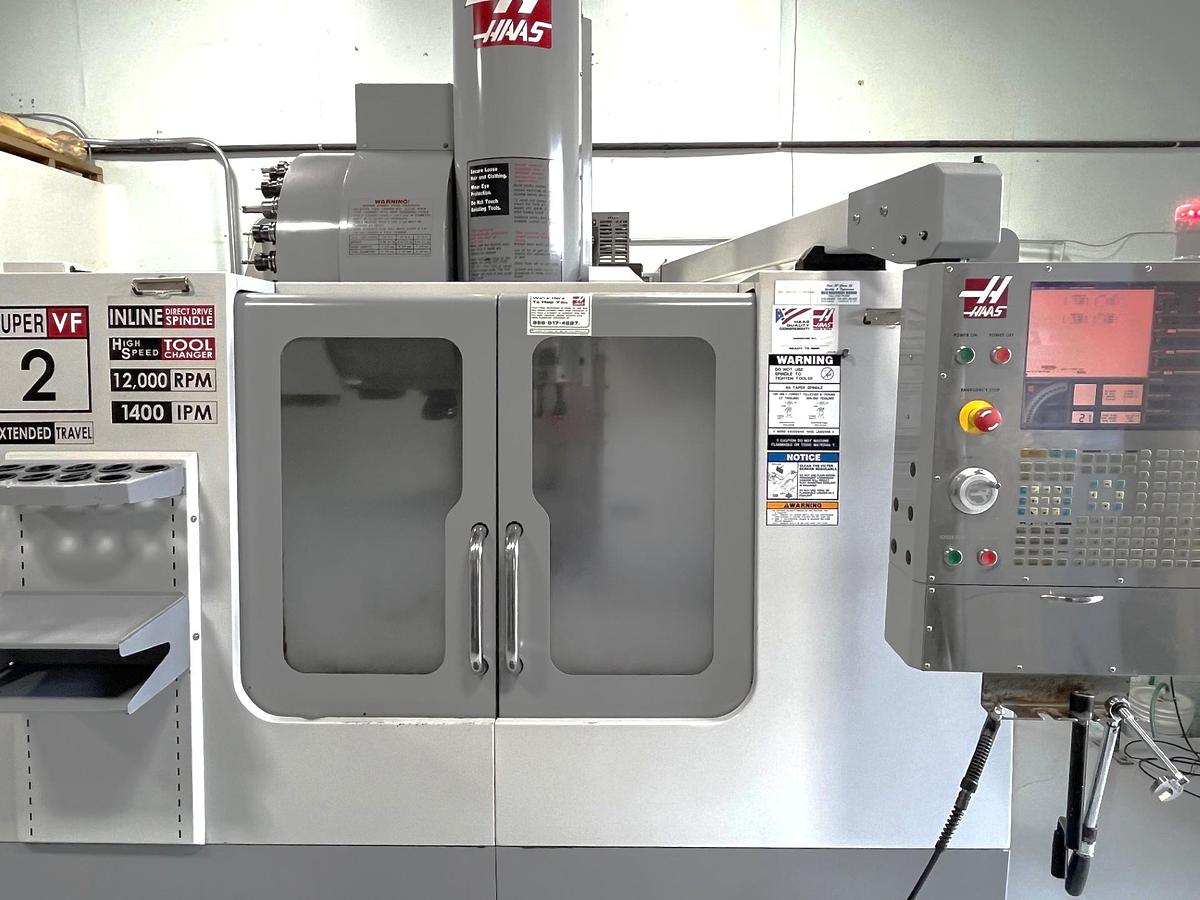

2006 Haas VF2SS YT with 4th Axis Drive & Wiring, Extended Y Axis, High Pressure Flood Coolant, 24 Station Side Mount ATC
2006 Haas VF2SS YT with 4th Axis Drive & Wiring, Extended Y Axis, High Pressure Flood Coolant, 24 Station Side Mount ATC
$24,500 (USD)
Location:New Jersey
or
Call (863) 439-6066
Description
4th Axis Drive & Wiring
24+1 Position Side Mounted Tool Changer
Spindle Orientation
Extended Y Axis Travel
High Pressure Flood Coolant
Coolant System with Tank & Pump
RS 232C Port Interface for DNC Operation
Wired 208/230V Electrics
**Manufactured New in December of 2006**
**Machine Run Hours 11,546**
**Approximate Spindle Hours 4,500**
Specifications
| Manufacturer | Haas |
| Model | VF2SS YT |
| Year | 2006 |
| Condition | Used |
| Stock Number | 120261 |
| Pallet Size / Number of Pallets | 36" x 18" |
| Max table load | 1,500 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4" - 24" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 106" x 101" x 101 " |
| Machine weight (approximately) | 9,500 lbs. |
