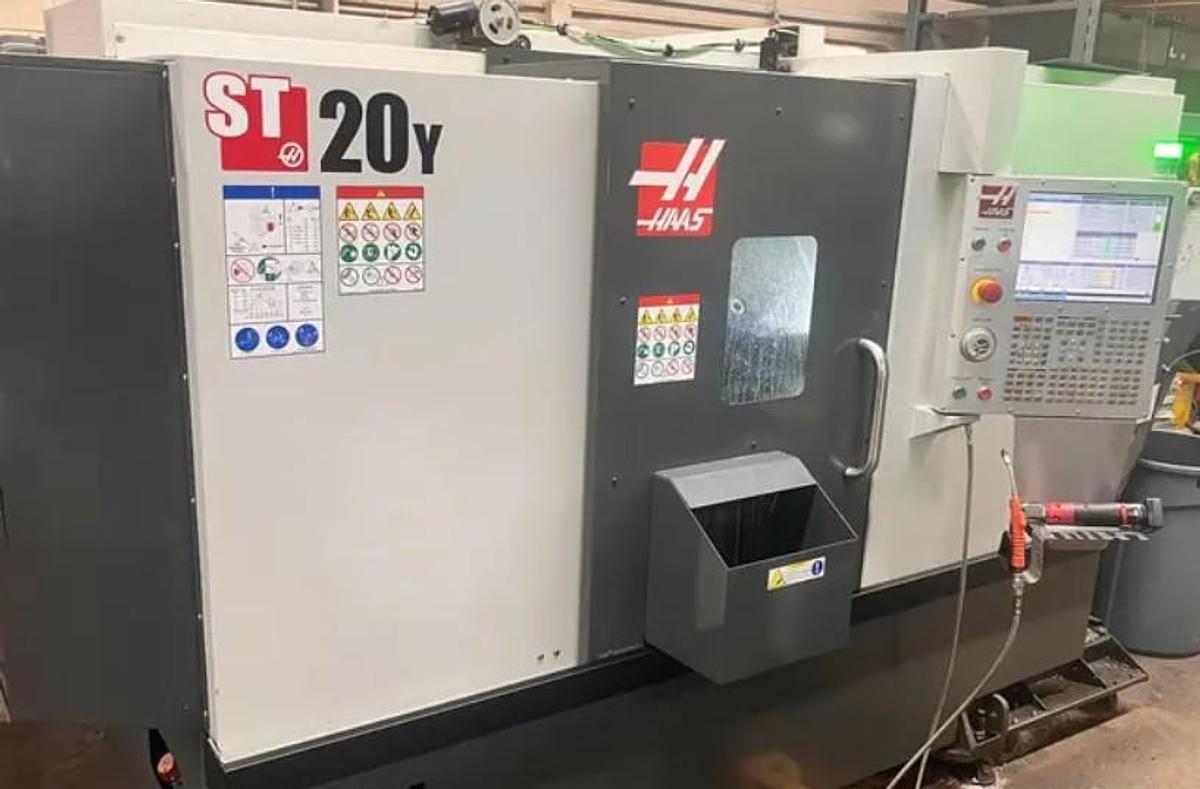

2019 Haas ST-20Y with Subspindle, Milling, Y Axis, Chip Conveyor, 24 Station BMT65 Turret
2019 Haas ST-20Y with Subspindle, Milling, Y Axis, Chip Conveyor, 24 Station BMT65 Turret
Contact us for price
Location:California
or
Call (863) 439-6066
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability

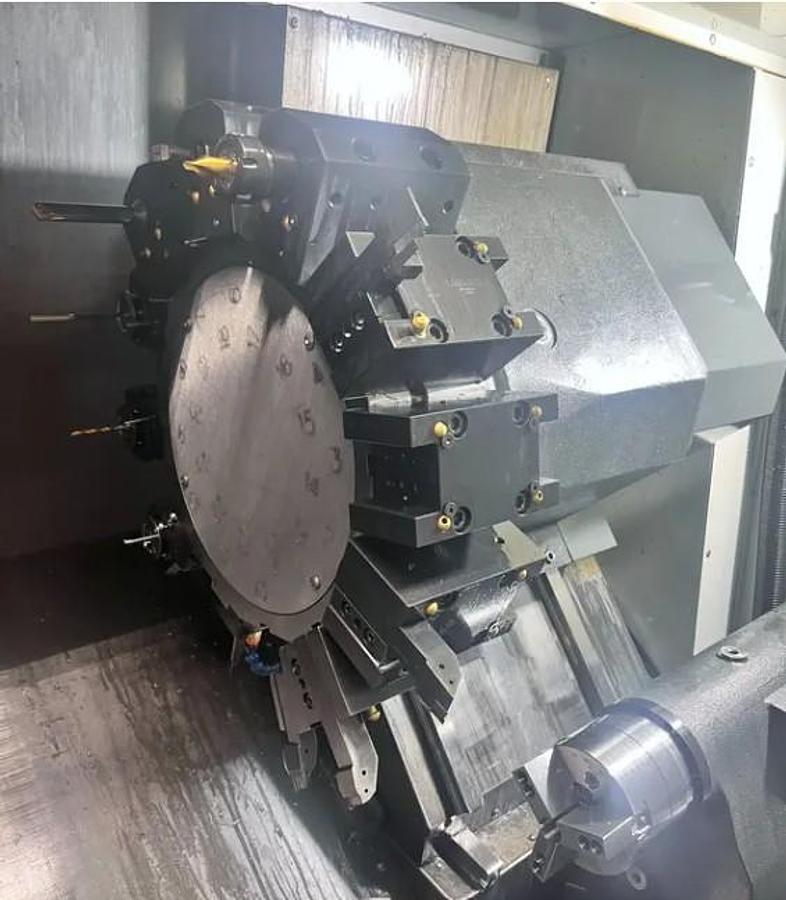

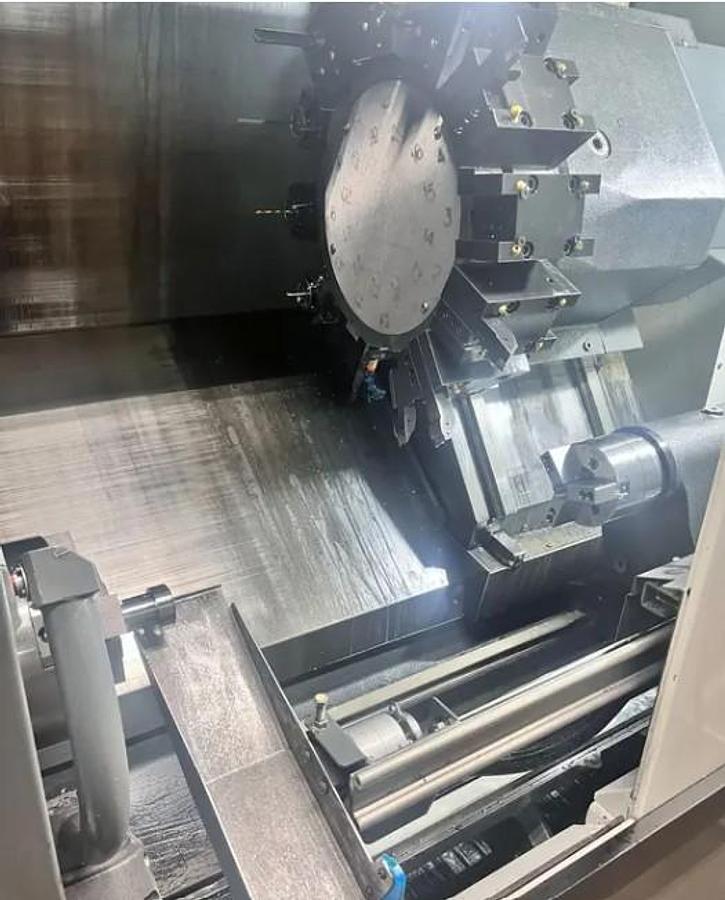

24 Station BMT65 Turret
8.3" 3 Jaw Hydraulic Chuck - main spindle
5.3" 3 Jaw Hydraulic Chuck - subspindle
Chip Conveyor
Parts Catcher
Tool Presetter
Chuck Air Blast - main spindle

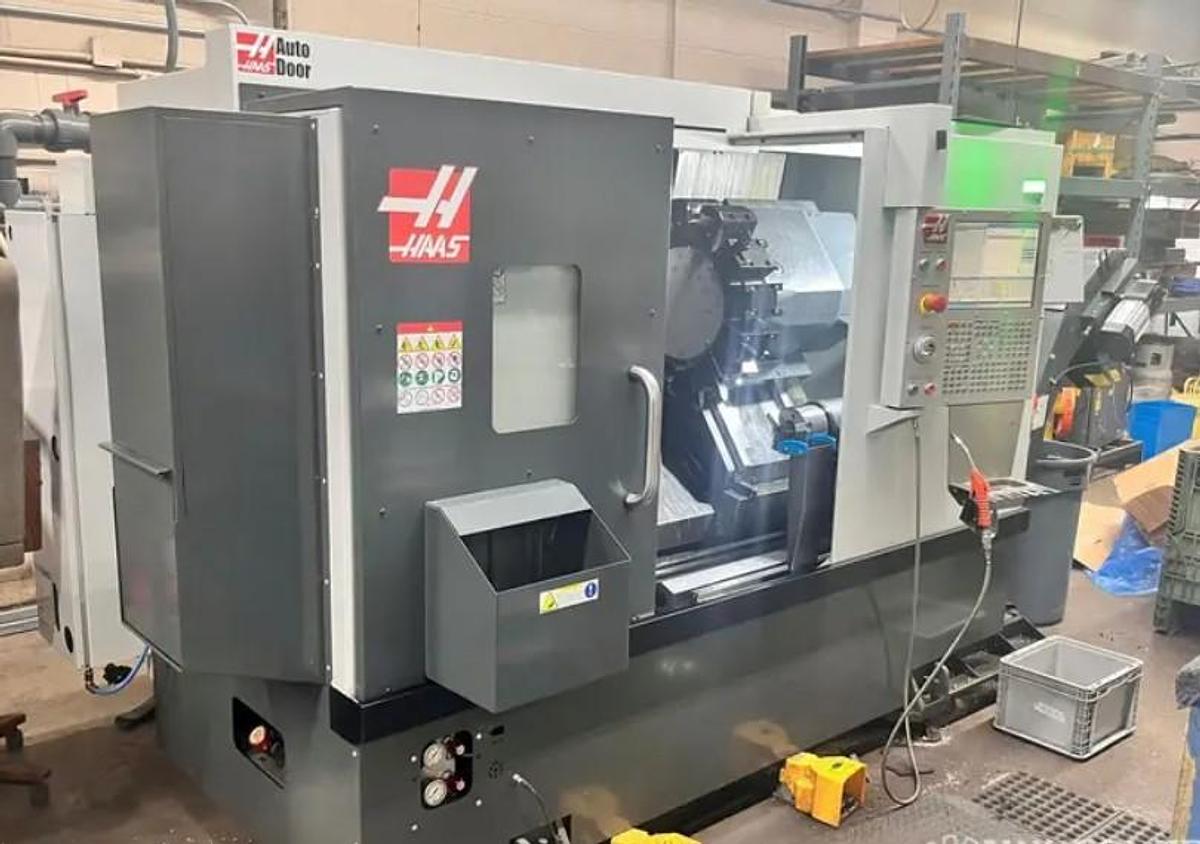

Auto Door
CNC Cabinet Cooler
Haas Visual Part Programming System
Spindle Orientation
User Definable Macros
Media Display M Code M130
Haas Connect
1 GB Program Storage
Rigid Tapping
15" LCD Color Monitor
Early Power Failure Detection Module
Memory Lock Key Switch
USB Port Interface
RS 232 Port Interface
All Available Tool Blocks
(1) Live Axial Holder / (1) Live Radial Holder

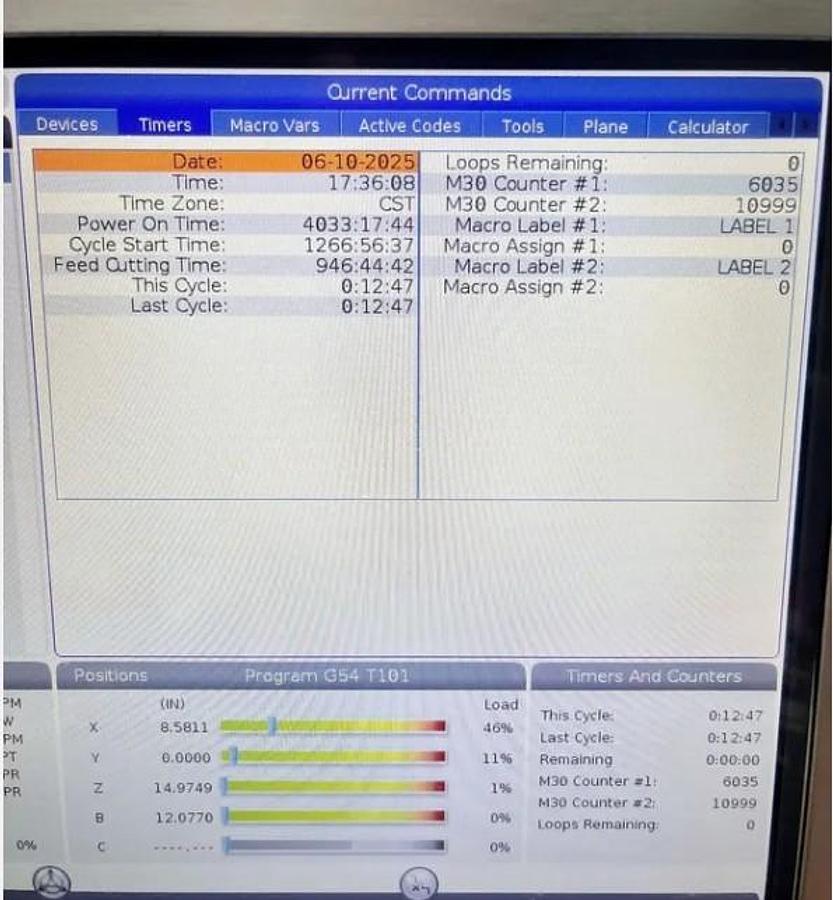

**Feed Cutting Hours 946**
**Price as equipped today at $163,360**
Specifications
| Manufacturer | Haas |
| Model | ST-20Y |
| Year | 2019 |
| Condition | Used |
| Stock Number | 120260 |
| Machine Control | Haas NextGen Control |
| Chuck Size | 8.3" / 5.3" 3-Jaw Hydraulic Chucks |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Number of Turret Positions | 12 Bolt on Style - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 10,480 lbs. |
