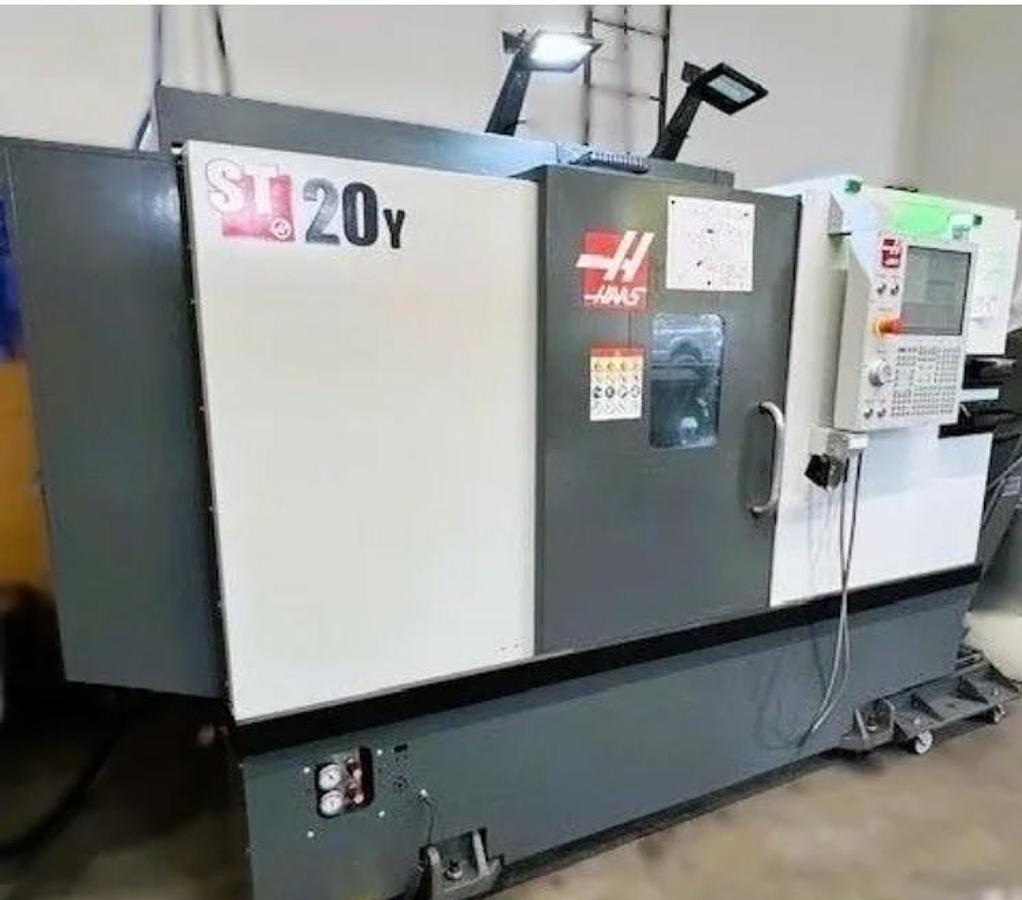

2023 Haas ST-20Y with Haas Barfeed, Milling, Y Axis, Chip Conveyor, Tailstock, Low Hours
2023 Haas ST-20Y with Haas Barfeed, Milling, Y Axis, Chip Conveyor, Tailstock, Low Hours
$109,000 (USD)
Location:California
or
Call (863) 439-6066
Description
High Torque C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability

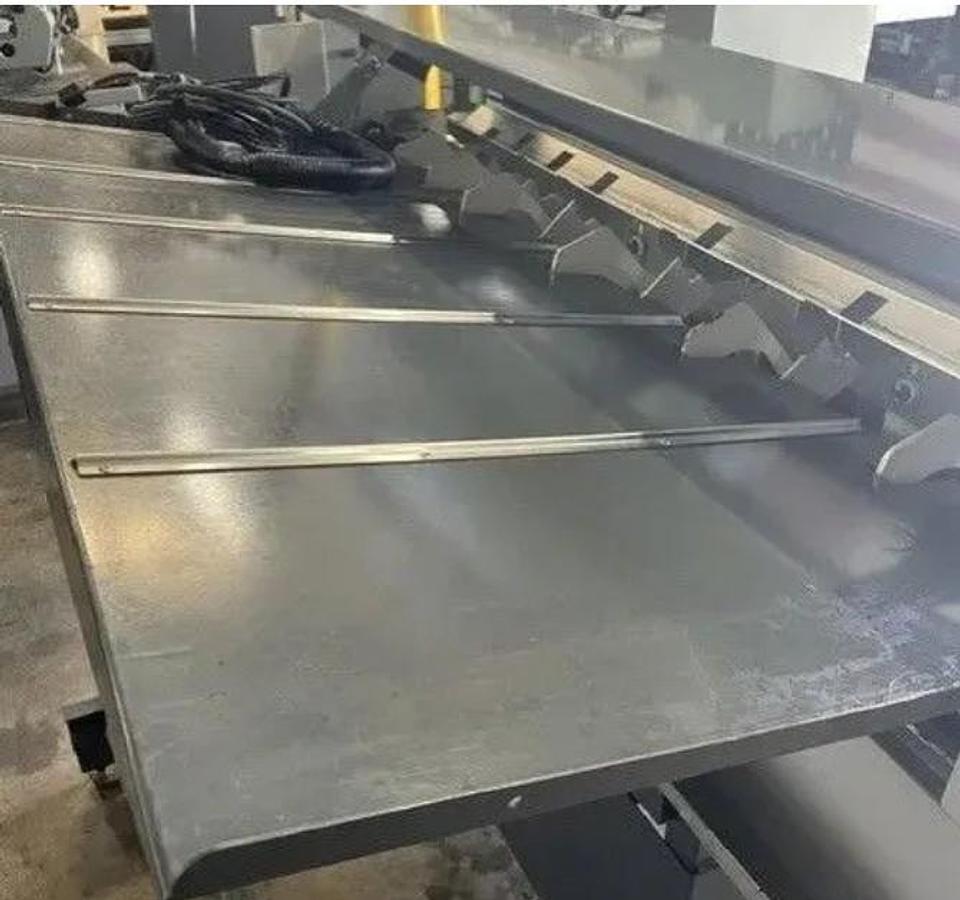

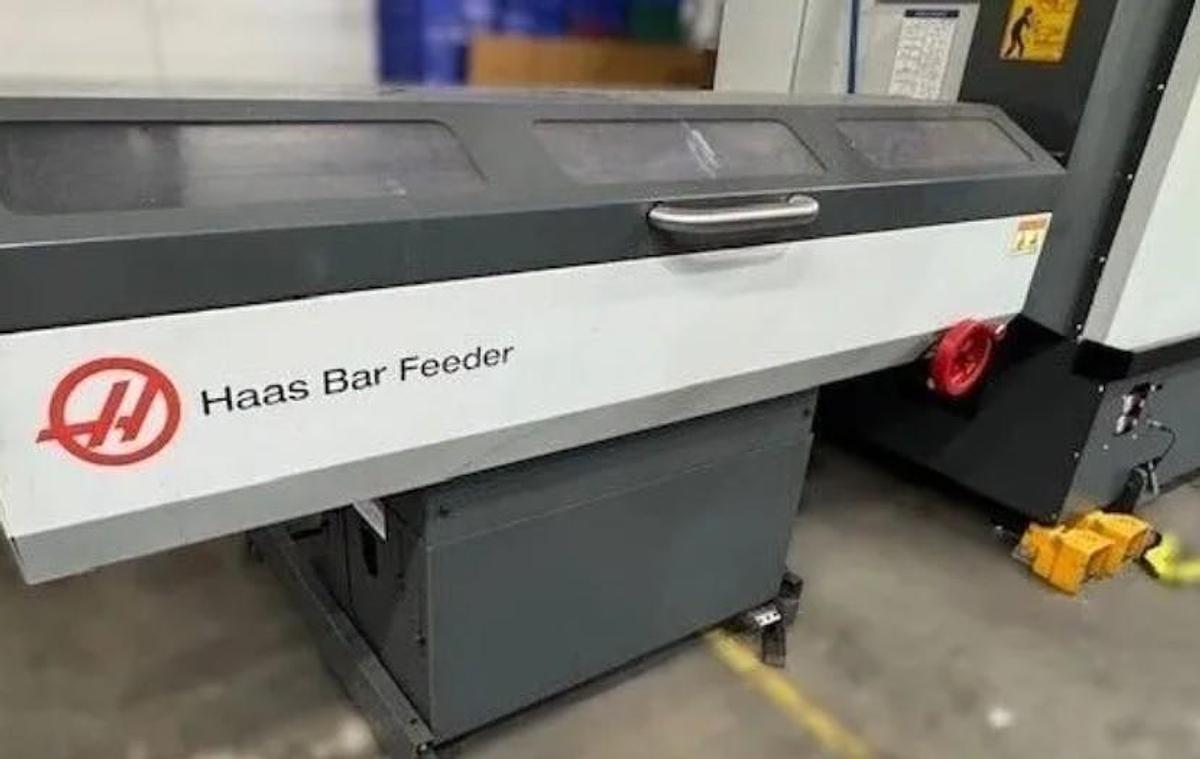

Haas Barfeed System

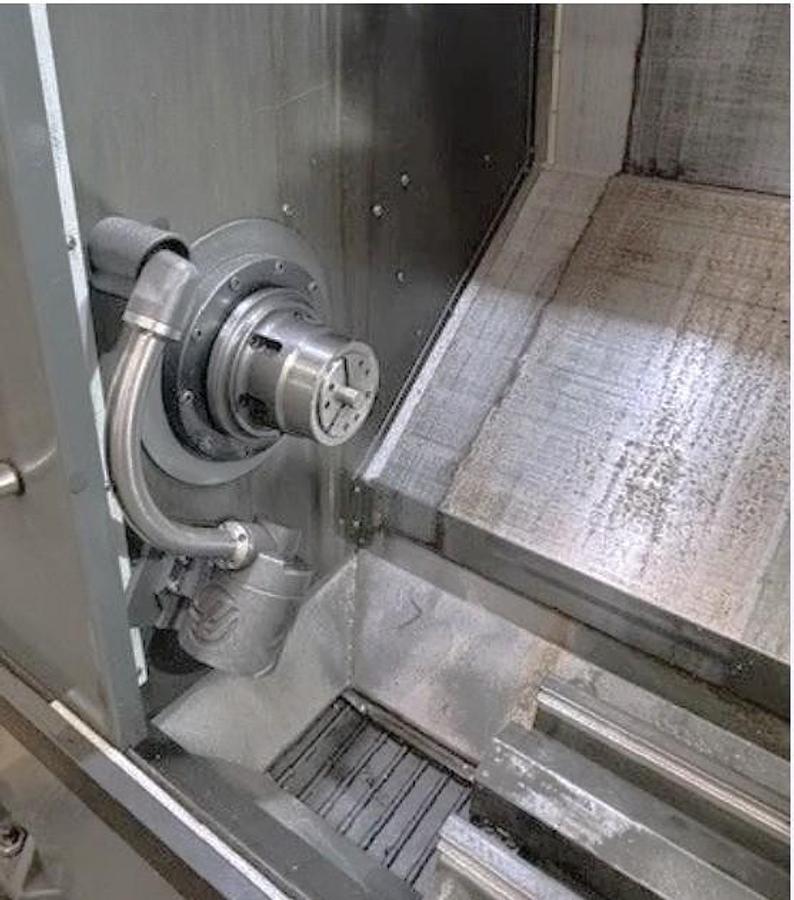

8.3" 3 Jaw Hydraulic Chuck

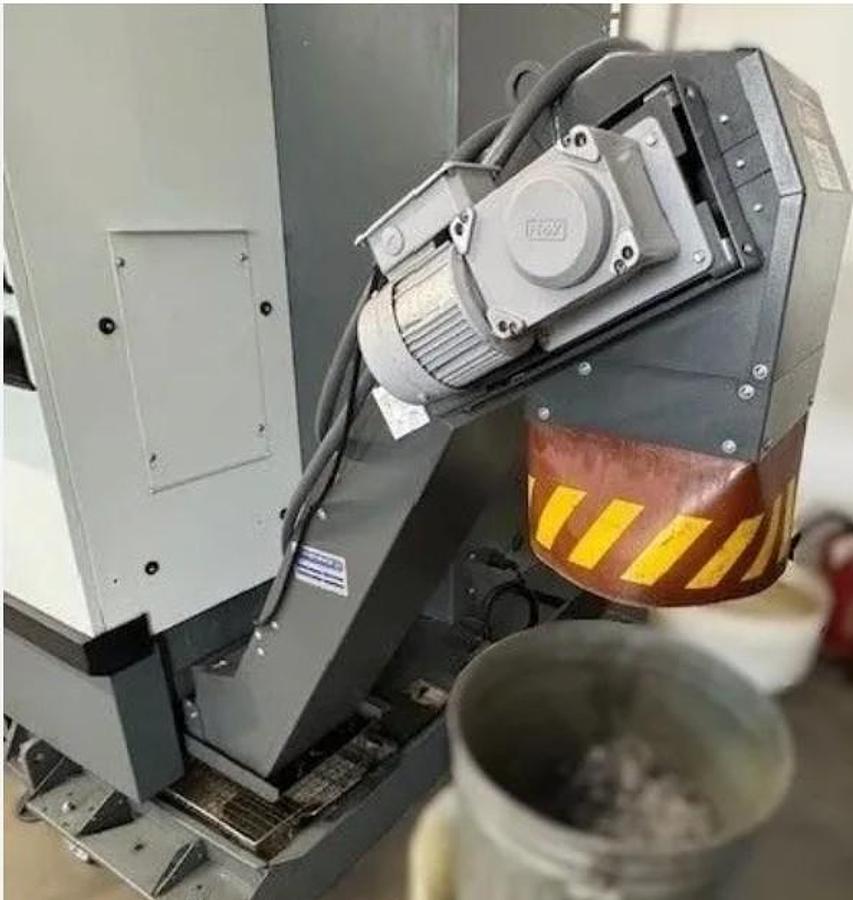

Chip Conveyor
Tool Presetter
Haas Visual Part Programming System
User Definable Macros
High Intensity Lighting
Spindle Orientation
Rigid Tapping
Oil Skimmer
Media Display M Code M130
Haas Connect
1 GB Program Storage
15" LCD Color Monitor
Early Power Failure Detection Module

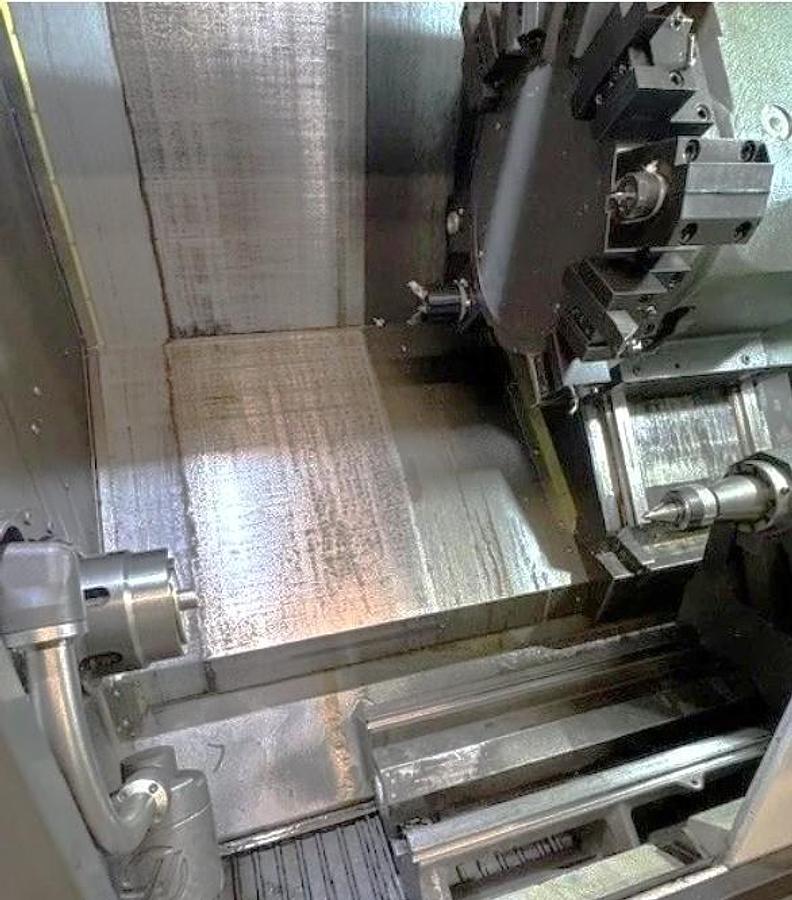

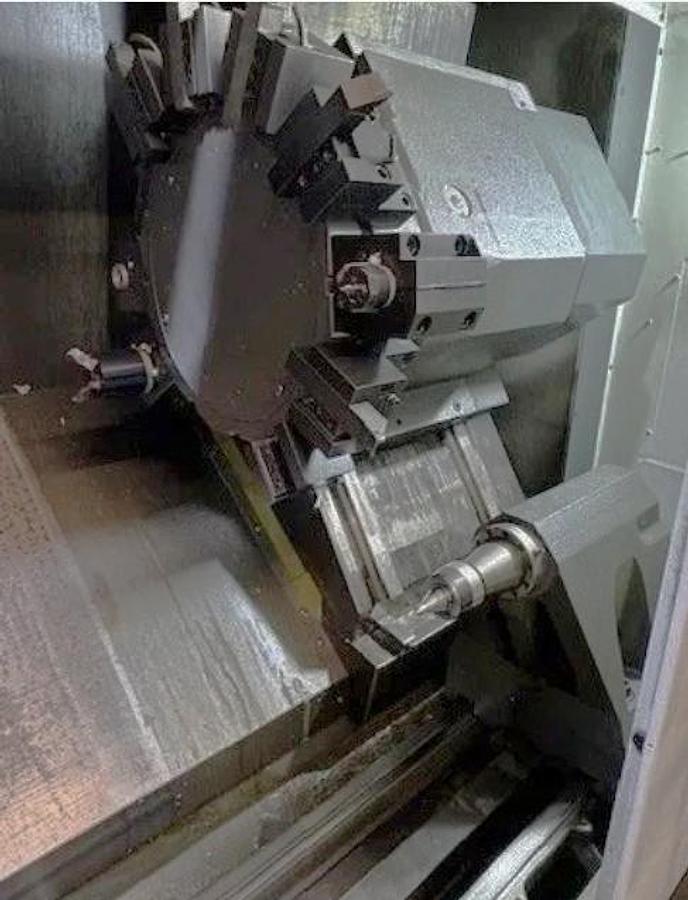

12 Sided BMT65 Turret
Memory Lock Key Switch
USB Port Interface
RS 232 Port Interface
Wired 220V Electrics
All Available Tooling
**Price New Today as Equipped at $130,275**
Specifications
| Manufacturer | Haas |
| Model | ST-20Y |
| Year | 2023 |
| Condition | Used |
| Stock Number | 120257 |

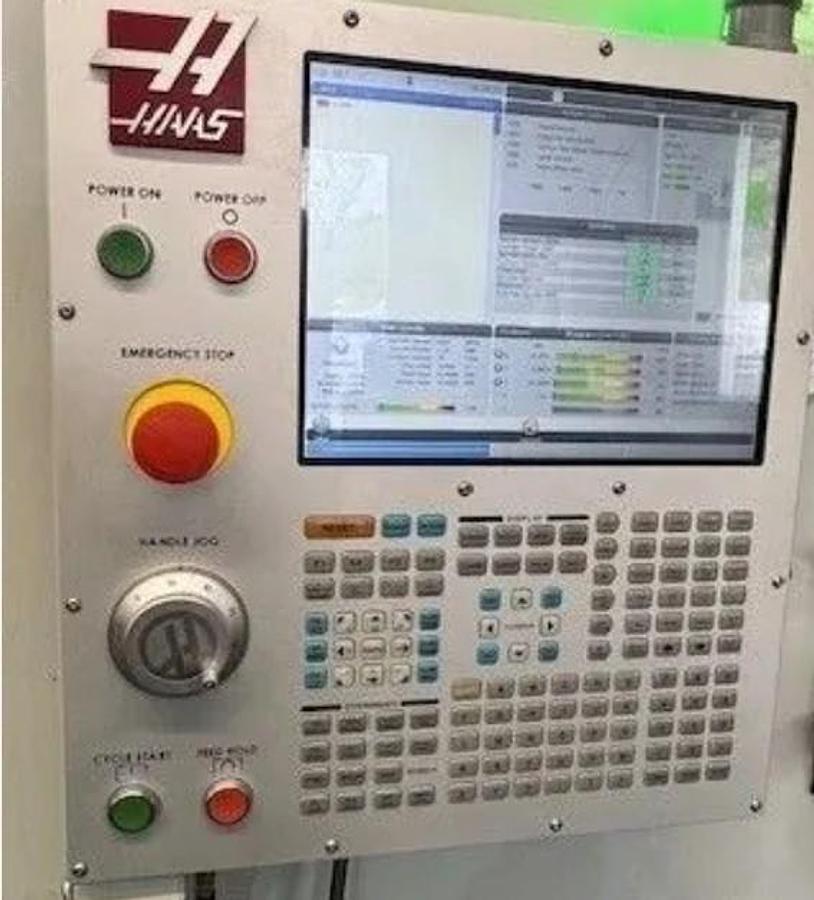

| Machine Control | Haas NextGen Control |
| Chuck Size | 8.3" 3-Jaw Hydraulic Chuck |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Number of Turret Positions | 12 Bolt on Style - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 10,480 lbs. |
