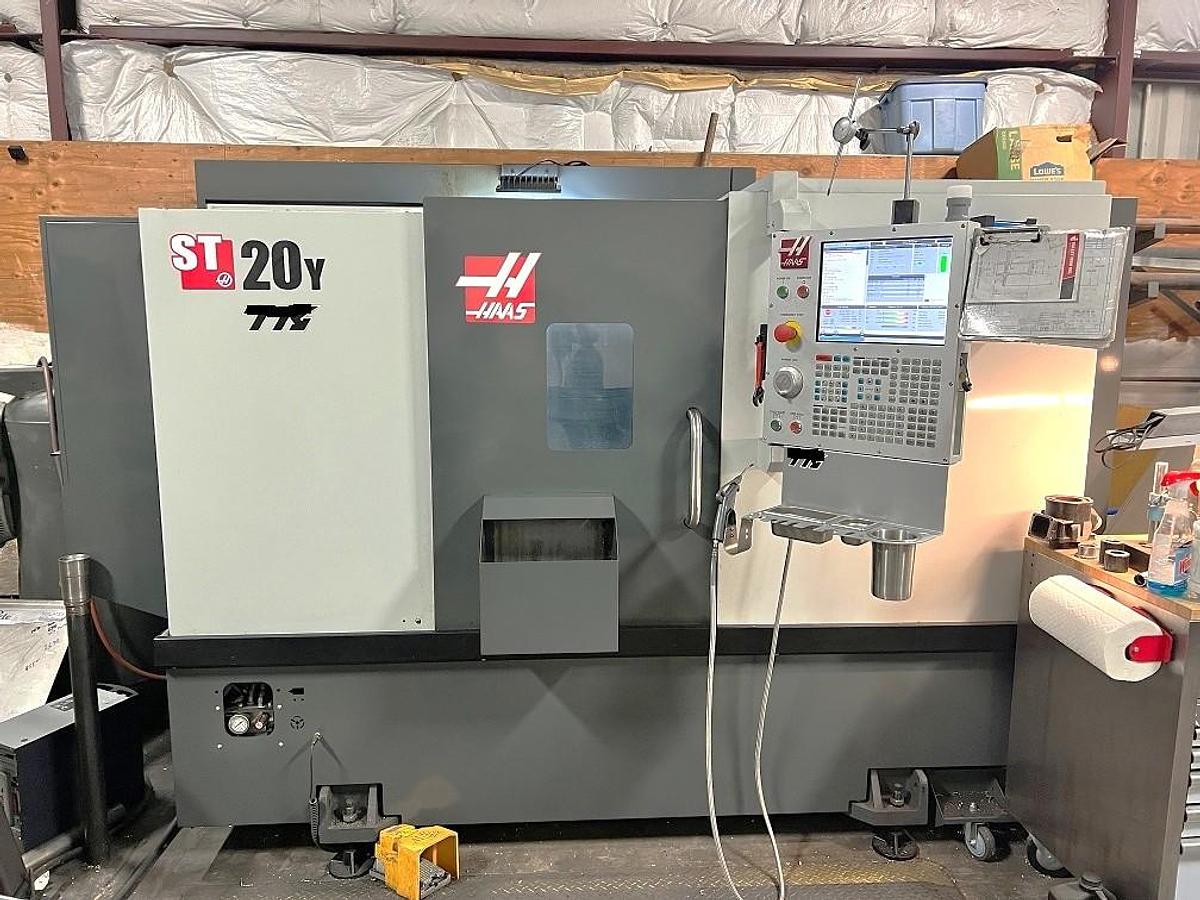

2022 Haas ST-20Y Chucker with Chip Conveyor, Parts Catcher, Tool Presetter, 300 PSI Coolant, Live Holders
2022 Haas ST-20Y Chucker with Chip Conveyor, Parts Catcher, Tool Presetter, 300 PSI Coolant, Live Holders
$89,950 (USD)
Location:California
or
Call (863) 439-6066
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability
8.3" 3 Jaw Hydraulic Chuck
Chip Conveyor
Parts Catcher
Tool Presetter
300 PSI High Pressure Coolant
Haas Visual Part Programming System
Rigid Tapping
Spindle Orientation
Media Display M Code M130
Haas Connect
12 Station BMT65 Turret
1 GB Program Storage
Coolant System with Tank & Pump
15" LCD Color Monitor
Early Power Failure Detection Module
12 Station VDI/BOT Hybrid Turret
Memory Lock Key Switch
USB Port Interface
RS 232 Port Interface
Wired 220V Electrics
All Available Tool Static Blocks

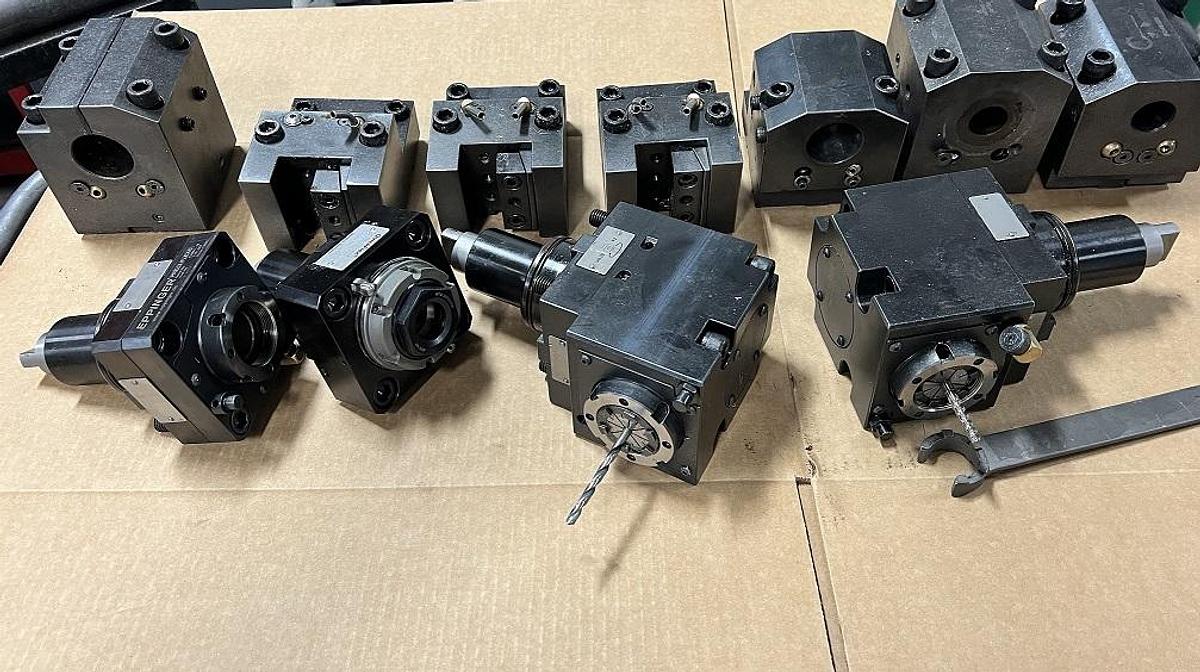

(4) Live Tool Holders includes (2) Axial and (2) Radial
**Power On Hours 901**
**Feed Cutting Hours 195**
Specifications
| Manufacturer | Haas |
| Model | ST-20Y |
| Year | 2022 |
| Condition | Used |
| Stock Number | 120245 |
| Machine Control | Haas NextGen Control |
| Chuck Size | 8.3" 3-Jaw Hydraulic Chuck |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Number of Turret Positions | 12 Bolt on Style - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 10,480 lbs. |
