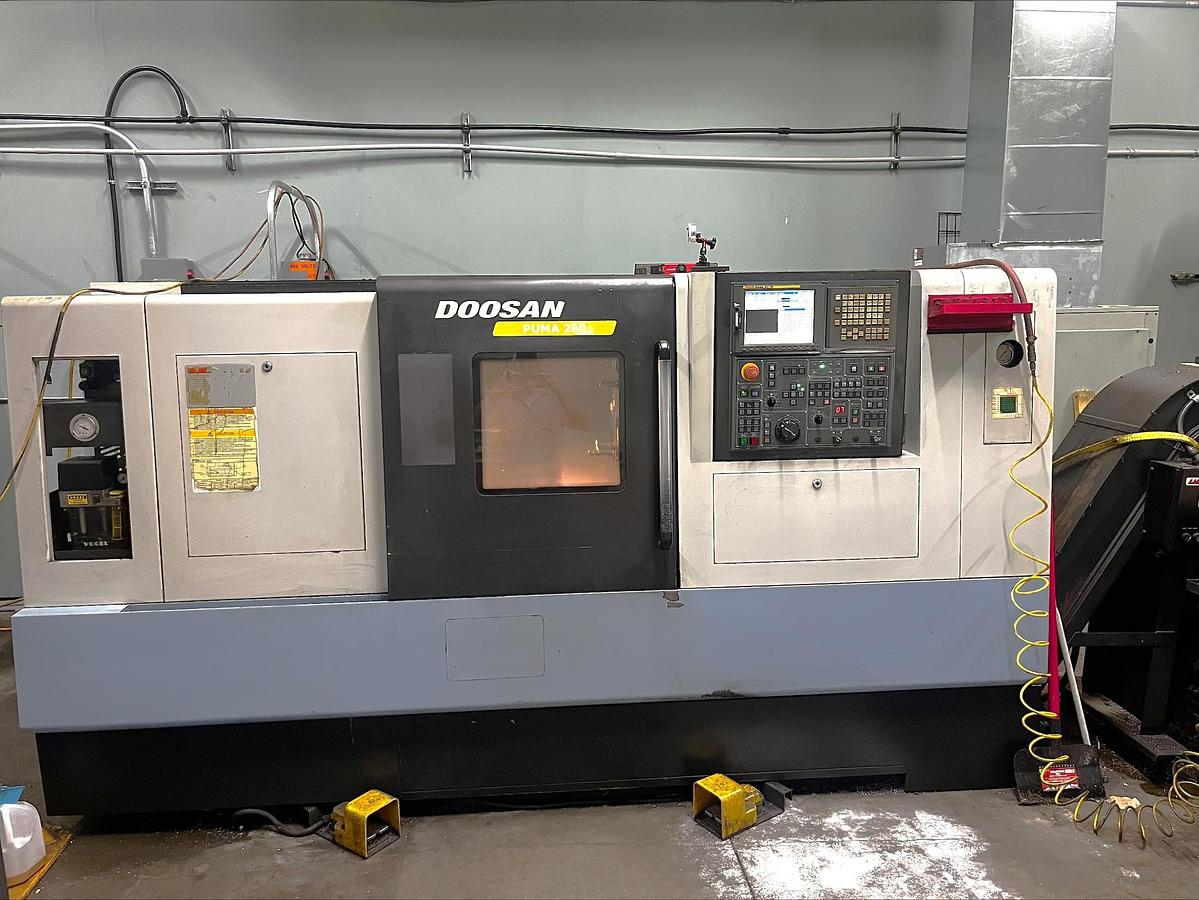

2007 Doosan Puma 280 with Chip Conveyor, Fanuc Cntrl, 10" Chuck, 3" Bar Capcity, Tailstock
2007 Doosan Puma 280 with Chip Conveyor, Fanuc Cntrl, 10" Chuck, 3" Bar Capcity, Tailstock
Contact us for price
Location:Texas
or
Call (863) 439-6066
Description
10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Tailstock w/ Live Center
Barfeed Interface
Card Slot Interface RS 232 Port Interface Boxed Ways
Coolant Tank with Pump All Available Static Tooling
All Available Manuals
Wired 200-220V Electrics
**7057 Total Cutting Hours**
Specifications
| Manufacturer | Doosan |
| Model | Puma 280 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120241 |
| Control | Fanuc 21i-TB Control |
| Chuck Size | 10" 3 Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 24.8" |
| Maximum Cutting Diameter | 17.7" |
| Maximum Machining Length | 24.8" |
| Distance Between Centers | 27.8" |
| Maximum Bar Capacity | 3.03" |
| X-Axis Travel | 9.52" |
| Z-Axis Travel | 26.8" |
| Spindle Nose / Spindle Bore | A2-8" / 3.54" |
| Spindle Speeds - Main | 35 - 3,500 RPM |
| Spindle Motor - Main | 30 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.1" / 4.7" / MT #4 |
| Machine Dimensions | 130" x 77" x 80" |
| Machine Weight | 10,400 lbs. |
