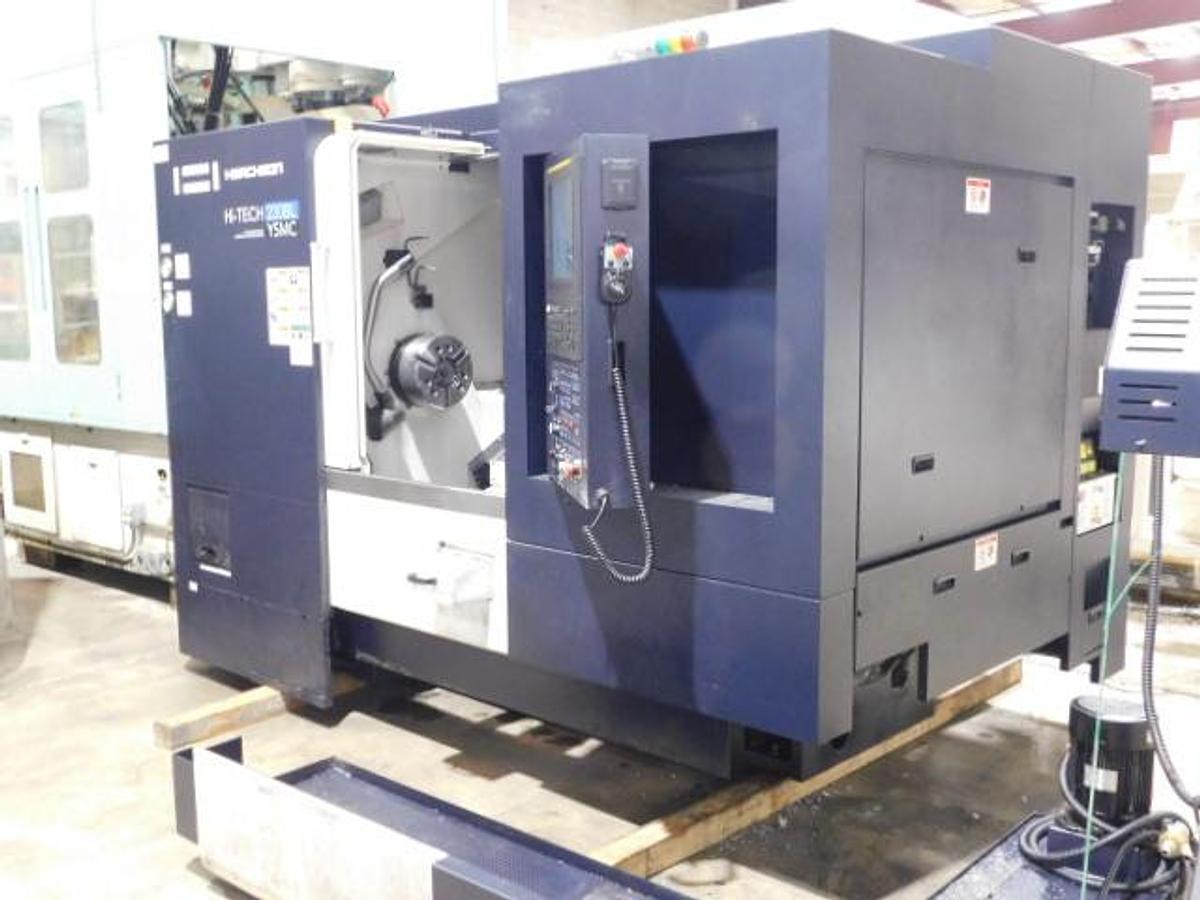

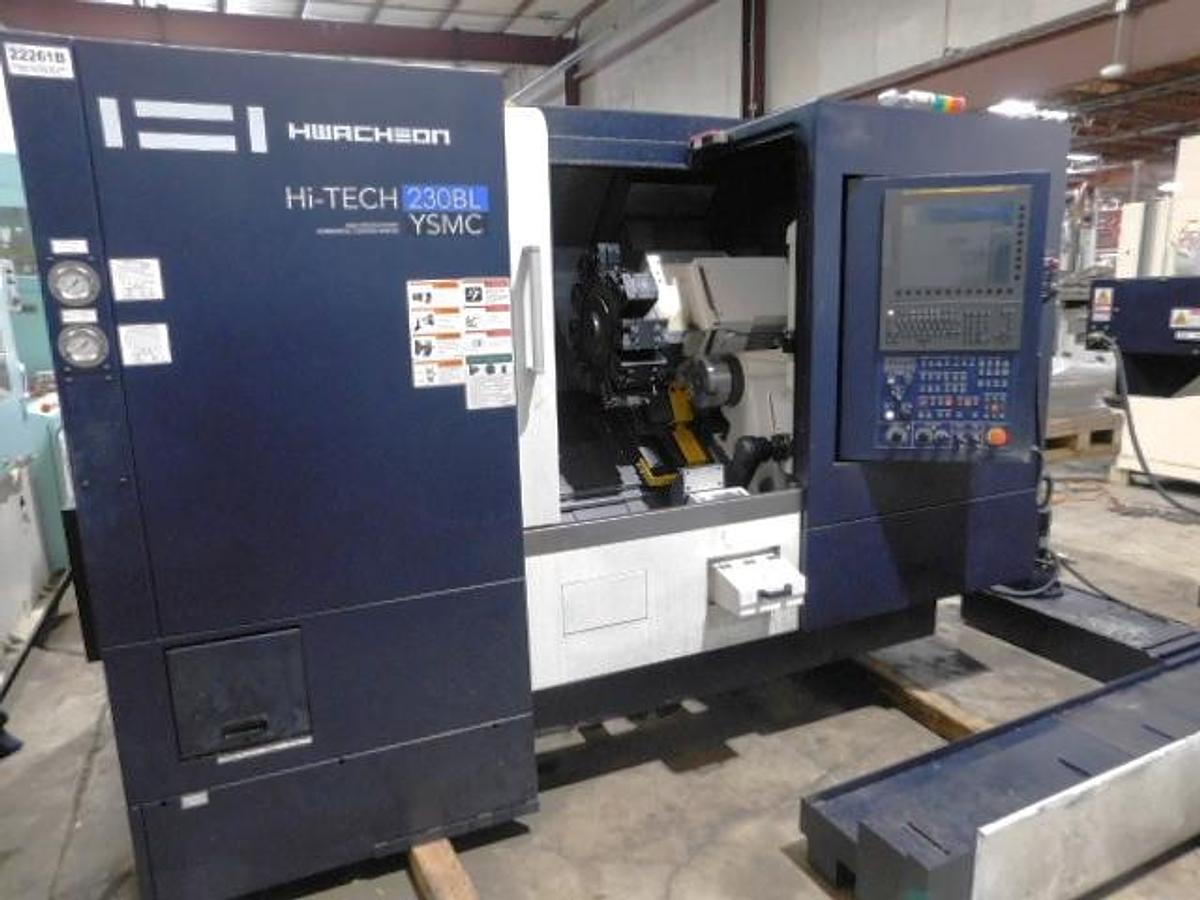

2021 Hwacheon Hi-Tech 230BL YSMC w/ Milling, Y Axis, Subspindle, Chip Conv., Parts Catcher, 10" Chk 3.19" Bar Capacity
2021 Hwacheon Hi-Tech 230BL YSMC w/ Milling, Y Axis, Subspindle, Chip Conv., Parts Catcher, 10" Chk 3.19" Bar Capacity
$105,900 (USD)
Location:Illinois
or
Call (863) 439-6066
Description

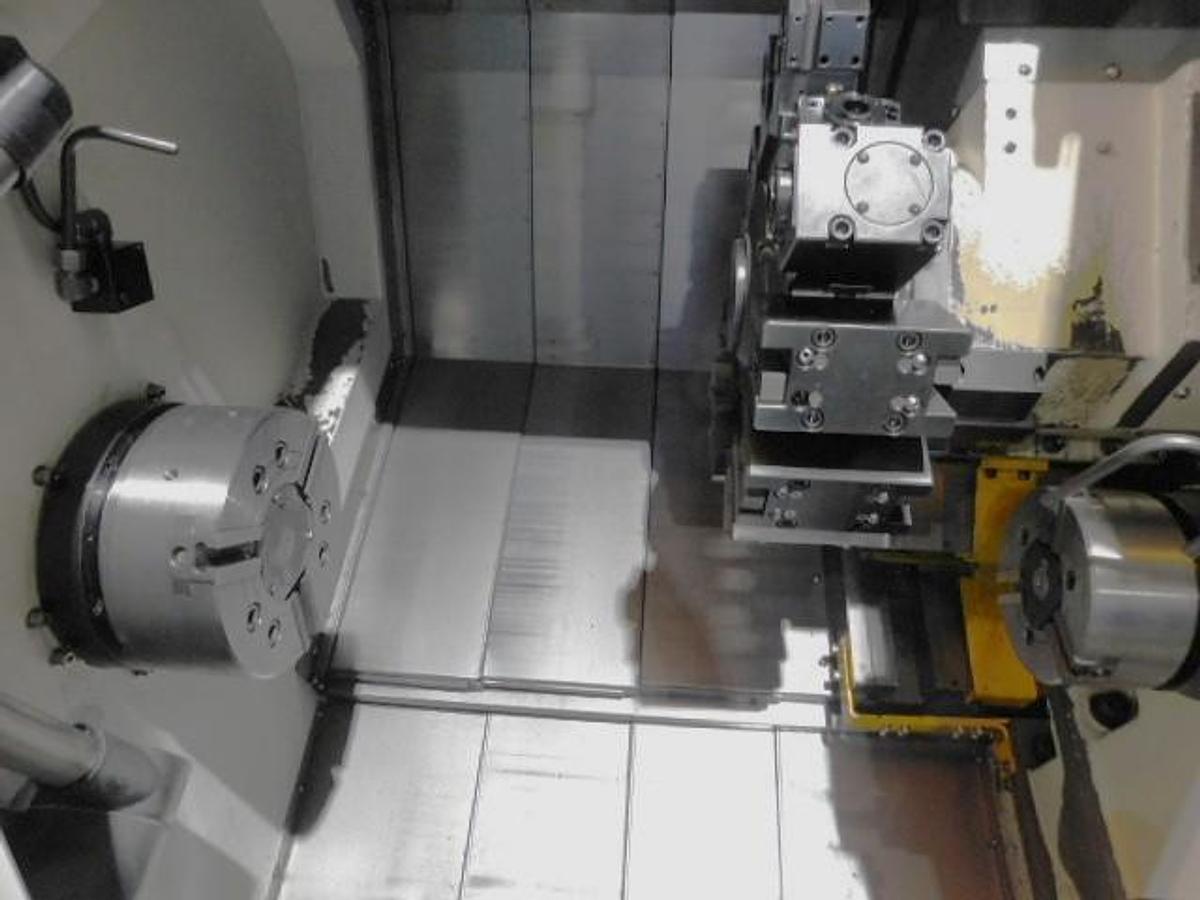

Y Axis Capability (Off Center)
Subspindle
Full C Axis Spindle Rotation Both Spindles
Live Milling / Drilling Capability

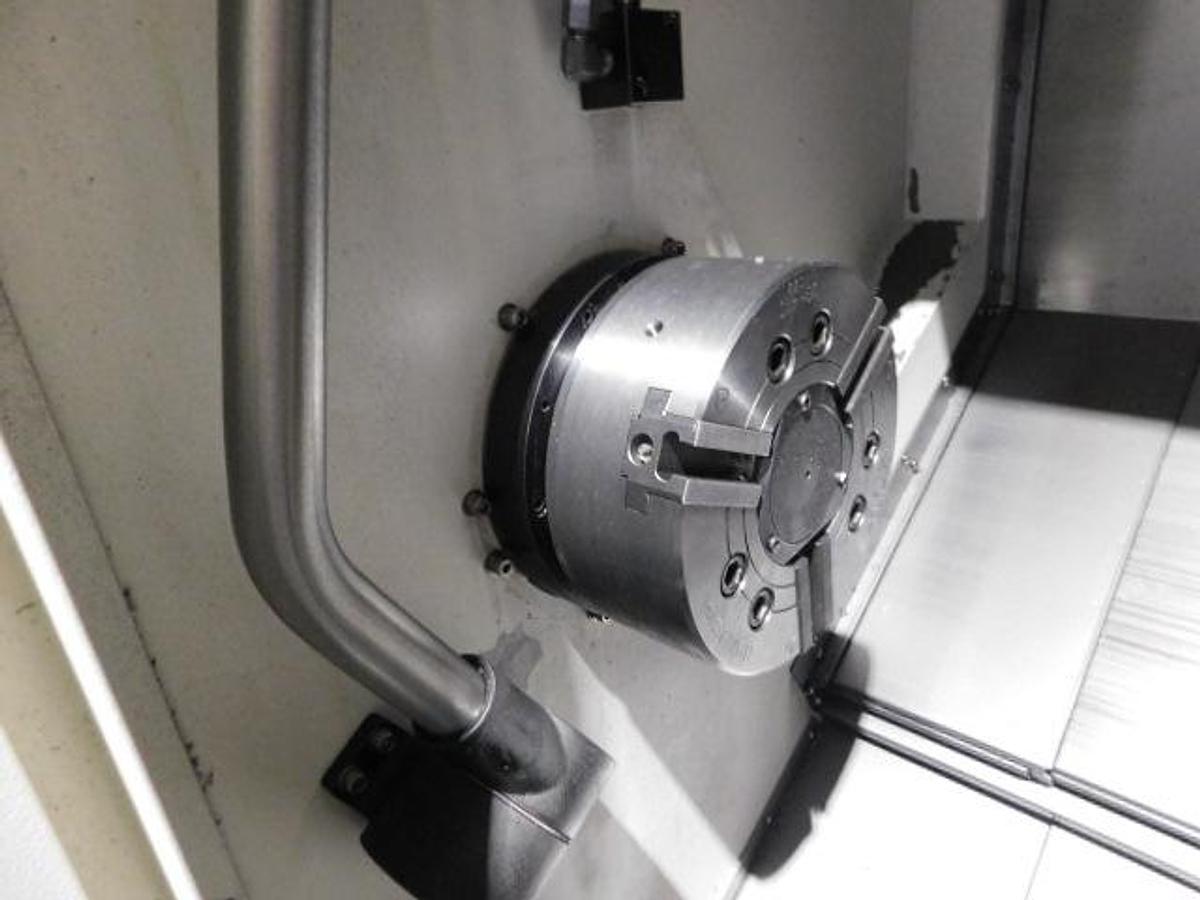

10" 3 Jaw Hydraulic Chuck on Main Spindle

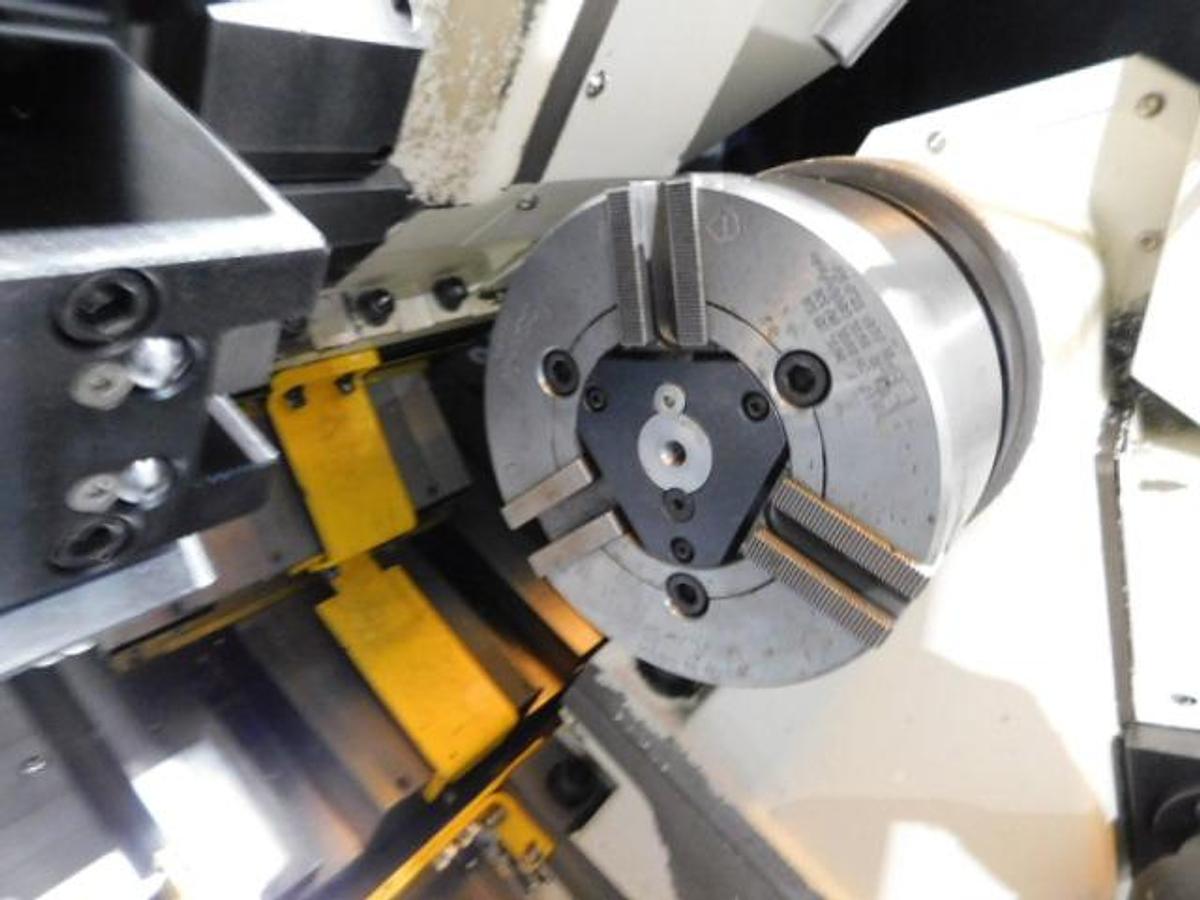

5" 3 Jaw Hydraulic Chuck on Subspindle
Automatic Tool Eye
Chip Conveyor

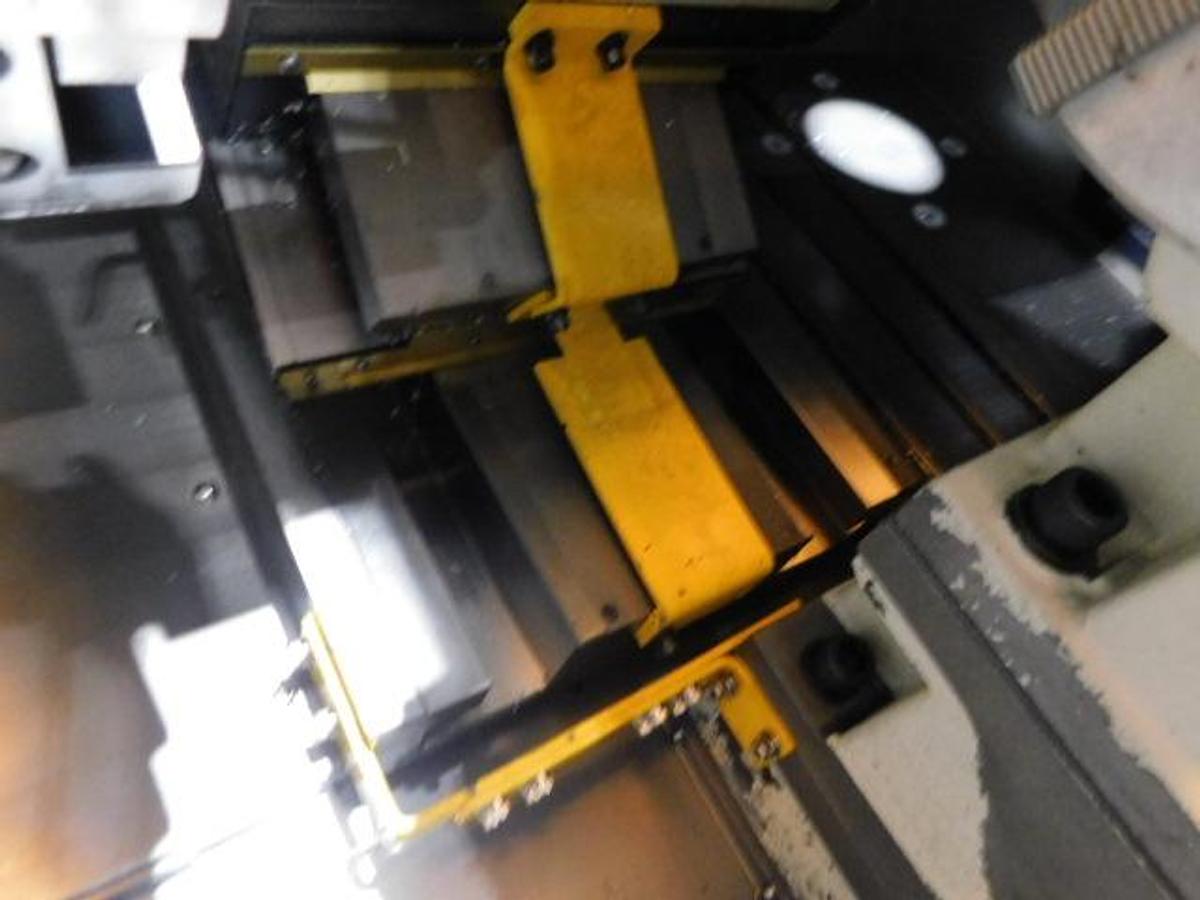

Parts Catcher
Rigid Boxed Way Design
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Manuals

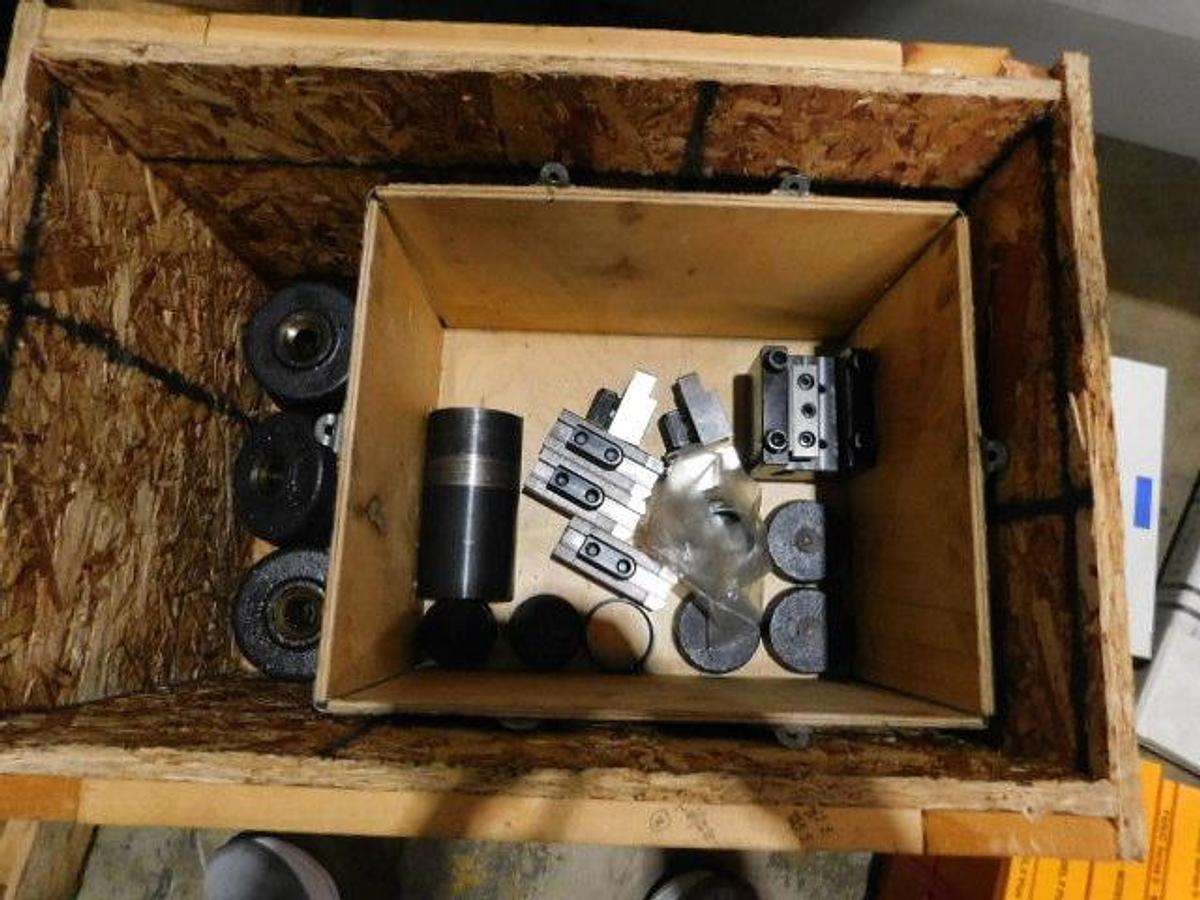

All Available Static Tooling (11 total)
(2) Live Tool Holders (one axial, one radial)
Miscellaneous Chuck Jaws
Leveling Pads

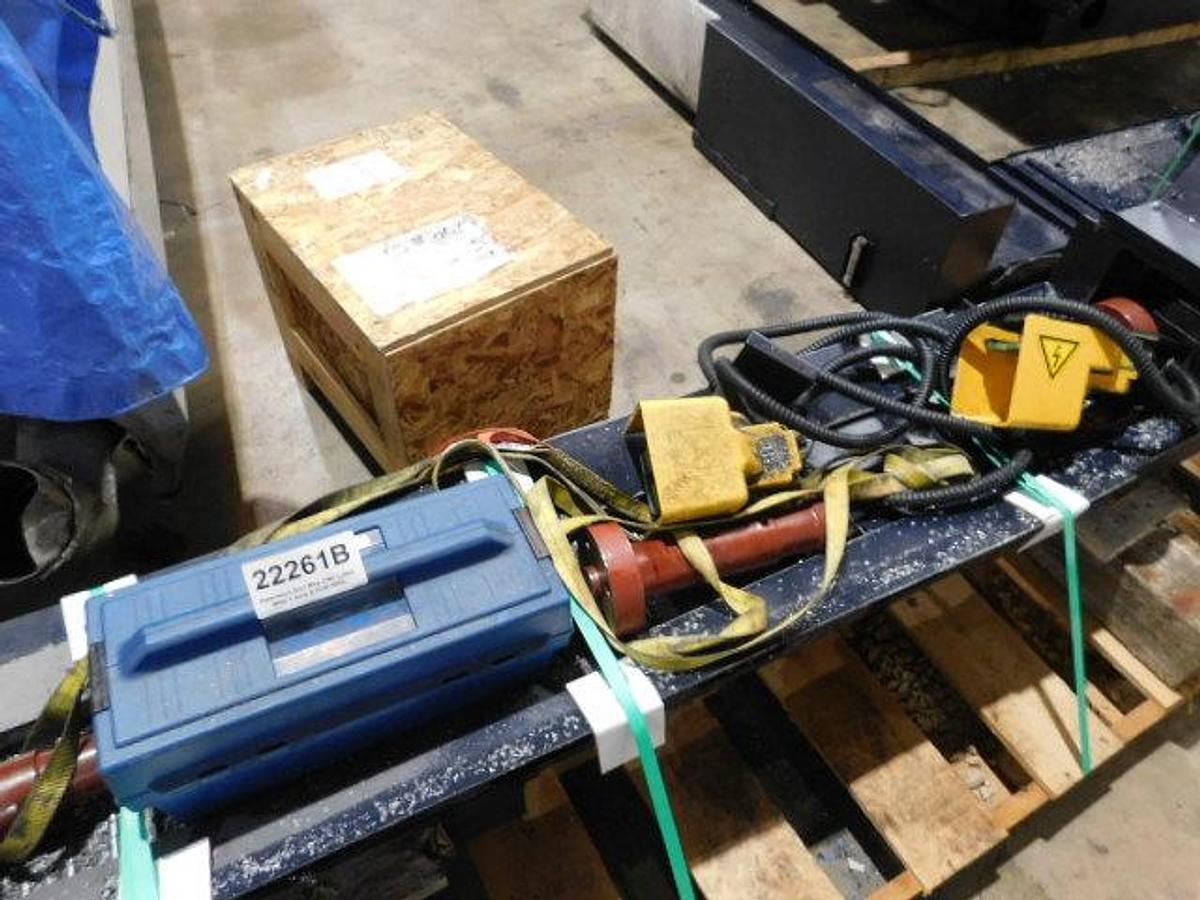

Tool Kit
Shipping Brackets
**Manufactured New in October of 2021**

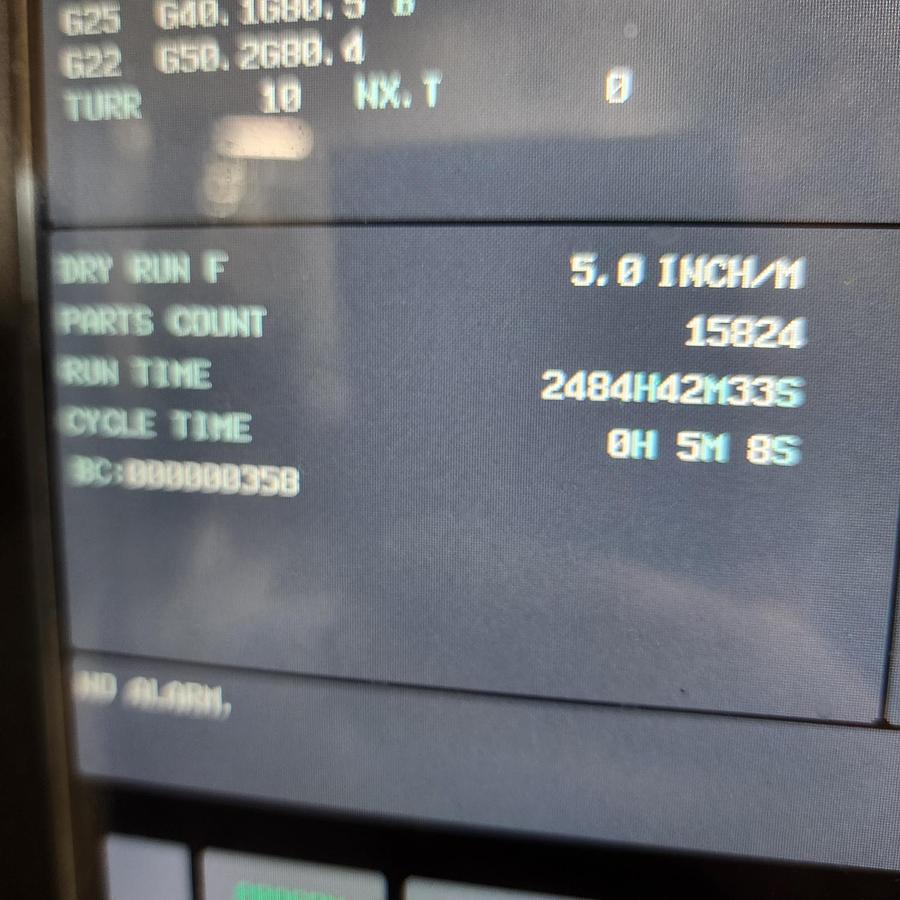

**Run Hours of ONLY 2,748**
**Price New today at Over $200,000 as Equipped with current discounting**
Specifications
| Manufacturer | Hwacheon |

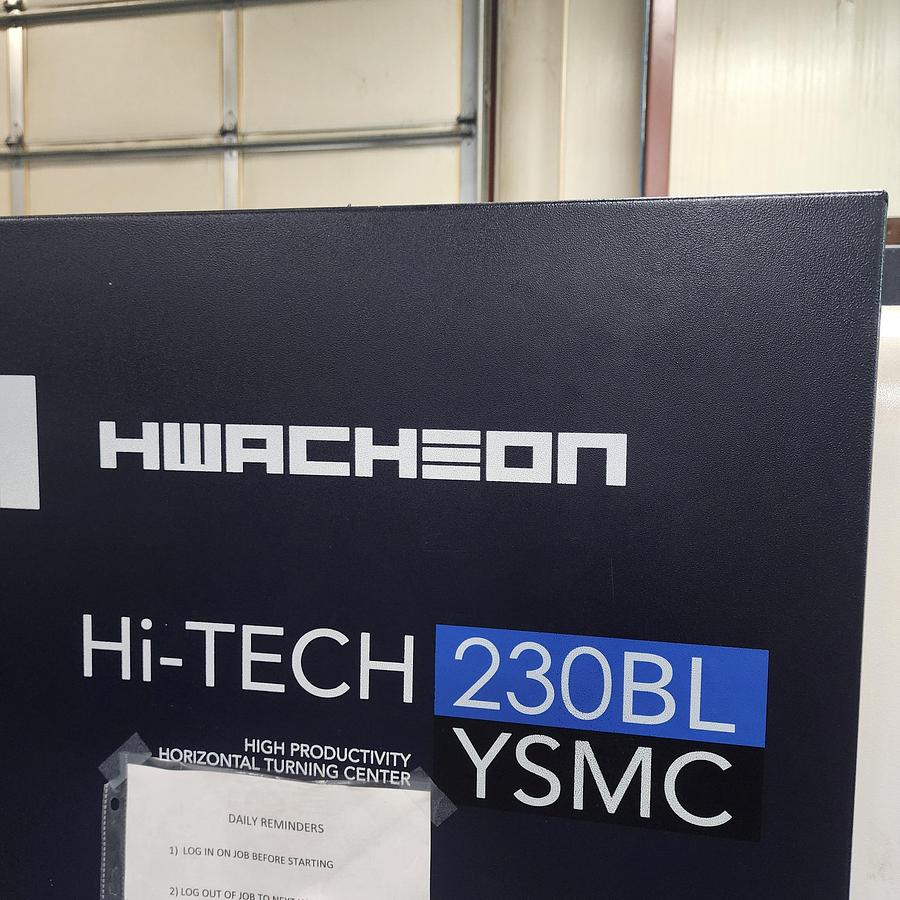

| Model | Hi-Tech 230BL YSMC |
| Year | 2021 |
| Condition | Used |
| Stock Number | 120226 |
| Control | Fanuc Oi-TF Series Control |
| Chuck Sizes | 10" Hydraulic Chuck on Main Spindle/5" Hyd on Subspindle |
| Maximum Swing/Over Carriage | 29.55" / 15.76" |
| Maximum Cutting Diameter | 15.76" |
| Maximum Cutting Length | 20.93" |
| X-Axis Travel | 9.456" |
| Y-Axis Travel | +/- 2.36" |
| Z-Axis Travel | 27.56" |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | .001 / .001 Degree |
| B-Axis Travel (Subspindle) | 25.216" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8" / 3.58" / 3.19" |
| Spindle Speed / Sub Spindle Speed | 3,500 RPM / 5,000 RPM |
| Spindle Motor / Sub Spindle Motor | 22 HP / 10 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.4 HP |

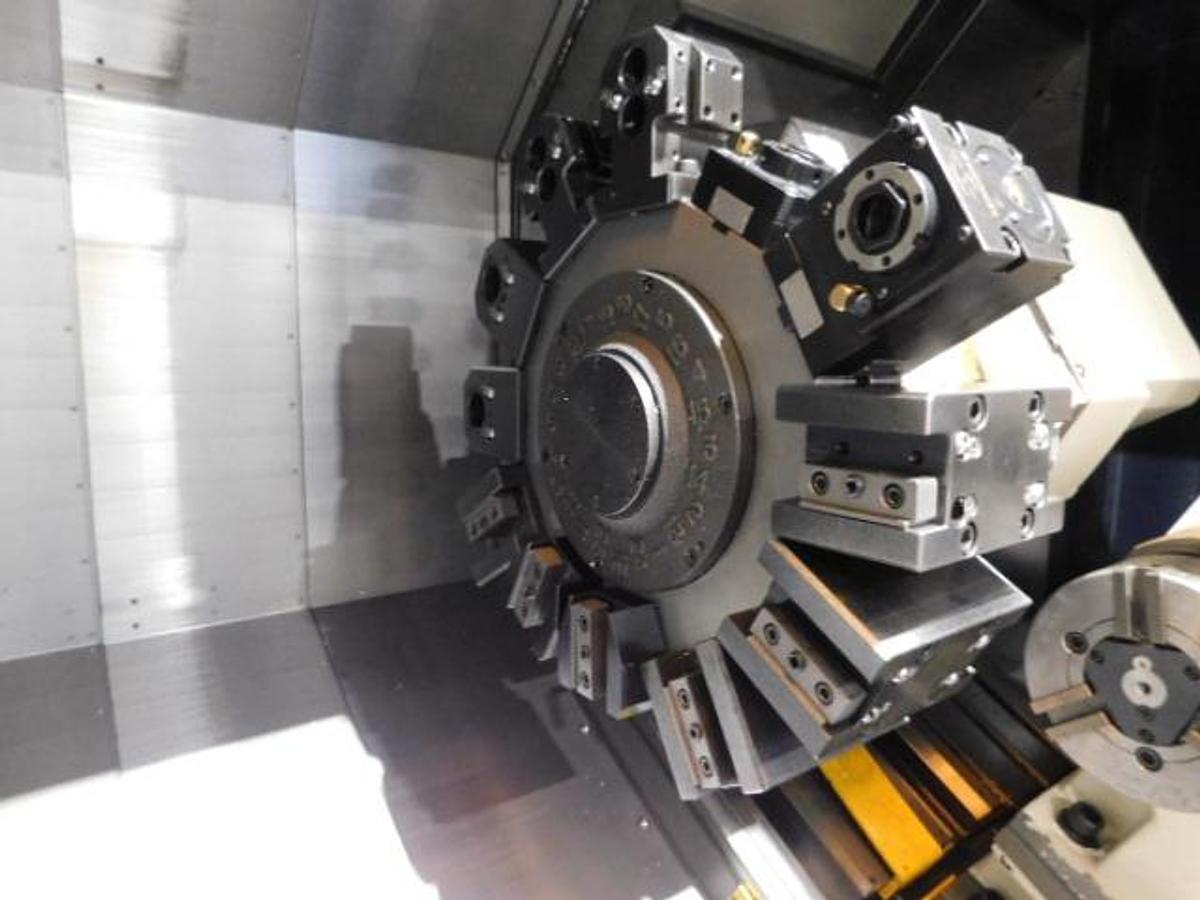

| Number of Turret Positions | 12 Sided / 24 Stations |
| Rapid Traverse Rates X, B / Z | 1182 IPM, 945 IPM / 1182 IPM |
| Machine Dimensions | 124" x 76" x 83" approx. |
| Machine Weight | 14,960 lbs. approx. |
