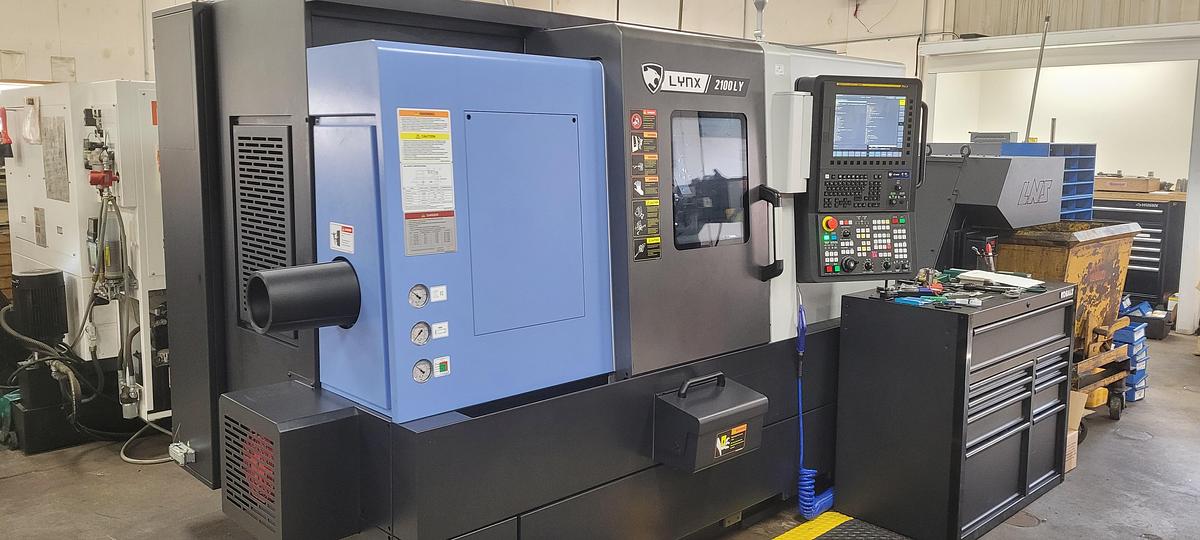

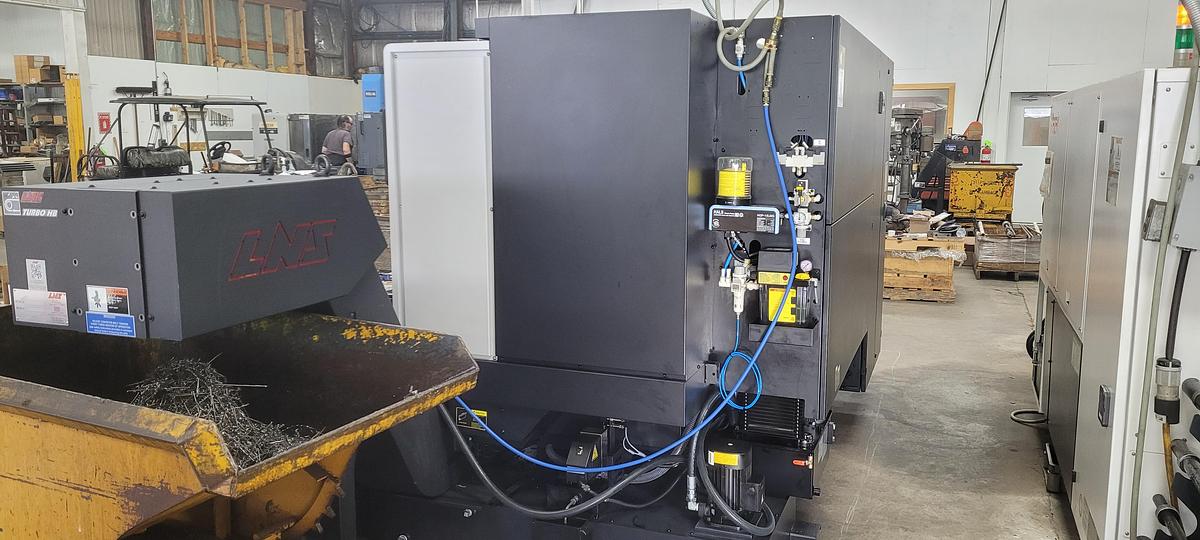

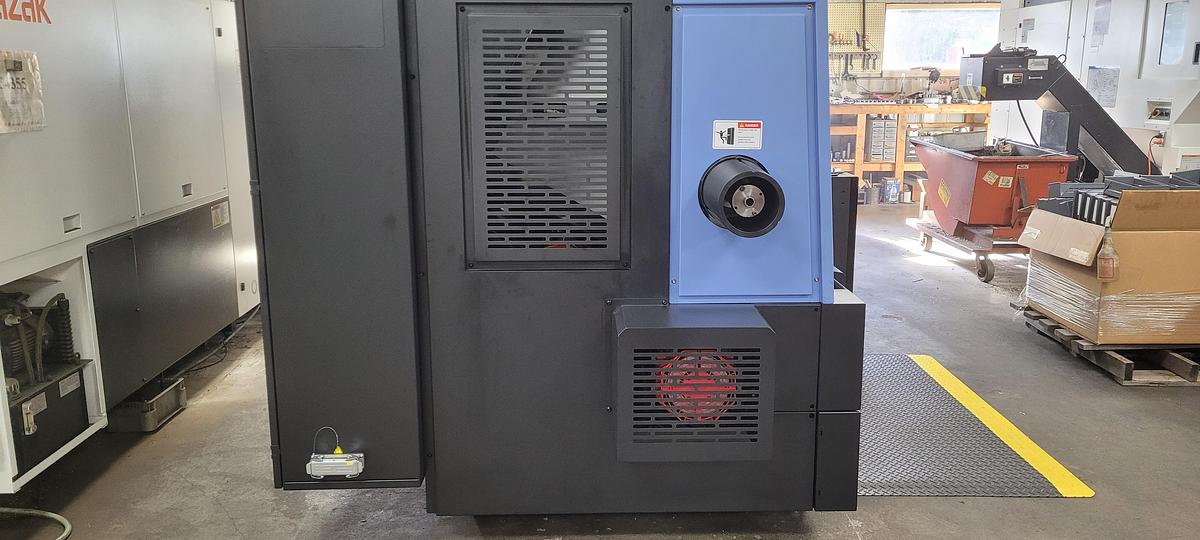

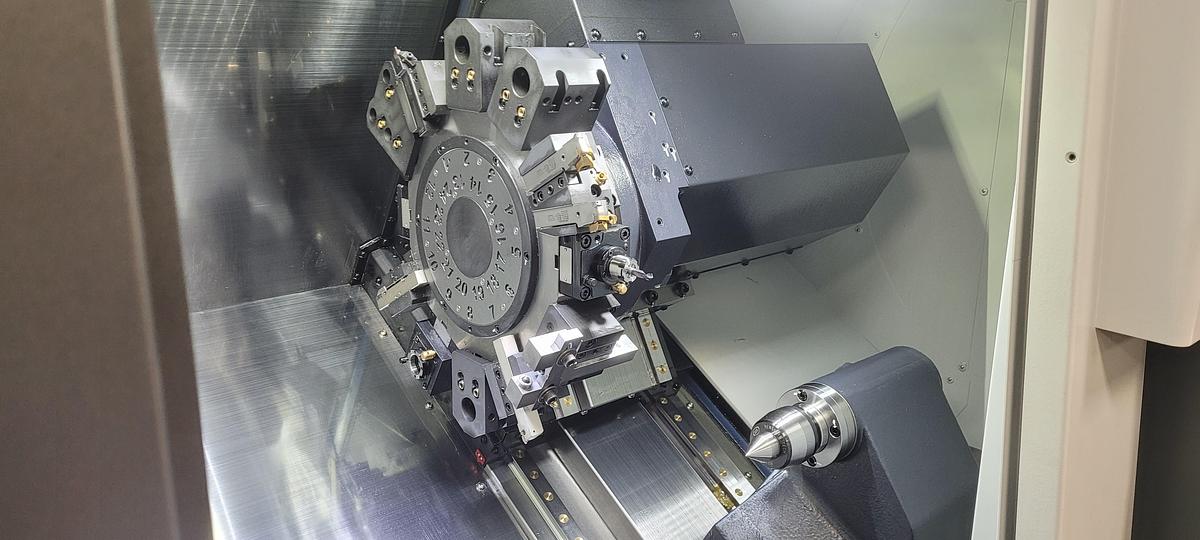

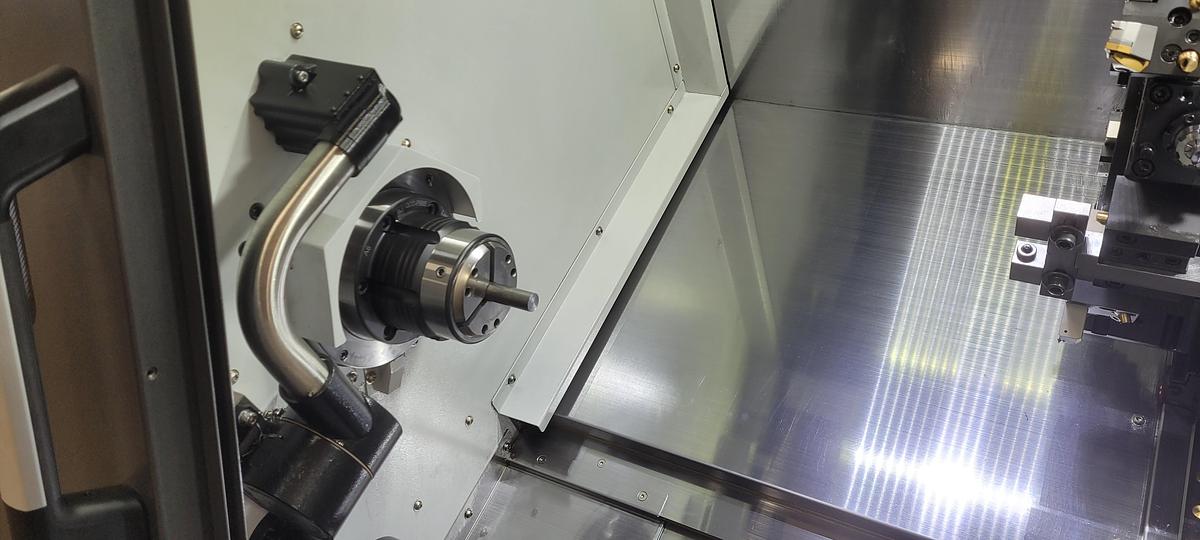

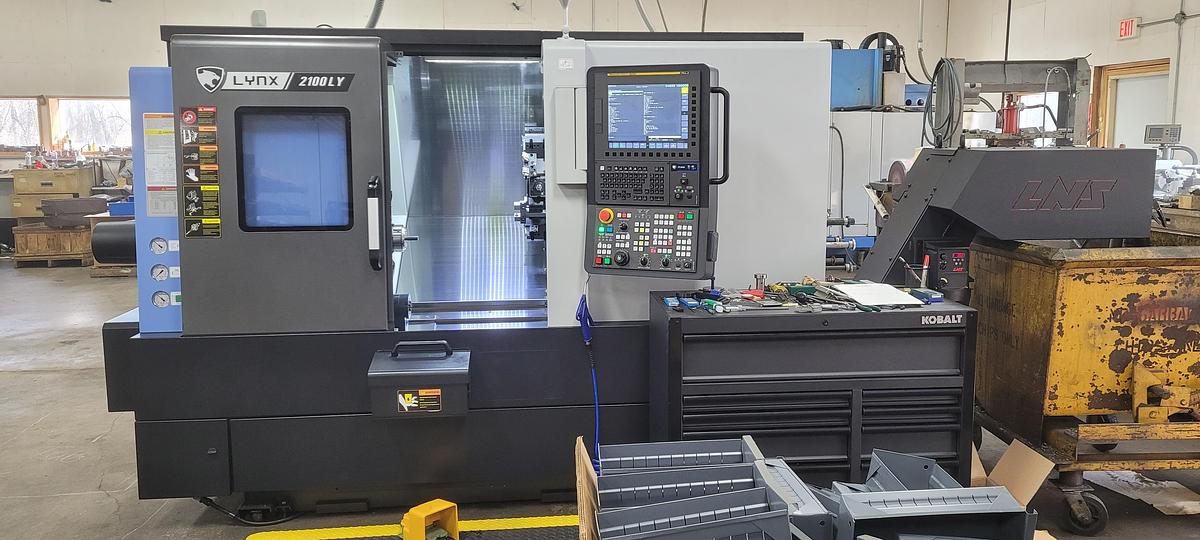

2024 DN Solutions Lynx 2100LYB with C Axis, Y Axis, Milling, Parts Catcher, Chip Convey., Tool Eye, Tailstock, 2.6" Bar Cap.
2024 DN Solutions Lynx 2100LYB with C Axis, Y Axis, Milling, Parts Catcher, Chip Convey., Tool Eye, Tailstock, 2.6" Bar Cap.
$117,500 (USD)
Location:Wisconsin
or
Call (863) 439-6066
Description
Full C-Axis Spindle Rotation
Y Axis Capability for off center line work
Parts Catcher
Chip Conveyor
Auto Tool Presetter
Tailstock
Coolant System with Tank & Pump
Standard Tooling Package with Live Holders
Specifications
| Manufacturer | Doosan |
| Model | Lynx 2100LYB |
| Year | 2024 |
| Condition | Used |
| Stock Number | 120213 |
| Machine Control | Fanuc i Series Control |
| Chuck Size | Collet Chuck |
| Maximum swing over bed | 23.6" |
| Maximum turning diameter | 11.82" |
| Maximum turning length | 20.1" |
| Maximum bar capacity | 2.64" |
| Y-Axis Travel | 4.137" |
| X-axis travel | 8.07" |
| Z-axis travel | 22.06" |
| Spindle nose / spindle bore | A2-6" / 2.99" |
| Spindle Speed | 4,500 RPM |
| Spindle motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 5 HP |
| Number of Turret Positions | 12 Sided / 24 Positions |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.6" / 3.1" / #4 MT |
| Rapid Traverse Rates X / Z | 1182 IPM / 1418 IPM |
| Machine dimensions lxwxh | 114" x 77" x 68" |
| Machine weight | 8,580 lbs |
