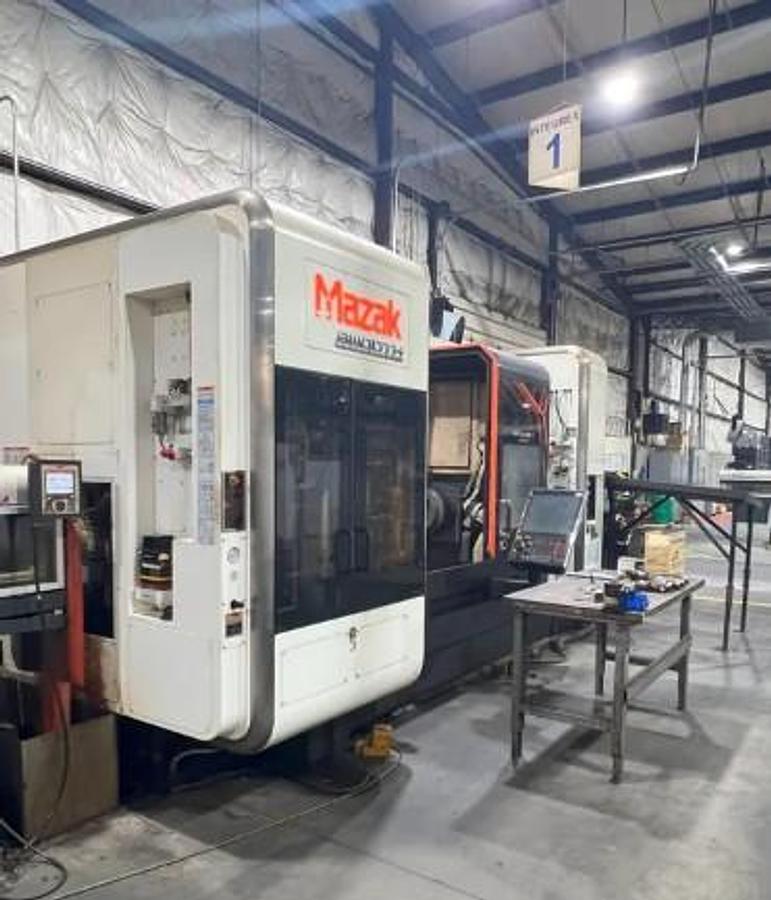

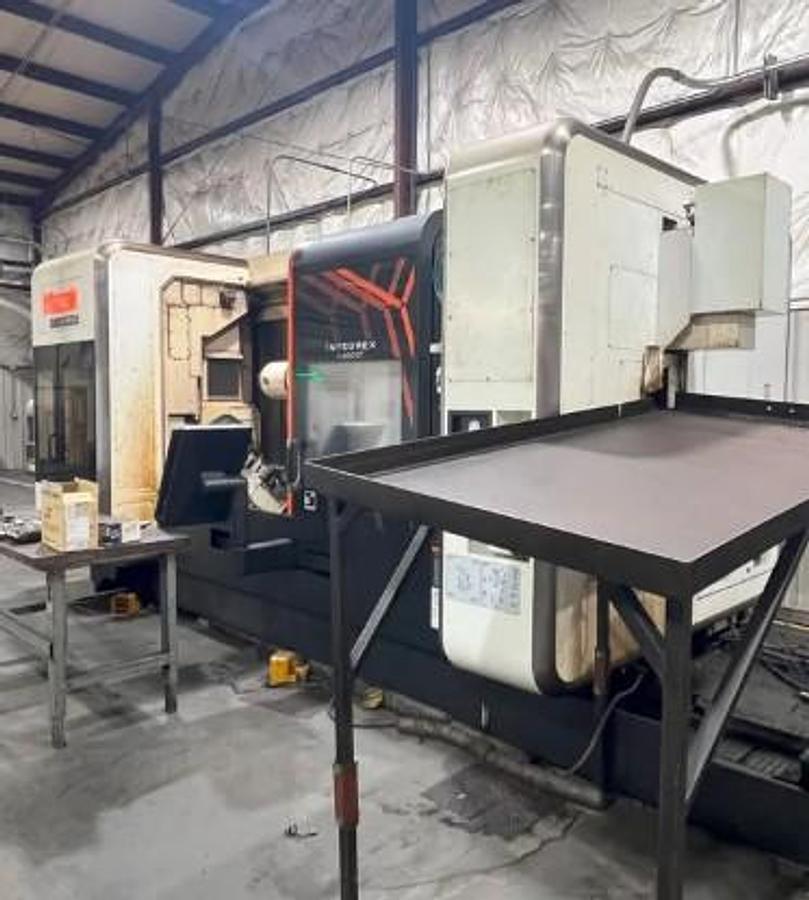

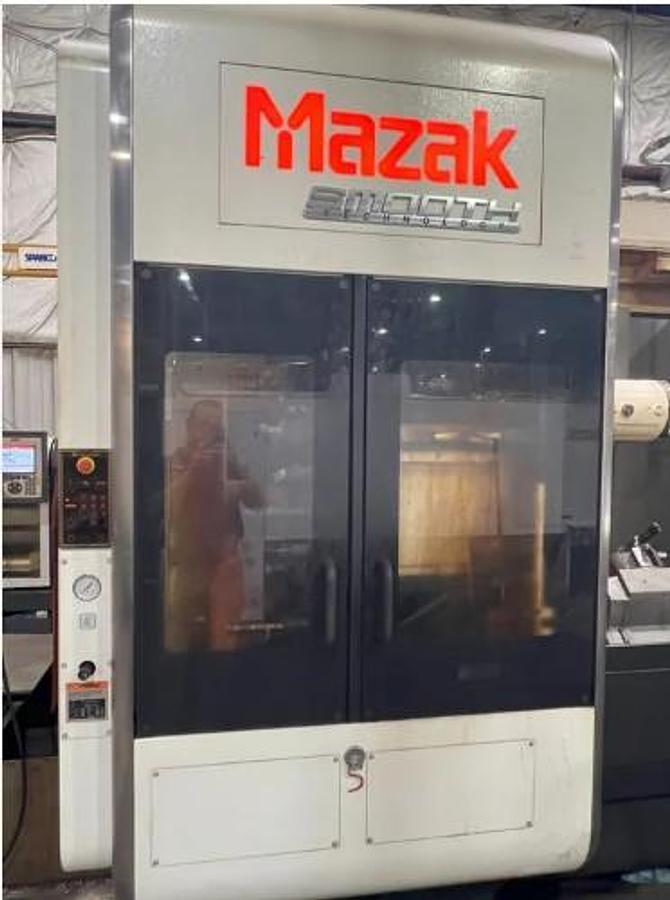

2017 Mazak Integrex i-400ST with Barfeed, Dual Spindles, Y Axis, B Axis, C Axis, Lower Turret
2017 Mazak Integrex i-400ST with Barfeed, Dual Spindles, Y Axis, B Axis, C Axis, Lower Turret
$239,500 (USD)
Location:Texas
or
Call (863) 439-6066
Description

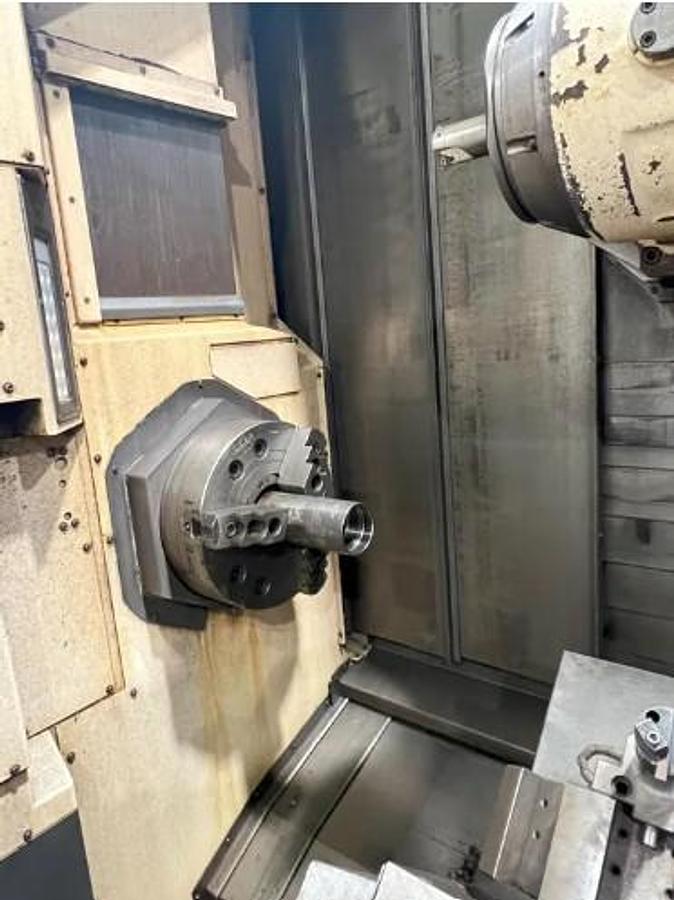

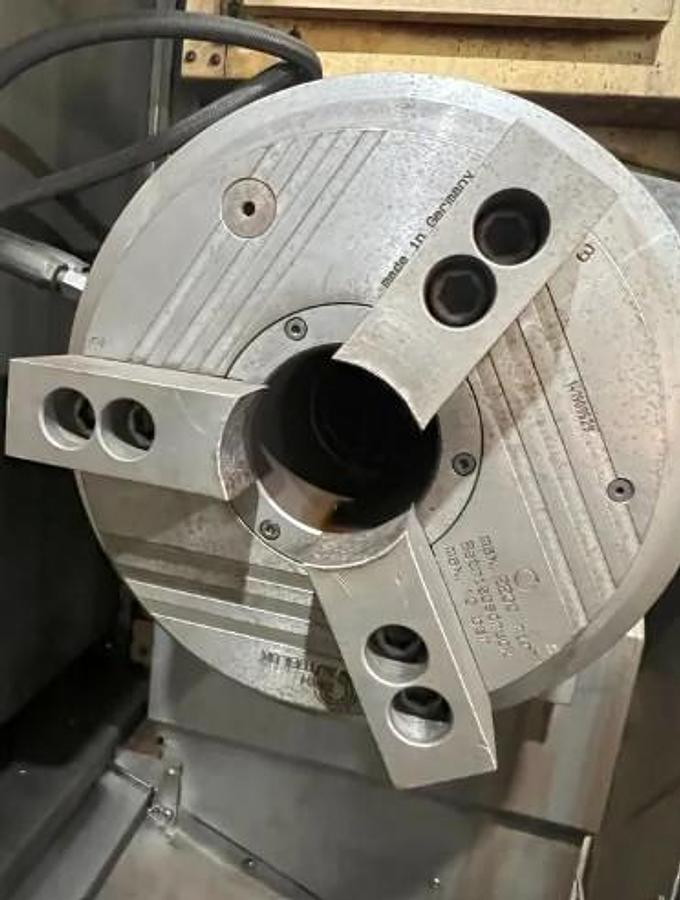

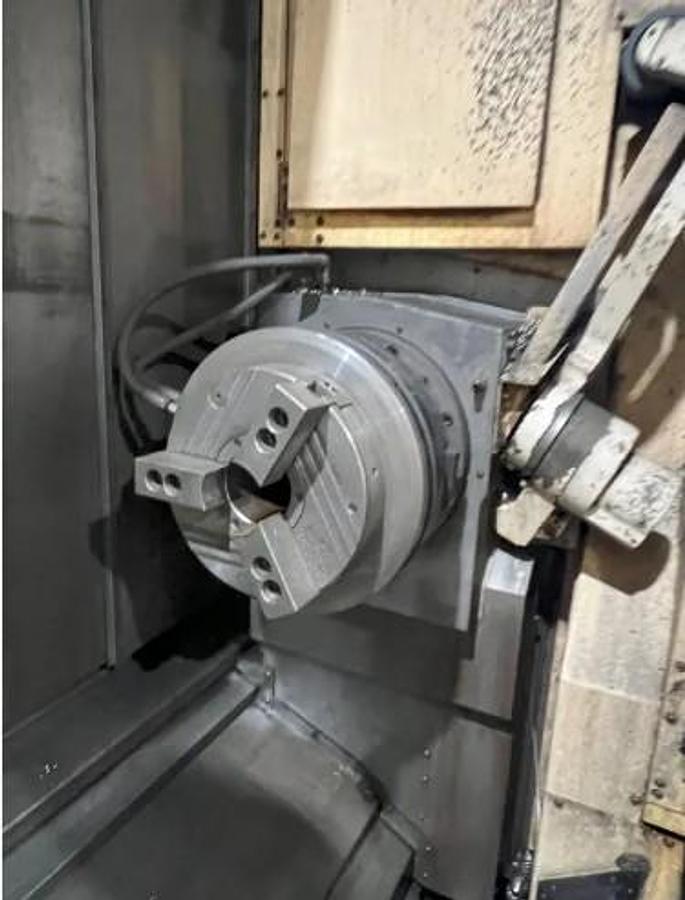

12" & 10" Hydraulic Chucks Main & Subspindle
72 Position CAPTO Tool Magazine
Y Axis Capability

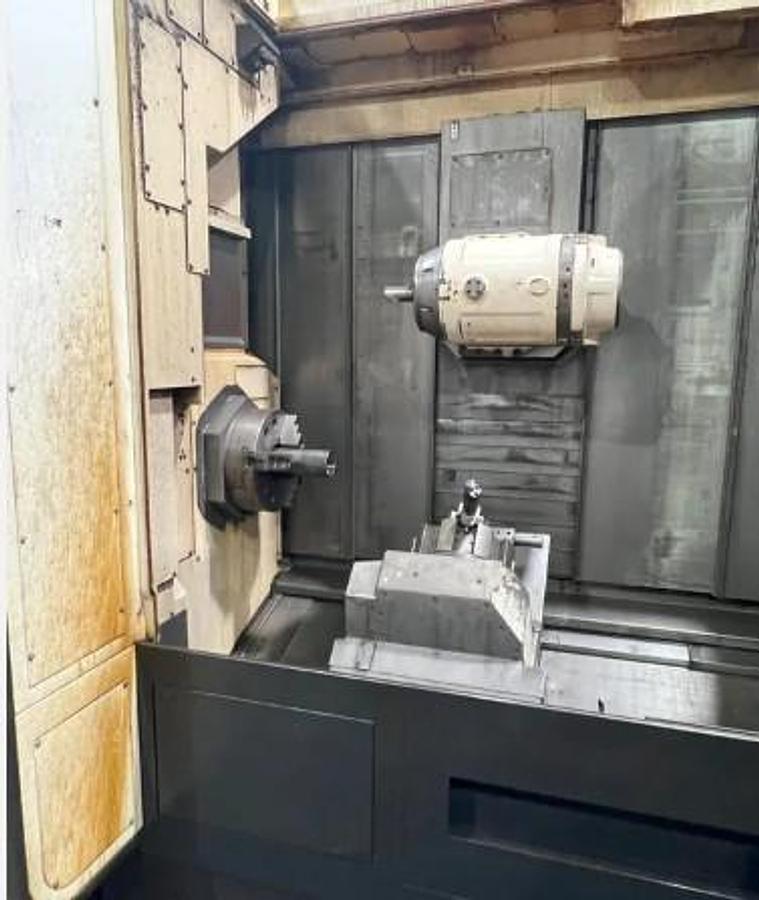

B Axis Pendulum Head
Subspindle
Full "C" Axis Main Spindle & Subspindle

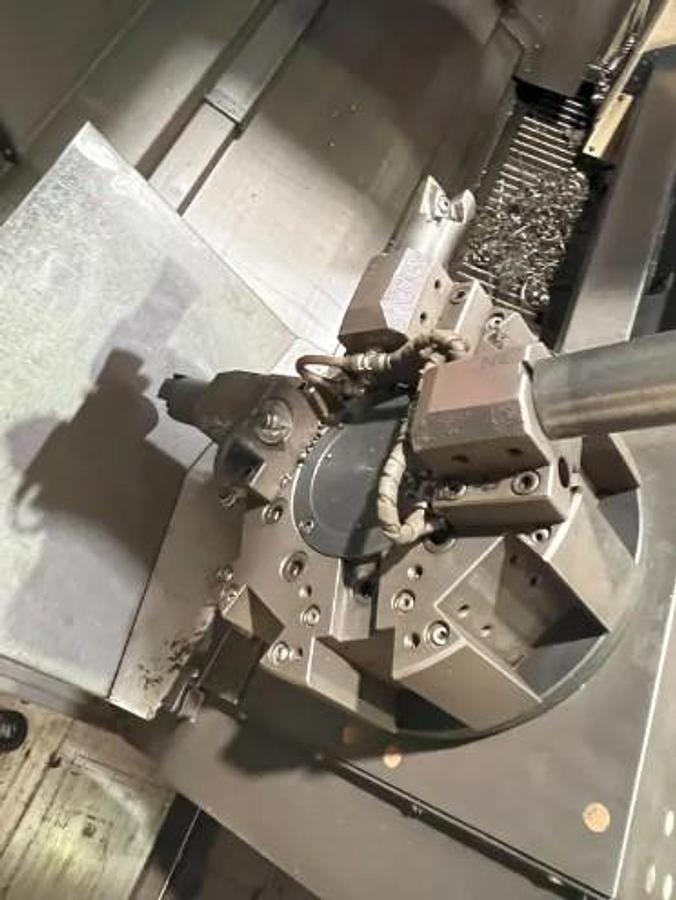

Lower Turret Option
0.001 Degree Subspindle Option

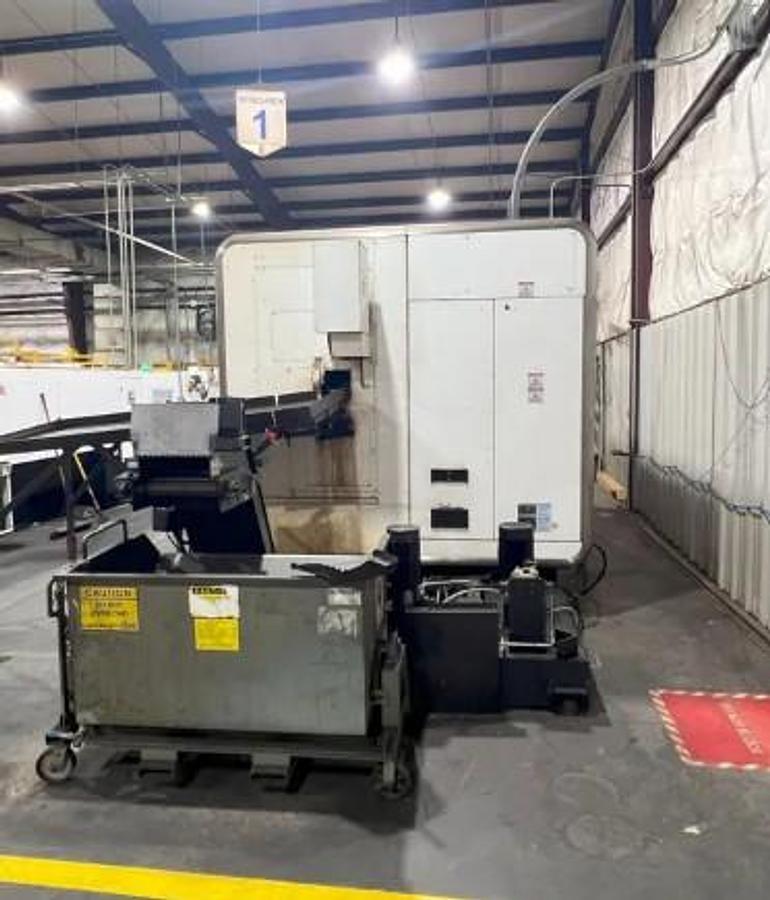

Chip Conveyor

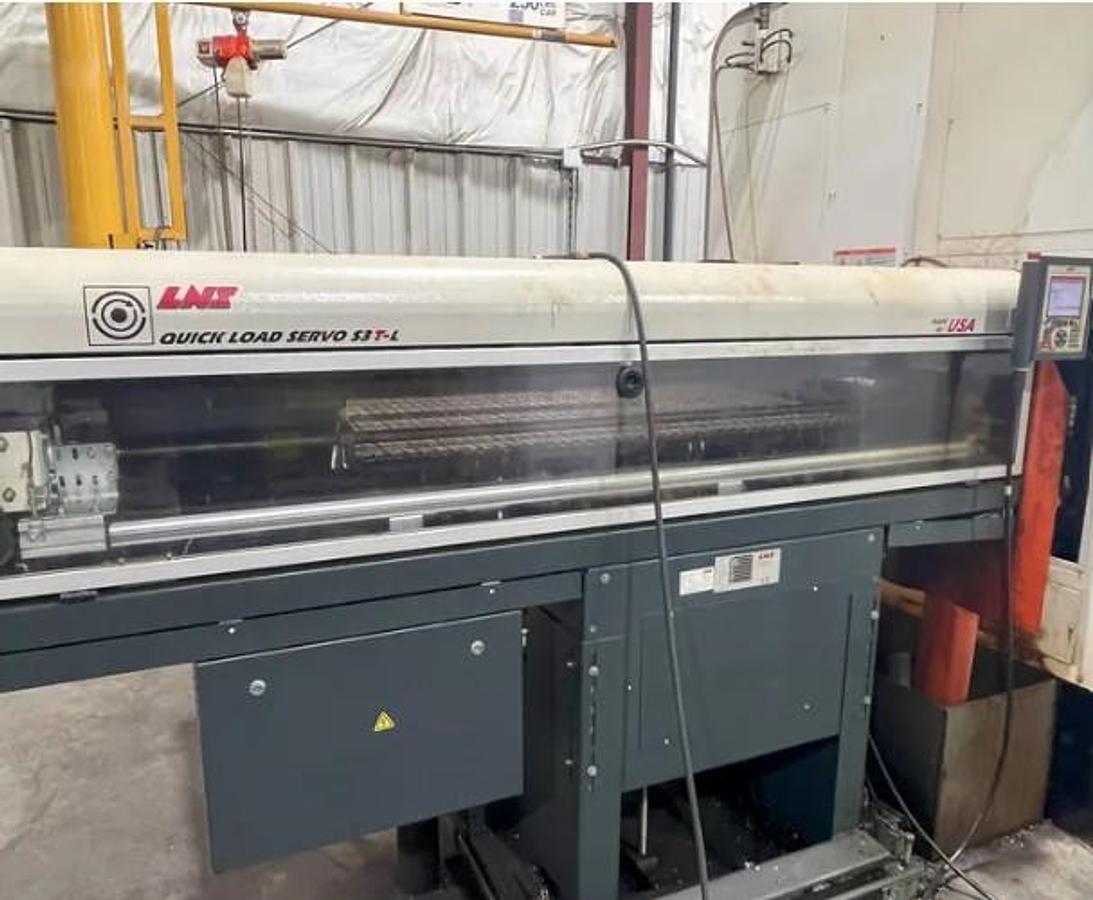

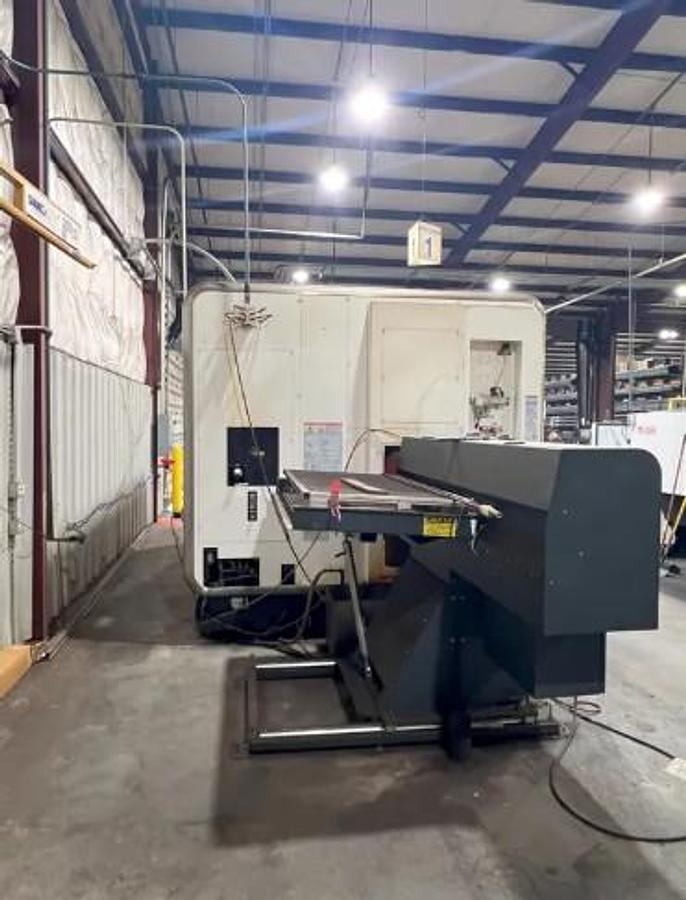

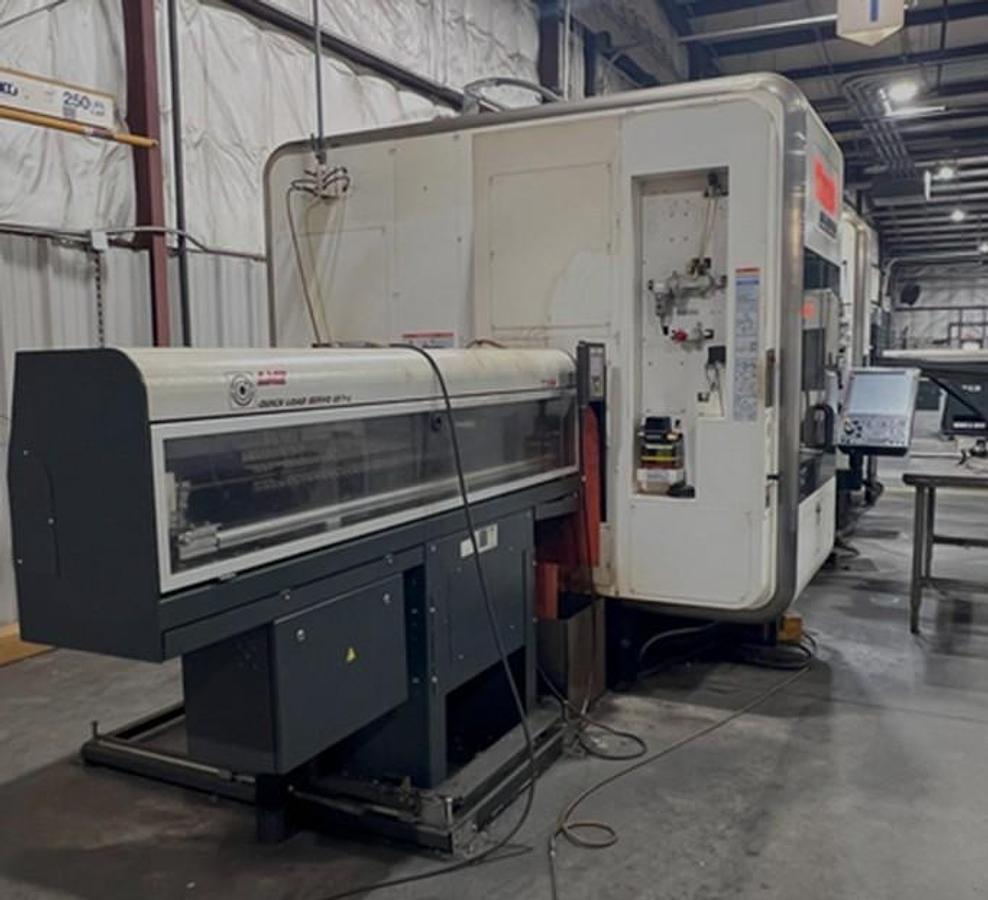

LNS Quick Load Servo S3 Barfeed
High Pressure Coolant
Tool Presetter for Main Spindle and Lower Turret
Simultaneous 5 Axis Machining
Main & Subspindle Synchronizaton
Milling Synchronous Tapping
IC Memory Card Interface
Cardbus Interface - 2 Slots
LAN Port Interface
USB Interface
Specifications
| Manufacturer | Mazak |

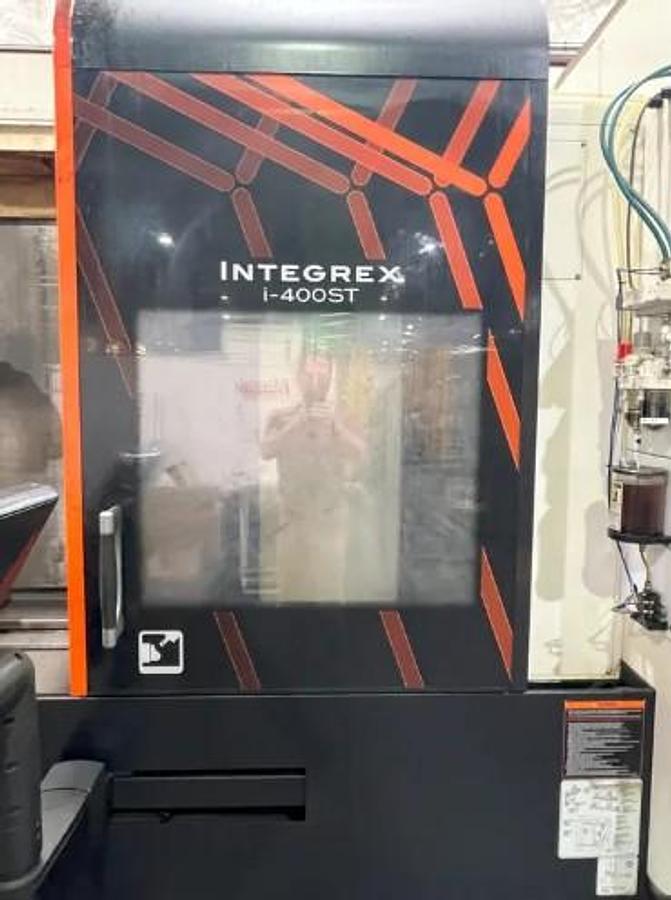

| Model | Integrex i-400ST |
| Year | 2017 |
| Condition | Used |
| Stock Number | 120207 |

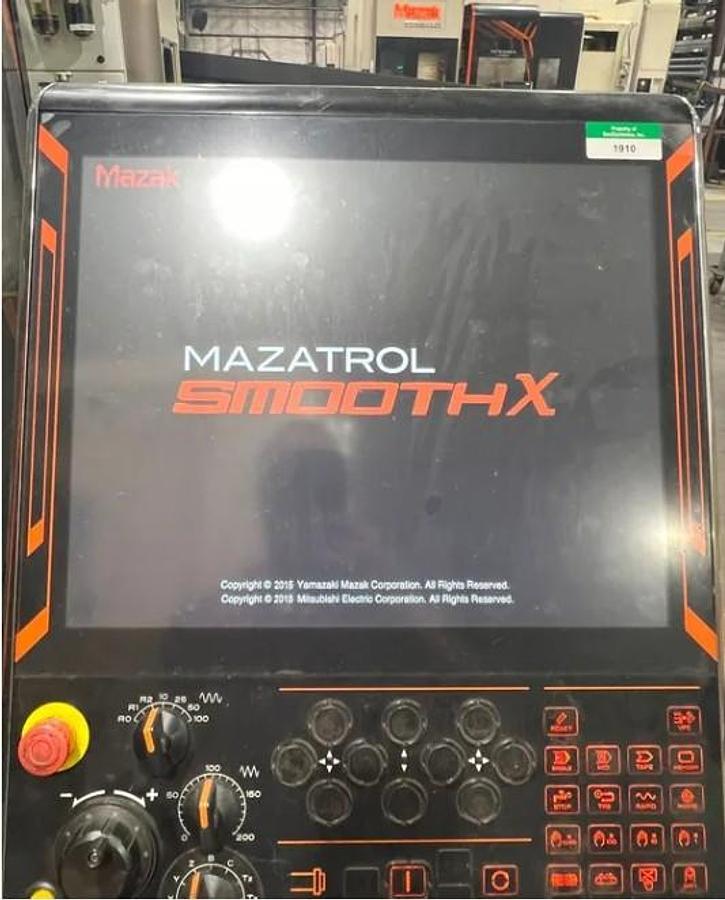

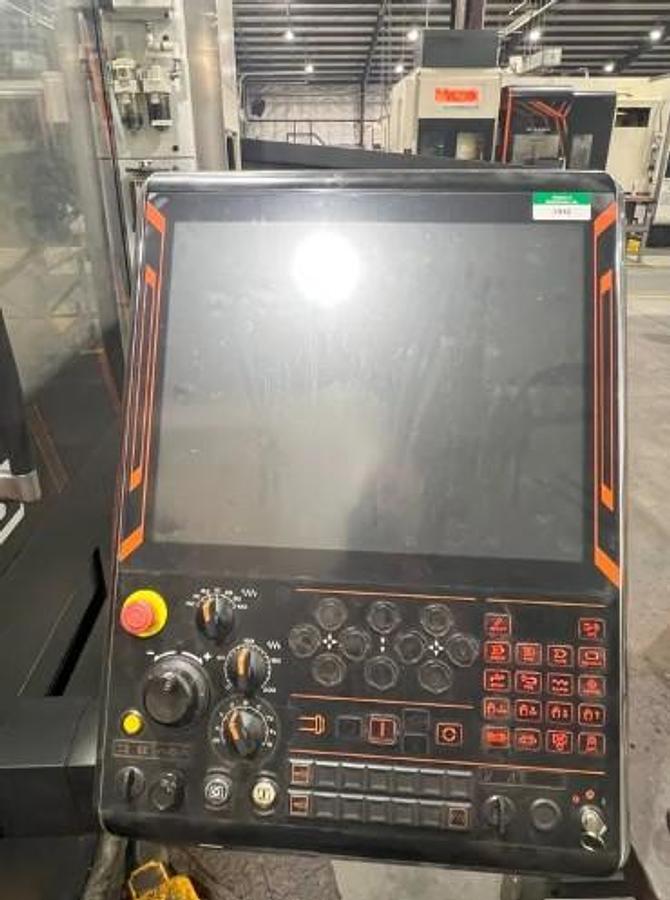

| Machine Control | Mazatrol Smooth X |
| Chuck size main / subspindle | 12" Hydr / 10" Hydr |
| Maximum swing | 25.91" |
| Maximum turning diameter | 25.91" |
| Maximum cutting length | 59.8" |
| Travel x axis | 24.21" |
| Travel y axis | +/- 4.92" |
| Travel z axis | 62.41" |
| B axis movement | 225 Degrees |
| C axis main spindle & subspindle | .0001 Degree |
| W axis travel - subspindle | 61.96" |
| Spindle nose/spindle bore/bar cap. | A2-8" / 4.41" / 4.02" |
| Spindle speeds | 35 - 3,300 RPM |
| Spindle motor | 40 HP |
| Subspindle nose/bore | A2-8" / 3.46" |
| Subspindle speeds | 4,000 RPM |
| Subspindle motor | 35 HP |
| Rotary tool spindle speed | 12,000 RPM |
| Rotary tool motor | 30 HP |
| Number of tools in atc | 36 Tools - KM 63 |
| Number of Lower Turret Positions | 9 Station Turret |
| Rapid Traverse Rates X, Z / Y | 1969 IPM / 1575 IPM |
| Machine dimensions | 205"x110"x107" |
| Machine weight | 37,840 lbs. |
