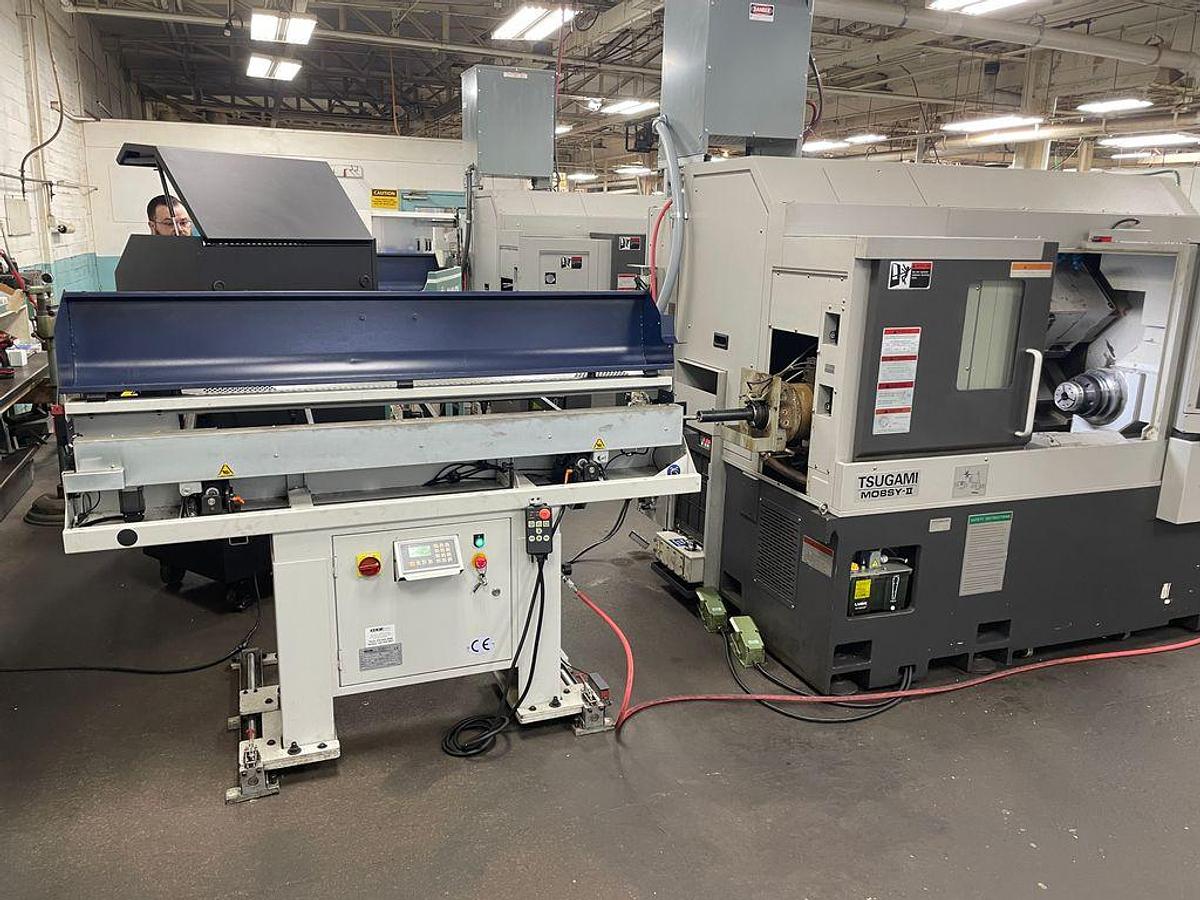

2019 Tsugami M08SY Lathe with Subspindle, Live Tooling, Y Axis, Barfeed
2019 Tsugami M08SY Lathe with Subspindle, Live Tooling, Y Axis, Barfeed
Contact us for price
Location:Ohio
or
Call (863) 439-6066
Description
Y Axis Capability (Off Center)
Subspindle
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
8" 3 Jaw Hydraulic Chuck on Main Spindle
6" 3 Jaw Hydraulic Chuck on Subspindle
Automatic Tool Eye
Chip Conveyor
Parts Catcher
Parts Exit Conveyor
Edge Technologies Rebel V-65 Servo Barfeed System
Mill Spindle Synchronous Tapping
Miscellaneous Static Tool Holders
(1) Axial & (1) Radial Live Holder Included
Coolant System with Tank & Pump
**Run Time Hours 4,926**
**Cutting Time Hours 3,340**
Specifications
| Manufacturer | Tsugami |
| Model | M08SY |
| Year | 2019 |
| Condition | Used |
| Stock Number | 120204 |
| Control | Fanuc 0i-TF |
| Chuck Sizes | 8" Hyd on Main Spindle/6" Hyd on Subspindle |
| Maximum Swing/Over Carriage | 11" / not avail. |
| Maximum Cutting Diameter | 11" |
| Maximum Cutting Length | 14.96" |
| X-Axis Travel | 8.7" |
| Y-Axis Travel | 3.94" |
| Z-Axis Travel | 15.75" |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | .001 / .001 Degree |
| B-Axis Travel (Subspindle) | 19.92" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 2.5" / 2.0" |
| Spindle Speed / Sub Spindle Speed | 4,500 RPM / not avail. |
| Spindle Motor / Sub Spindle Motor | 15 HP / not avail. |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / not avail. |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X, B / Z | 945 IPM / 1062 IPM |
| Machine Dimensions | 97.24″ x 72.83″ x 75.98″ |
| Machine Weight | 13,000 lbs. |
