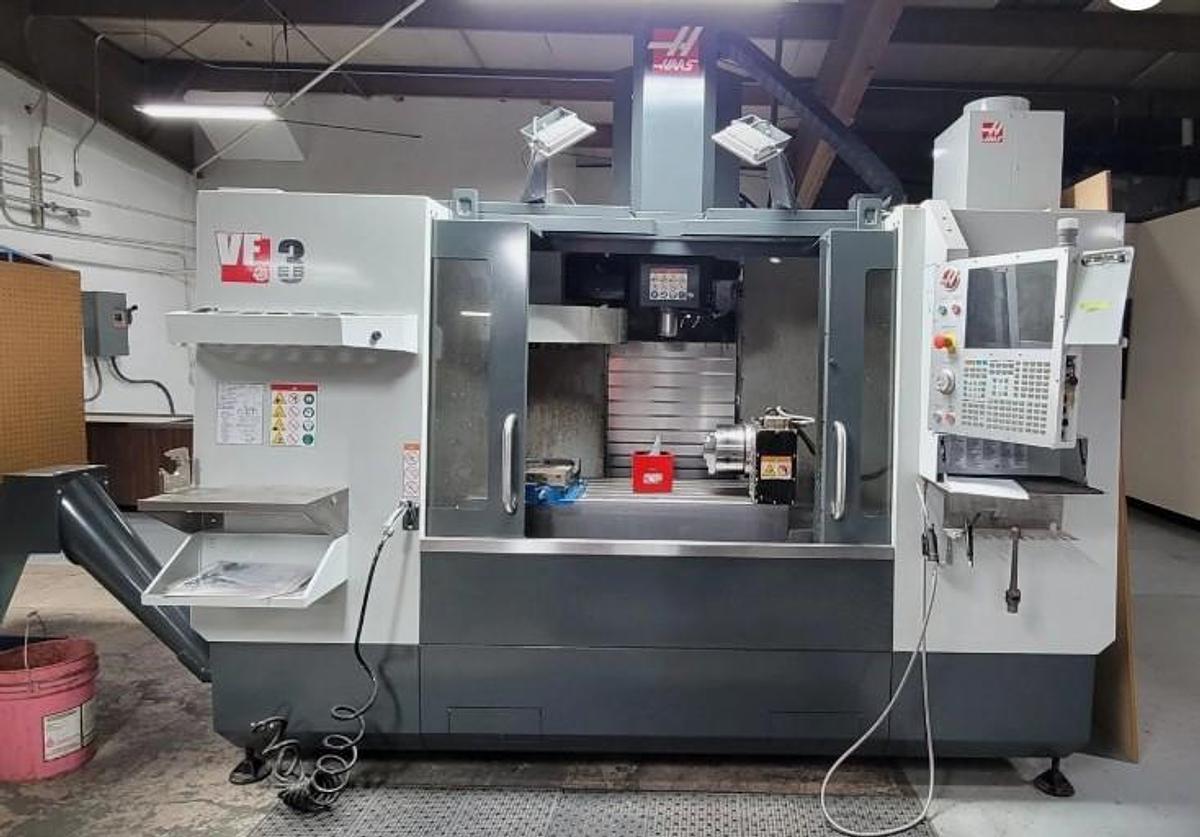

2018 Haas VF-3 10k rpm Spindle, 4th axis Rotary Table, Brake Booster, Programmable Coolant, WiFi Connection
2018 Haas VF-3 10k rpm Spindle, 4th axis Rotary Table, Brake Booster, Programmable Coolant, WiFi Connection
$49,900 (USD)
Location:Oregon
or
Call (863) 439-6066
Description
4th Axis Drive & Wiring
HRTA6 Rotary Table w/A1-6 Spindle Nose
Rotary Brake Booster
10,000 RPM Spindle Option
Auger Style Chip Conveyor
Programmable Coolant Nozzle
High-Intensity Lighting
M19 Spindle Orientation
Compensation Tables
Rigid Tapping
WiFi Connection
55 Gallon Flood Coolant
1 GB Program Memory
15" Color LCD Monitor
Wireless Networking
USB Port Interface
RS 232 Port Interface
208-230 Volt Electrics
Specifications
| Manufacturer | Haas |
| Model | VF-3 10k rpm Spindle, 4th axis Rotary Table, Brake Booster, Programmable Coolant, WiFi Connection |
| Year | 2018 |
| Condition | Used |
| Stock Number | 120199 |
| Table Size | 48" x 18" |
| Maximum Table Load | 3,500 lbs |
| X-Axis Travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 25" |
| Distance Spindle Nose to Table Top | 4"-29" |
| Spindle Taper | CAT 40 |
| Spindle Motor | 20 HP Direct Drive |
| Spindle Speed | 10,000 RPM |
| Tool Magazine Capcity | 20 Station ATC - Umbrella Style |
| Rapid Traverse Rates | 1000 IPM |
| Maximum Tool Diameter / Length / Weight | 3.5" / 13" / 12 lbs |
| Machine Dimensions LxWxH | 118"x98"x118" |
| Machine Weight | 12,500 lbs |
