2004 Doosan Puma 240LB
2004 Doosan Puma 240LB
$26,500 (USD)
Location:Ohio
or
Call (863) 439-6066
Description
10" 3 Jaw Hydraulic Chuck
Tool Presetter
Chip Conveyor
Tailstock
Mist Collector
Foot Pedal for Chuck
PCMCIA Card Interface RS 232 Port Interface Boxed Ways
Coolant Tank with Pump All Available Static Tooling
All Available Manuals
Wired 200-220V Electrics

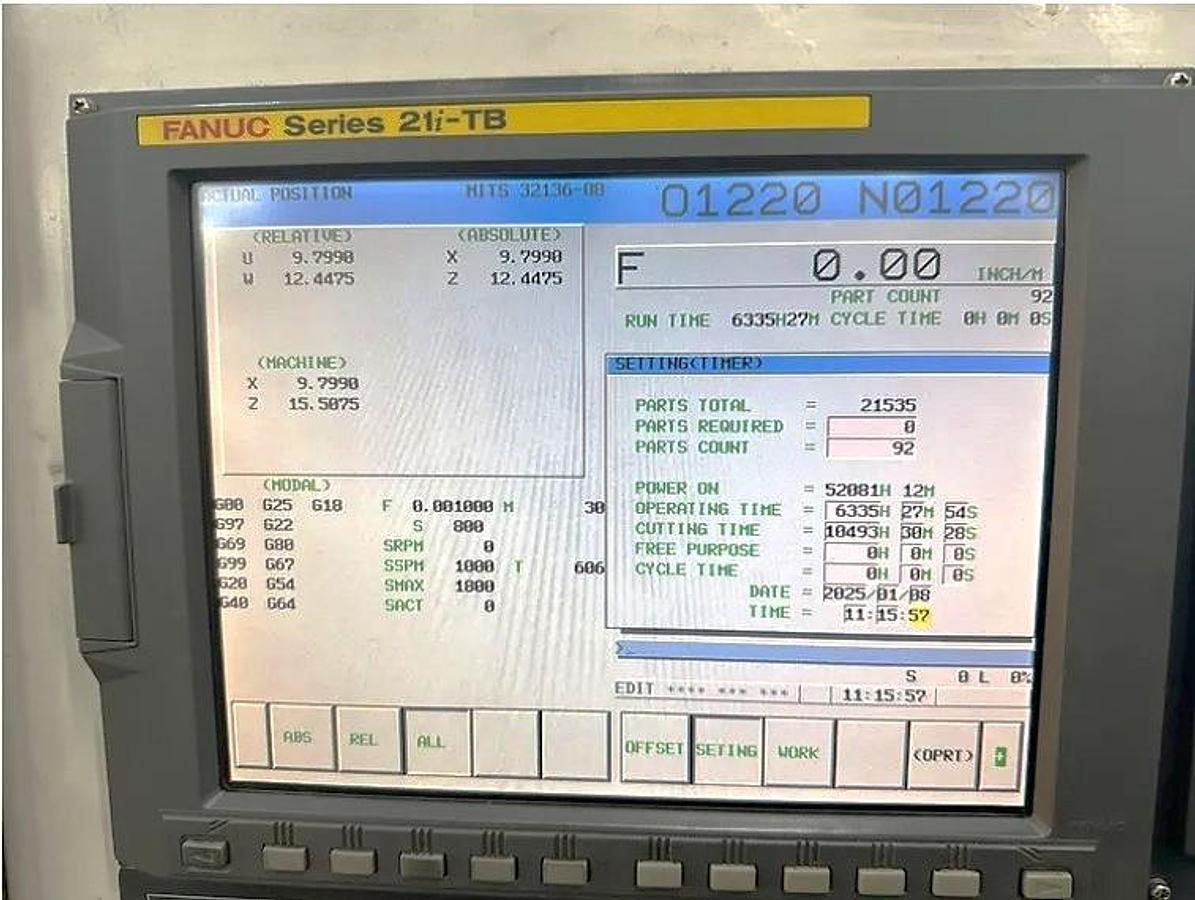

**Cutting Hours 10,493**
Specifications
| Manufacturer | Doosan |
| Model | Puma 240LB |
| Year | 2004 |
| Condition | Used |
| Stock Number | 120197 |

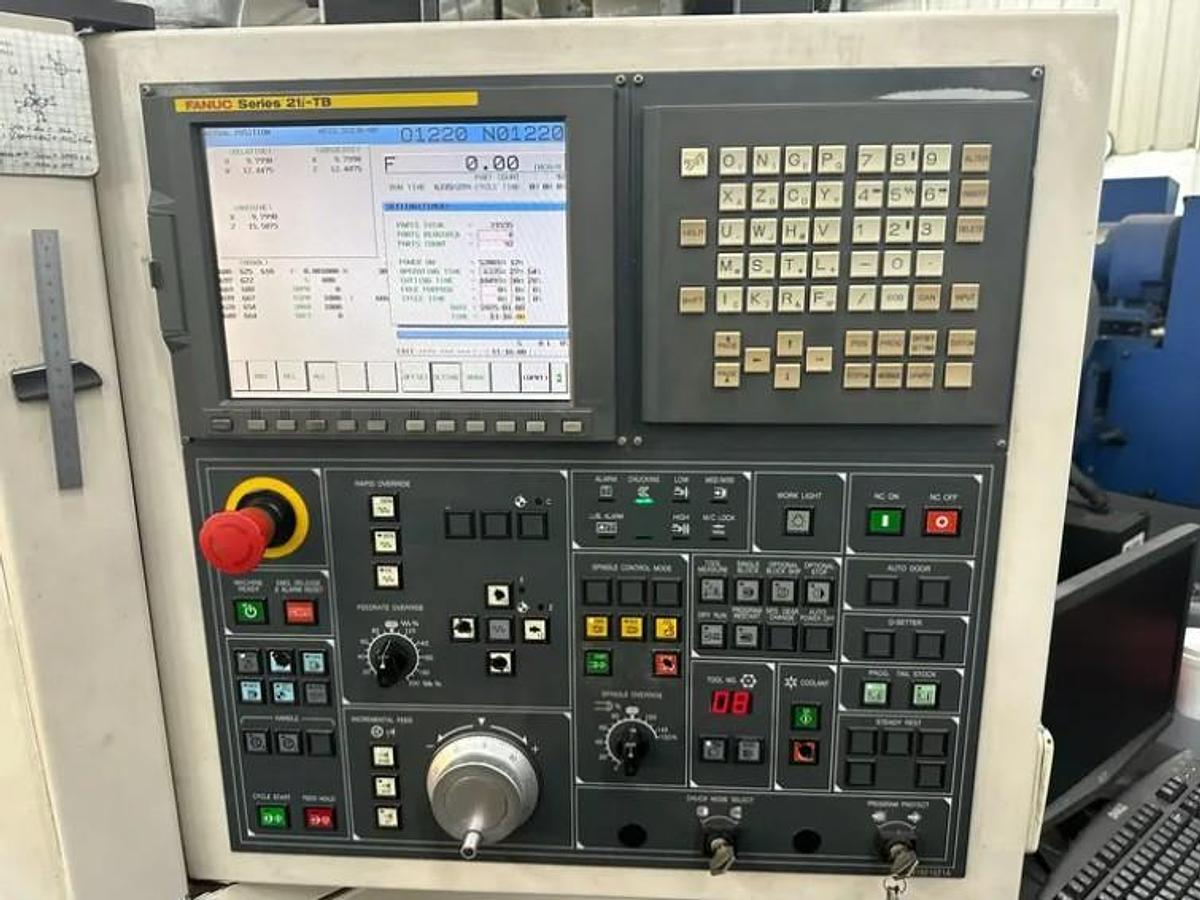

| Control | Fanuc 21i-TB Control |

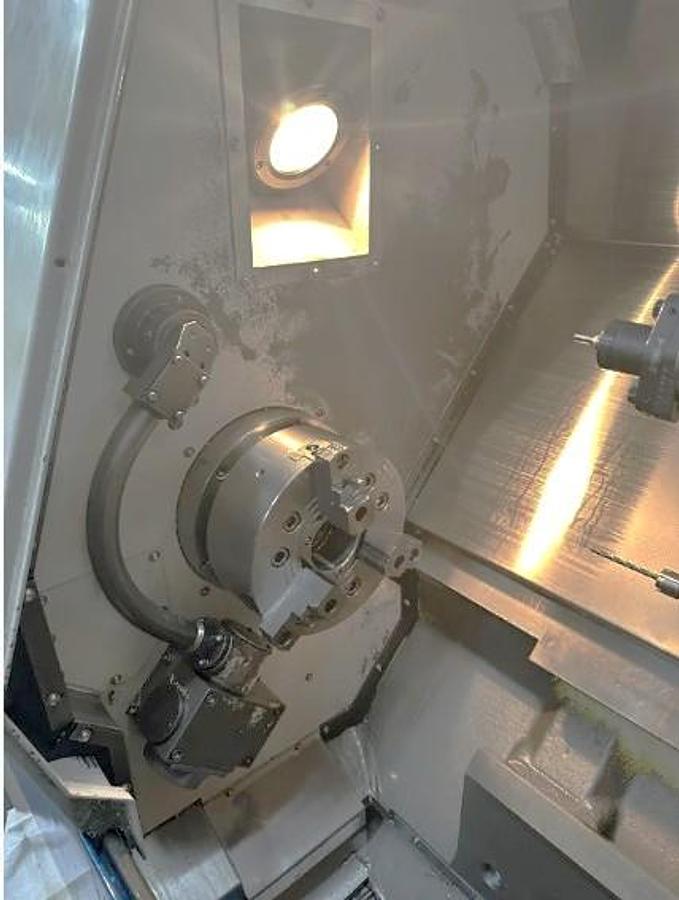

| Chuck Size | 10" 3 Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 22.4" |
| Maximum Cutting Diameter | 13.8" |
| Maximum Machining Length | 23.6" |
| Maximum Bar Capacity | 3.03" |
| X-Axis Travel | 9.52" |
| Z-Axis Travel | 24" |
| Spindle Nose / Spindle Bore | A2-8" / 3.54" |
| Spindle Speeds - Main | 35 - 3,500 RPM |
| Spindle Motor - Main | 25 HP |

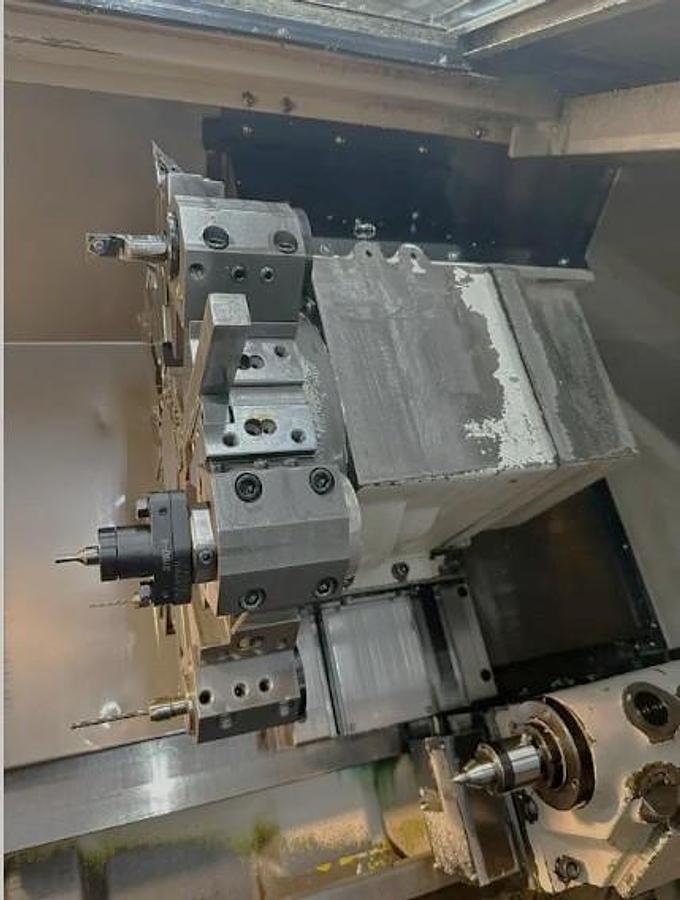

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 945 IPM |

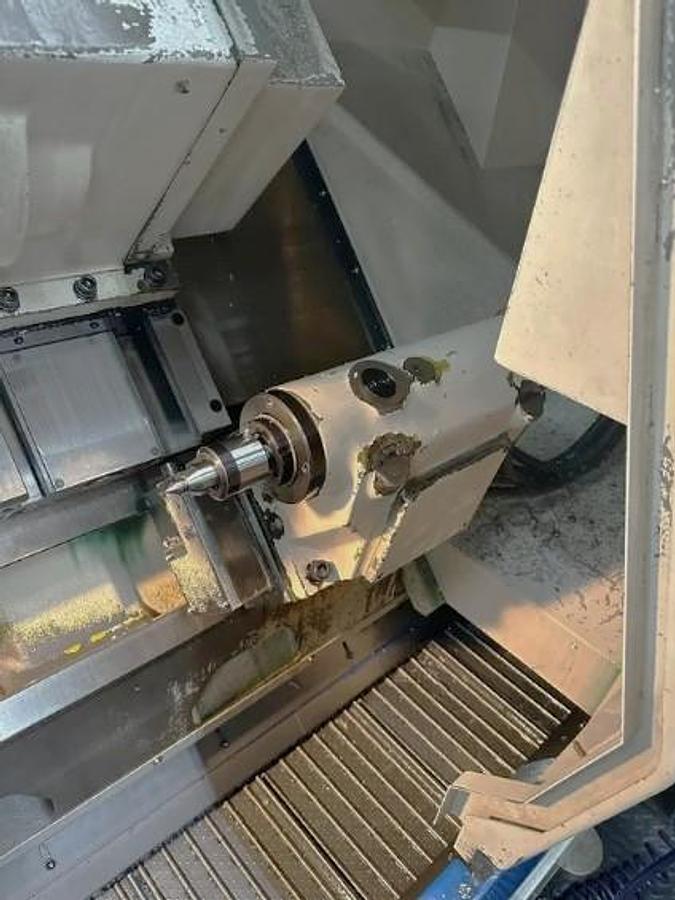

| Tailstock Quill Diameter / Quill Travel / Taper | 3.1" / 4.7" / MT #4 |
| Machine Dimensions | 133" x 65" x 68" |
| Machine Weight | 9,500 lbs. |
