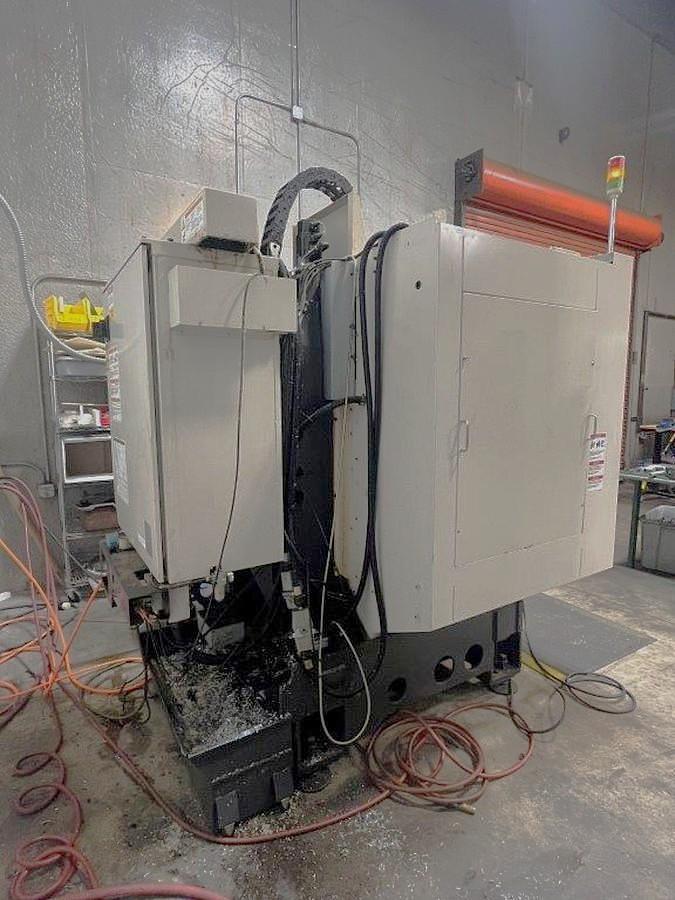

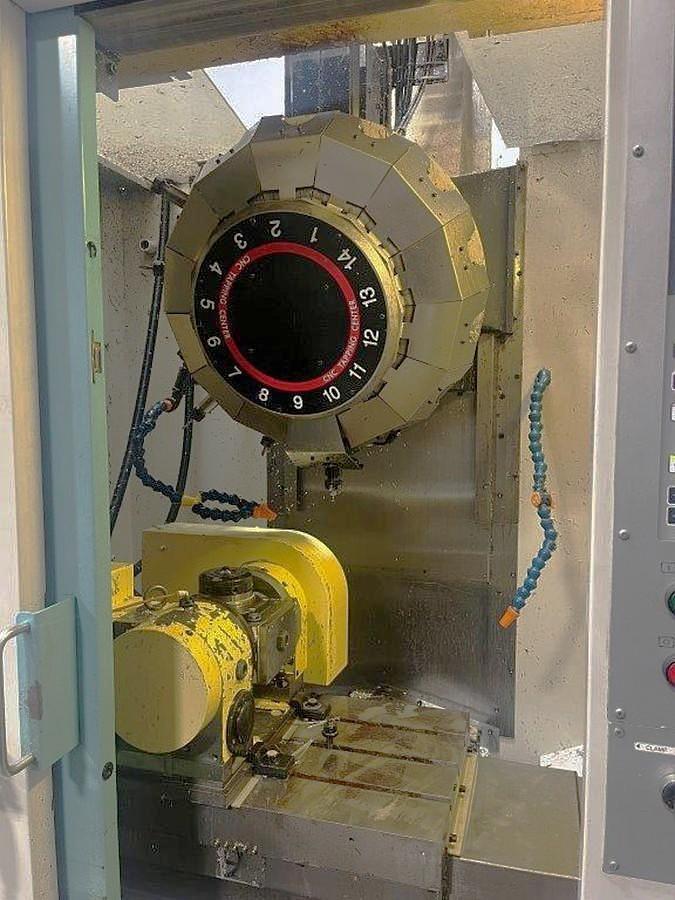

2012 Brother TC-S2DN 5 Axis Drill/Tap Machine with Nikken Trunnion Type 5th Axis, Remote Jog Handle Conversational or G Code
2012 Brother TC-S2DN 5 Axis Drill/Tap Machine with Nikken Trunnion Type 5th Axis, Remote Jog Handle Conversational or G Code
Contact us for price
Location:California
or
Call (863) 439-6066
Description

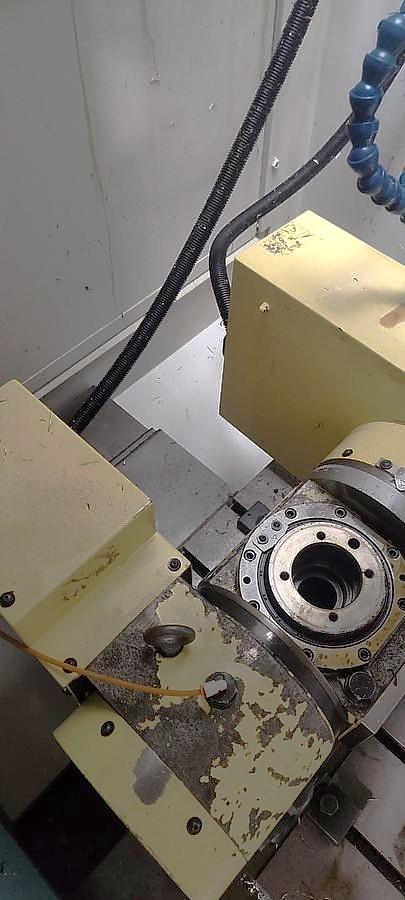

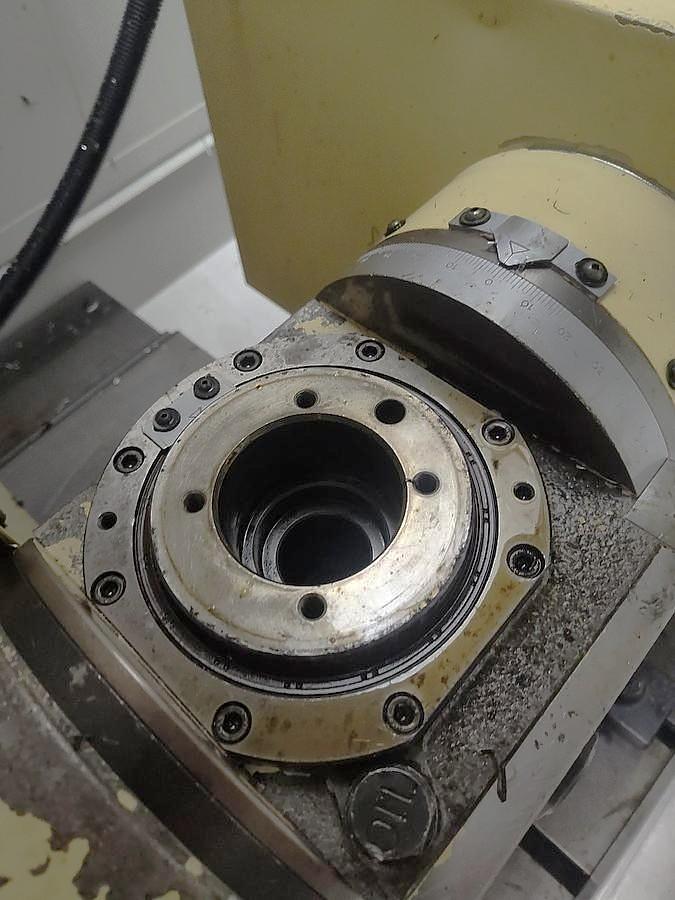

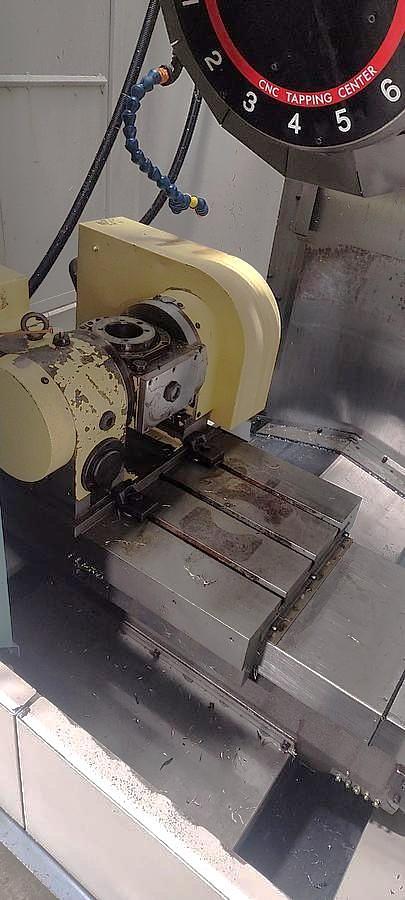

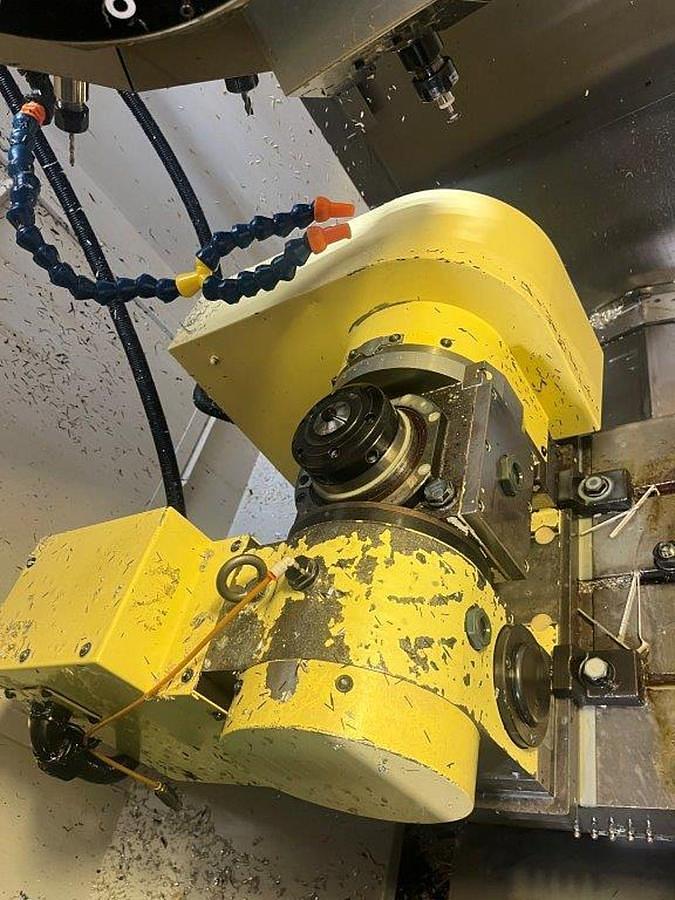

Nikken 5AX-130SA-BR Trunnion Style Rotary/Tilt Table, Serial Number 4454
Coolant System with Tank & Pump
Remote Jog Handle

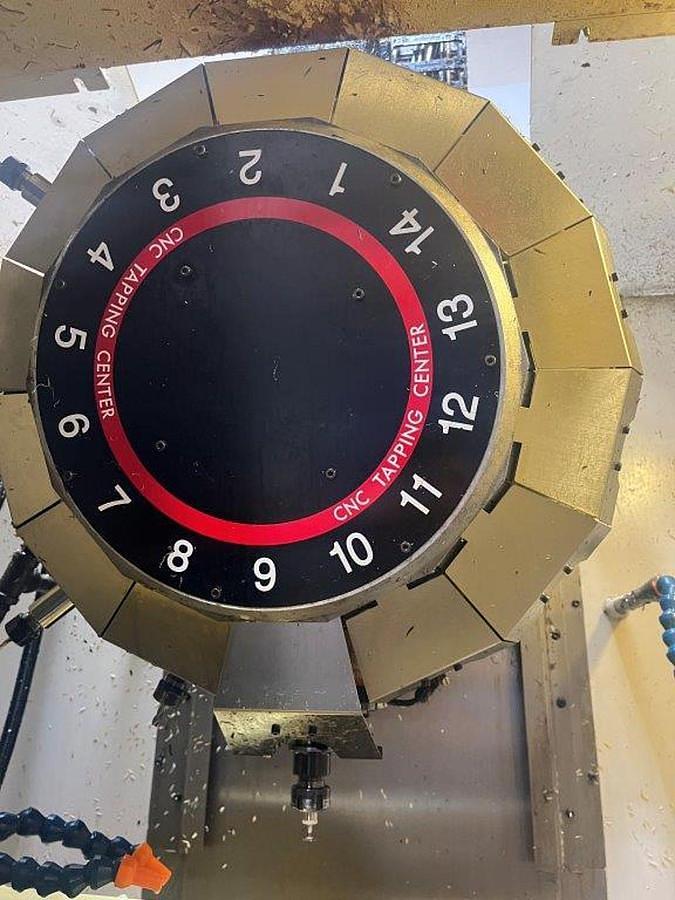

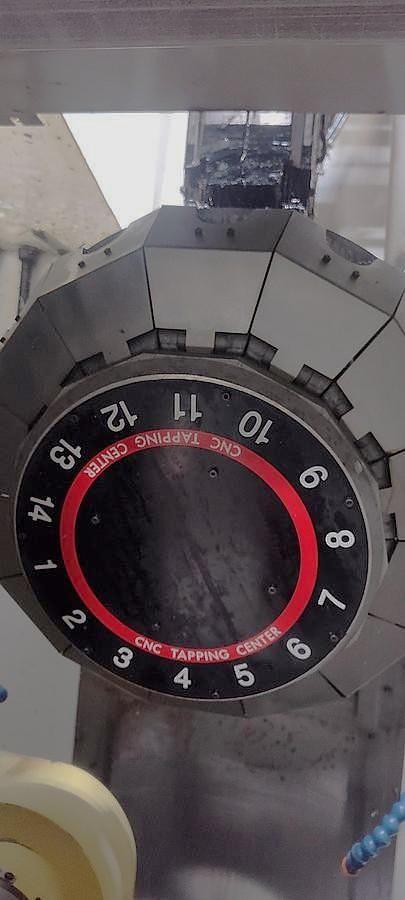

14 Station Tool Changer
G-Code and Conversational Programming Available
Window Air Blast
RS 232 Port Interface
**9,825 Operation Hours**
Specifications
| Manufacturer | Brother |
| Model | TC-S2DN |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120191 |
| Machine Control | Brother CNC-B00 |
| Table Size / Number of Pallets | 23.5" x 15.75" / 1 Pallet |
| X-Axis Travel | 19.7" |
| Y-Axis Travel | 15.7" |
| Z-Axis Travel | 11.8" |
| Spindle Taper | BT-30 |
| Spindle speed | 10,000 RPM |
| Spindle motor 30 min. / cont. | 14 HP / 9 HP |
| Tool Magazine Capacity | 14 Position Tool Changer |
| Tool Change Time Tool to Tool | 1.8 Seconds |
| Rapid Traverse Rates (X, Y, Z) | 1969 IPM |
| Cutting Feedrates | 394 IPM |
| Machine Dimensions LxWxH | 58"x123"xNA |
| Machine Weight | 5,280 lbs |
