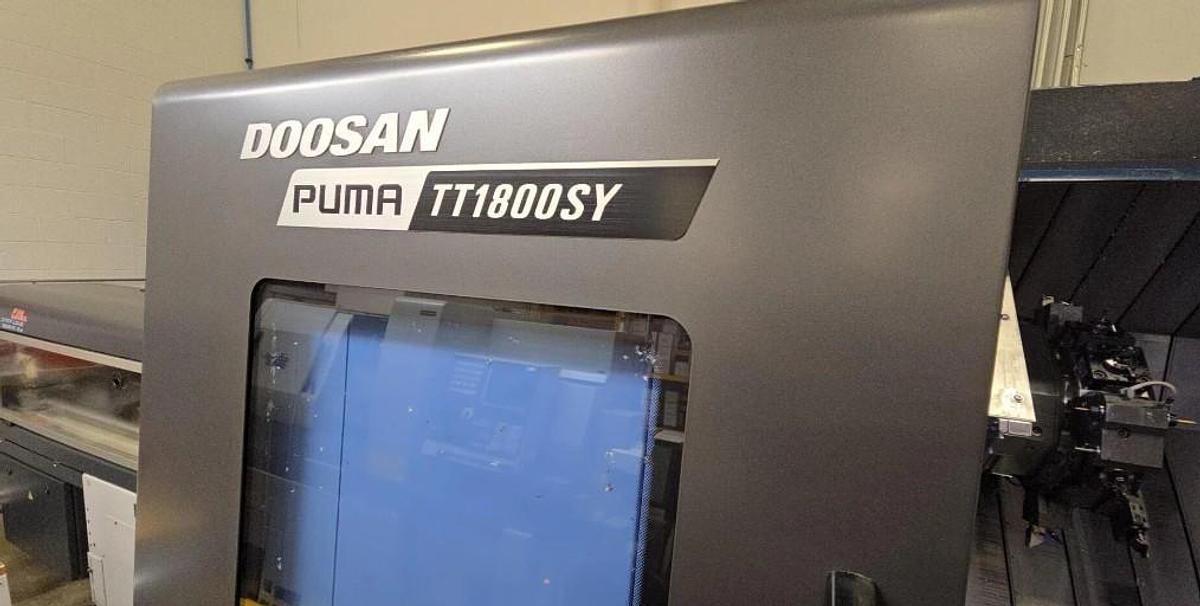

2021 Doosan Puma TT1800SY
2021 Doosan Puma TT1800SY
$209,000 (USD)
Location:Illinois
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability Y Axis Capability on Upper Turret

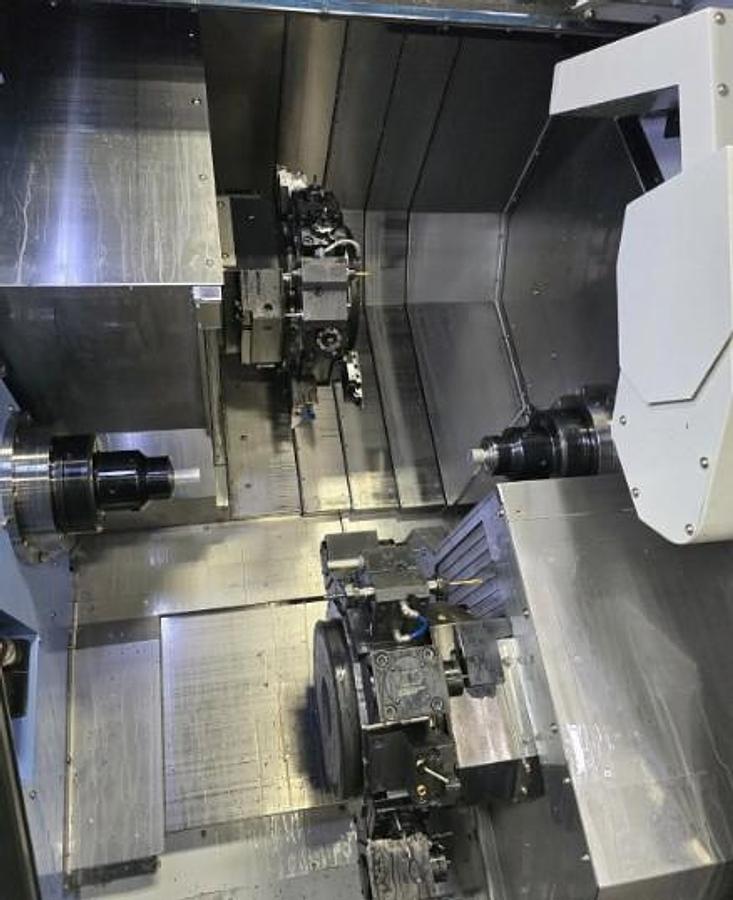

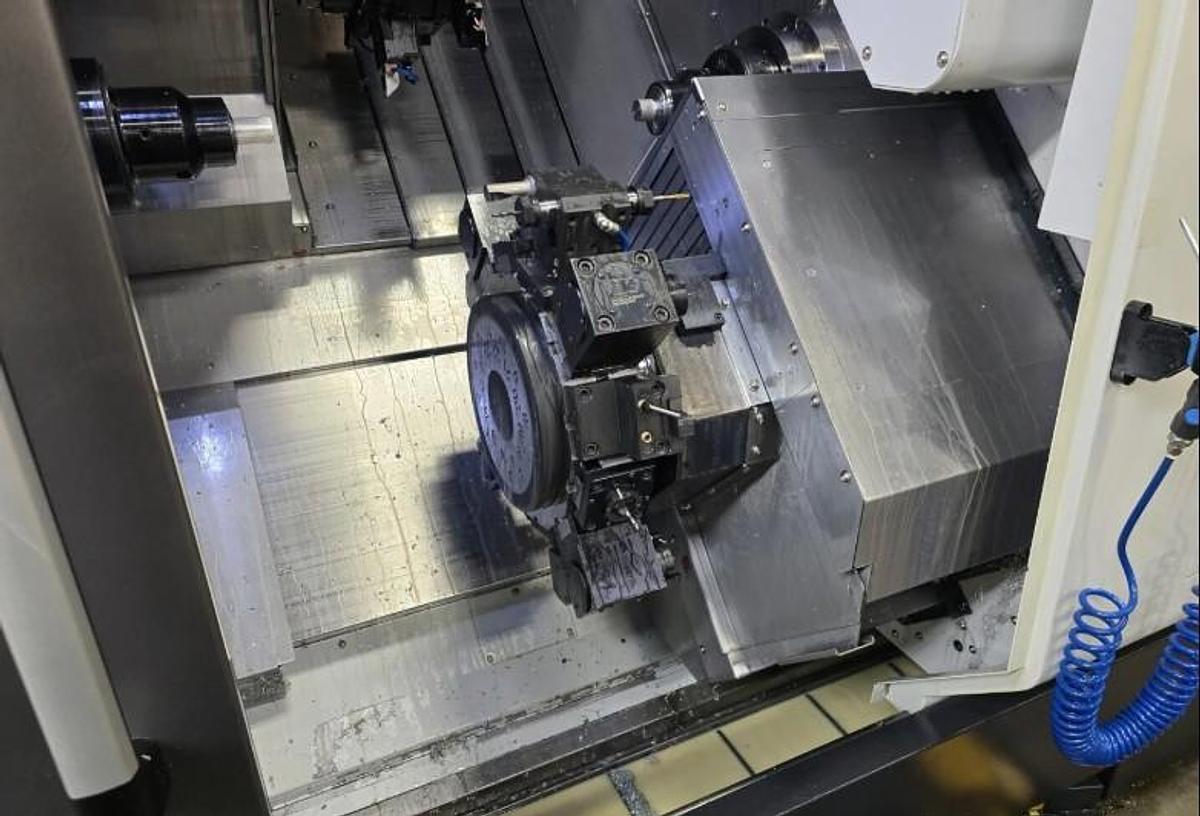

Twin Turret Design with Upper and Lower Turrets

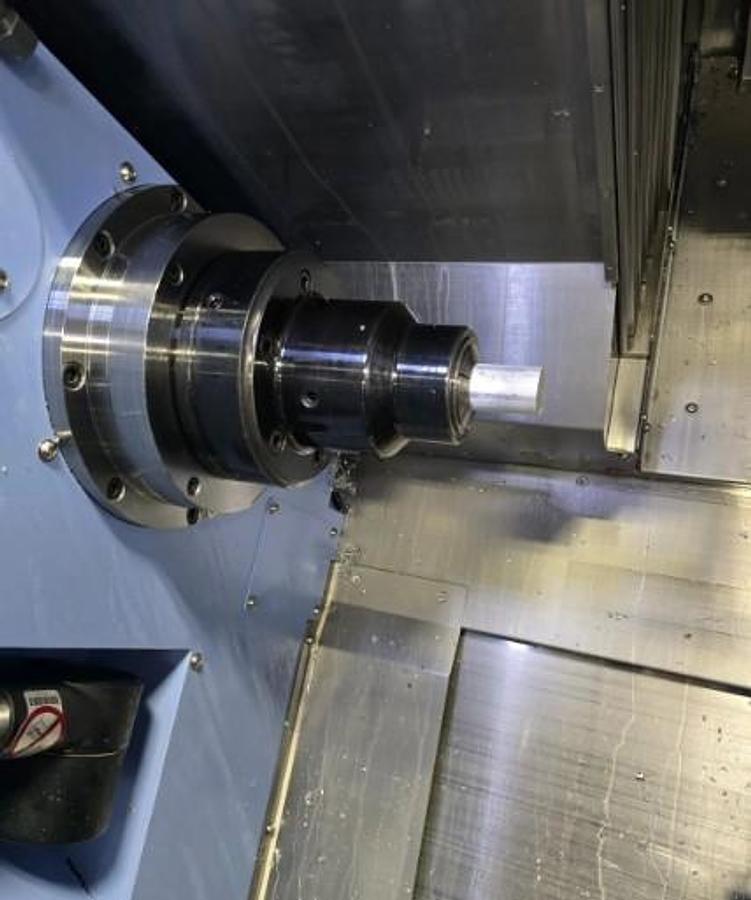

Dual Spindle Design
Tool Presetter

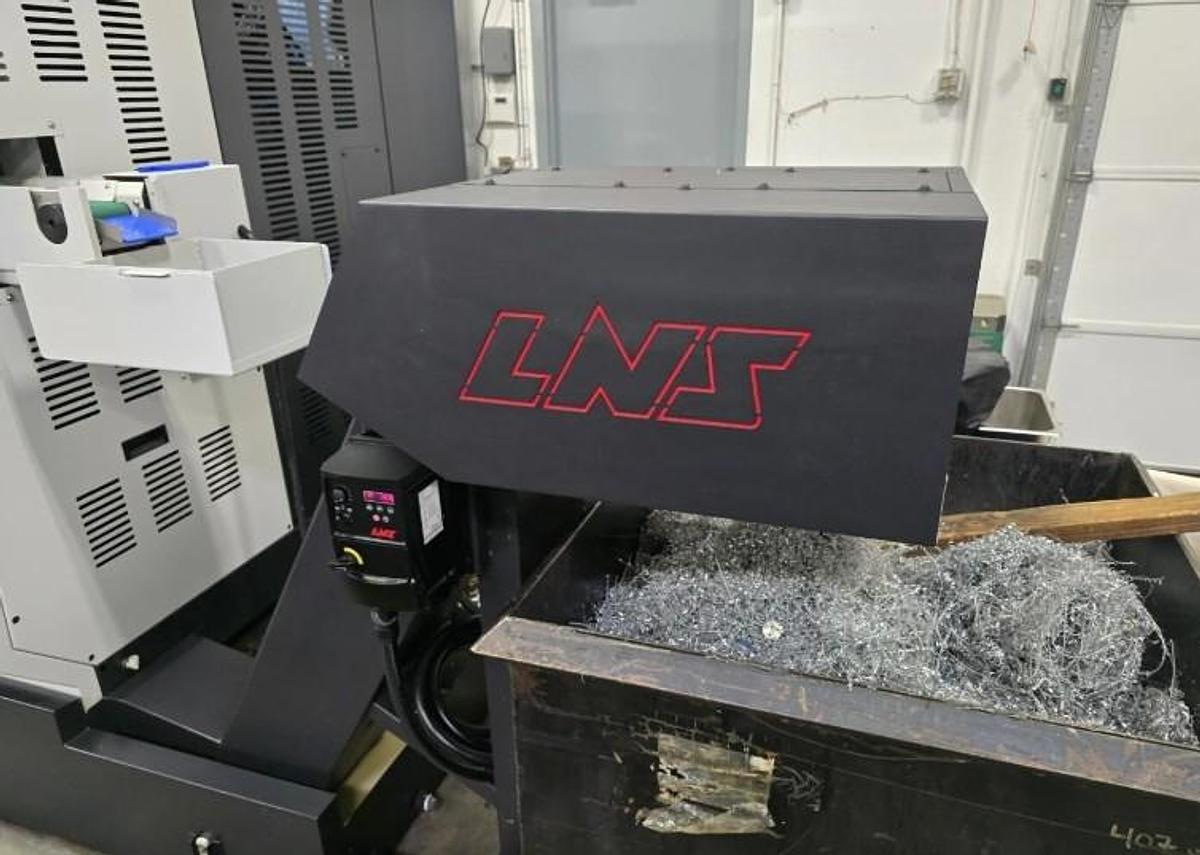

Chip Conveyor

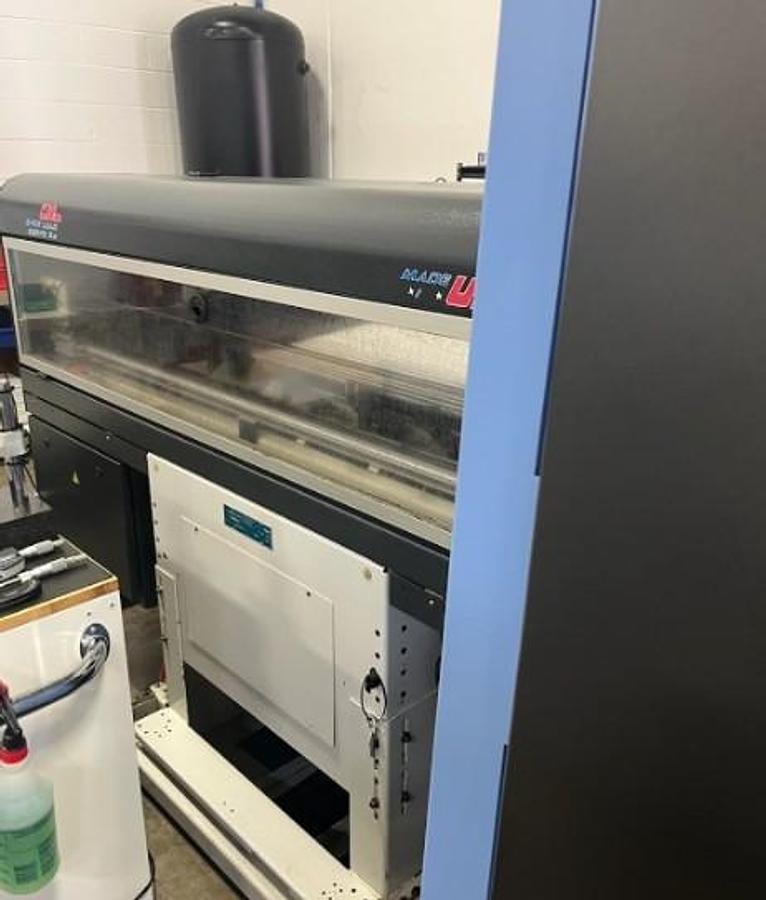

LNS Servo S3 Barfeed
Parts Exit Conveyor
PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways
Coolant Tank with Pump
(4) X-Axis Live Tool Holders
(2) Z-Axis Live Tool Holders All Available Manuals
Collet Chucks in pictures do not go with the Machine

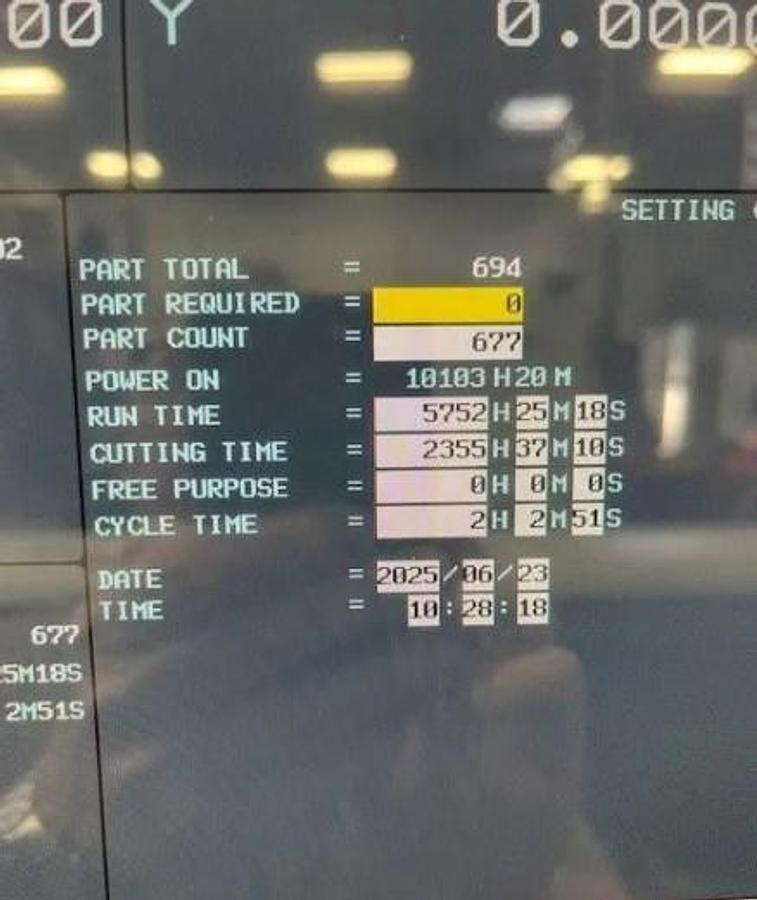

Only 2,355 run time hours
**Machine is in Like New Condition**
Specifications
| Manufacturer | Doosan |
| Model | Puma TT1800SY |
| Year | 2021 |
| Condition | Used |
| Stock Number | 120192 |

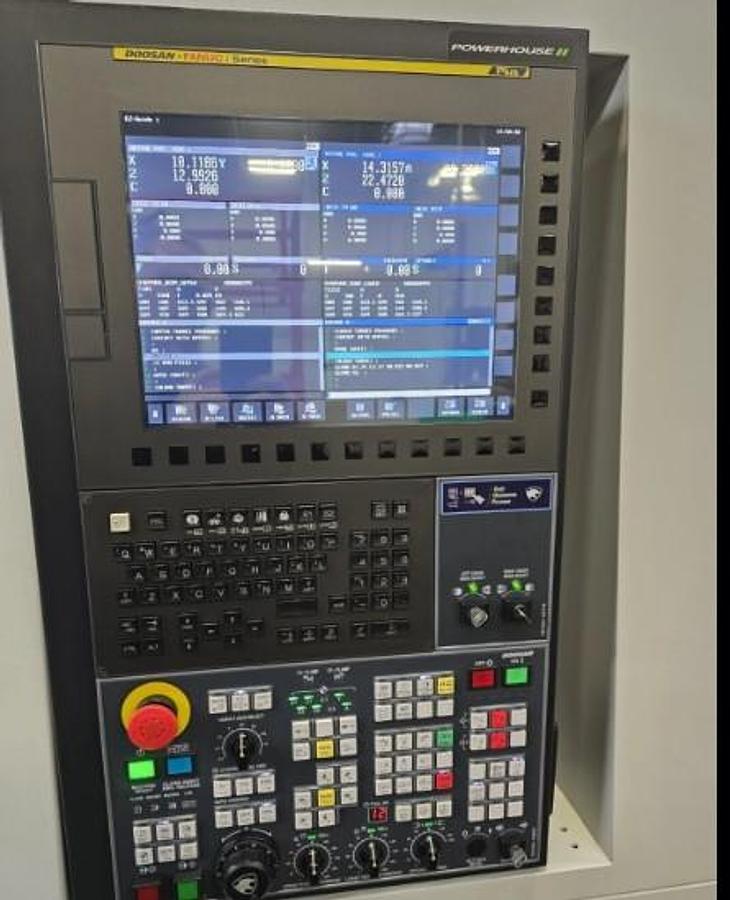

| Control | Fanuc 31iTB |
| Chuck Size | (2) 8" 3-Jaw Hydrualic |
| Maximum Swing over Bed | 9.05" |
| Maximum Cutting Diameter | 9.05" |
| Maximum Machining Length | 9.1" |
| Maximum Distance Between Centers | 38.5" |
| Maximum Bar Capacity | 2.625" |
| X1-Axis Travel / X2-Axis Travel | 6.5" / 7.5" |
| Y-Axis Travel | 3.93" |
| Z1-Axis Travel / Z2-Axis Travel | 31.5" / 28.3" |
| C Axis Spindle Rotation | .001 Degrees - both Spindles |
| A-Axis Travel - Subspindle | 30.3" |
| Spindle Nose / Spindle Bore | A2-6" / 3.0" - both Spindles |
| Main & Subspindle Speeds | 5,000 RPM |
| Spindle Motor - Both Spindles | 30 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |
| Number of Turret Positions | 12 Station Turret - Each |
| Rapid Traverse Rates X / Y / Z | 787 IPM / 295 IPM / 984 IPM |
| Machine Dimensions | 154" x 82" x 82" |
| Machine Weight | 17,196 lbs. |
