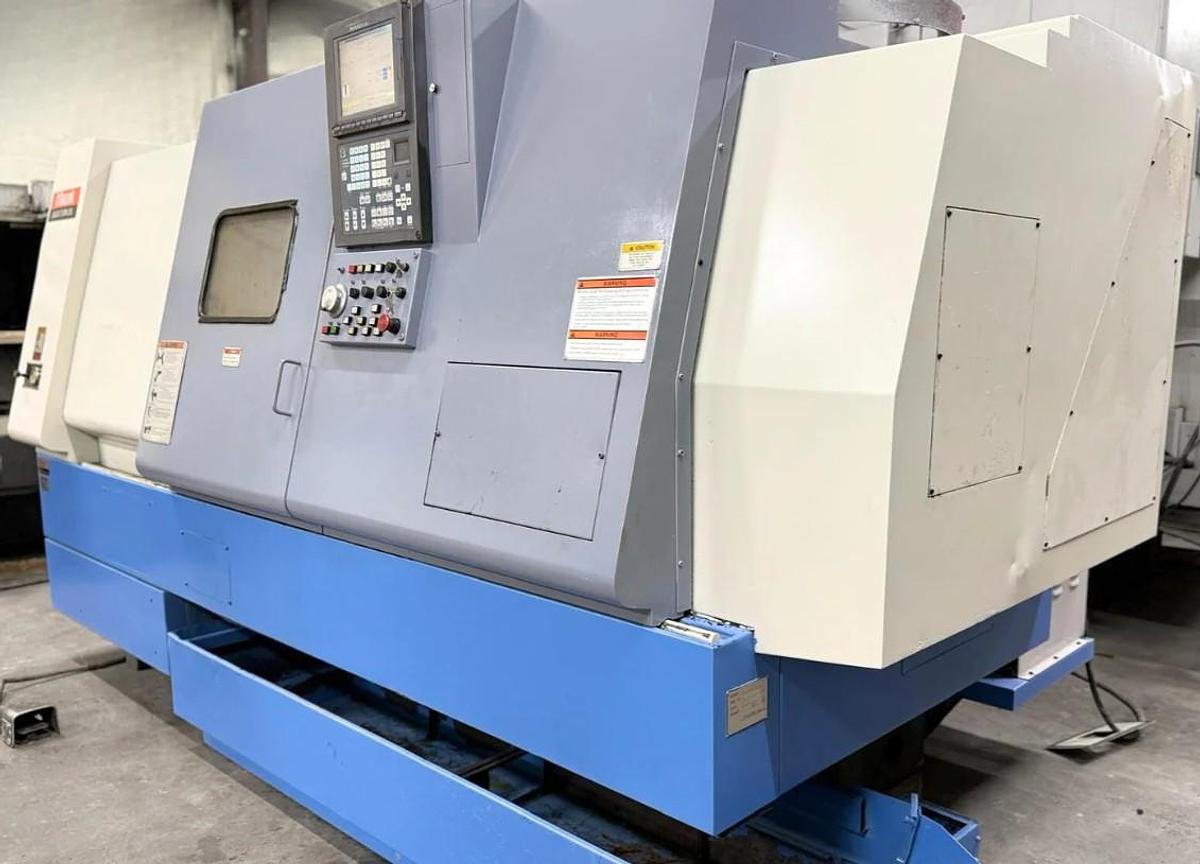

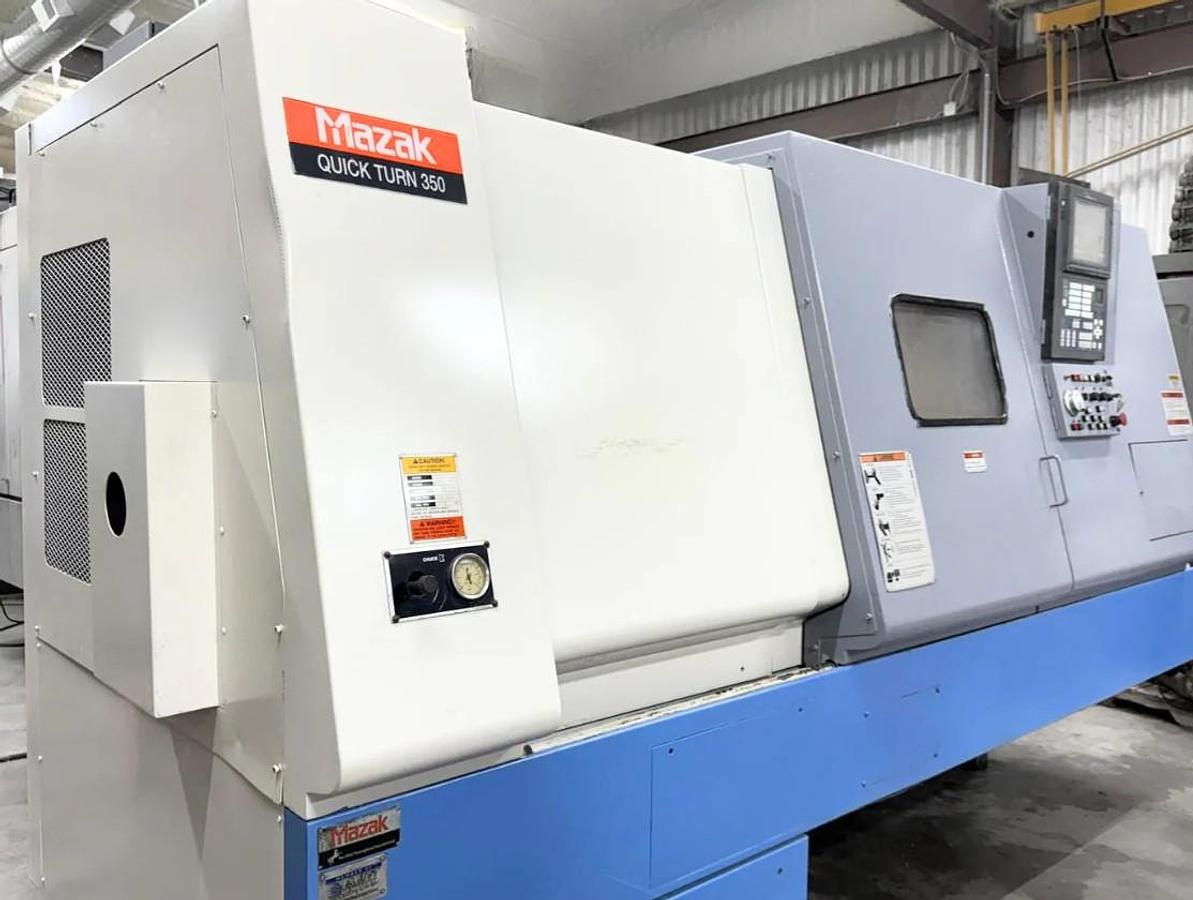

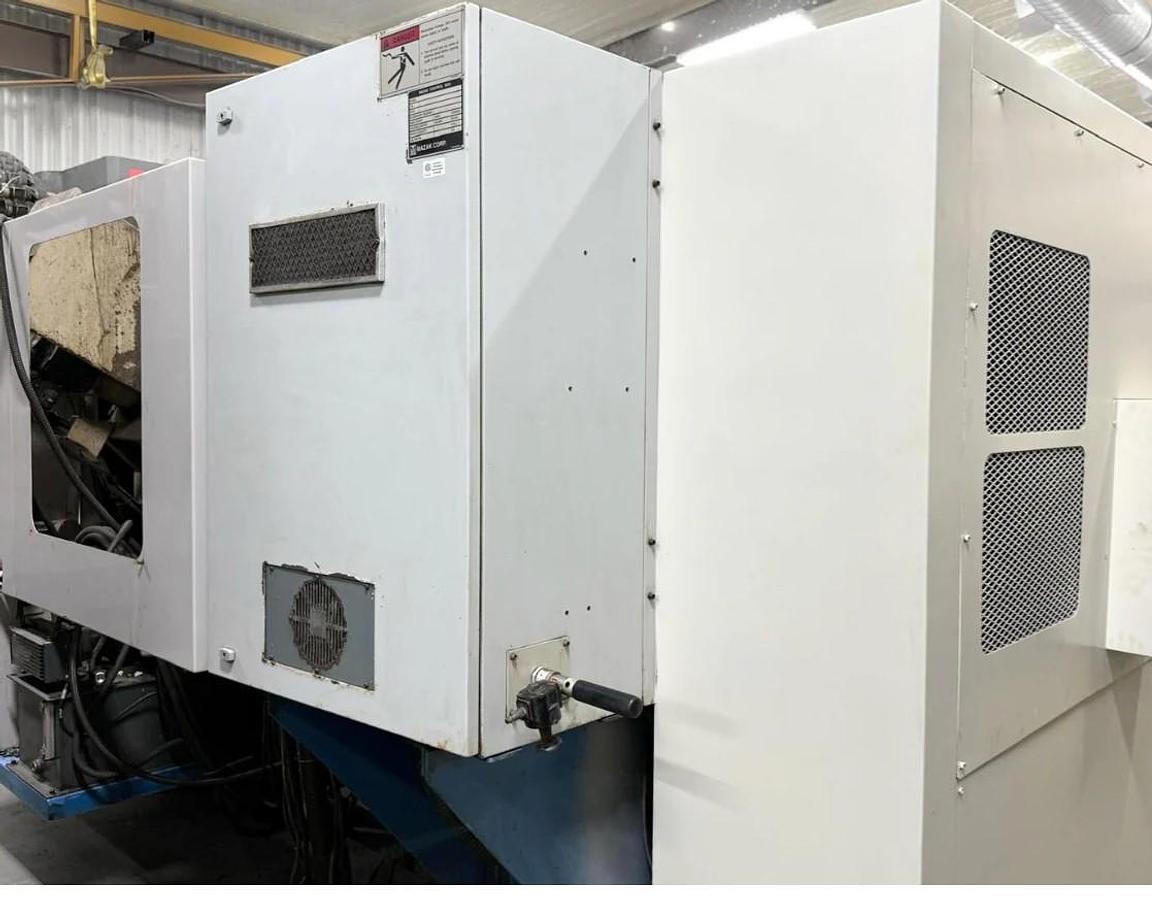

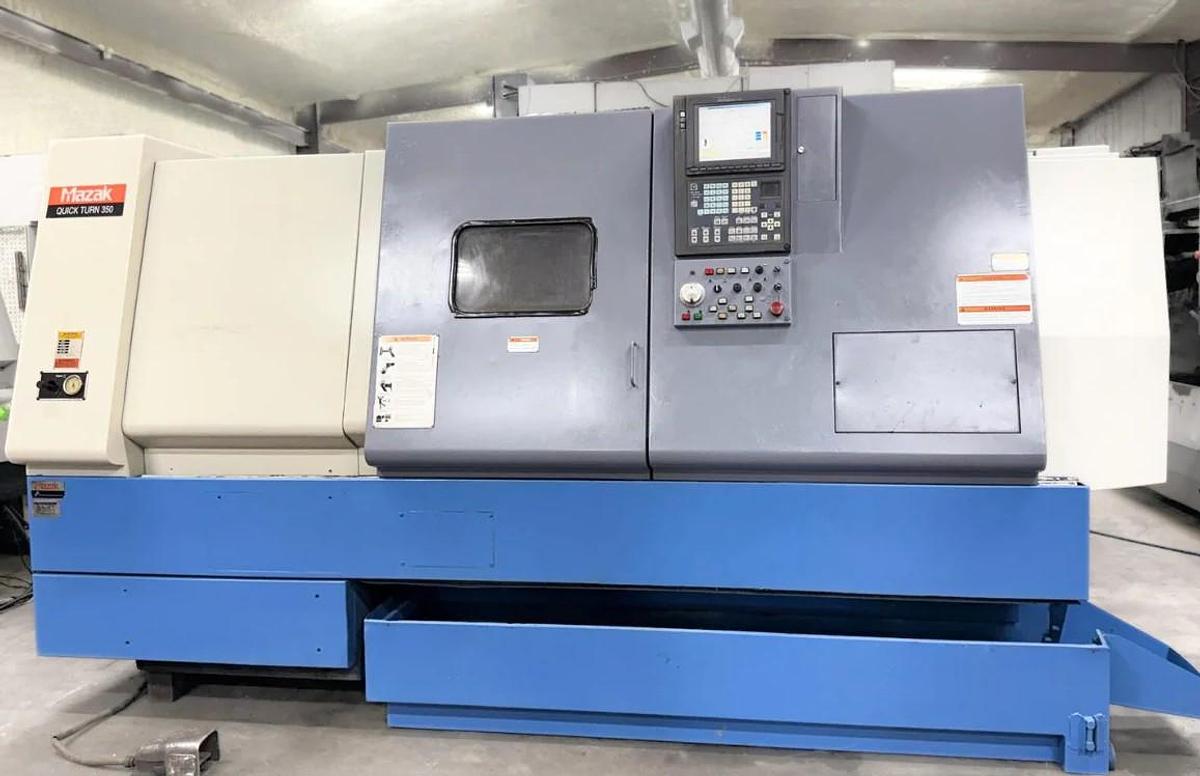

2001 Mazak Quickturn 350 with Tailstock, Tool Presetter, Chip Conveyor, 15" Hyd Chuck, 4" Bar Capacity
2001 Mazak Quickturn 350 with Tailstock, Tool Presetter, Chip Conveyor, 15" Hyd Chuck, 4" Bar Capacity
Contact us for price
Location:Texas
or
Call (863) 439-6066
Description
15" 3 Jaw Hydraulic Chuck
Chip Conveyor
Programmable Tailstock
Tool Presetter
Thread Start Point Compensation
Background Tool Path Check
Pitch Error Compensation
Tool Wear Compensation
Tool Breakage Detection
Multi-Tap Transformer
Coolant System with Tank & Pump
3.5" Floppy Disk Interface
RS 232 Port Interface
All Available Manuals
All Available Tool Blocks
Specifications
| Manufacturer | Mazak |
| Model | Quickturn 350 |
| Year | 2001 |
| Condition | Used |
| Stock Number | 120190 |
| Machine Control | Mazatrol Fusion 640T Control |
| Chuck Size | 15" 3-Jaw Hydraulic |
| Maximum Swing | 25.93" |
| Maximum Swing Over Cross Slide | 19.88" |
| Maximum Machining Diameter | 15.35" |
| Maximum Cutting Length | 47.6" |
| X-axis travel | 10.63" |
| Z-Axis Travel | 48.03" |
| Spindle Nose / Bore / Bar Capacity | A2-8 / 4.4" / 4" |
| Spindle Speed | 2,500 RPM |
| Spindle Motor | 30 HP |
| Number of Turret Positions | 12 Sided / 24 Station Turret |
| Rapid Traverse Rates X / Z | 472 IPM / 787 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.94" / 5.12" / #4 MT |
| Tailstock Body Travel | 37.8" |
| Machine Dimensions LxWxH | 146" x 82" x 76" |
| Machine Weight | 15,620 lbs. |
