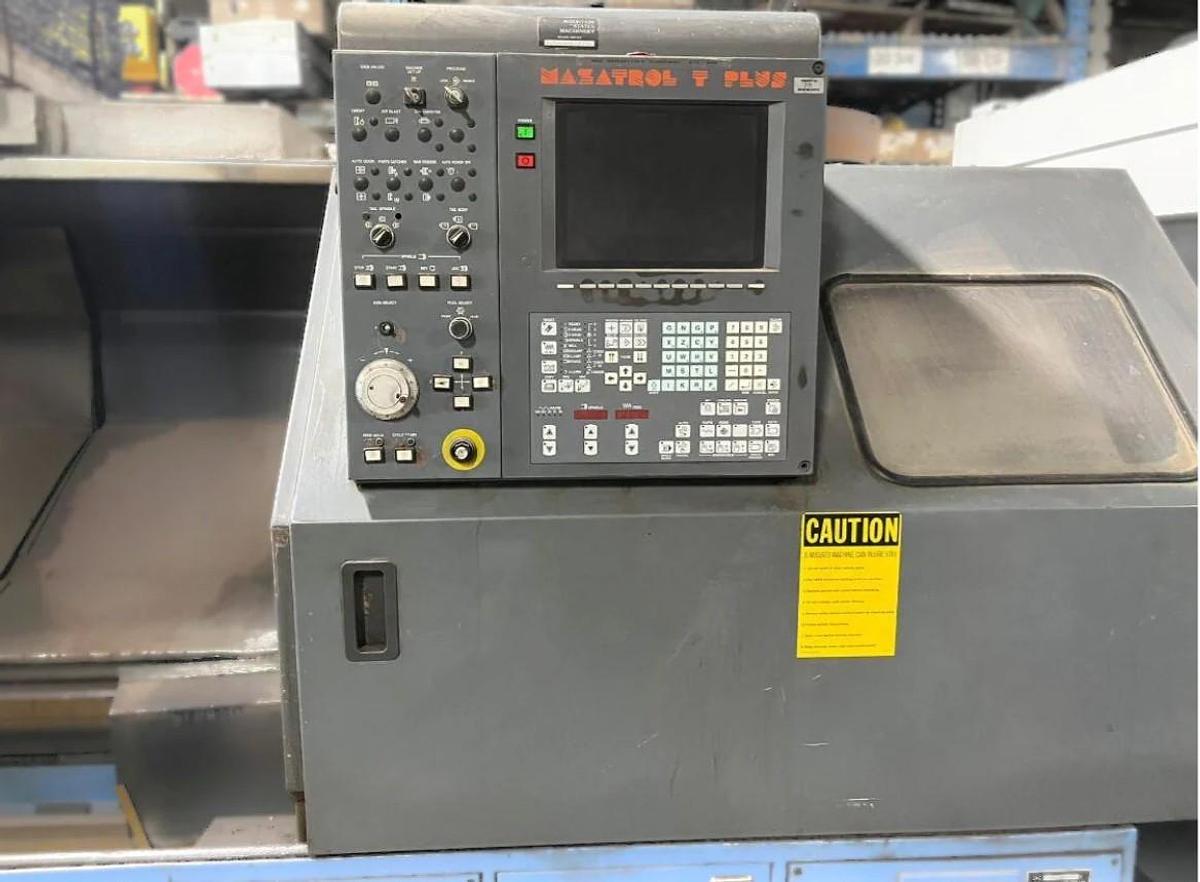

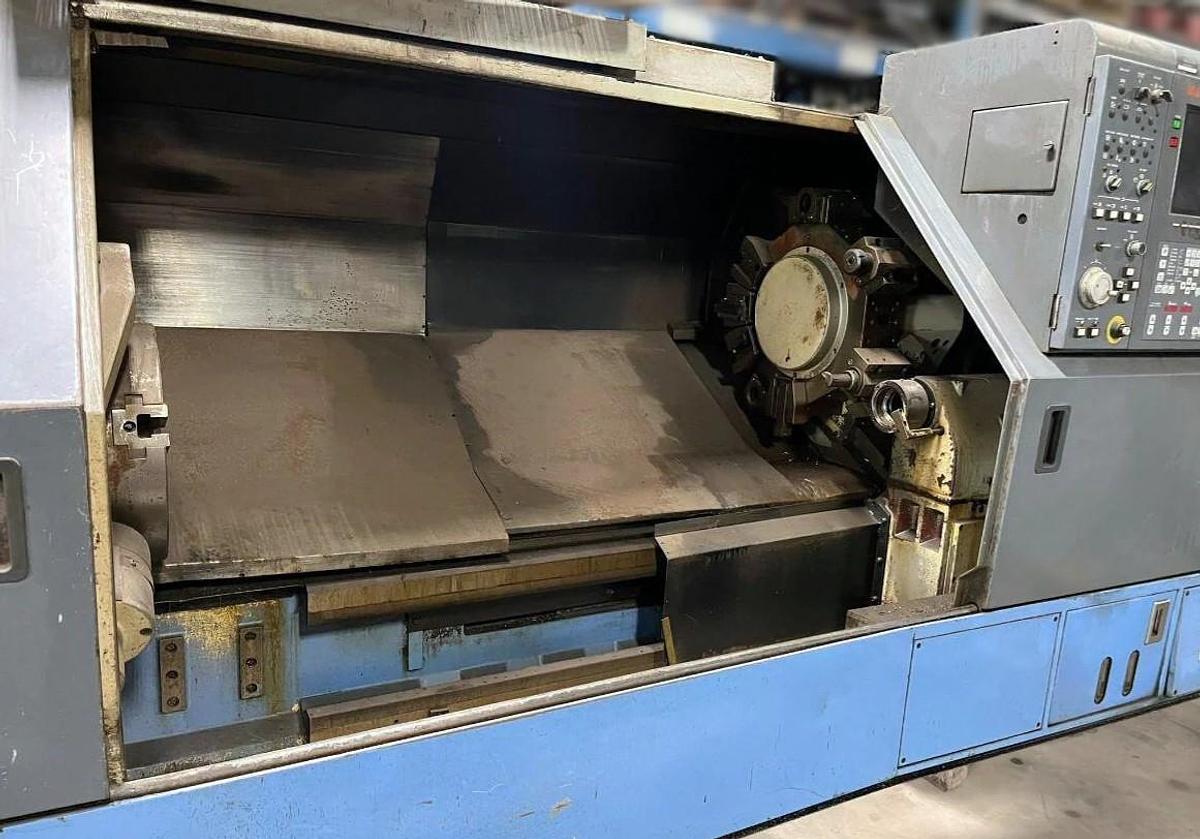

1998 Mazak QT40/1500 6.5" Bore
1998 Mazak QT40/1500 6.5" Bore
Contact us for price
Location:Texas
or
Call (863) 439-6066
Description
15" Hydraulic Chuck Automatic Tool Eye Complete Coolant System Multi-Tap Transformer Programmable Tailstock RS 232 Port Interface All Available Tooling All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | QT40/1500 6.5" Bore |
| Year | 1998 |
| Condition | Used |
| Stock Number | 120188 |
| Control | Mazatrol Tplus |
| Chuck Size | 15" Hydraulic Chuck |
| Maximum Swing | 20" |
| Maximum Cutting Diameter | 15.75" |
| Maximum Machining Length | 60.2" |
| Maximum Bar Capacity | 6" |
| X-Axis Travel | 11" |
| Z-Axis Travel | 61.3" |
| Spindle Nose / Spindle Bore | A2-8" / 6.5" |
| Spindle Speeds | 1,300 RPM |
| Spindle Motor | 40 HP |
| Transmission | 3 Ranges - 1,063 ft/lbs Torque |
| Number of Turret Positions | 12 Sided/24 Positions |
| Rapid Traverse Rates X/Z | 472 IPM / 709 IPM |
| Tailstock Quill Diameter / Center | 3.94" / MT #5 |
| Machine Dimensions | 144" x 81" x 74.2" |
| Machine Weight | 12,568 lbs. |
