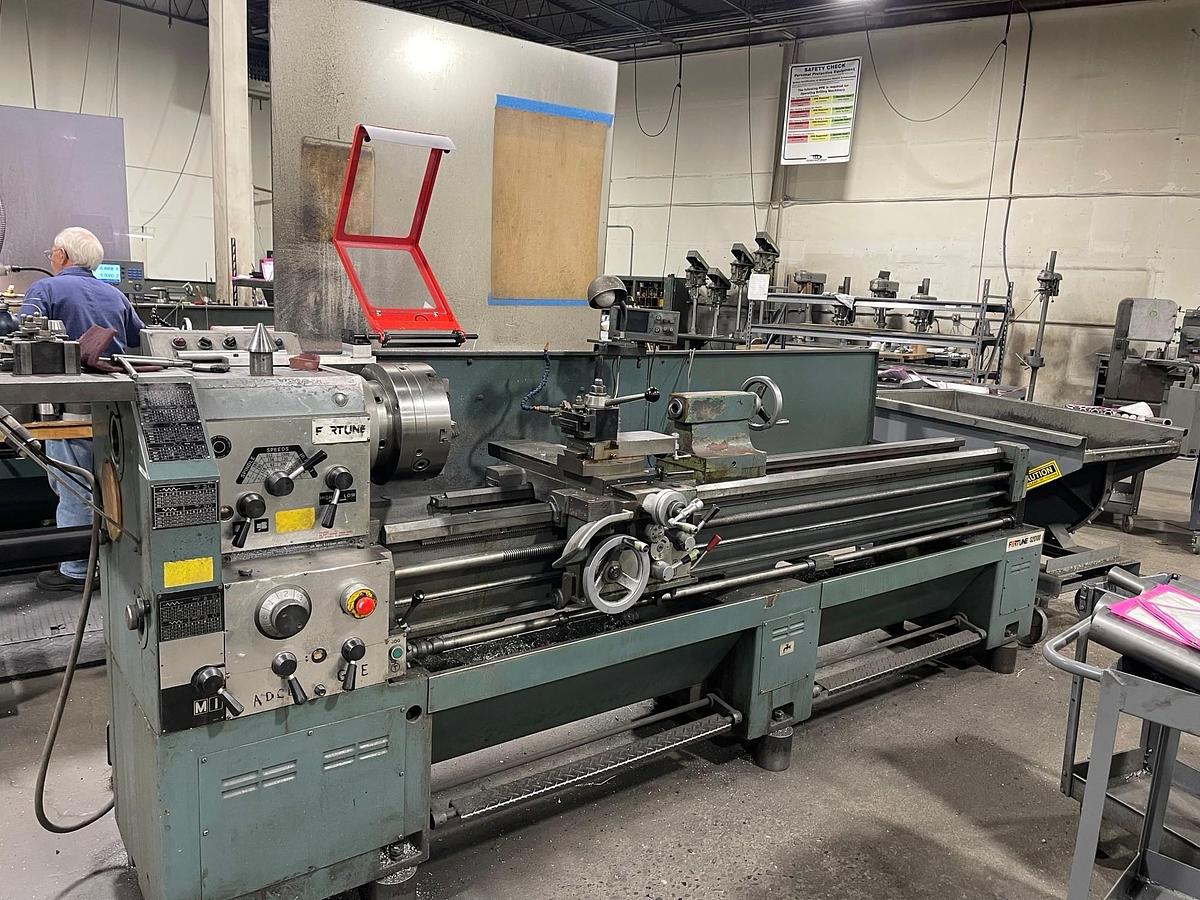

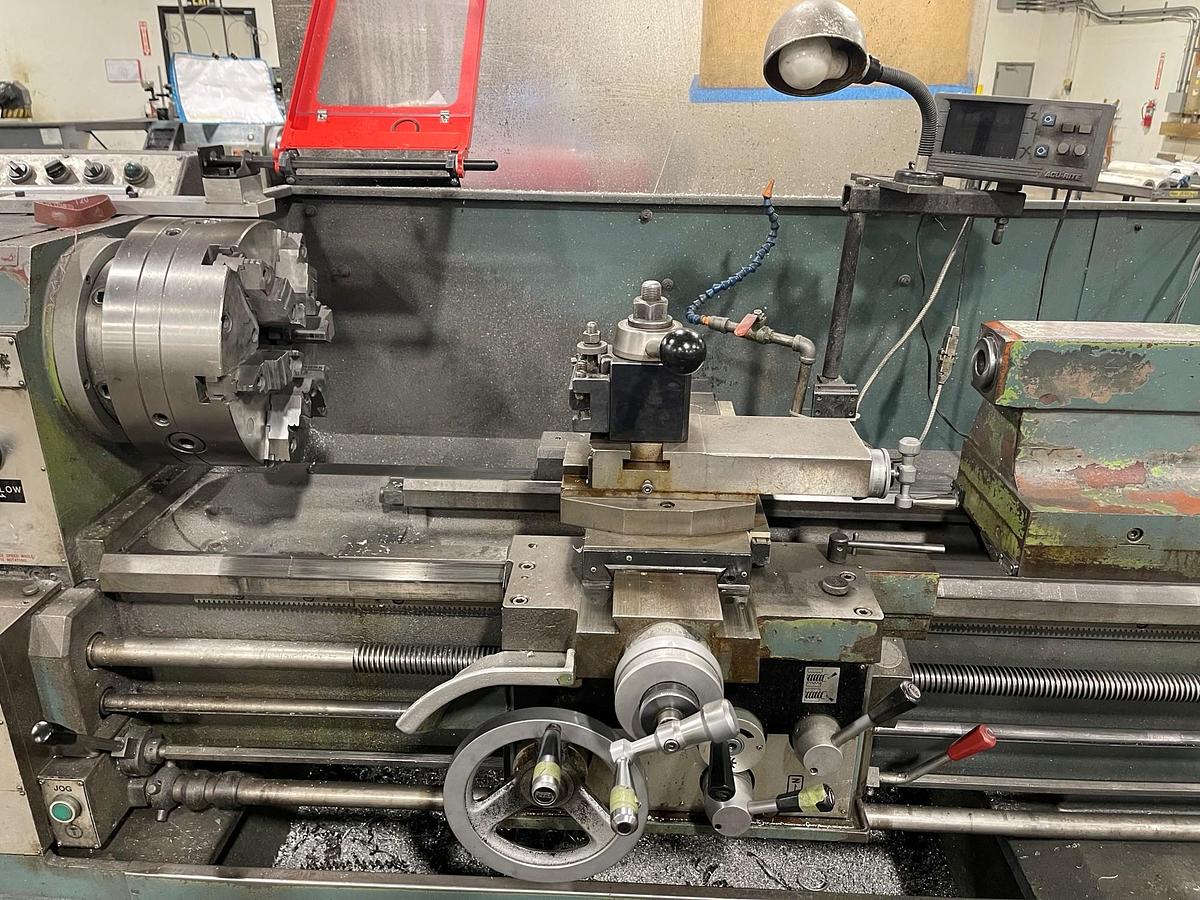

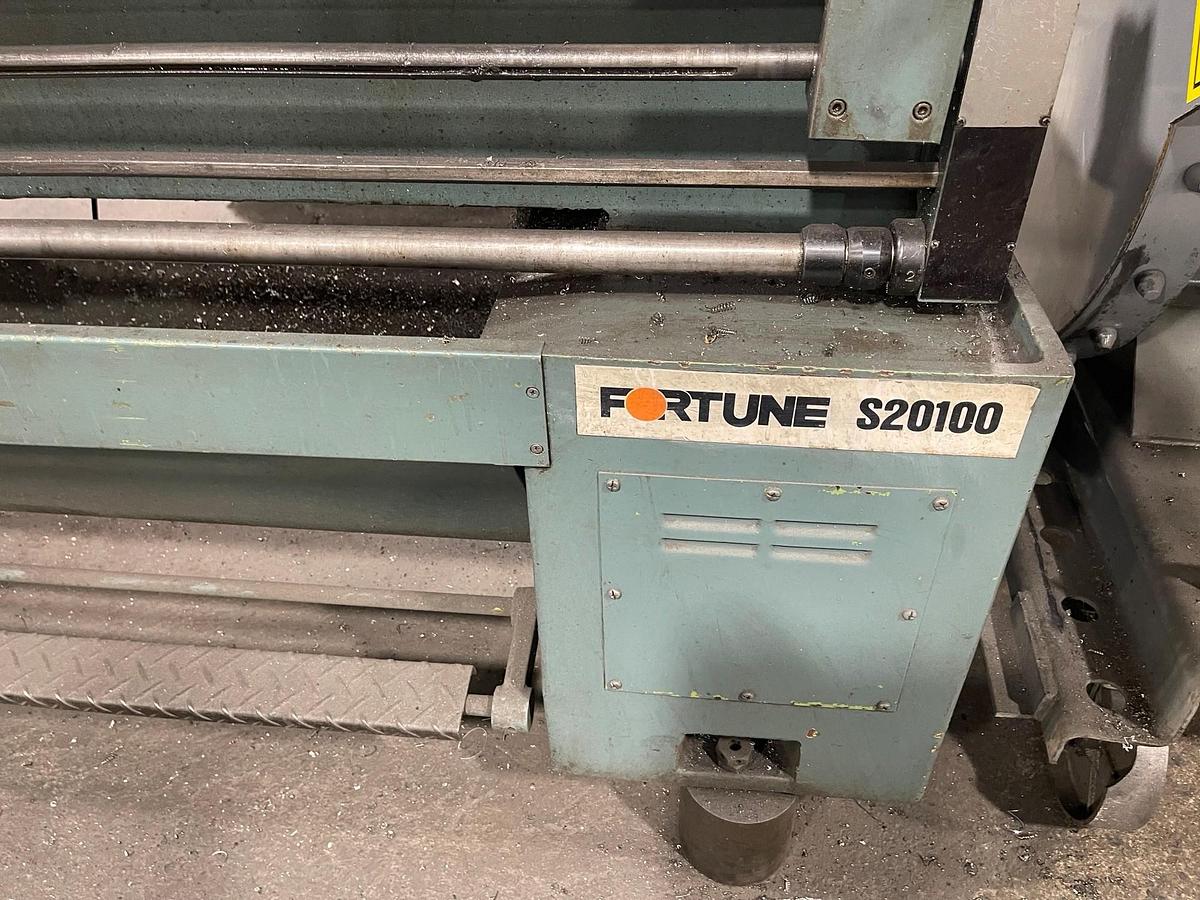

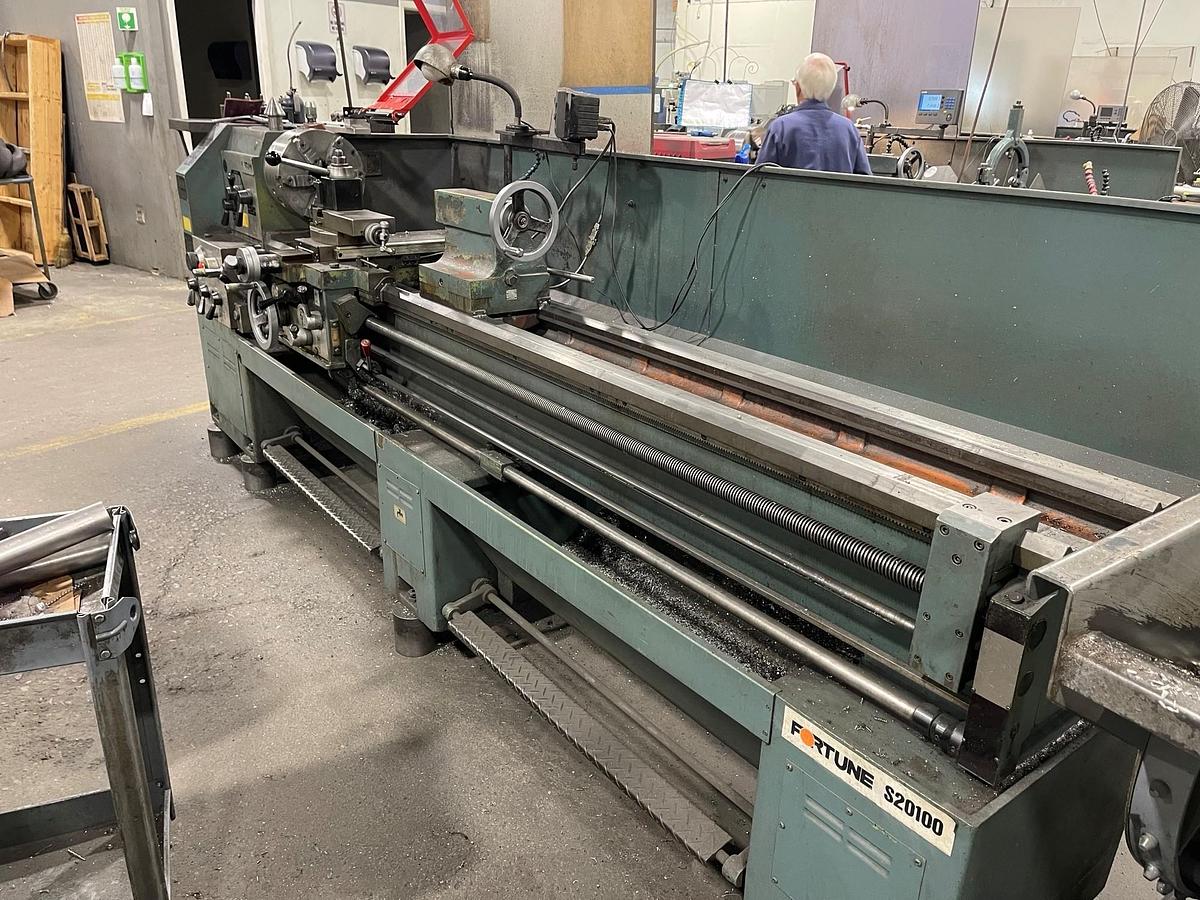

1994 Fortune Model S20100 Engine Lathe
1994 Fortune Model S20100 Engine Lathe
$12,500 (USD)
Location:New Jersey
or
Call (863) 439-6066
Description
Acu-Rite Digital Readout
Tailstock
Tool Post

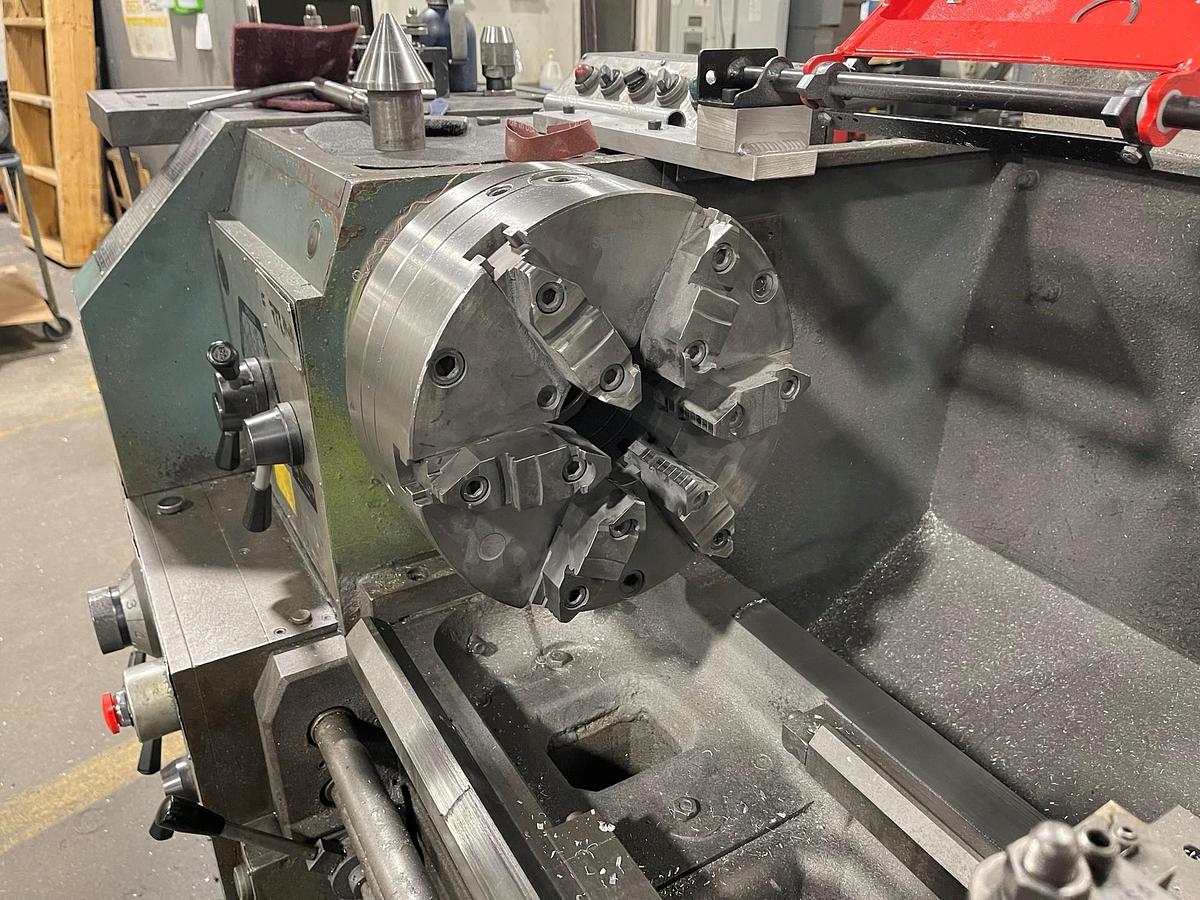

12" 6 Jaw Chuck
Work Light
Swing Down Chuck Cover
Carriage Stop
Thread Dial Indicator
Foot Break
Coolant System with Removable Chip Pans & Pump
Hardened & Ground Bedways
Specifications
| Manufacturer | Fortune |
| Model | Model S20100 Engine Lathe |
| Year | 1994 |
| Condition | Used |
| Stock Number | 120184 |
| Chuck Size | 12" 6 Jaw Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11.25" |
| Width of Bed | 14.125" |
| Center Distance | 100" |
| Spindle Nose / Spindle Bore | D1-8 Camlock / 3.125" |
| Spindle Speeds | 31 - 1,500 RPM - 16 Speeds |
| Spindle motor | 10 HP |
| Longitudinal Feed Range | .0033" - .0233" |
| Cross Feed Range | .0016" - .0108" |
| Number of Tool Positions | Aloris Style Tool Post |
| Tailstock Quill Travel / Taper | 6" / #4 MT |
| Machine Dimensions LxWxH | 145" x 36" x 50" |
| Machine Weight | 6,200 lbs |
