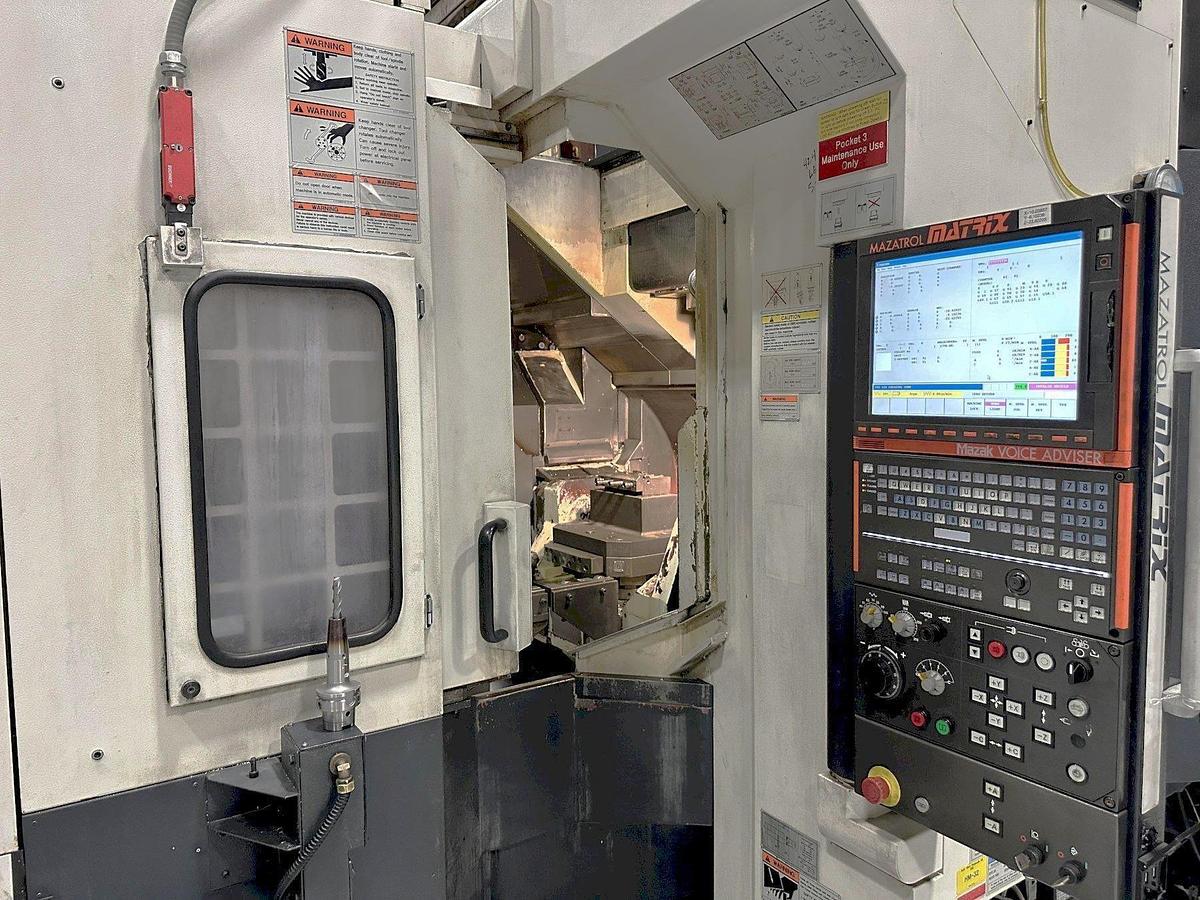

2007 Mazak Variaxis 500-5X II with Pallet Changer, Coolant Thru Spindle, Tool Probing, Prepped for Part Probing, 40 ATC
2007 Mazak Variaxis 500-5X II with Pallet Changer, Coolant Thru Spindle, Tool Probing, Prepped for Part Probing, 40 ATC
$49,500 (USD)
Location:MI
Description

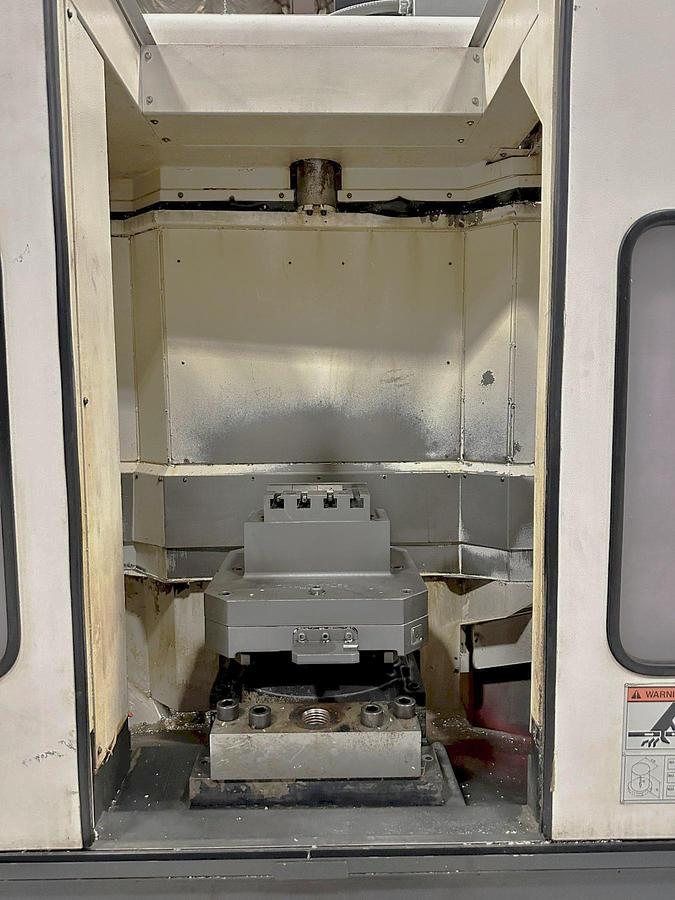

2 Pallet Changer System
Simultaneous 5 Axis Machining

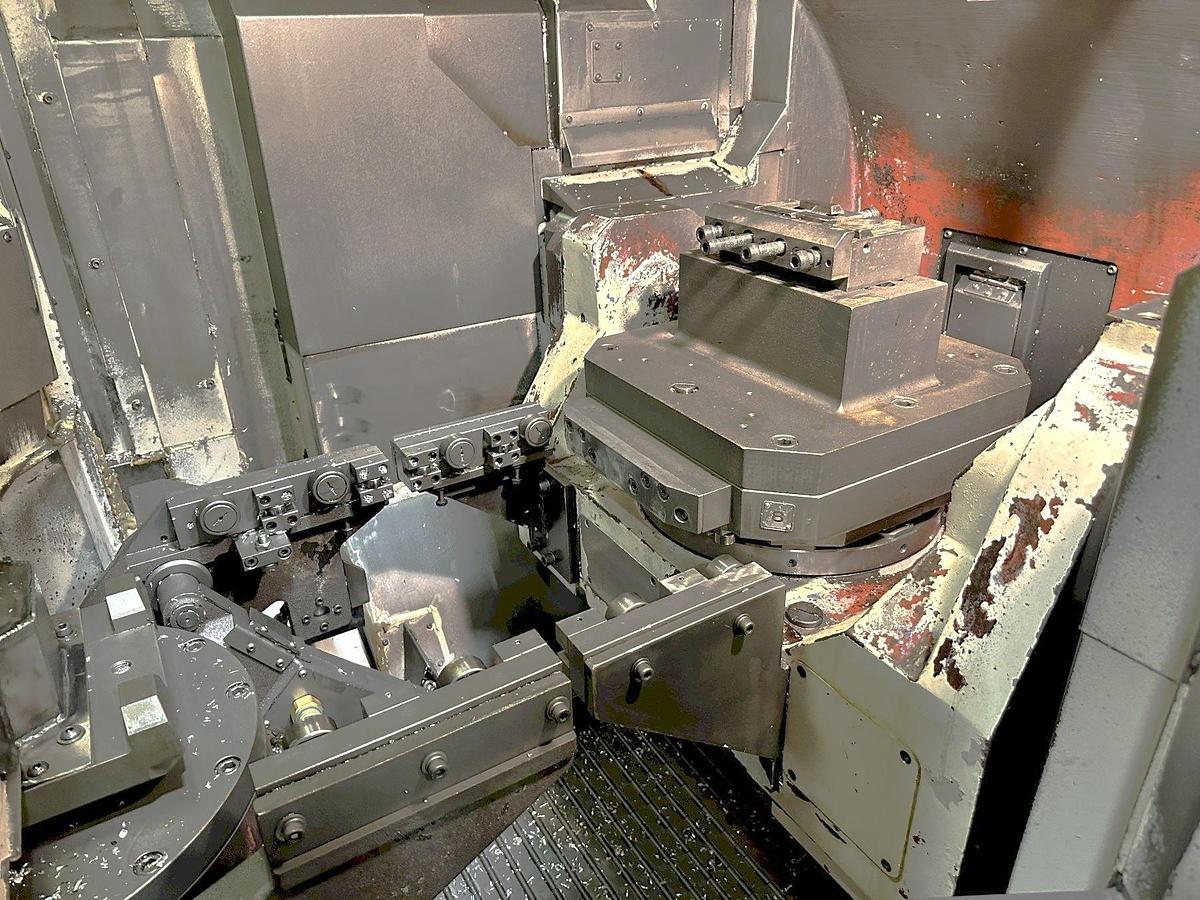

Fully Rotating 4th Axis Table

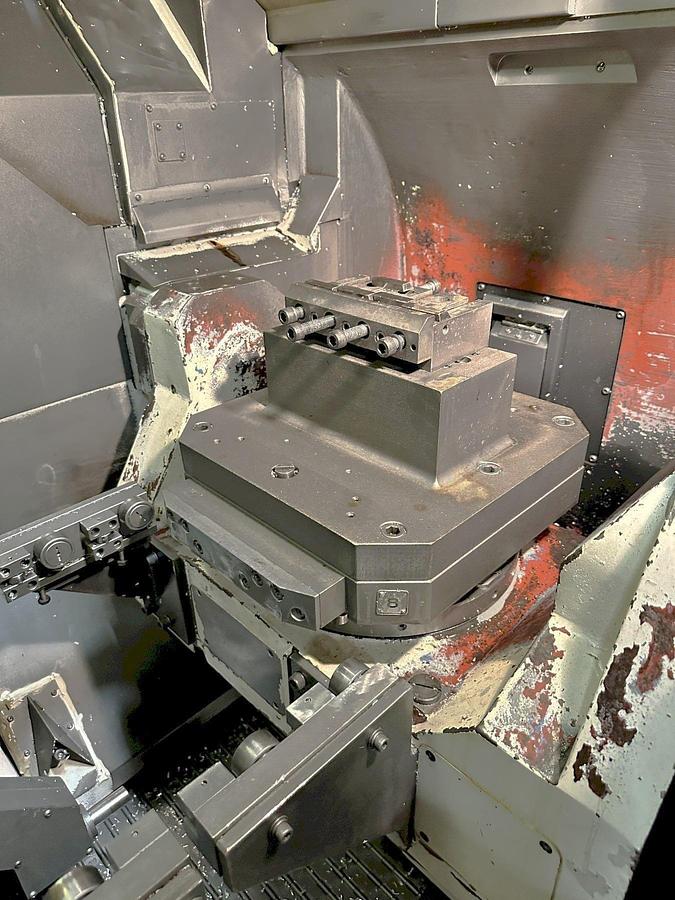

Tilting 5th Axis Table
Coolant thru the Spindle
Auto Tool Length Measurement
Chip Conveyor - Consep 2000
Mazak Monitoring System B - Part Probing (Probe NOT Included)
40 Station Tool Changer

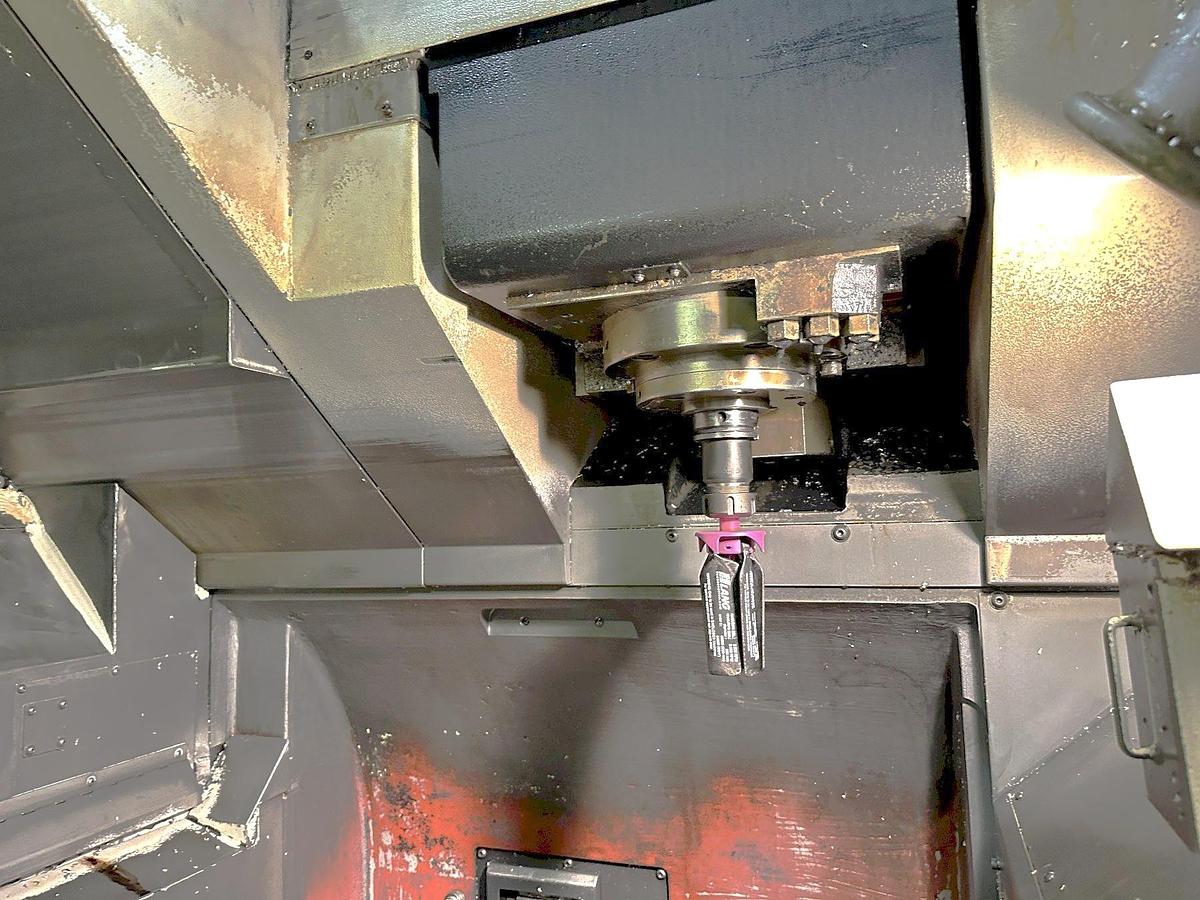

12,000 RPM Spindle with HSK-63A Taper

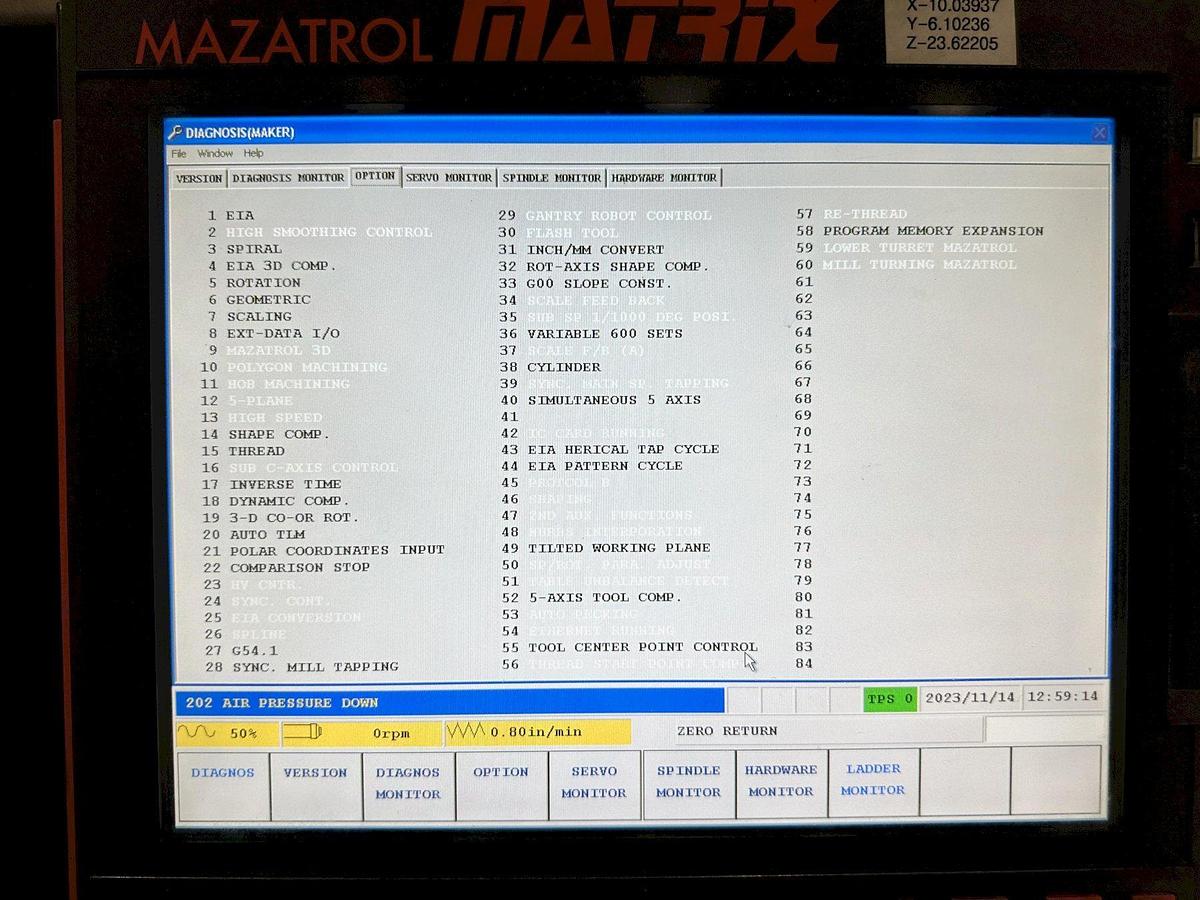

EIA/ISO Function
EIA 3D Compensation
EIA Pattern Cycle
EIA Helical Tap Cycle
Spiral Interpolation
Coordinate Rotation & Scaling
Threading
Shape Compensation
External Data Input/Output
Geometric
Dynamic Compensation
Inverse Time
3D Coordinate Rotation
Polar Coordinates Input
Comparison Stop
Rigid Tapping
Rotary Axis Shape Compensation
G00 Slope Constant
Variable 600 Sets
Cylindrical Interpolation
Tilted Work Plane
5 Axis Tool Compensation
Tool Center Point Control
Program Memory Expansion
Chiller Unit
USB Port Interface
LAN Port Interface
RS 232 Port Interface

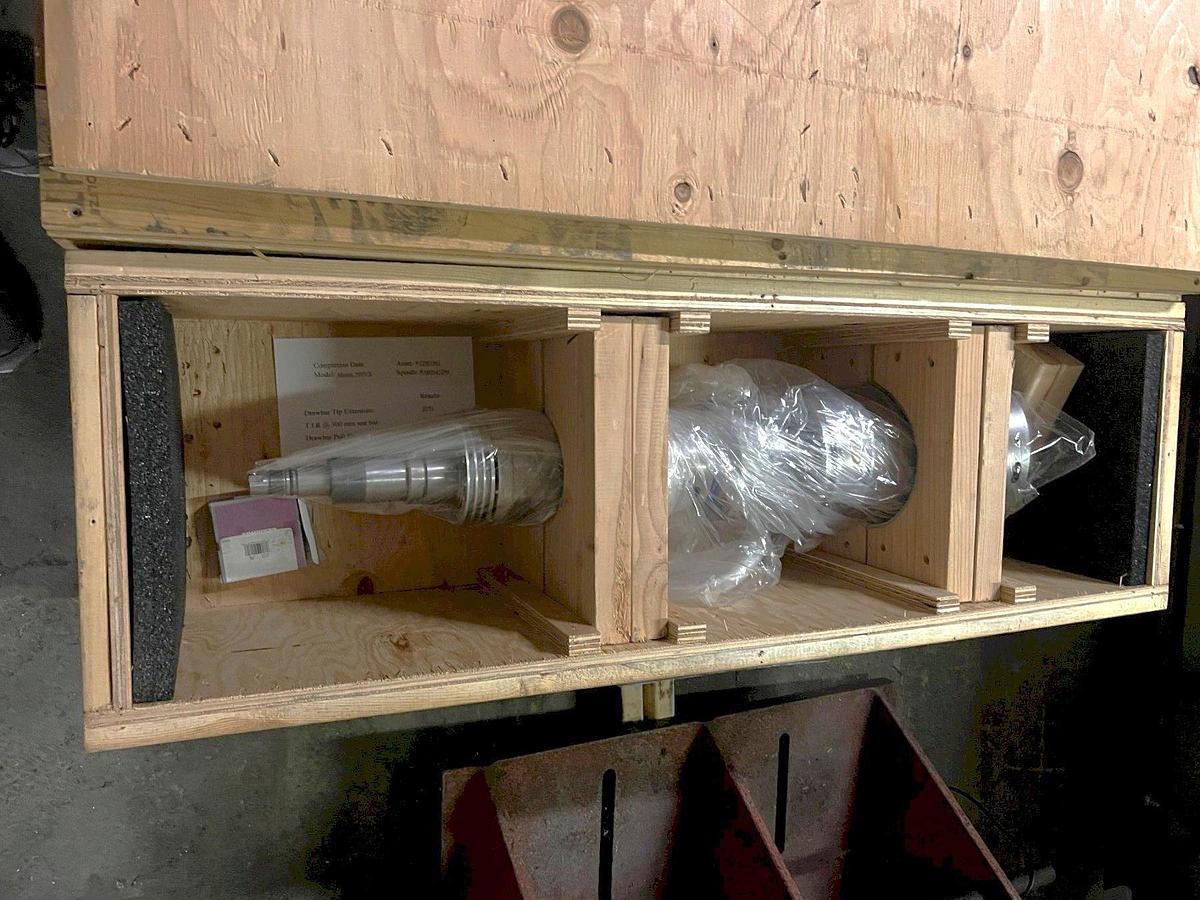

*Machine Includes a Spare Spindle*
Specifications
| Manufacturer | Mazak |
| Model | Variaxis 500-5X II |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120182 |
| Table Size | 19" x 15" |
| Maximum Table Load | 661 lbs |

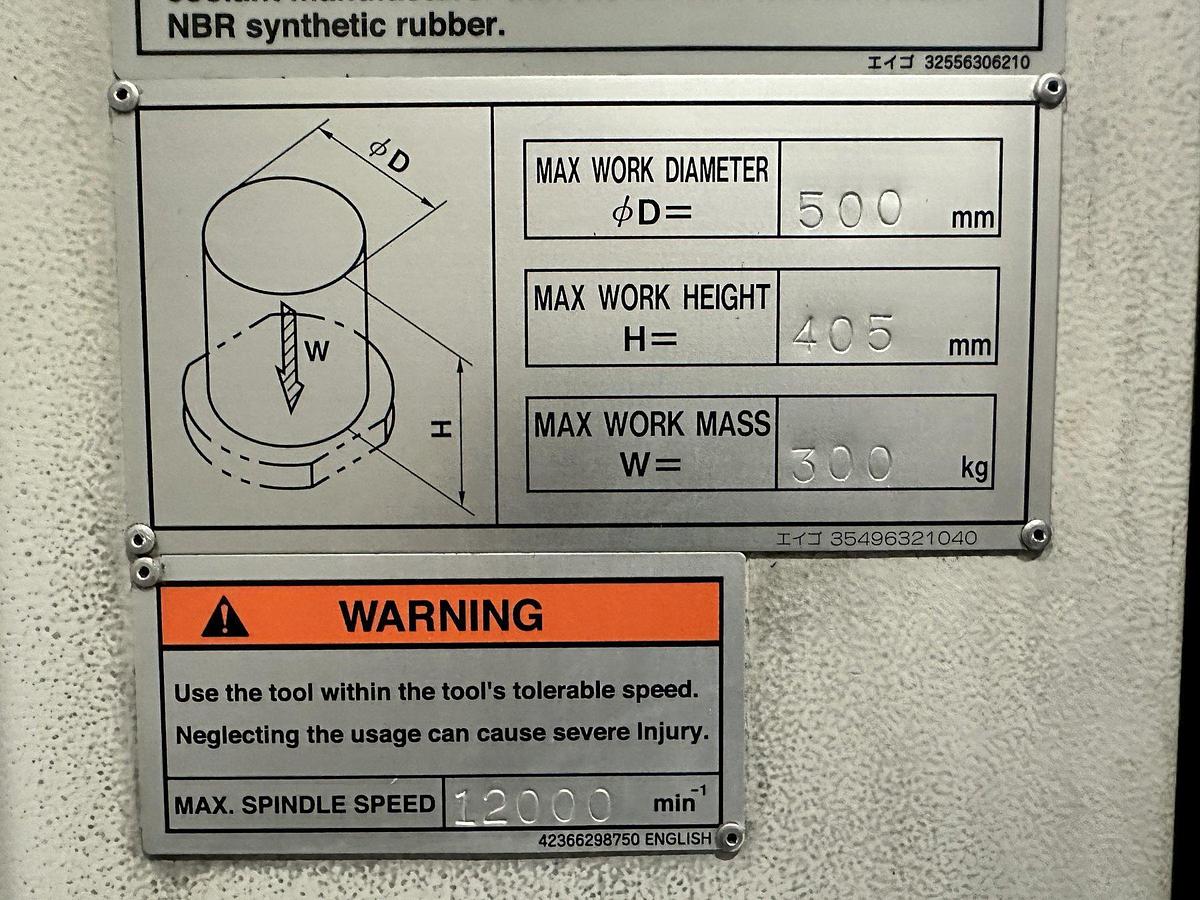

| Maximum Workpiece Size | 19" x 15" x 15" |
| X-axis travel | 20" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 18" |
| A-Axis Travel | -120 Deg. to + 30 Deg. Table Tilt (150 Degrees) |
| C-Axis Rotation | 360,000 Degrees |
| Distance Spindle Nose to Table Top | 7.48" - 25.59" |
| Spindle Taper | HSK-63A |
| Spindle Speed | 12,000 RPM |
| Spindle Motor | 30 HP |
| Tool Magazine Capacity | 40 Position Tool Changer |
| Rapid Traverse Rates | 1,969 IPM |
| Machine Dimensions LxWxH | 110"x115"x109" |
| Machine Weight | 17,554 lbs |

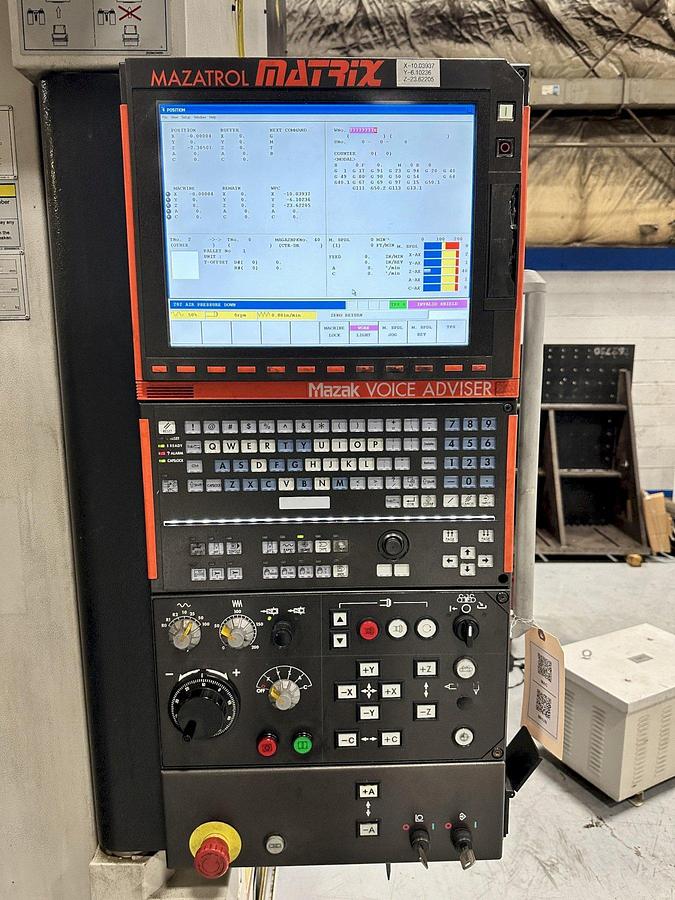

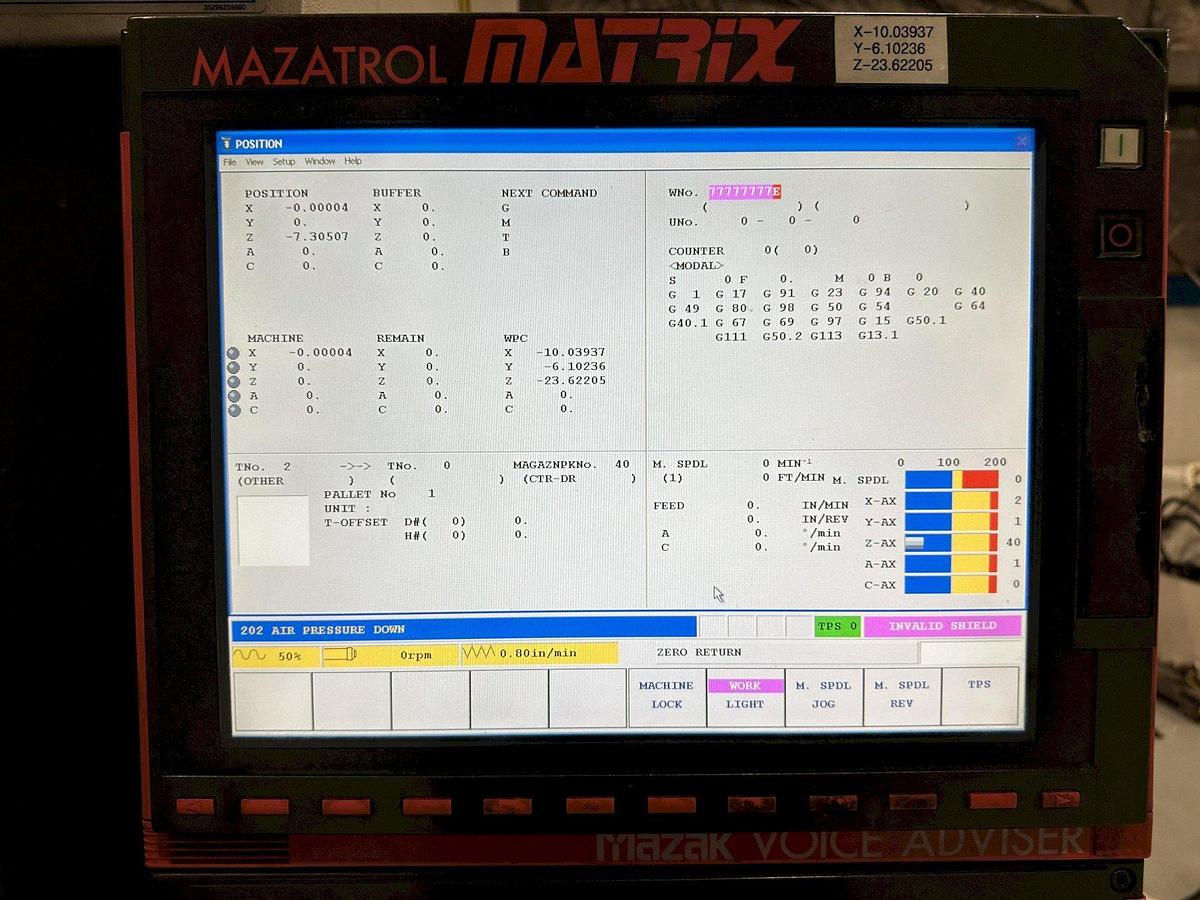

| Machine Control | Mazatrol Matrix Control |
