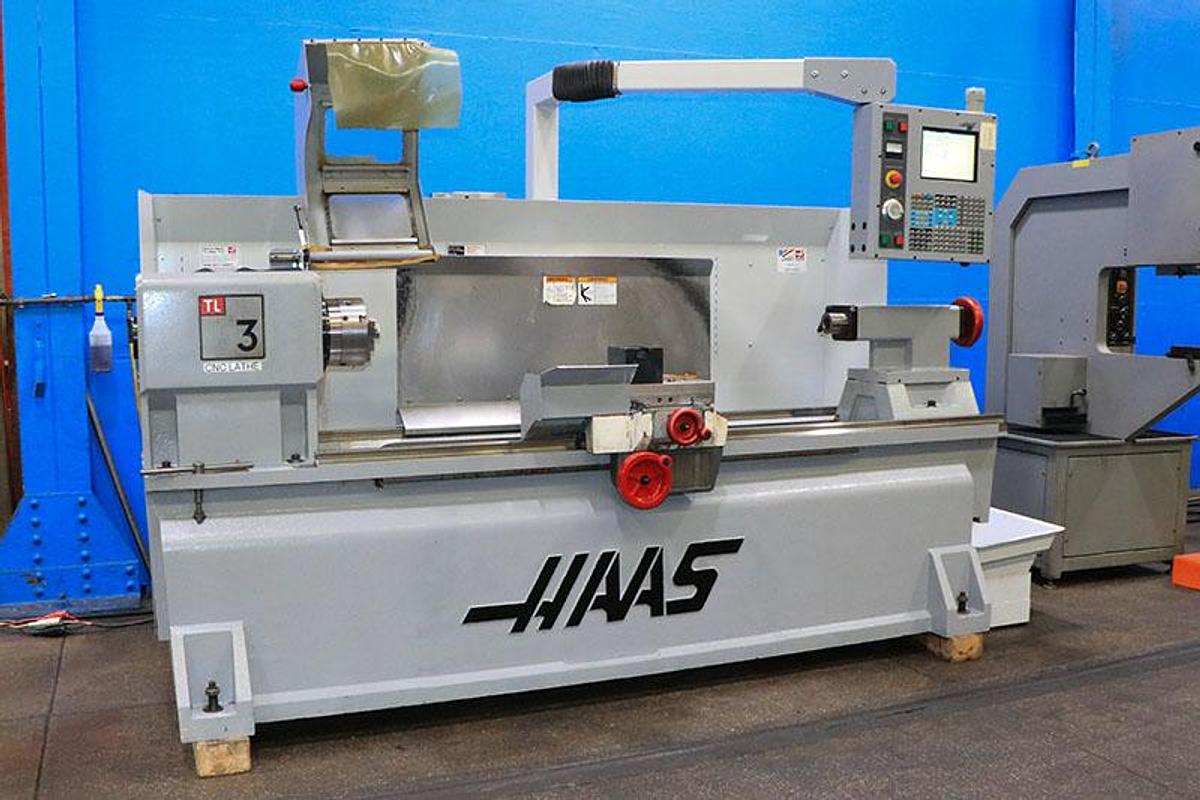

2005 Haas TL-3 with Tailstock, 8" 3 Jaw Chuck, Manual Hand Wheels, Intuitive Programming System
2005 Haas TL-3 with Tailstock, 8" 3 Jaw Chuck, Manual Hand Wheels, Intuitive Programming System
Contact us for price
Location:New Jersey
or
Call (863) 439-6066
Description
8" 3 Jaw Buck Chuck
Tailstock
Manual Hand Wheels
Chip Guard
Haas Intuitive Programming System
Rigid Tapping
Work Light
Coolant Tank & Pump
**Machine Motion Hours 6,747**
**Spindle Run Hours 3,837**
Specifications
| Manufacturer | Haas |
| Model | TL-3 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 120178 |
| Machine Control | Haas CNC Control |
| Chuck Size | 8" 3-Jaw Manual Chuck |
| Maximum Swing | 20" |
| Maximum Swing Over Cross Slide | 13" |
| Maximum Machining Diameter | 20" |
| Distance Between Centers | 60" |
| X-axis travel | 12" |
| Z-Axis Travel | 60" |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 3.5" / 3" |
| Spindle Speeds | 0-1,800 rpm |
| Spindle Motor | 18 HP |
| Number of Tool Positions | Not Applicable |
| Rapid Traverse Rates X/Z | 75 ipm / 150 ipm |
| Tailstock Bore Taper | #5MT |
| Machine Dimensions LxWxH | 123"x77"x87" |
| Machine Weight | 9,624 lbs |
