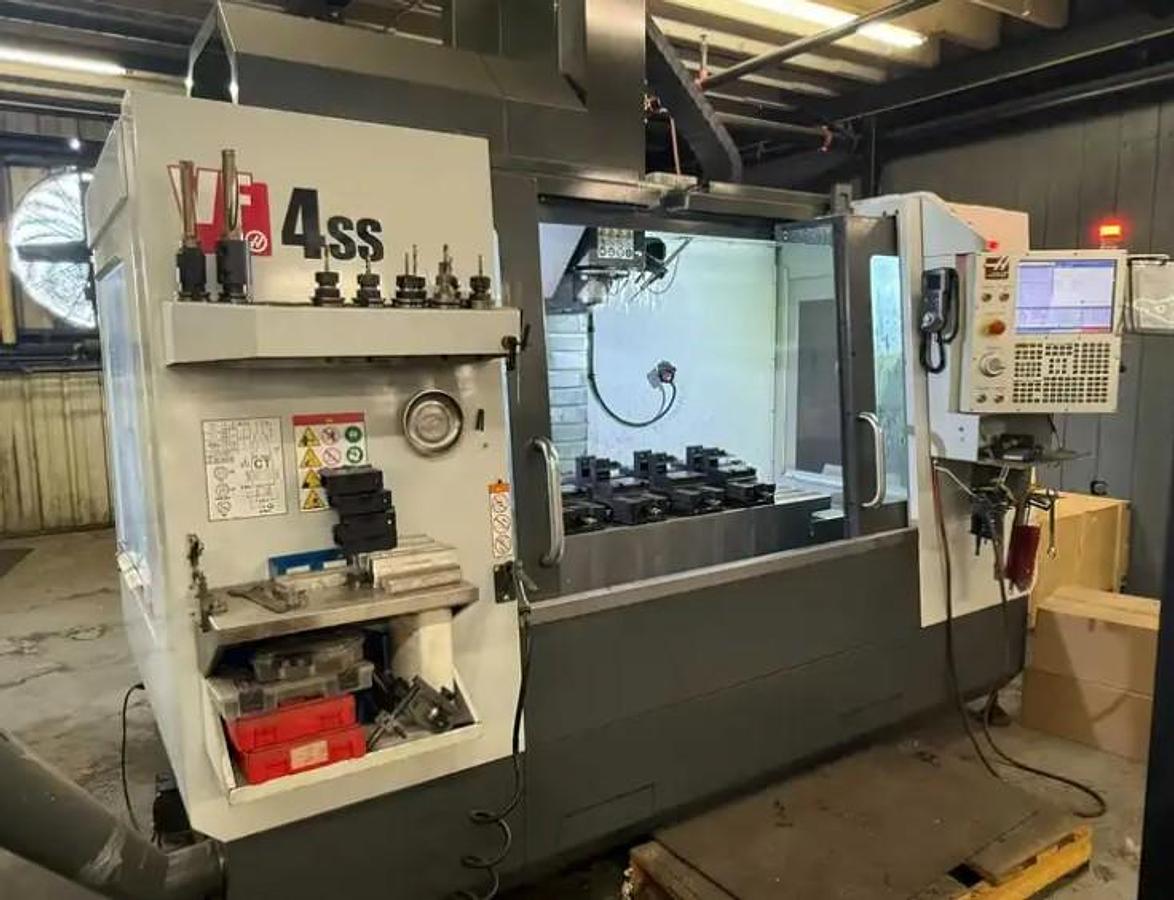

2019 Haas VF-4SS w/ Remote Jog Handle, WIPS Tool & Part Probe, Coolant thru the Spindle, Prog. Coolant, Hi-Spd Machining
2019 Haas VF-4SS w/ Remote Jog Handle, WIPS Tool & Part Probe, Coolant thru the Spindle, Prog. Coolant, Hi-Spd Machining
Contact us for price
Location:California
or
Call (863) 439-6066
Description
30+1 Position Side Mounted Tool Changer
Remote Jog Handle
WIPS Haas Wireless Intuitive Probing Package - Renishaw
Coolant Thru the Spindle
Programmable Coolant Nozzle
High-Speed Machining
Early Power Failure Detection Module
55 Gallon Coolant Tank
Dual Auger Style Chip Conveyor
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Rigid Tapping
Inline Direct Drive 12,000 RPM Spindle
USB Port Interface
RS 232C Port Interface for DNC Operation

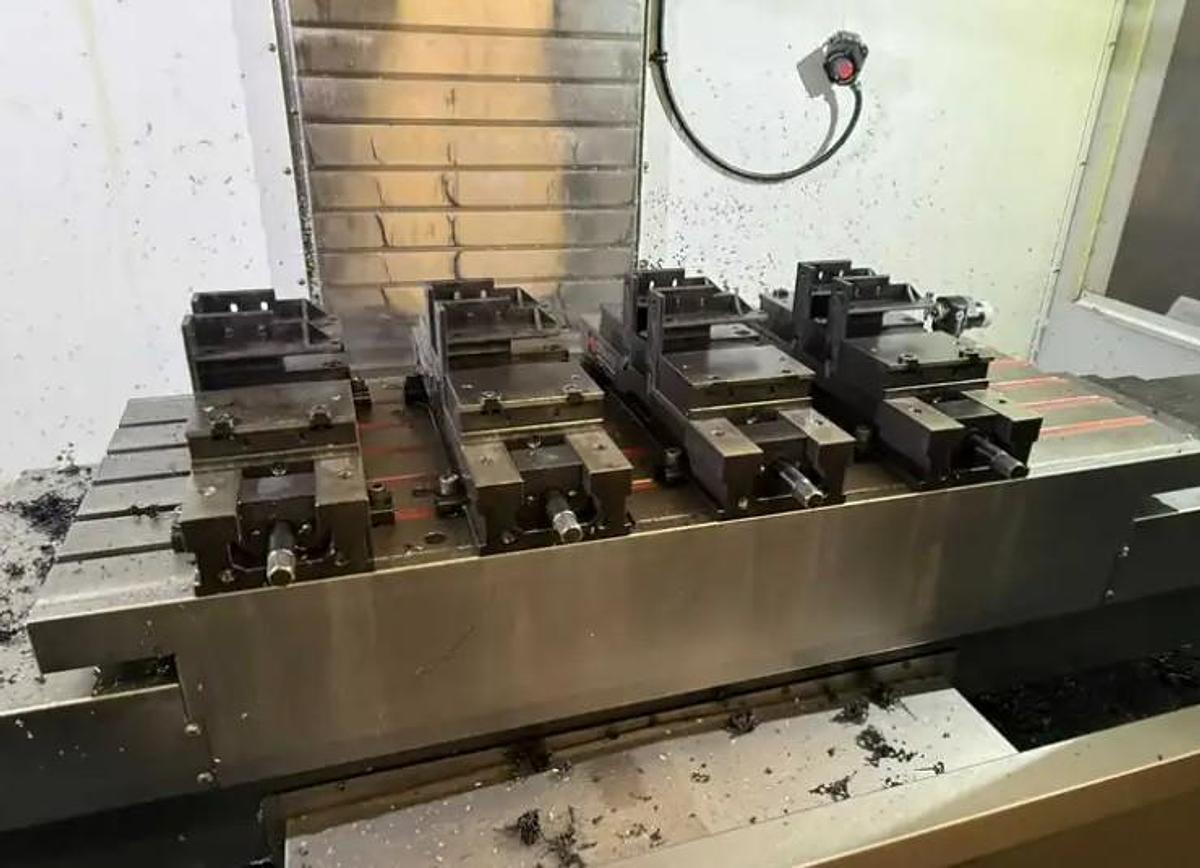

**Vices on table in photos are NOT included**
Specifications
| Manufacturer | Haas |
| Model | VF-4SS |
| Year | 2019 |
| Condition | Used |
| Stock Number | 120177 |
| Table size | 52" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 50" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT 40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 30 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Air Requirement | 4 scfm @100 psi |
| Machine dimensions | 152" x 99" x 106" |
| Machine weight (approximately) | 13,800 lbs. |
