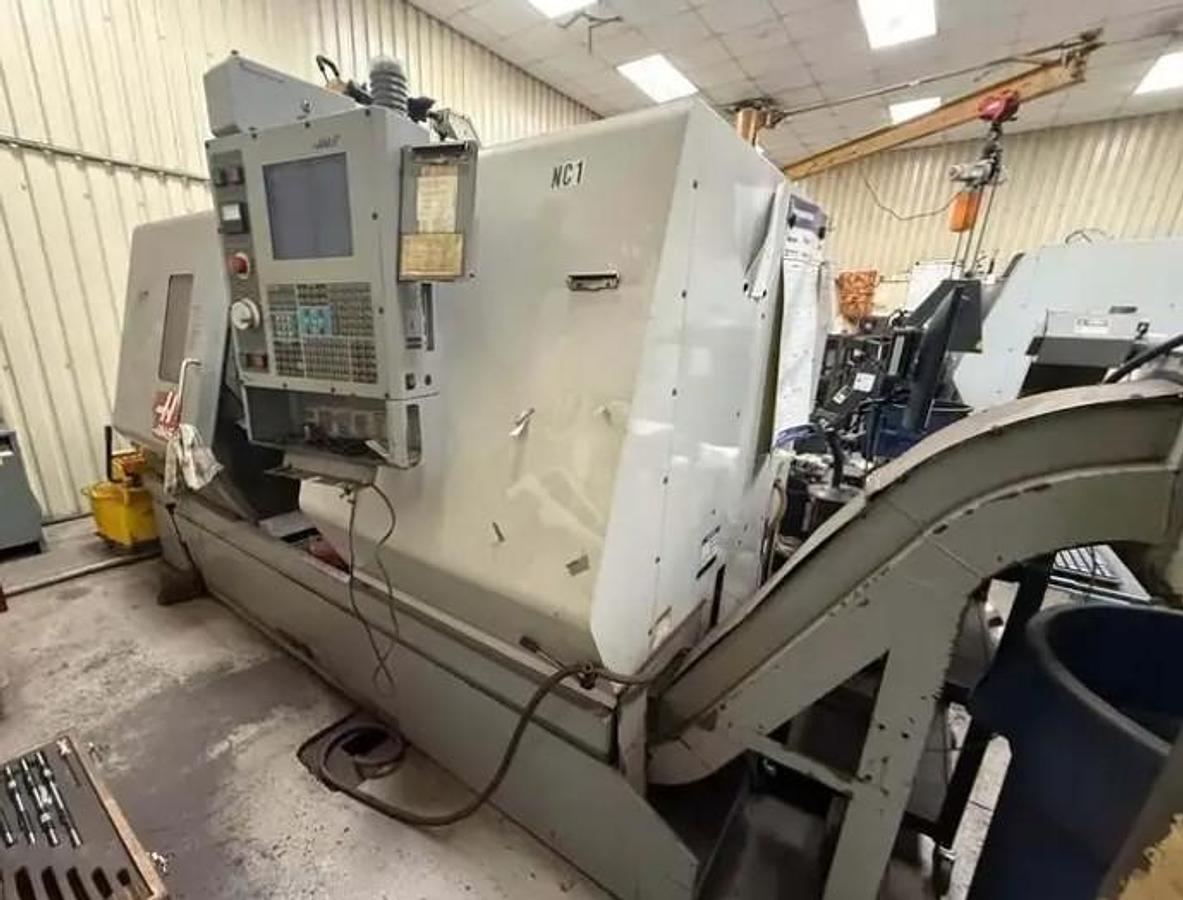

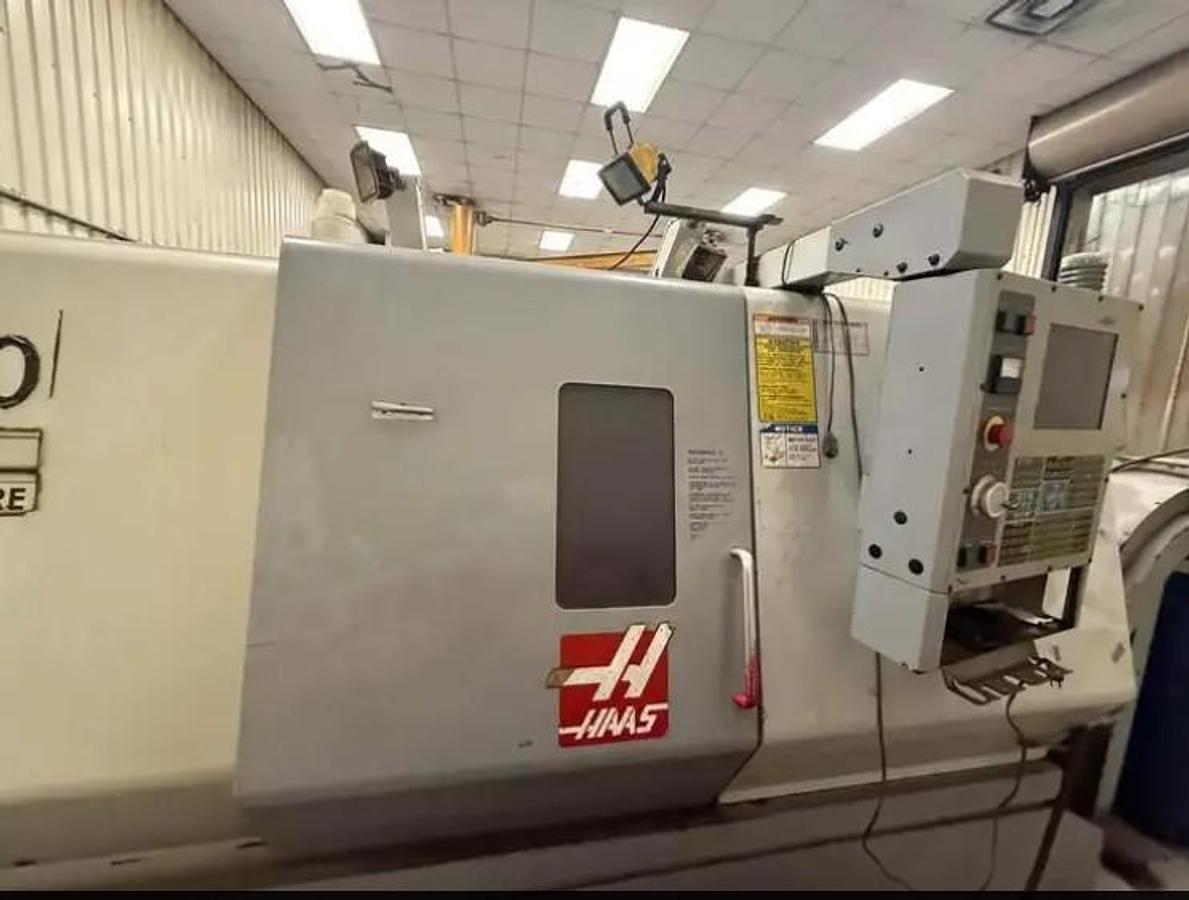

2003 Haas SL-30TB 4" Bar Capacity, Chip Conveyor, Tool Presetter
2003 Haas SL-30TB 4" Bar Capacity, Chip Conveyor, Tool Presetter
Contact us for price
Location:Louisiana
or
Call (863) 439-6066
Description

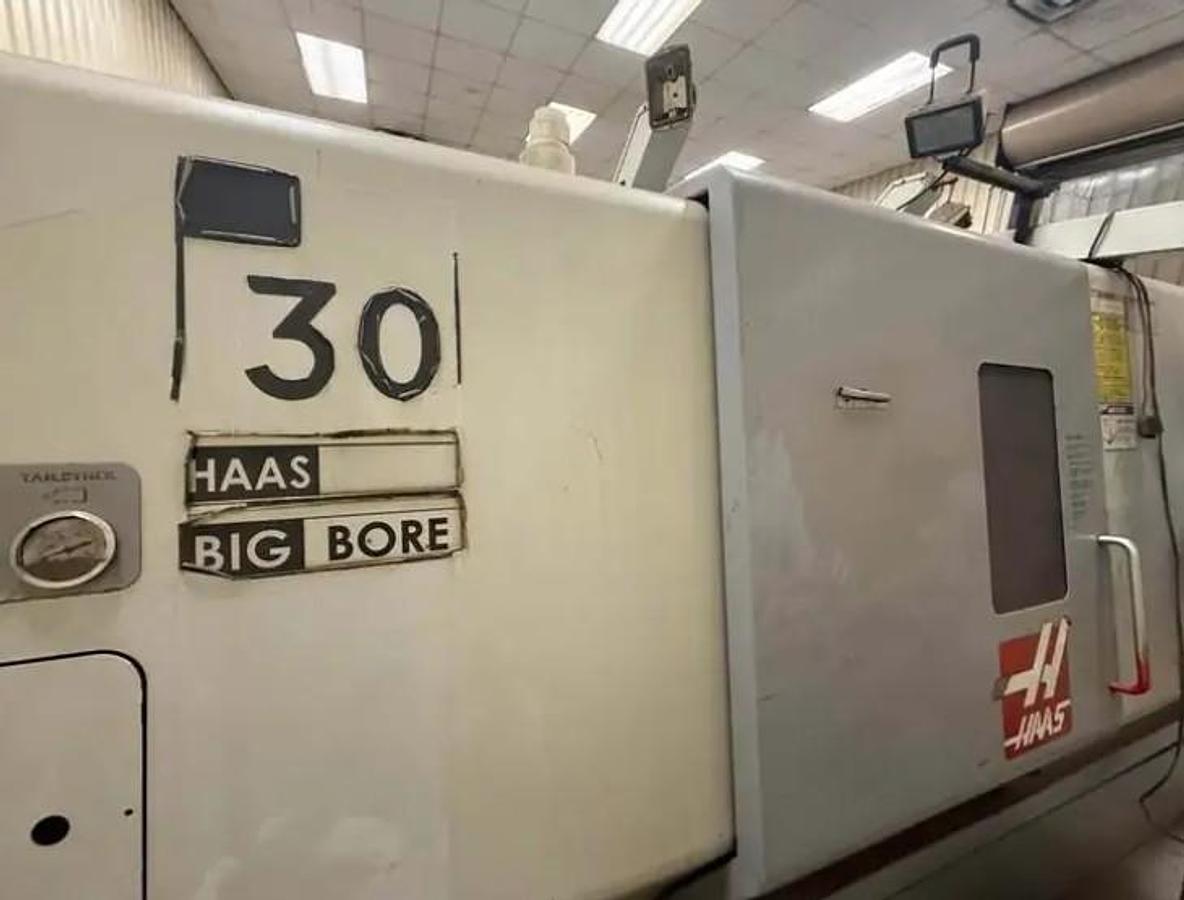

4" Bar Capacity Big Bore Spindle Option

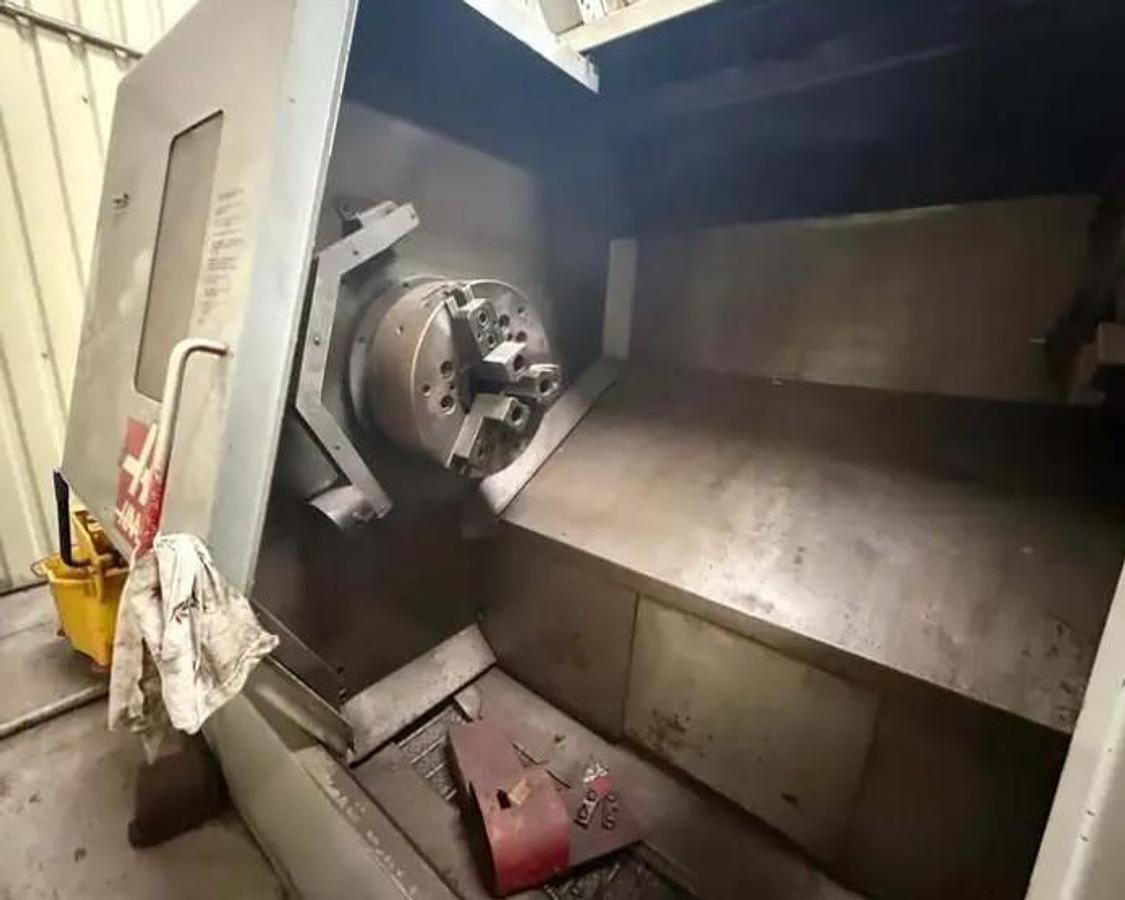

15" 3 Jaw Hydraulic Chuck

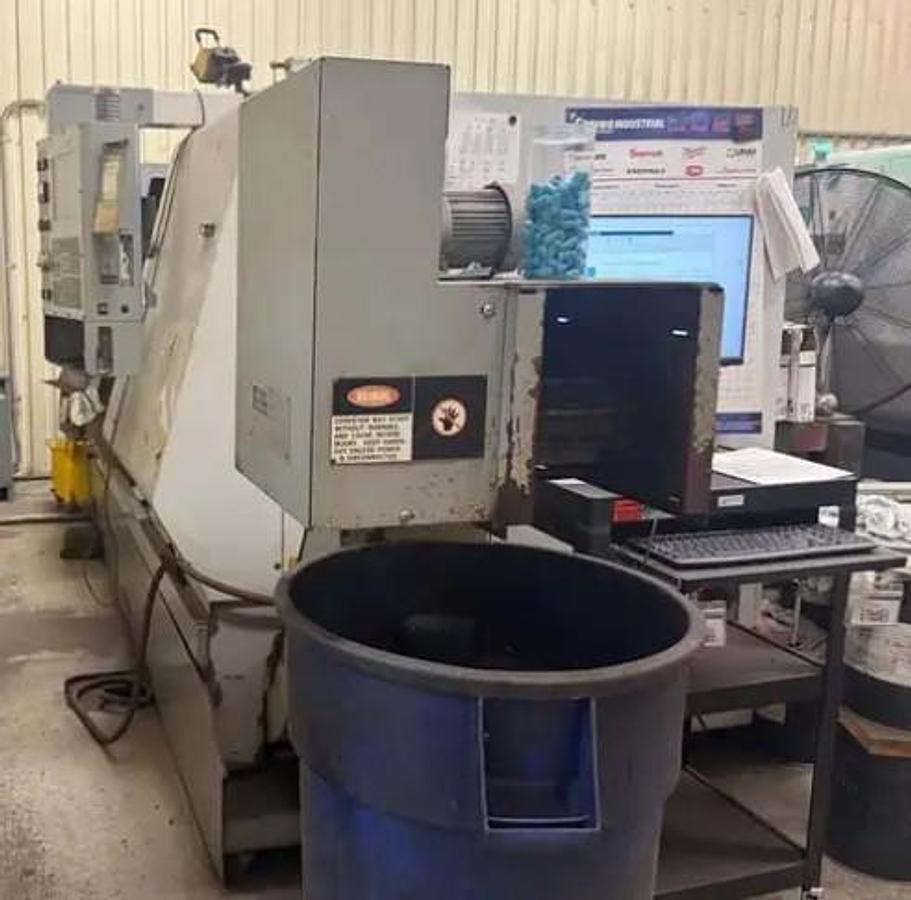

Chip Conveyor

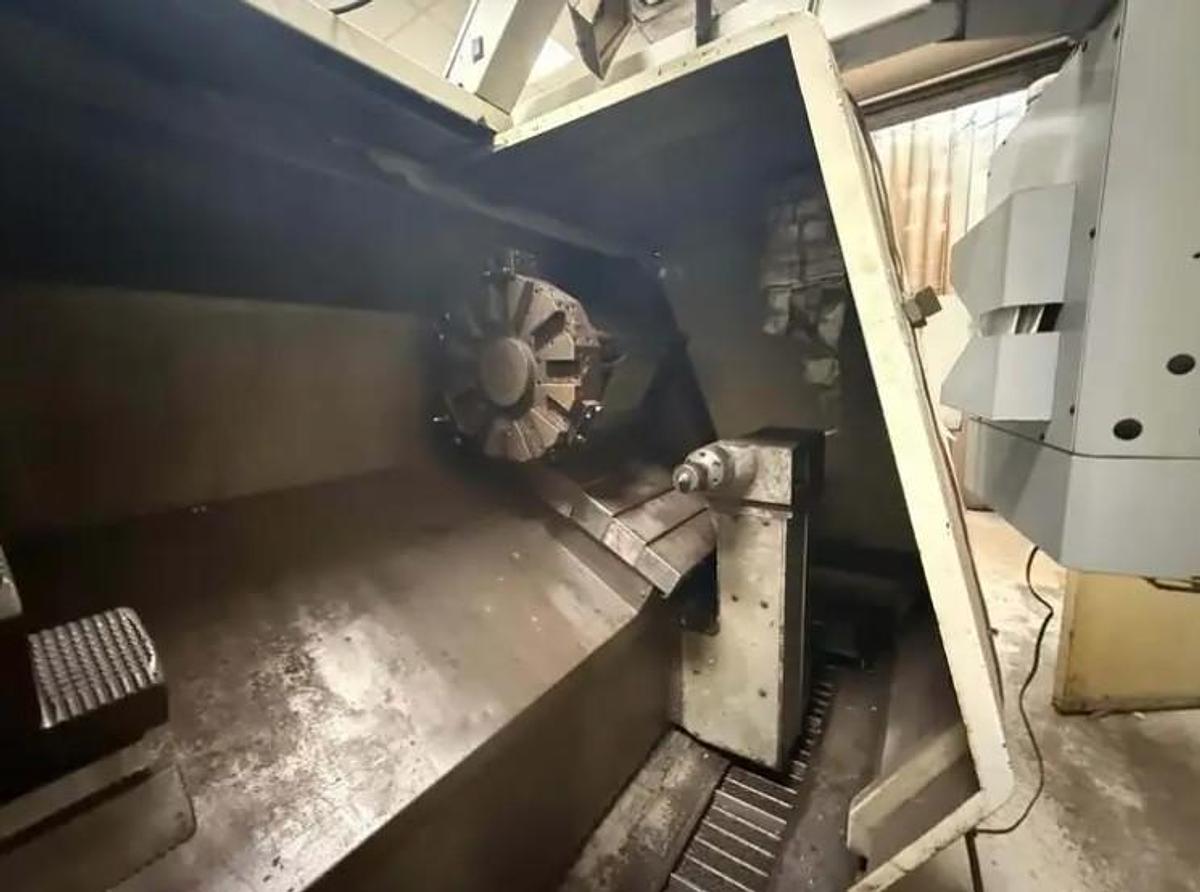

Programmable Tailstock
Tool Presetter
High Intensity Lighting
2 Speed Gearbox
1 MB Memory
Rigid Tapping
3.5" Floppy Disk Interface
208/230 V 3 phase Electrics
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | SL-30TB 4" Bar Capacity, Chip Conveyor, Tool Presetter |
| Year | 2003 |
| Condition | Used |
| Stock Number | 120175 |
| Machine Control | Haas 32 BIT |
| Chuck Size | 15" 3-Jaw Hydraulic |
| Maximum Swing | 30" |
| Maximum Swing Over Cross Slide | 14.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Turning Length | 34" |
| Maximum Bar Capacity | 4.0" |
| Distance Between Centers | 39" |
| X-Axis Travel | 11.3" |
| Z-Axis Travel | 34" |
| Spindle Nose / Spindle Bore | A2-8" / 4.62" |
| Spindle Speeds | 2,400 RPM |
| Spindle Motor | 40 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Body Travel / Taper | 33.5" / MT #4 |
| Machine Dimensions LxWxH | 150" x 77" x 74" |
| Machine Weight | 16,000 lbs |
