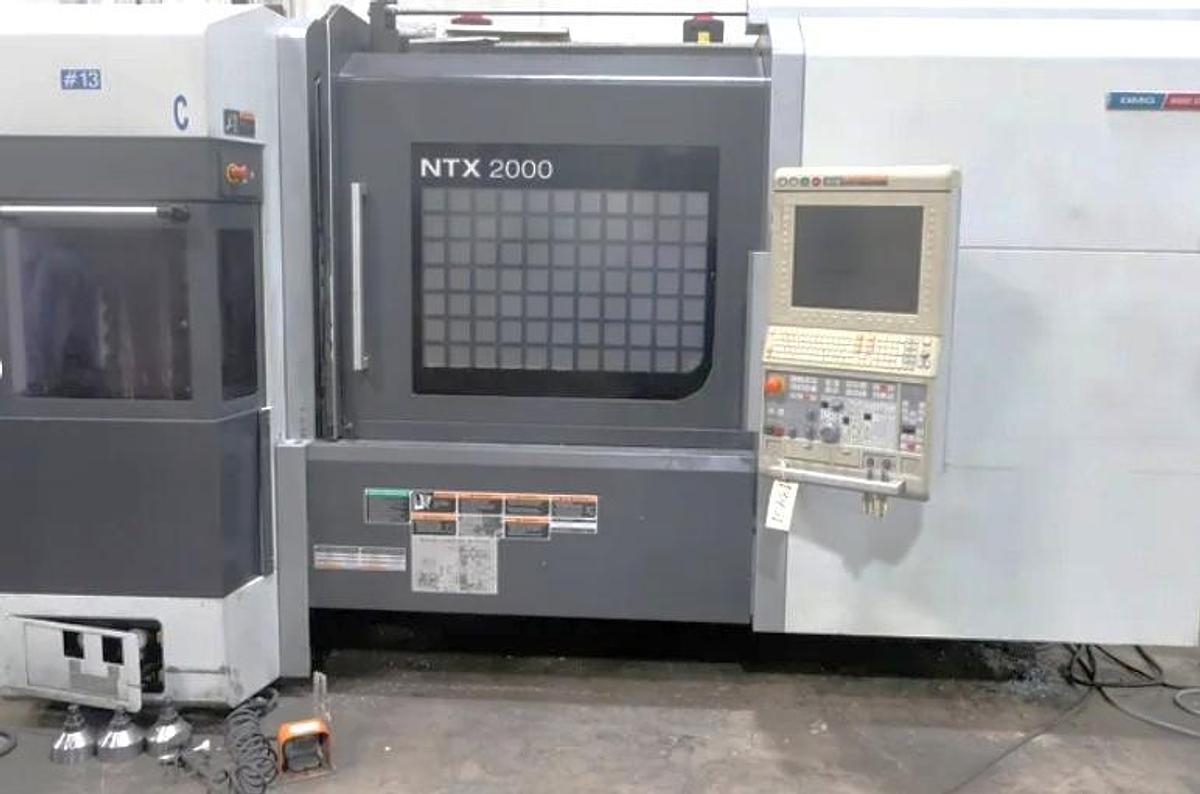

2014 DMG Mori NTX2000-1500SZM Mill/Turn Center, Pendulum B Axis, Y Axis, Lower Turret Milling, 8" Chucks Both Spindles
2014 DMG Mori NTX2000-1500SZM Mill/Turn Center, Pendulum B Axis, Y Axis, Lower Turret Milling, 8" Chucks Both Spindles
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description

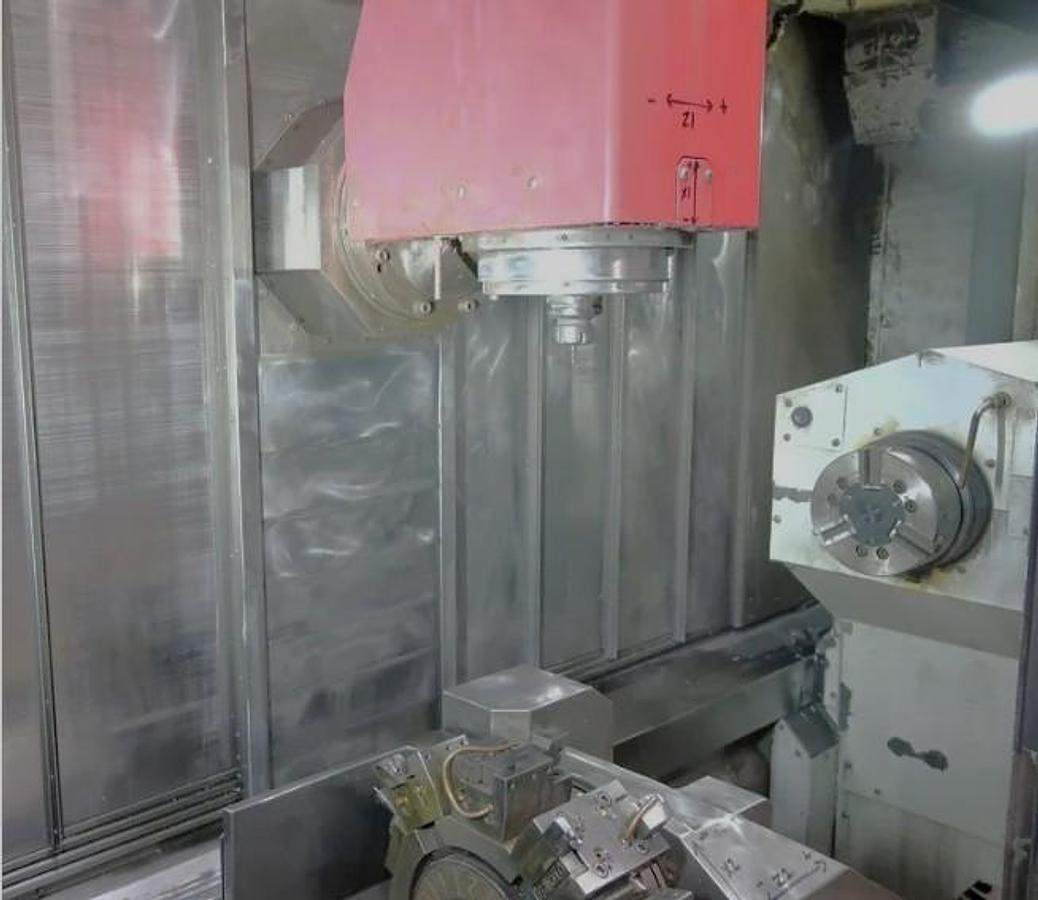

Pendulum Style B Axis Head
Full C Axis Spindle Rotation - Both Spindles
Subspindle
Y Axis Capability

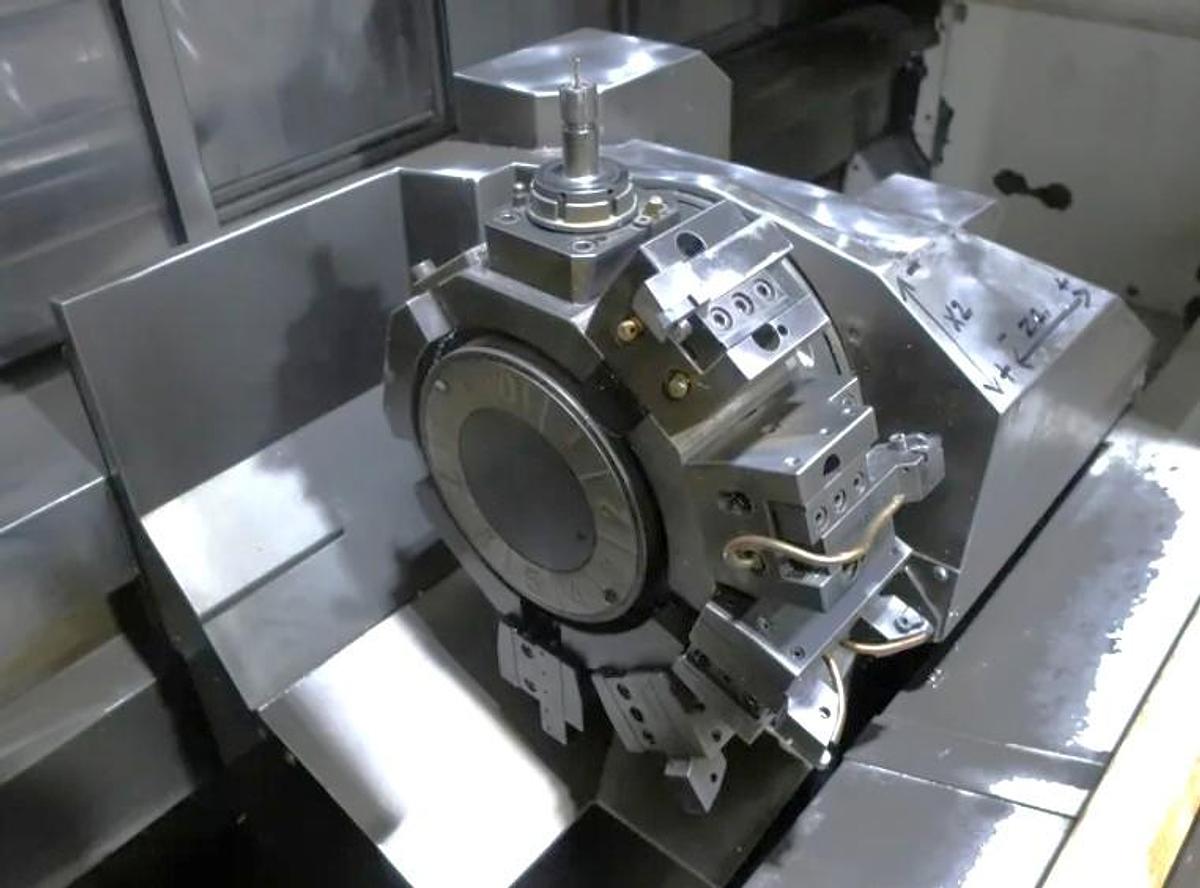

10 Station Lower Turret with Milling Option

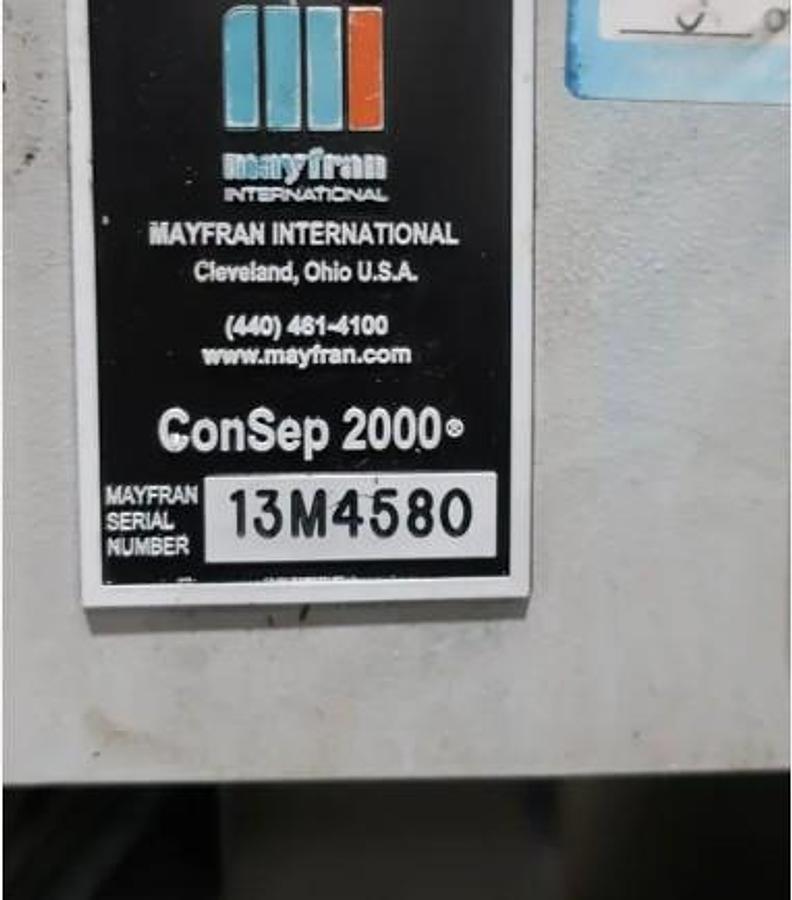

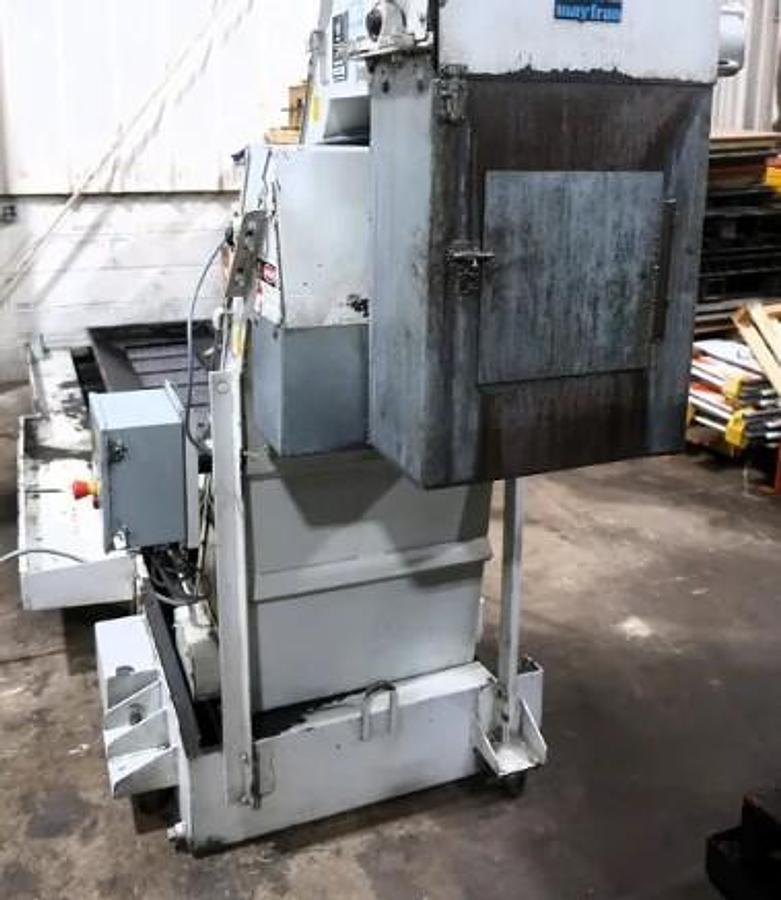

Chip Conveyor

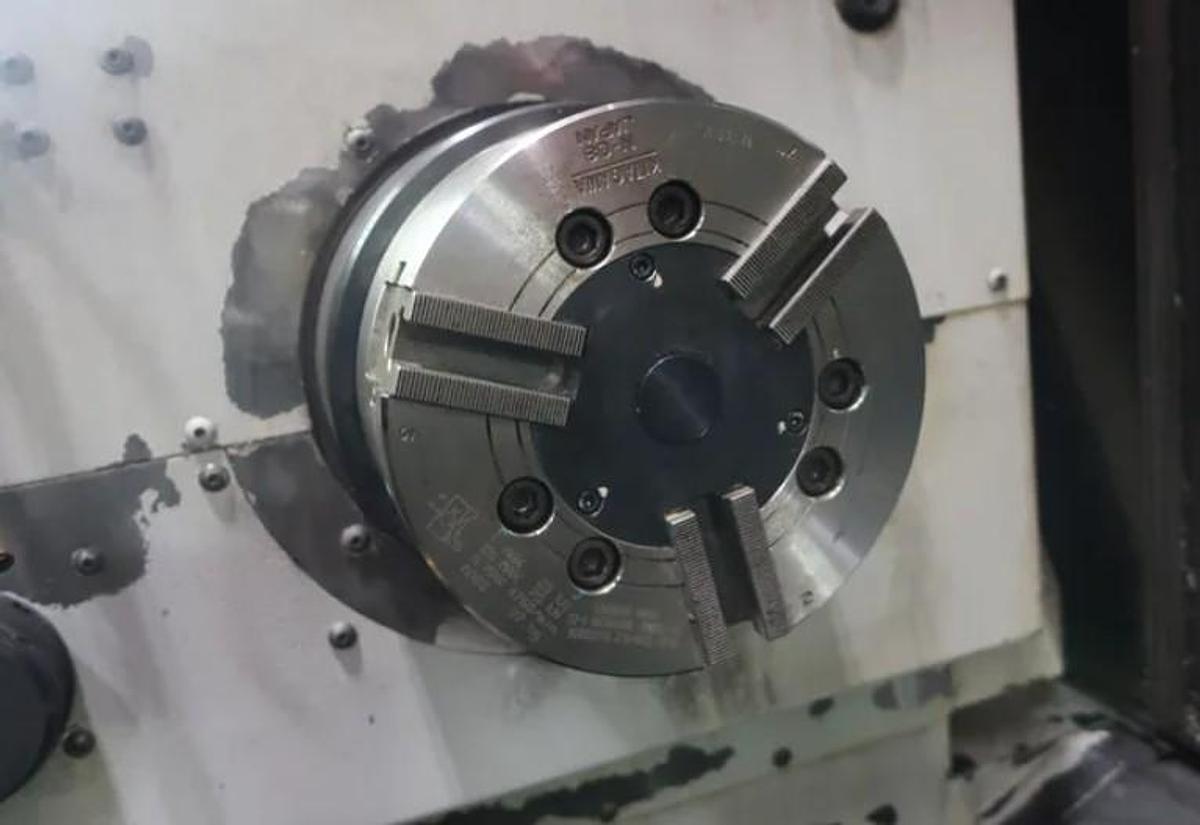

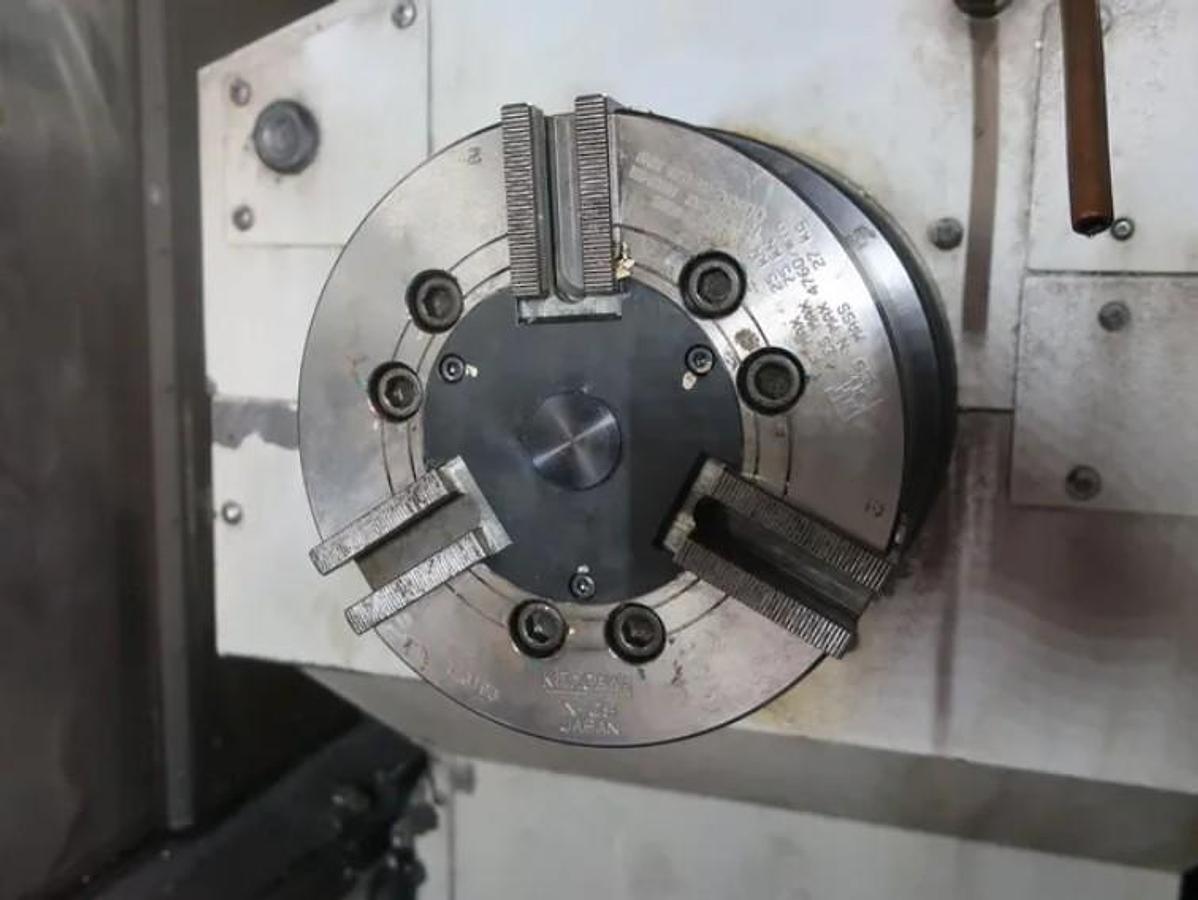

8" 3 Jaw Kitagawa Hydraulic Chucks on Both Main & Subspindle

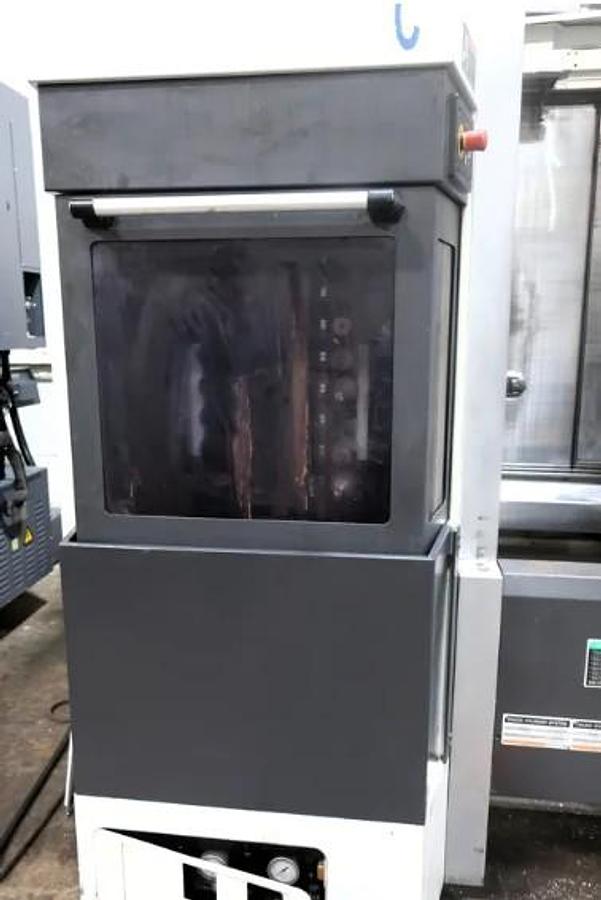

40 Station Tool Changer
Coolant System with Tank & Pump

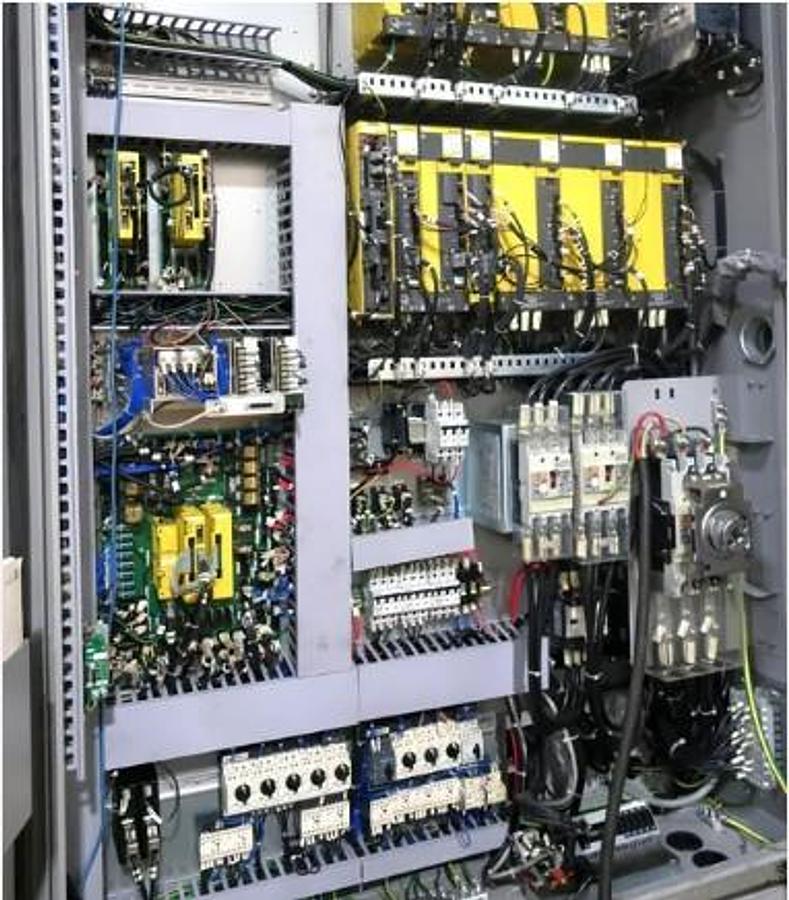

Wired 220V Electrics
RS 232 Port Interface

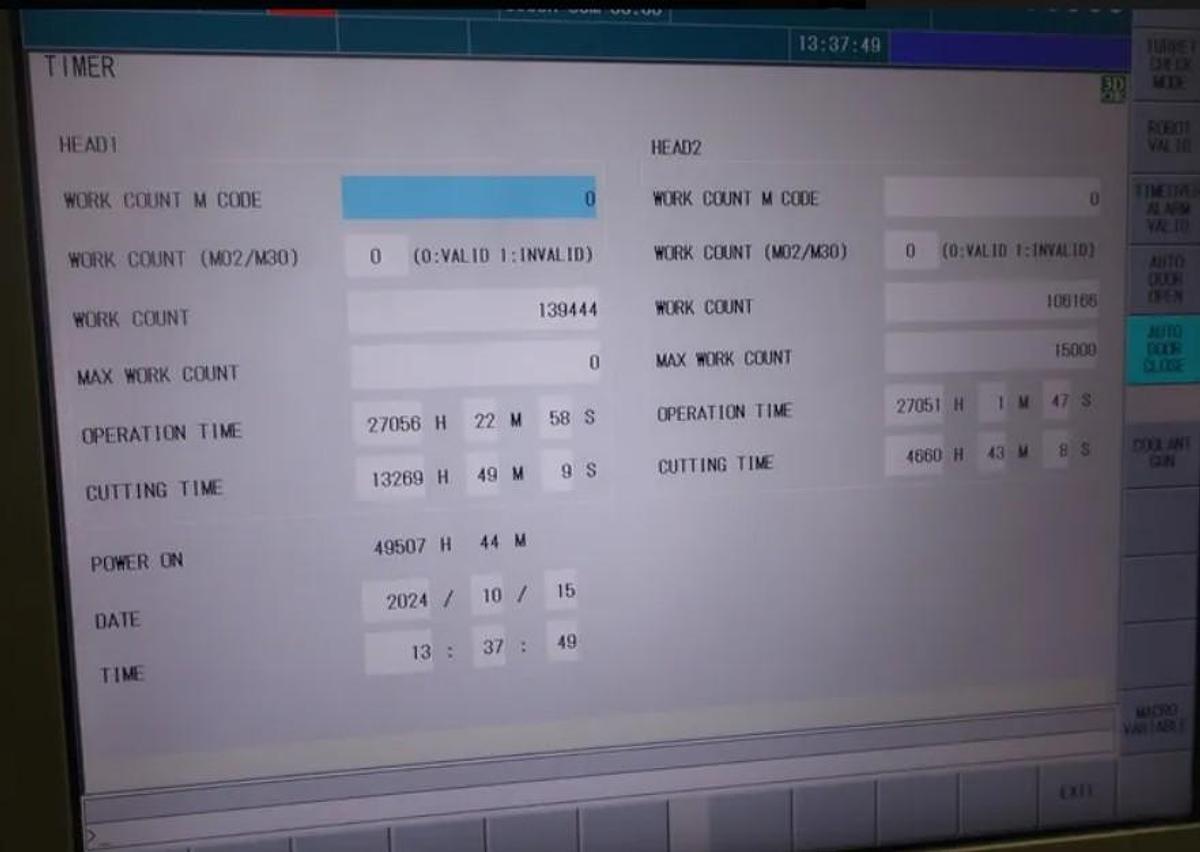

**Head 1 Cutting Time 13,269 Hours**
**Head 2 Cutting Time 4660 Hours**
Specifications
| Manufacturer | DMG Mori |
| Model | NTX2000-1500SZM |
| Year | 2014 |
| Condition | Used |
| Stock Number | 120169 |

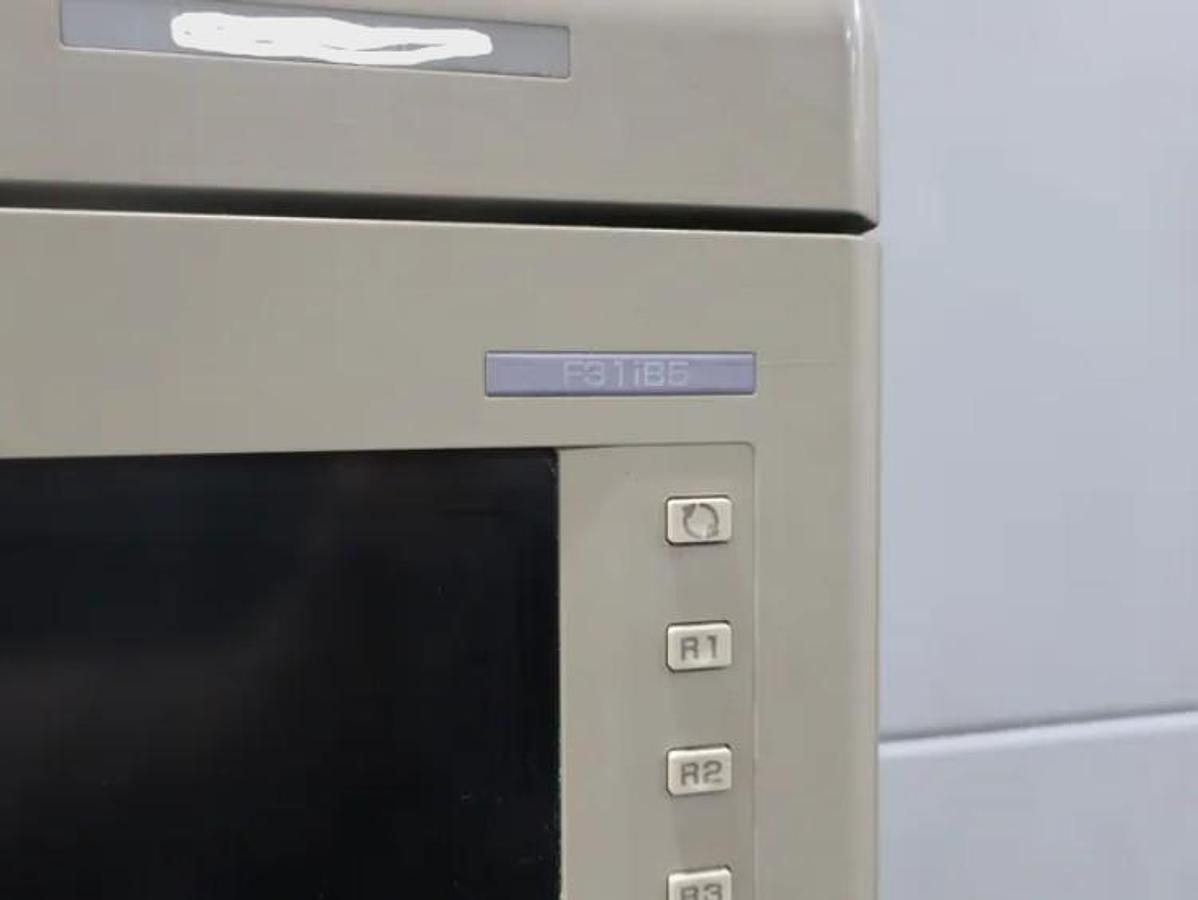

| Machine Control | Fanuc Series 31iB5 Control |
| Maximum Swing Upper Turret / Lower Turret | 25.9" / 11.8" |
| Maximum Turning Diameter Upper Turret / Lower Turret | 25.9" / 10.7" |
| Maximum Turning Length | 60.6" |
| Maximum Bar Capacity | 2.5" |
| X axis travel | 19.5" |
| X2 axis lower travel | 6.3" |
| Y axis travel | +/- 4.9" |
| Z axis travel | 61.4" |
| Z2 axis travel | 55.2" |
| B axis | +/- 120 Degrees |
| C Axis Spindle Rotation | .0001 Both Spindles |
| Spindle Nose / Spindle Bore - Both Spindles | A2-6" / 2.9" |
| Maximum spindle speeds (main & sub) | 5,000 RPM |
| Spindle motor (main & sub) | 30 HP |
| Mill Spindle Taper | Capto C6 |

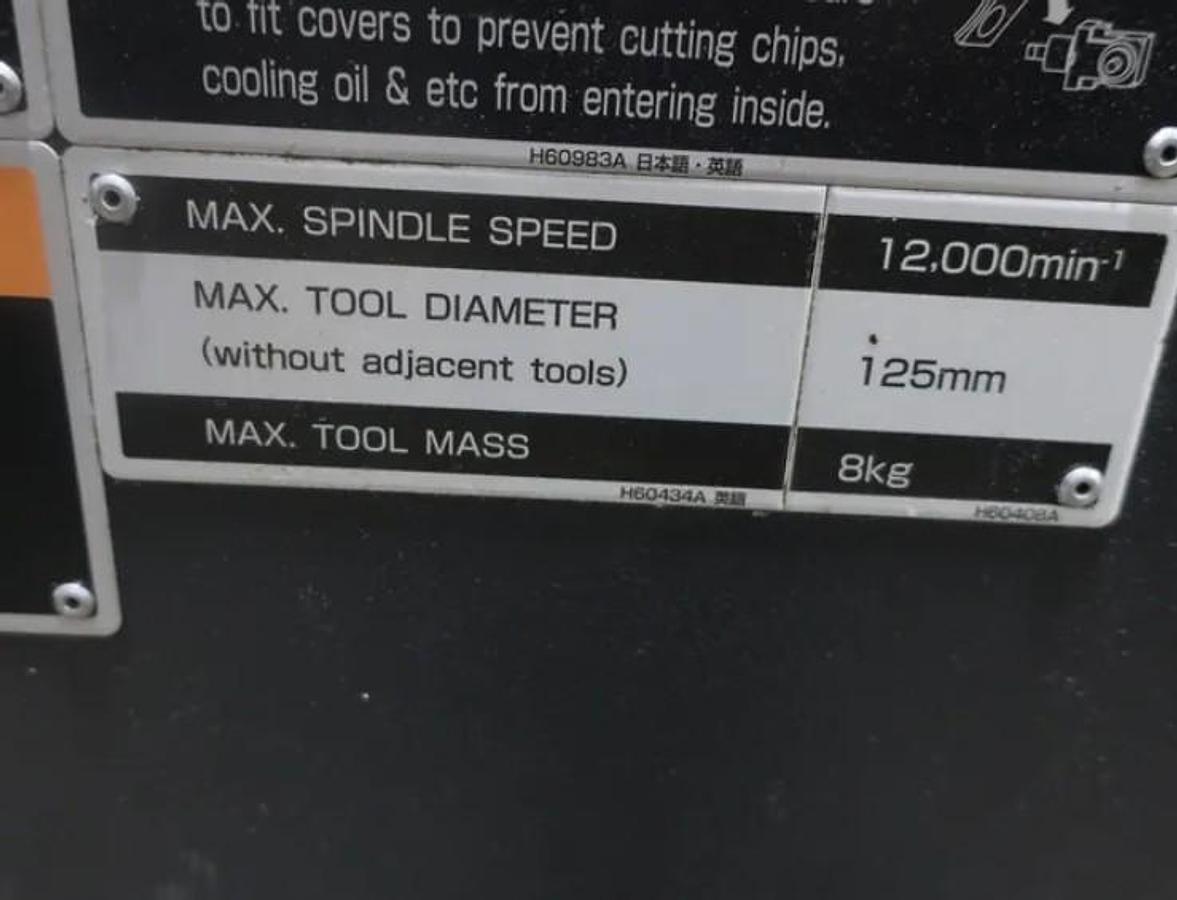

| Mill Spindle Speed | 12,000 RPM |
| Mill Spindle Motor | 24.7 HP |
| Tool magazine | 40 Station Tool Changer |
| Number of Lower Turret Positions | 10 Station Turret - Live Tooling Capable |
| Rapid Traverse Rates X/X2/Y/Z/Z2 | 1574 IPM/1181 IPM/1574 IPM/1574 IPM/1496 IPM |
| Rapid Traverse Rates A Axis (subspindle) | 1181 IPM |
| Machine Dimensions LxWxH | 161"x118"x104" |
| Machine weight | 33,594 lbs |
