1997 Daewoo Puma 250B with 12" Hyd. Chuck, Chip Conveyor, Tool Presetter, Tailstock, ONLY 7848 Cutting Hours
1997 Daewoo Puma 250B with 12" Hyd. Chuck, Chip Conveyor, Tool Presetter, Tailstock, ONLY 7848 Cutting Hours
$22,500 (USD)
Location:California
or
Call (863) 439-6066
Description

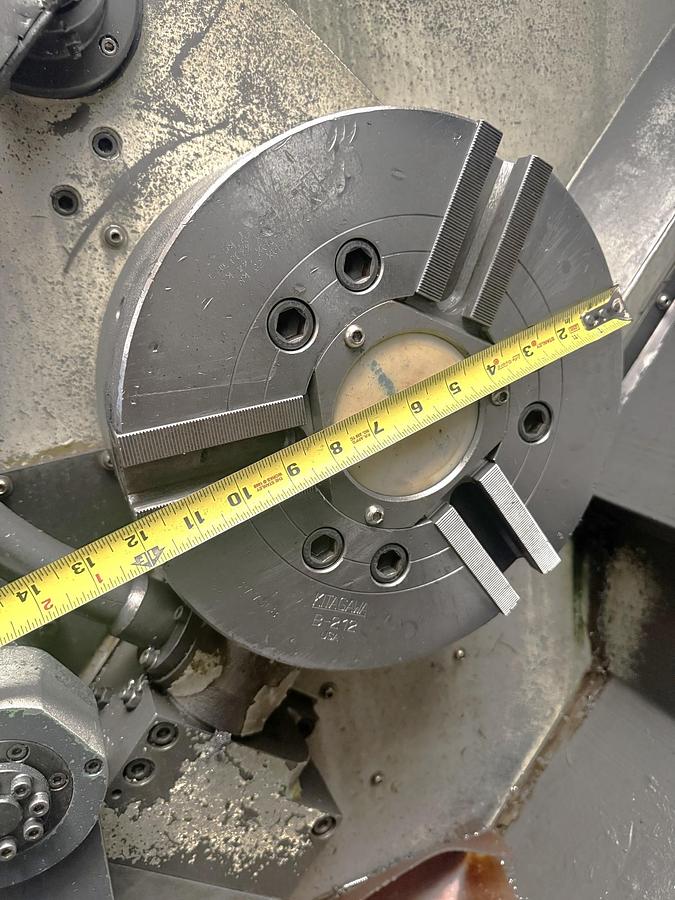

12" 3 Jaw Hydraulic Chuck
Tool Presetter

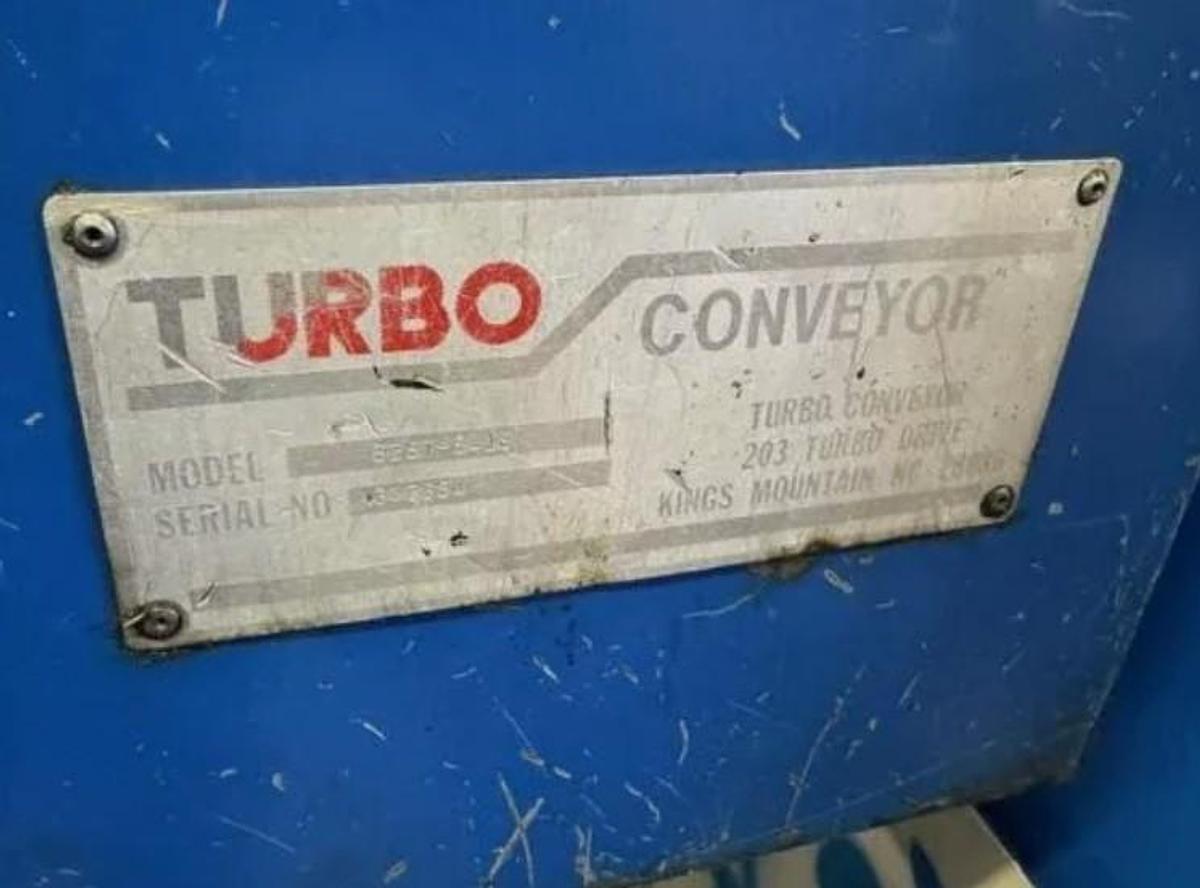

Chip Conveyor
Hydraulic Tailstock RS 232 Port Interface Boxed Ways
Coolant Tank with Pump All Available Static Tooling
All Available Manuals
Wired 220V Electrics

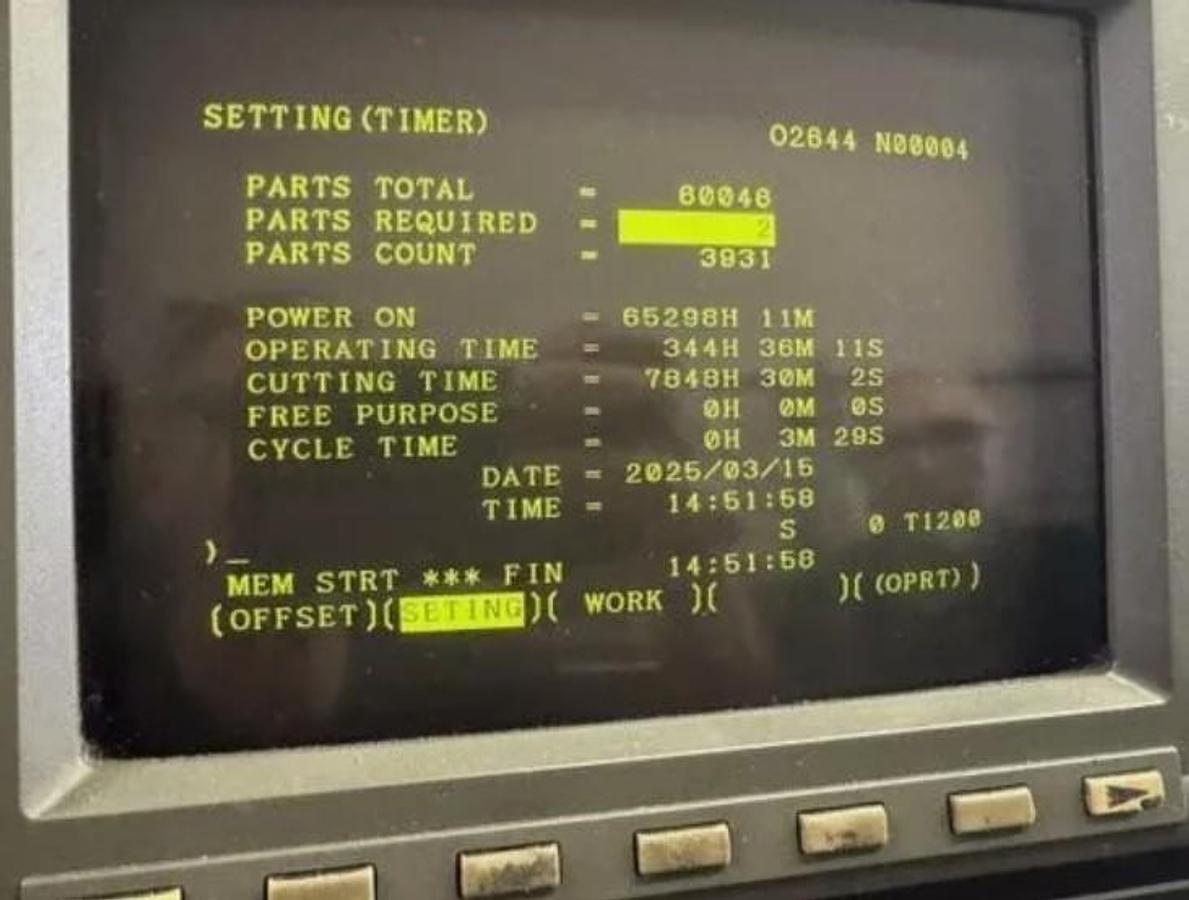

**ONLY 7,848 Cutting Hours**
Specifications
| Manufacturer | Daewoo |
| Model | Puma 250B |
| Year | 1997 |
| Condition | Used |
| Stock Number | 120159 |
| Control | Fanuc 18T Control |
| Chuck Size | 12" 3 Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 22.4" |
| Maximum Cutting Diameter | 147.5" |
| Maximum Machining Length | 27.2" |
| Maximum Bar Capacity | 3.03" |
| X-Axis Travel | 11.1" |
| Z-Axis Travel | 26.8" |
| Spindle Nose / Spindle Bore | A2-8" / 3.54" |
| Spindle Speeds - Main | 35 - 3,500 RPM |
| Spindle Motor - Main | 30 HP |

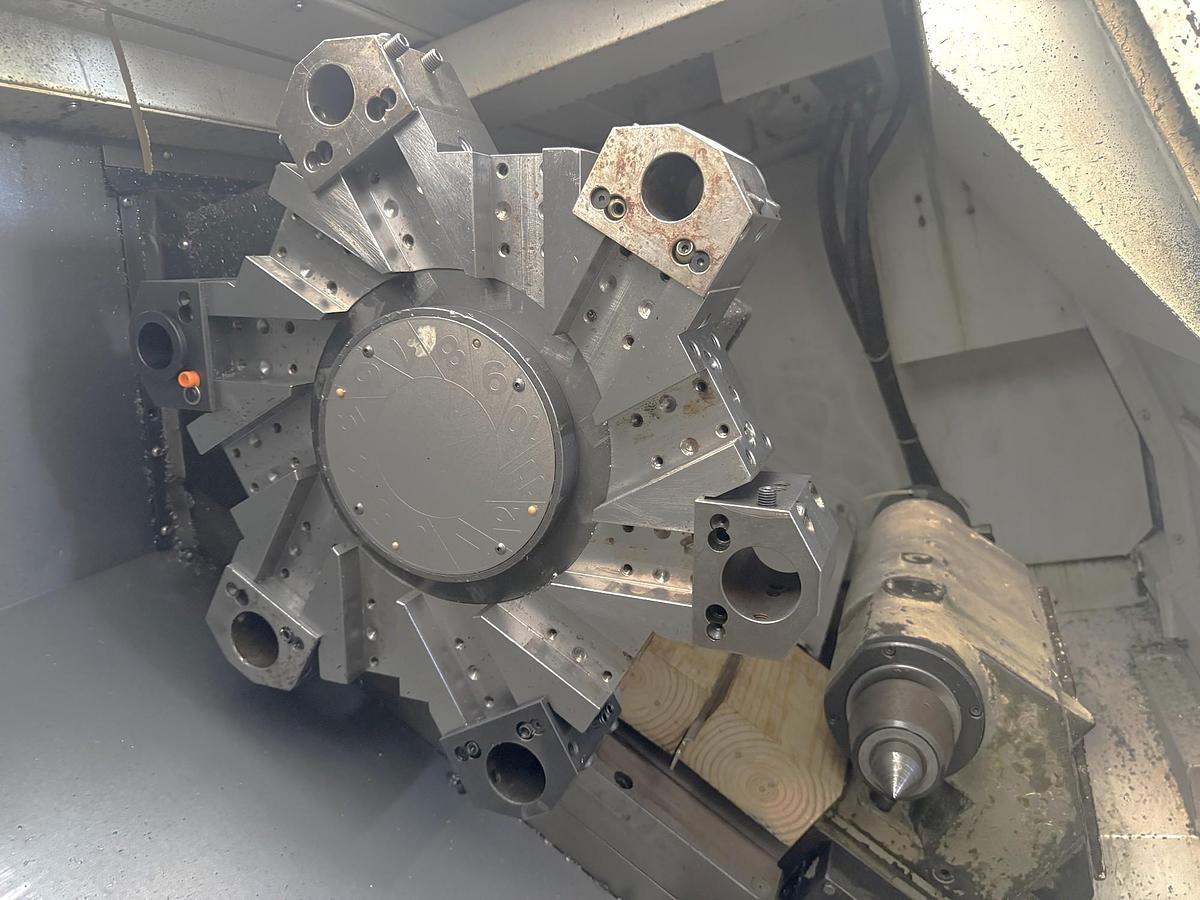

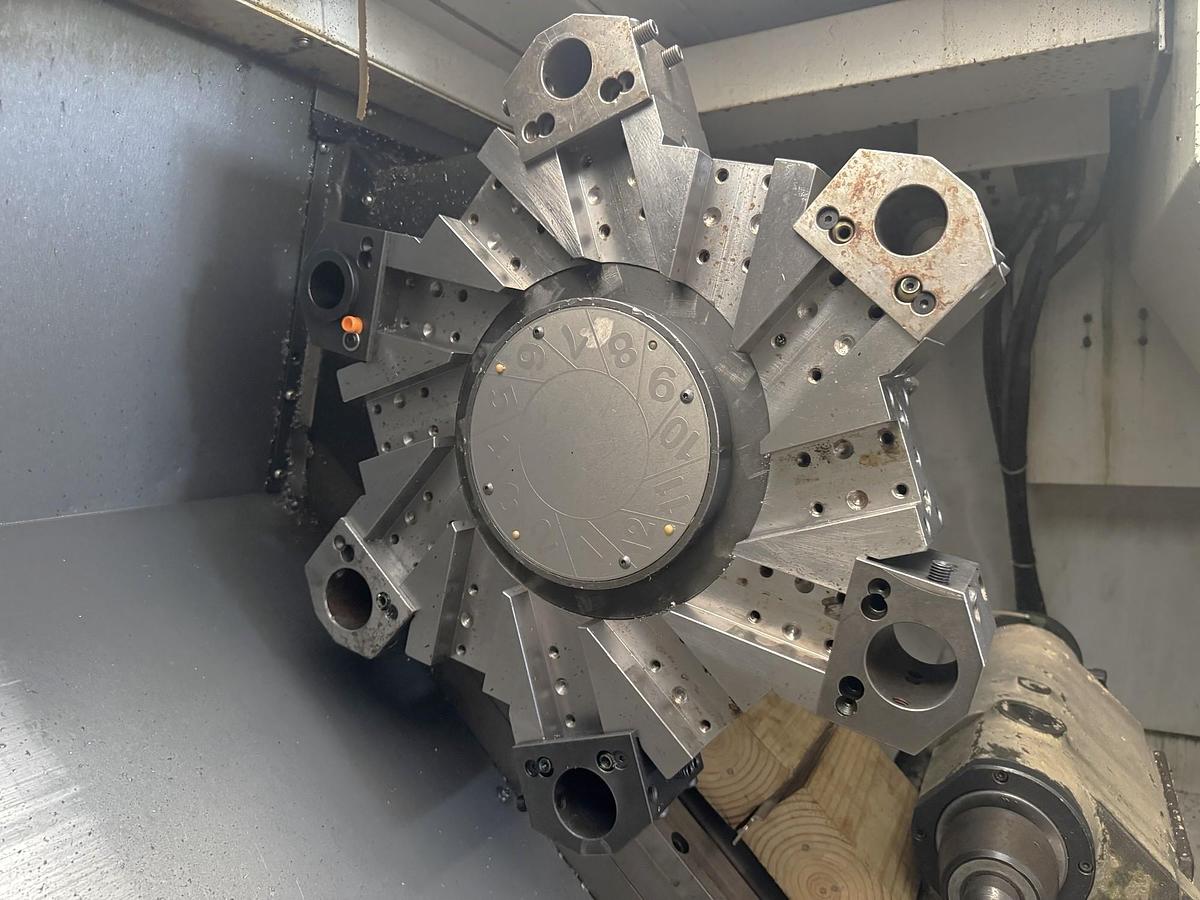

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.9" / 3.9" / MT #5 |
| Machine Dimensions | 170" x 71" x 72" |
| Machine Weight | 12,000 lbs. |
