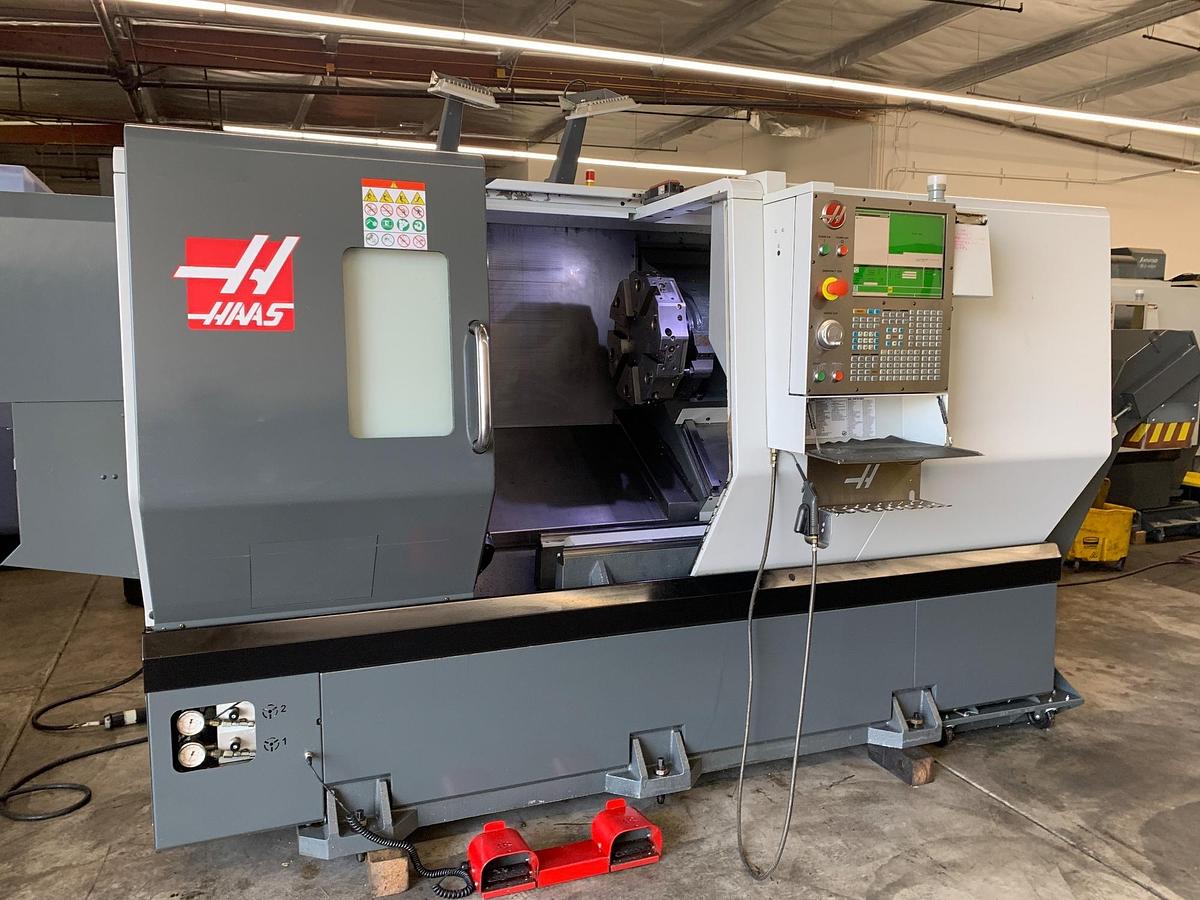

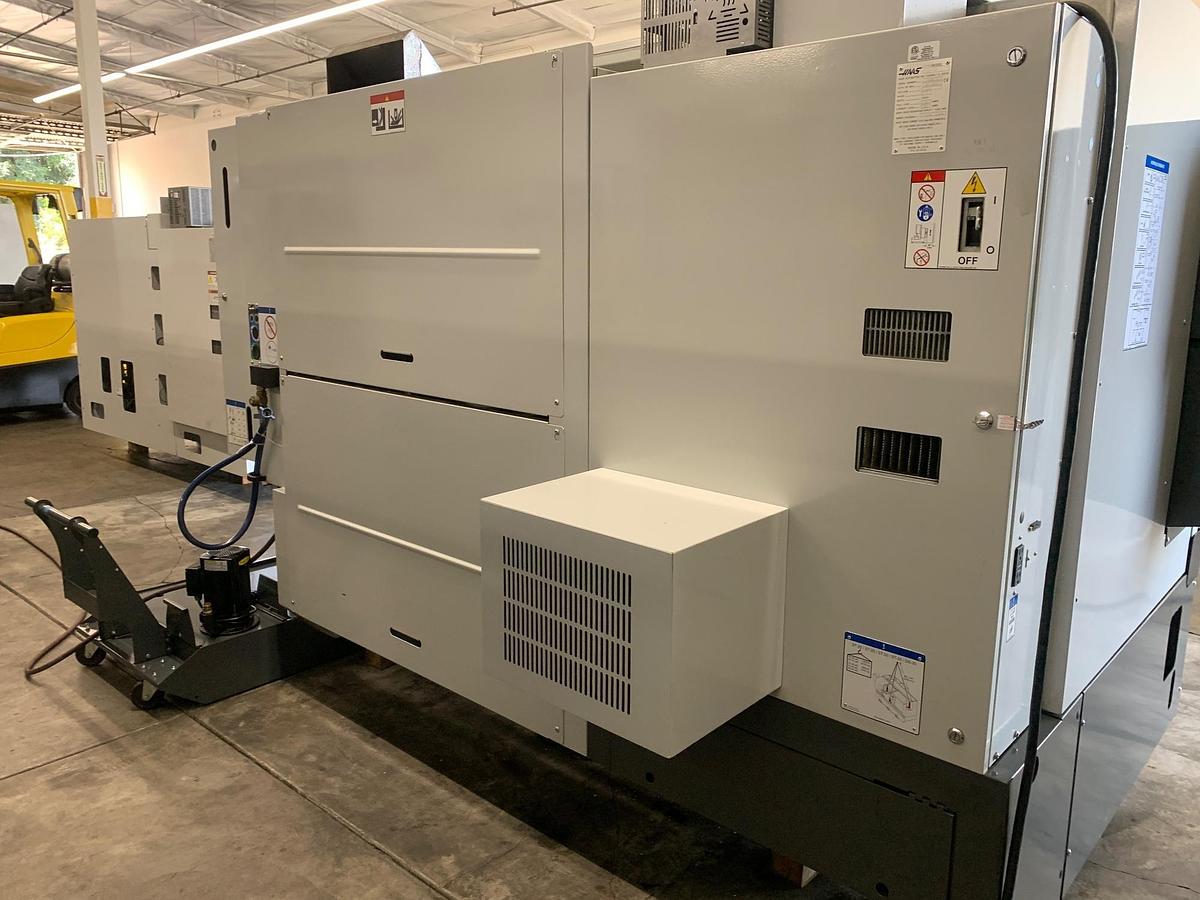

2017 Haas DS-30
2017 Haas DS-30
Contact us for price
Location:California
or
Call (863) 439-6066
Description
Dual Facing Spindles

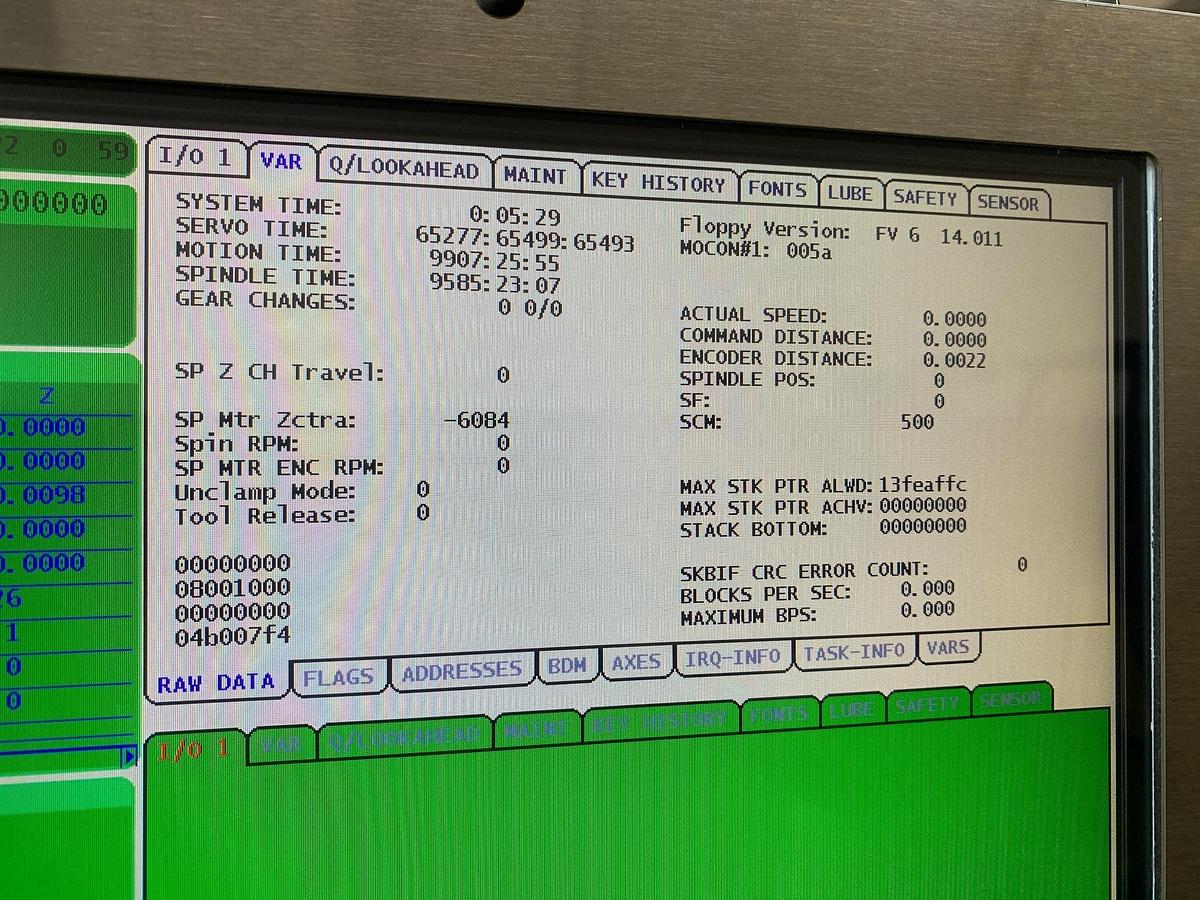

Intuitive Programming System
Auto Jet Blast

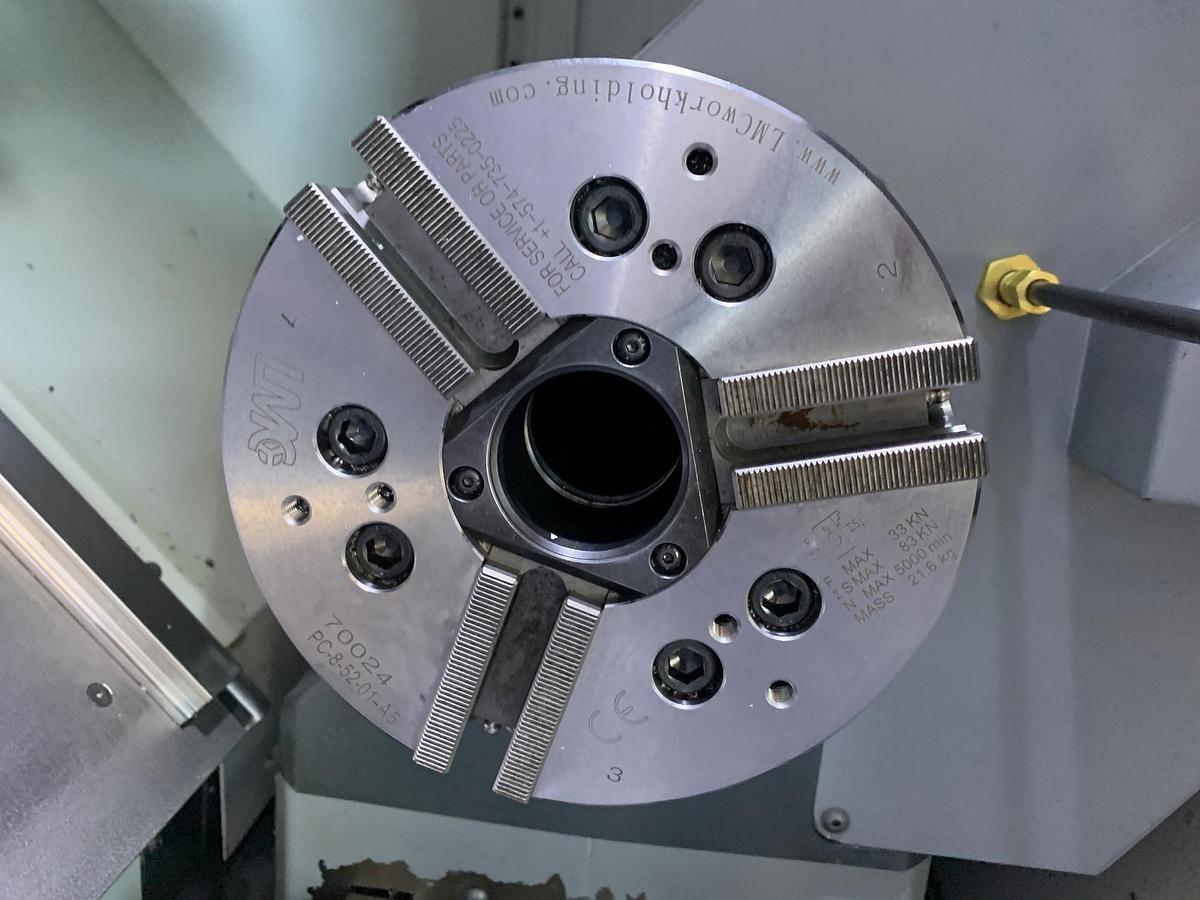

8.3" 3-Jaw Hydraulic Chuck for Main Spindle

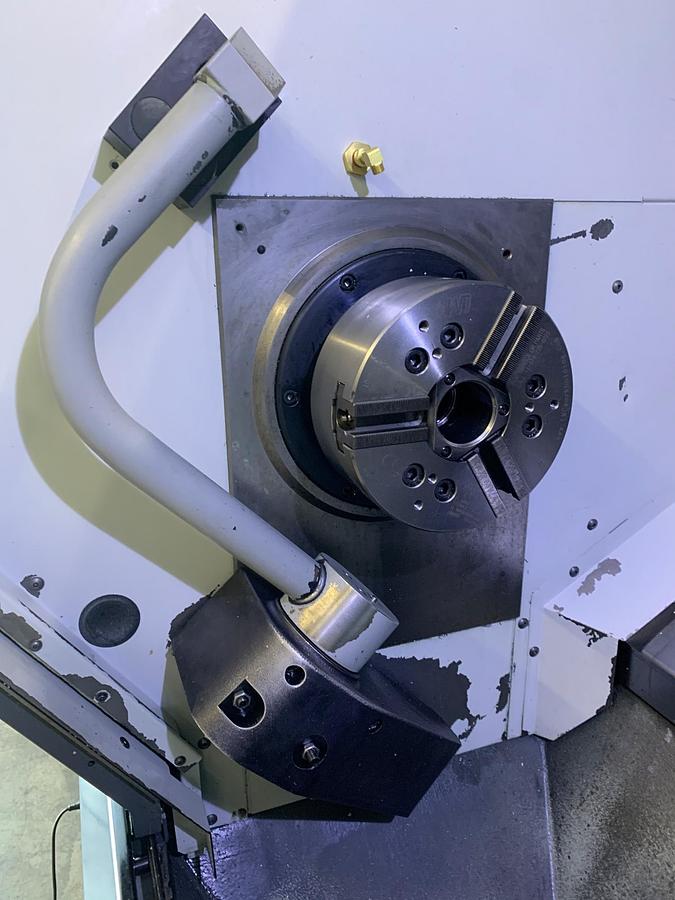

8.3" 3-Jaw Hydraulic Chuck for Subspindle
Auto Tool Presetter

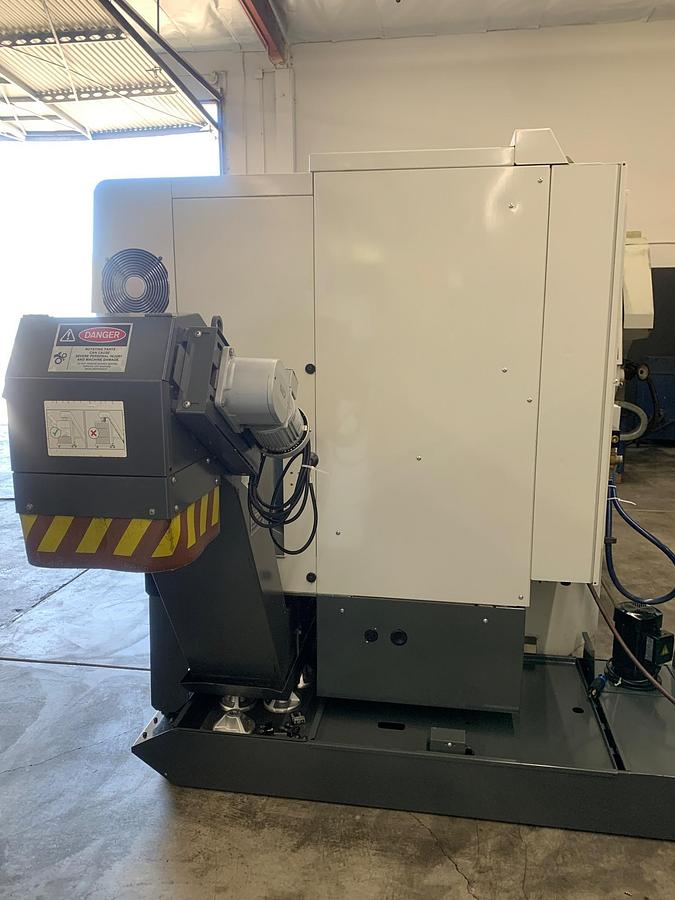

Belt Style Chip Conveyor
Spindle Orientation
Rigid Tapping
Synchronous Turning Between Spindles
1 MB Program
USB Port Interface
RS 232 Port Interface
Specifications
| Manufacturer | Haas |
| Model | DS-30 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 120151 |
| Chuck Sizes Main / Subspindle | 8.3" Hydraulic / 8.3" Hydraulic |
| Maximum Swing over Bed | 31.75" |
| Maximum Swing Over Cross Slide | 20.75 |
| Swing Over Subspindle | 21.73" |
| Maximum Cutting Diameter | 18" |
| Maximum Cutting Length | 26" |
| X-Axis Travel | 12.5" |
| Y-Axis Travel | +/- 2" |
| Z-Axis Travel | 23" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 2" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 30 HP |
| Subspindle Nose / Bore / Bar Capcity | A2-5" / 2.43" / 2" |
| Subspindle Speed | 4,000 RPM |
| Subspindle Motor | 20 HP |

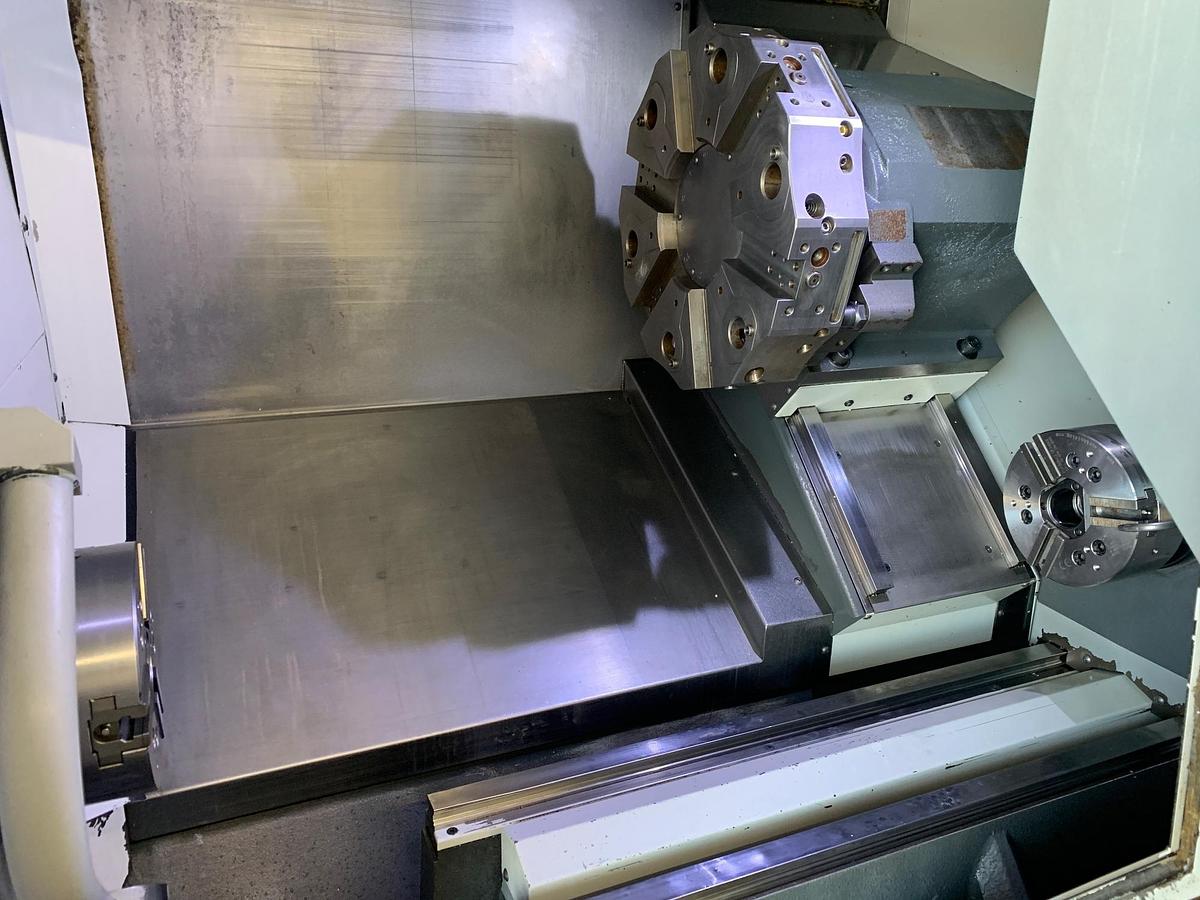

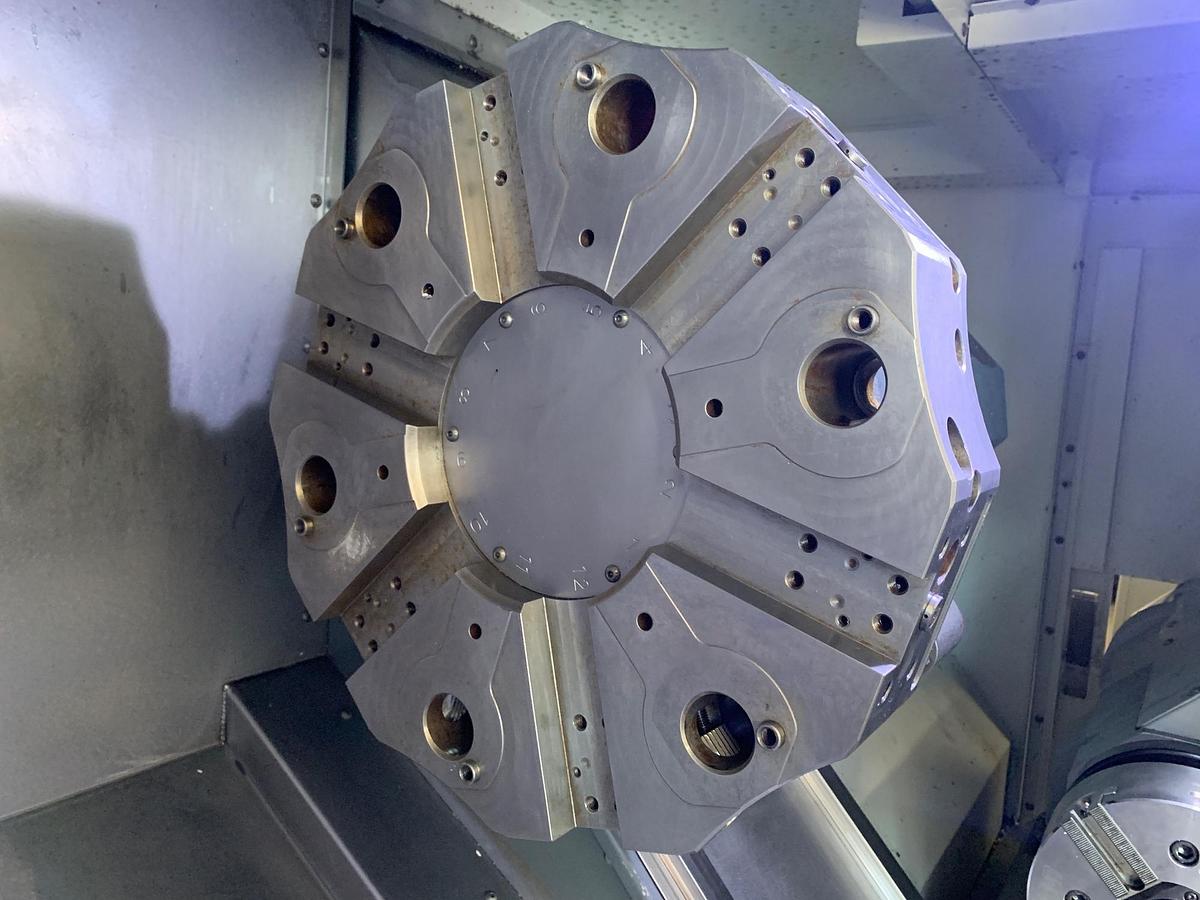

| Turret Type | 12 Positions |
| Rapid Traverse Rates | 944 IPM |
| Machine Dimensions LxWxH | 178" x 120" x 83" |
| Machine Weight | 14,600 lbs |
