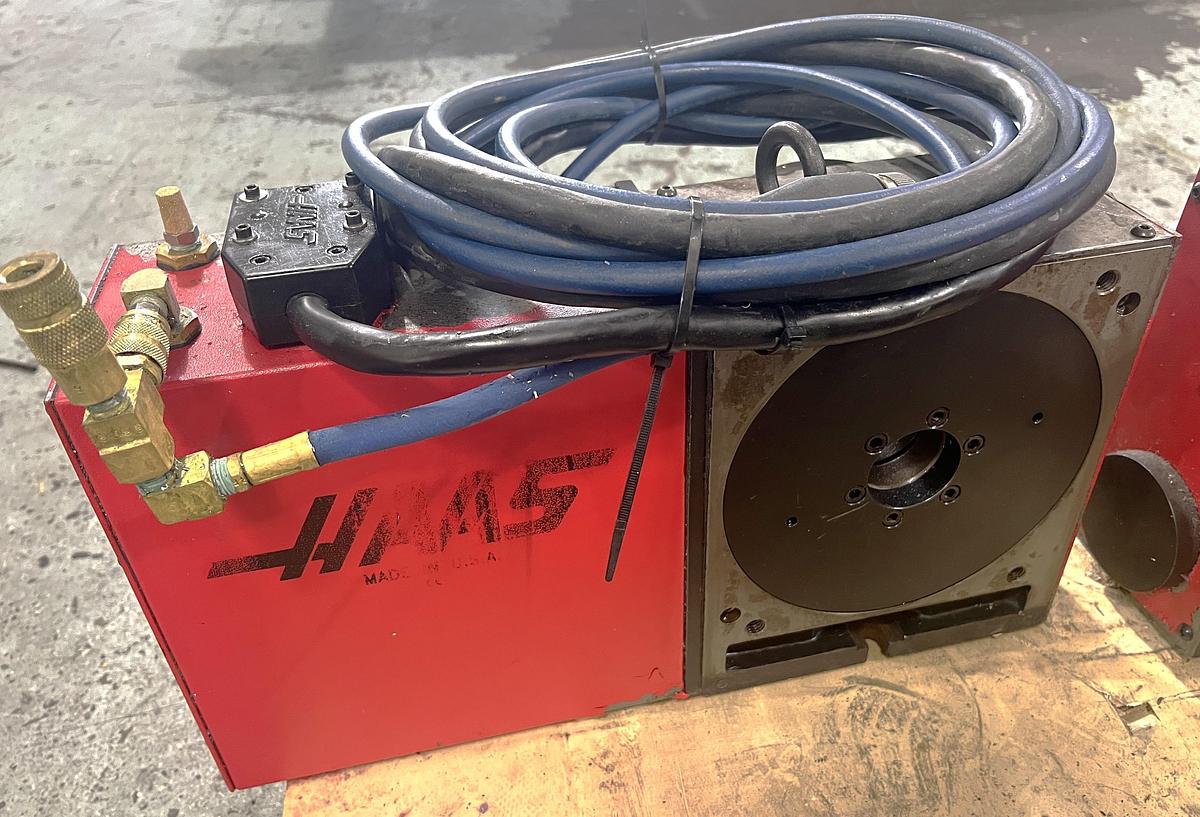

2000 Haas HRT210 Brush Type 4th Axis Rotary Table
2000 Haas HRT210 Brush Type 4th Axis Rotary Table
$4,250 (USD)
Location:Florida
or
Call (863) 439-6066
Description

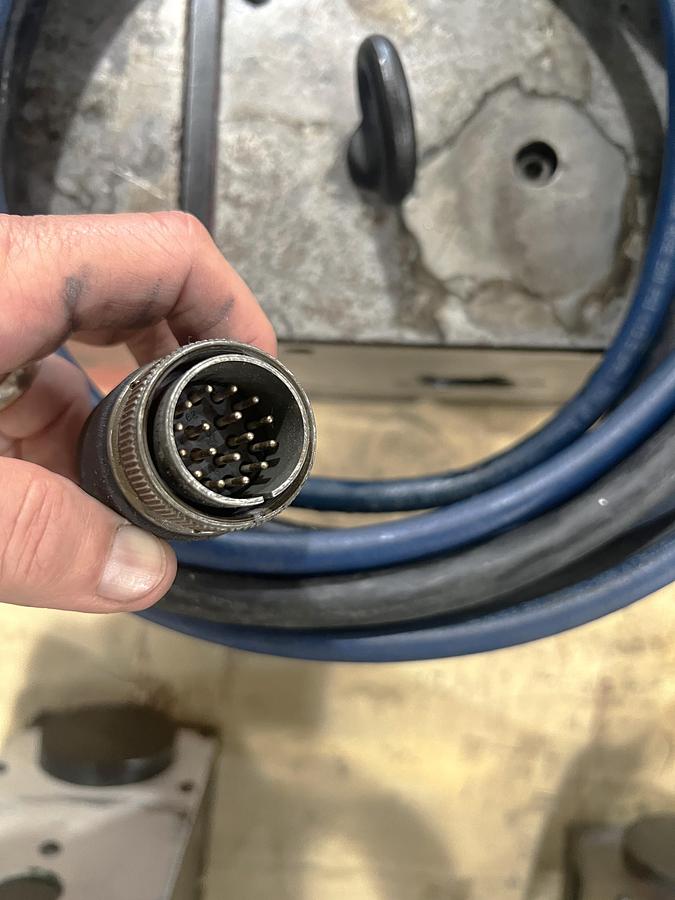

Includes Cabling with 17 Pin Brush Type Connector CNC Interfacing to M Functions Brush Type Runs As a Full Rotary Table with Haas Mills
Specifications
| Manufacturer | Haas |
| Model | HRT210 |
| Year | 2000 |
| Condition | Used |
| Stock Number | 120145 |
| Table to Centerline of Indexer | 6" |
| Maximum Table Load | 165 lbs |
| Motor | 1.5 hp DC Servo |
| Torque | 210 ft./lbs |
| Backlash (arc-sec) | 30 |
| Number of T-Slots | 6 @ 60 Degrees |
| Resolution | .001 Degrees |
| Worm Gear Diameter | 6.3" |
| Gear Ration (Worm & Gear) | 90:1 |
| Power Required | 115 volts |
| Dimensions | 27"x21"x21" |
| Weight | 220 lbs |
