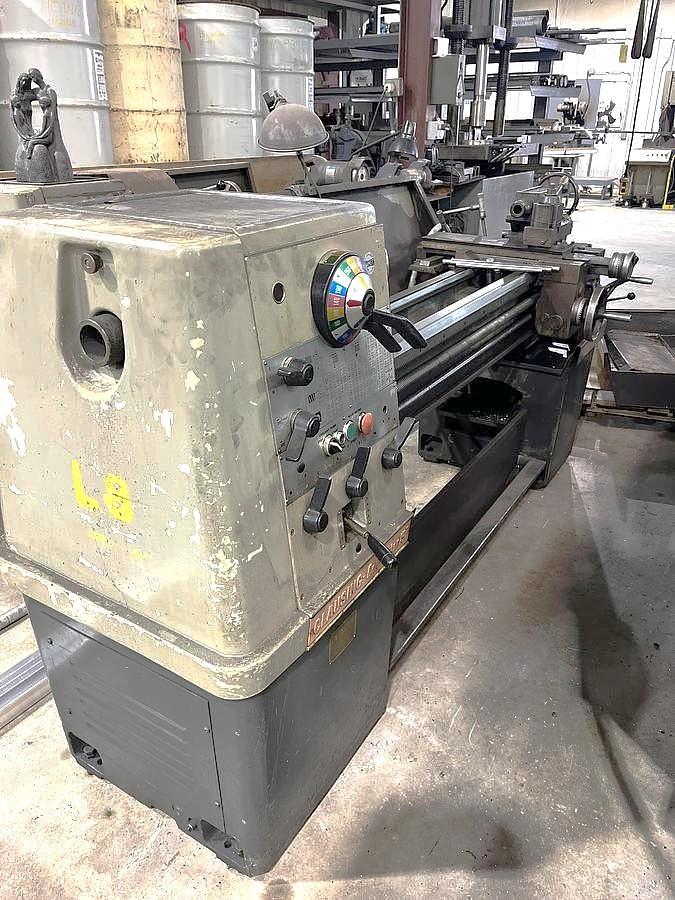

1980 Clausing 15"x50" Engine Lathe
1980 Clausing 15"x50" Engine Lathe
Contact us for price
Location:Texas
or
Call (863) 439-6066
Description
Tool Post
Tailstock
12" 3 Jaw Chuck
Work Light
Specifications
| Manufacturer | Clausing |
| Model | 15"x50" Engine Lathe |
| Year | 1980 |
| Condition | Used |
| Stock Number | 120136 |
| Chuck Size | 12" 3-Jaw |
| Maximum swing over bed | 15.7" |
| Maximum Swing Over Cross Slide | 9.7" |
| Distance Between Centers | 50" |
| Spindle Nose / Bore / Bar Capacity | D1-6 Camlock / 2.125" / 2" |
| Spindle speeds | 3-Geared Infinitely Variable Ranges up to 2,500 RPM |
| Bed Width | 12.5" |
| Feed Range Longtudinal | .0007" to .08 IPR |
| Feed Range Cross Feed | 1/2 of Longitudinal |
| Inch Threading Range | 2 to 56 TPI |
| Metric Threading Range | .2mm to 14mm |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.8" / 5.5" / #5 MT |
| Machine Dimensions LxWxH | 100"x45"x51" |
| Machine Weight | 3,450 lbs |
