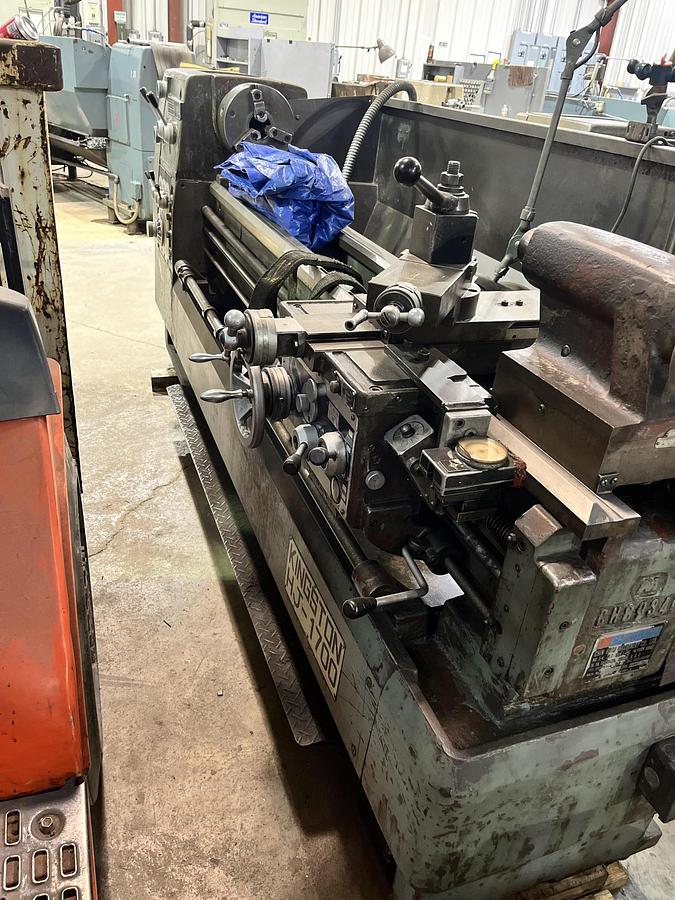

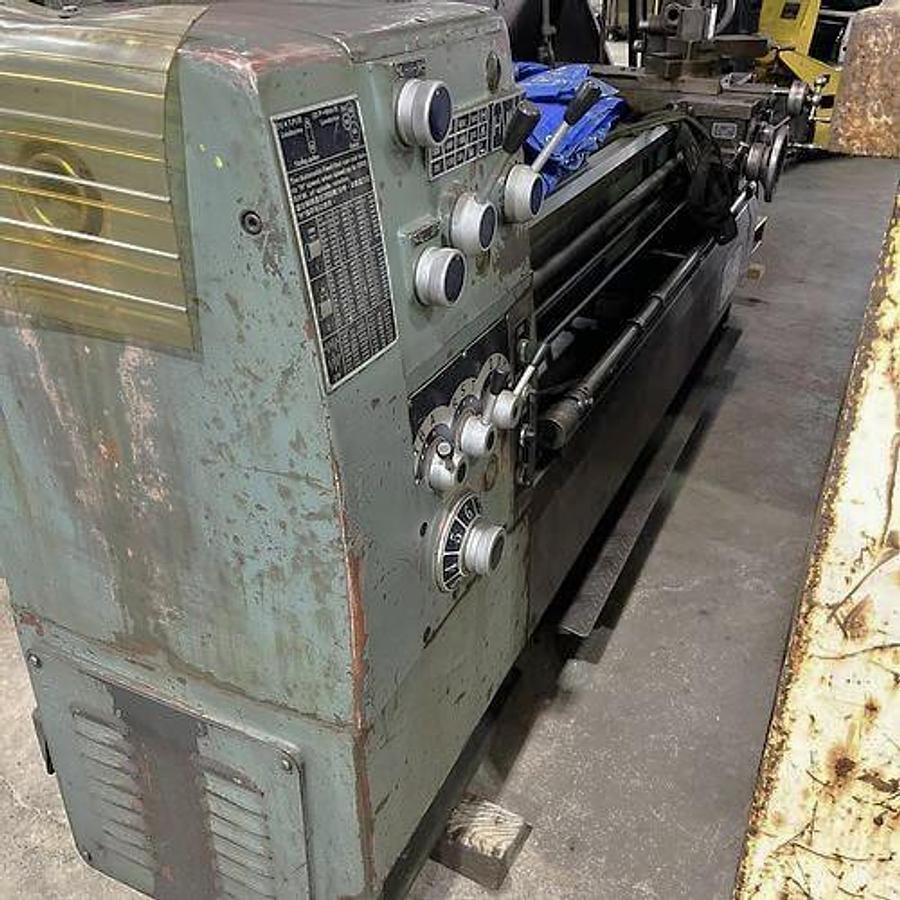

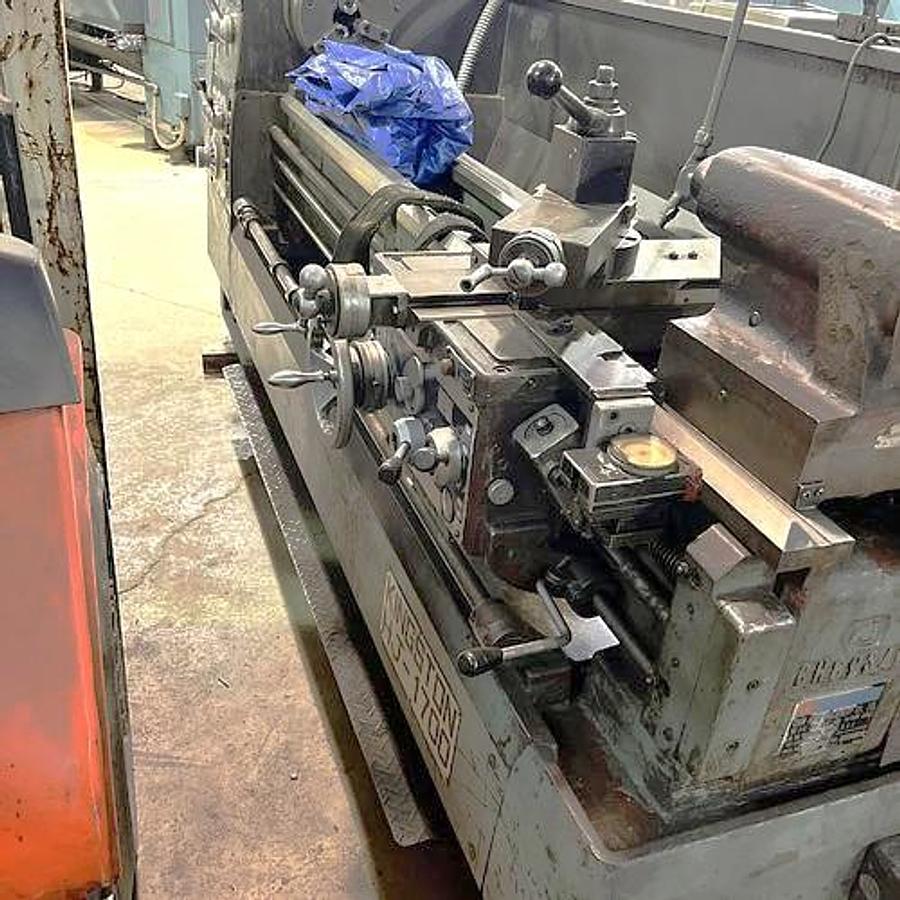

1989 Kingston HJ-1700
1989 Kingston HJ-1700
Contact us for price
Location:Texas
or
Call (863) 439-6066
Description
Aloris Style Tool Post
Coolant System
Hardened and Ground Ways
230/460 V 3-Phase
Specifications
| Manufacturer | Kingston |
| Model | HJ-1700 |
| Year | 1989 |
| Condition | Used |
| Stock Number | 120134 |
| Chuck Size | 12" 3-Jaw |
| Maximum Swing over Bed | 17" |
| Maximum Swing Over Cross Slide | 10.6" |
| Maximum Swing in Gap | 24" |
| Distance Between Centers | 67" |
| Width of Bed | 11.75" |
| Spindle Nose / Spindle Bore / Bar Capacity | D1-8 / 3.07" / 3" |
| Spindle Speeds | 12 from 29 RPM's to 1,650 RPM's |
| Diameter and Pitch of Leadscrew | 1.38" 4 TPI |
| Rang of Inch Threads | (44) from 2 TPI to 72 TPI |
| Range of Metric Pitches | (39) .2mm to 14mm |
| Travel of Cross Slide | 10.4" |
| Travel of Compound | 5.7" |
| Spindle Motor | 7.5 HP |
| Range of Longitudinal Feeds per Revolution | .0012" to .039" |
| Range of Cross Feeds per Revolution | .0004" to .0117" |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.3" / 6.7" / #4 MT |
| Machine Dimensions LxWxH | 120"x41"x48" |
| Machine Weight | 3,960 lbs |
