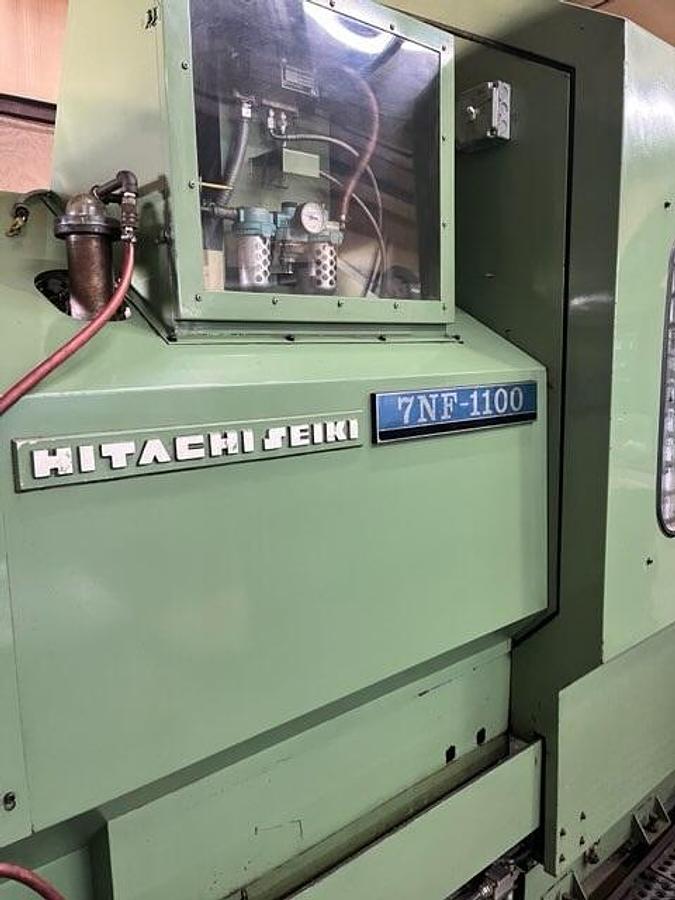

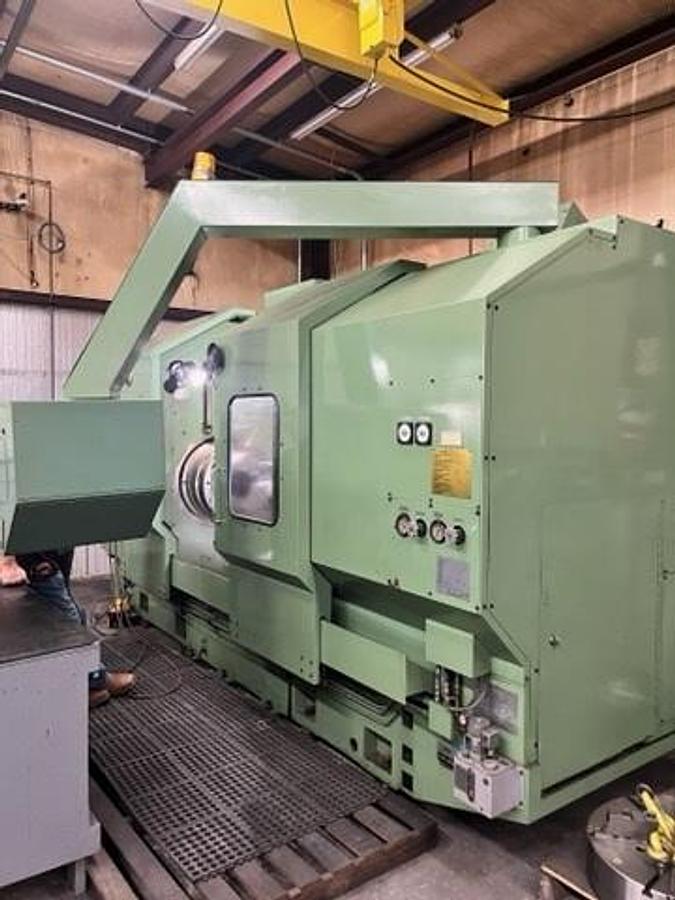

1984 Hitachi Seiki 7NF-1100 w/ 21" 3 Jaw SMW Air Chuck w/ 8" Hole Thru Chuck, 10" Spindle Bore, Fanuc FAPT Conversational
1984 Hitachi Seiki 7NF-1100 w/ 21" 3 Jaw SMW Air Chuck w/ 8" Hole Thru Chuck, 10" Spindle Bore, Fanuc FAPT Conversational
$29,500 (USD)
Location:Texas
or
Call (863) 439-6066
Description

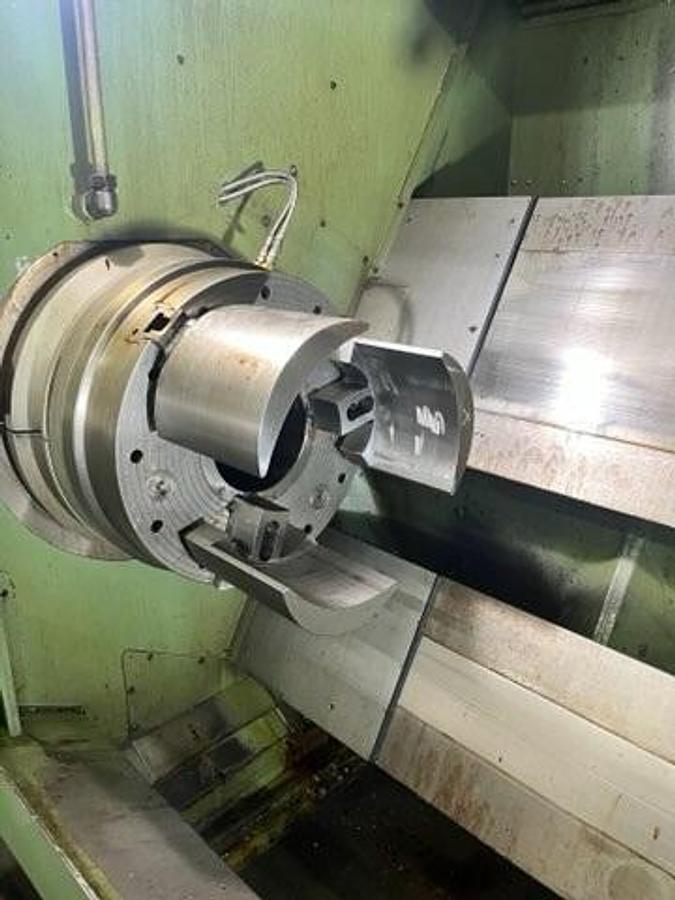

21" 3 Jaw SMW Air Chuck with 8" Hole Through Chuck
10" Spindle Bore (only 8" usable due to restriction of 8" hole through the chuck)
Tailstock
RS-232 Port Interface
Flood Coolant

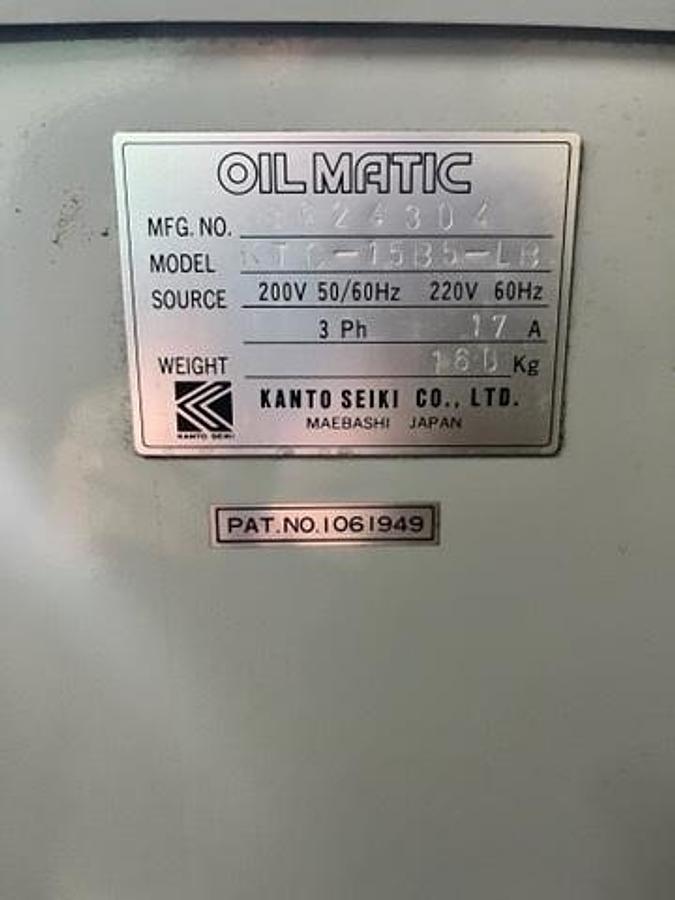

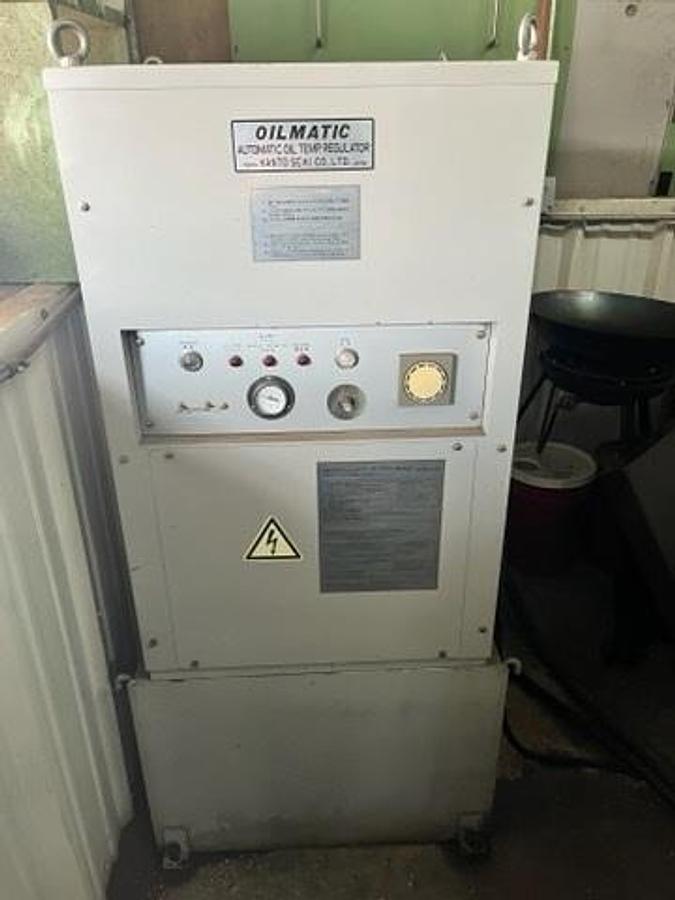

Oilmatic Oil Temperature Regulator

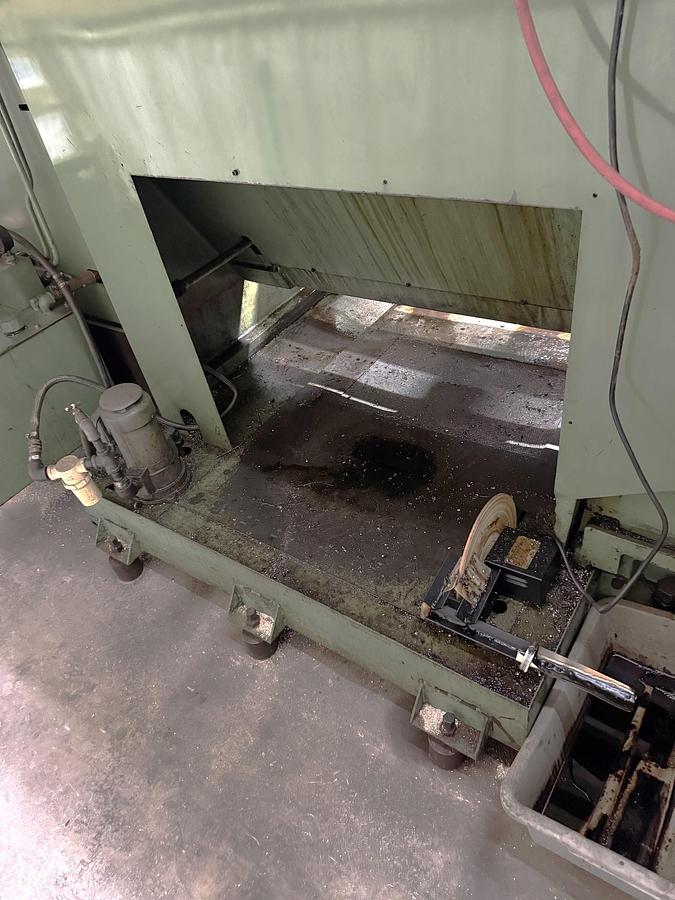

Coolant System with Tank & Pump
Boxed Ways
All Available Tooling
All Available Manuals
Specifications
| Manufacturer | Hitachi Seiki |
| Model | 7NF-1100 |
| Year | 1984 |
| Condition | Used |
| Stock Number | 12013 |

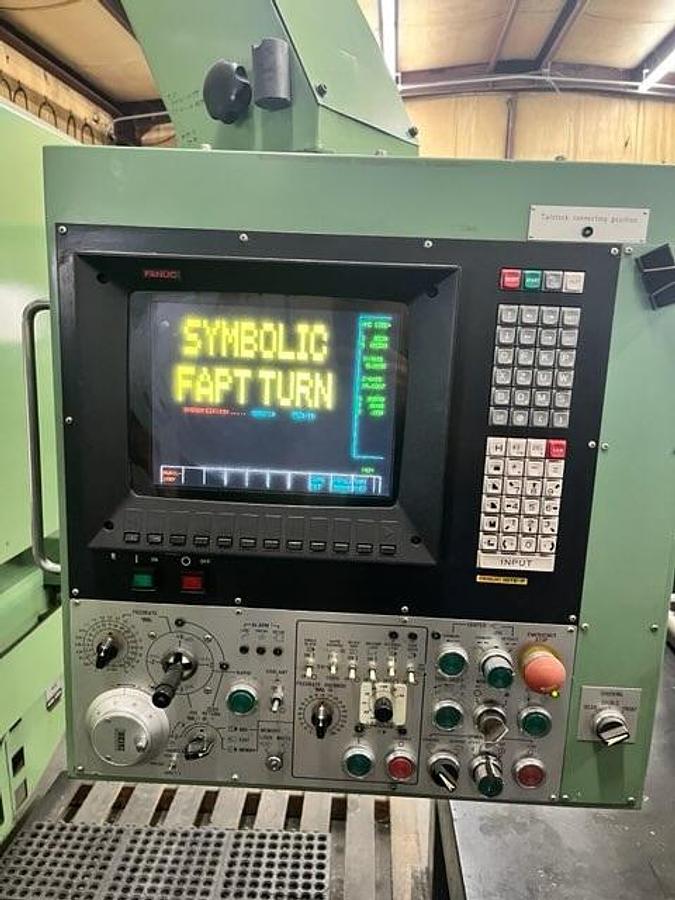

| Machine Control | Fanuc 6TB with FAPT Conversational |
| Chuck Size | 21" 3 Jaw SMW Air Chuck |
| Maximum Swing | 34.6" |
| Maximum Swing Over Cross Slide | 25" |
| Maximum Machining Diameter | 22" |
| Distance Between Centers | 540" |
| X-Axis Travel | 21.5" |
| Z-axis travel | 40" |
| Spindle Nose / Bore / Bar Capacity | A1-15" / 10" / 8" |
| Spindle Speeds | 10 - 600 RPM |

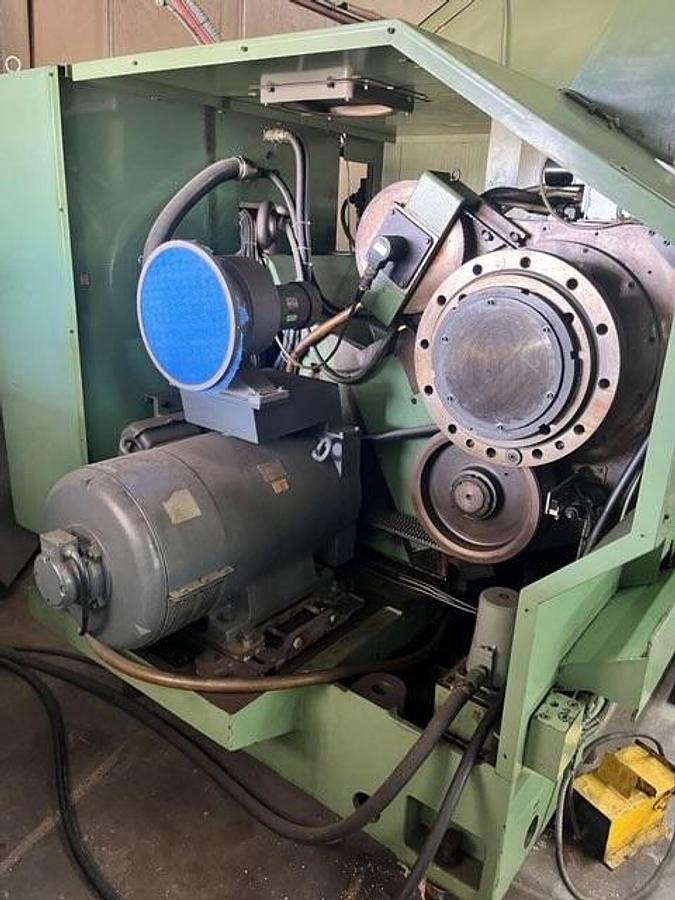

| Spindle motor | 60 HP |

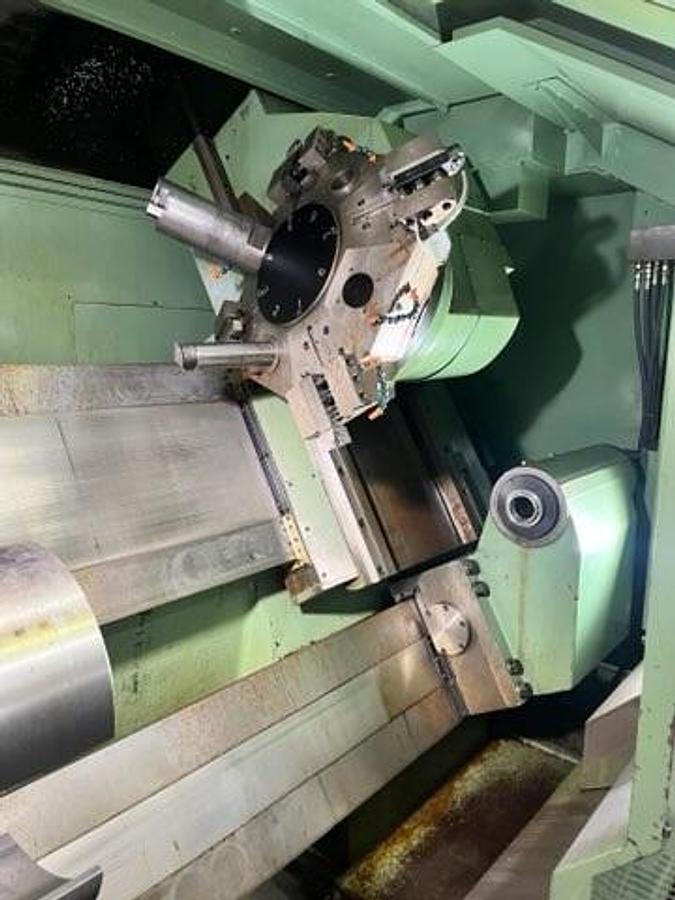

| Number of Turret Positions | 8 Station Turret (4 ID & 4 OD) |
| Rapid traverse rates | 472 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 7.1" / 7.1" / MT #4 |
| Tailstock Body Travel | 35.4" |
| Machine Dimensions LxWxH | 216" x 96" x 118" |
| Machine weight | 33,340 lbs |
