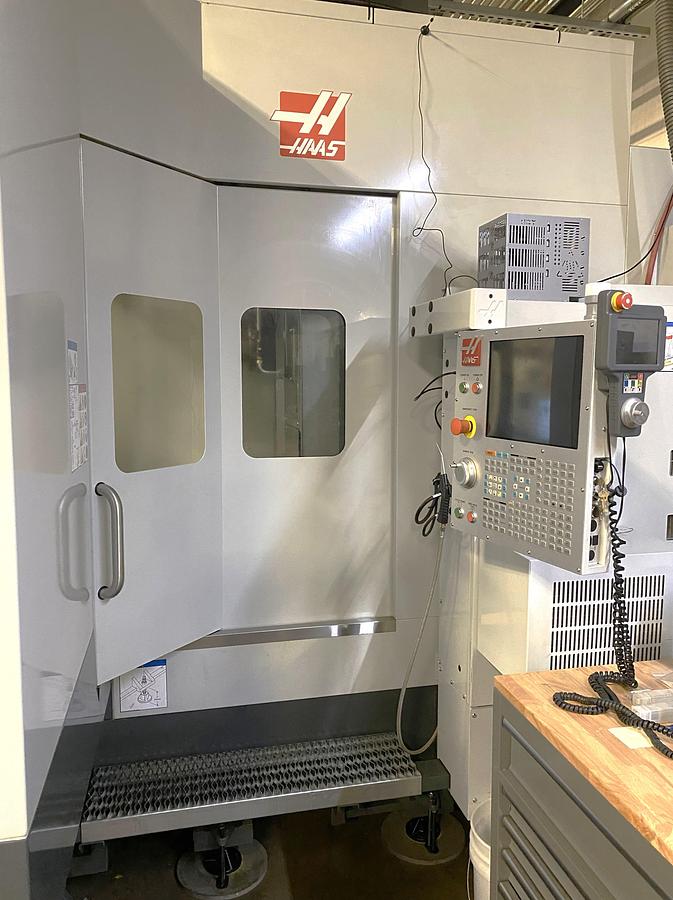

2022 Haas EC-1600ZT-5AX with Ext. Z travel, 4th Axis Table, 50 ATC, CAT 50, TSC, Renishaw Probing, ONLY 140 FEED CUT HOURS
2022 Haas EC-1600ZT-5AX with Ext. Z travel, 4th Axis Table, 50 ATC, CAT 50, TSC, Renishaw Probing, ONLY 140 FEED CUT HOURS
$349,800 (USD)
Location:California
or
Call (863) 439-6066
Description
4th Axis Drive & Wiring
5th Axis Drive & Wiring

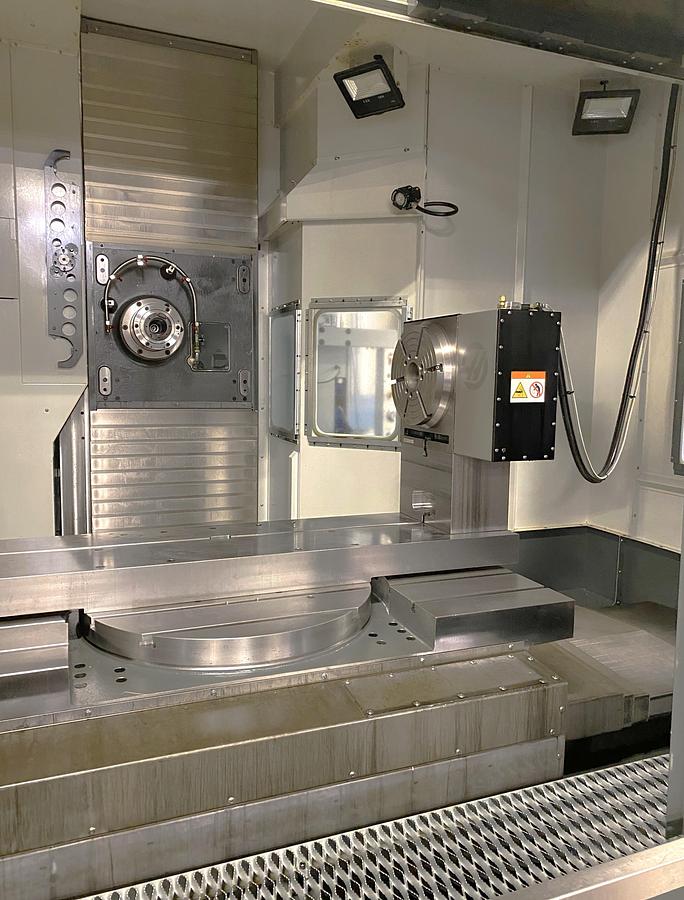

Full 4th Built-in 30" Rotary Platter
Haas Rotary Table for 5th Axis
Extended Z-Axis Travel
300 PSI Coolant thru the Spindle
Wireless Intuitive Probing System
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
Visual Part Programming System
High Speed Machining
50 Station Tool Changer
CAT 50 Taper Geared Head Spindle
Remote Jog Handle w/ Color LCD
Auger Style Chip Conveyor
Enclosure Exhaust System
15" Color LCD Monitor
USB Port Interface
RS 232 Port Interface
Rigid Tapping
Memory Lock Key Switch

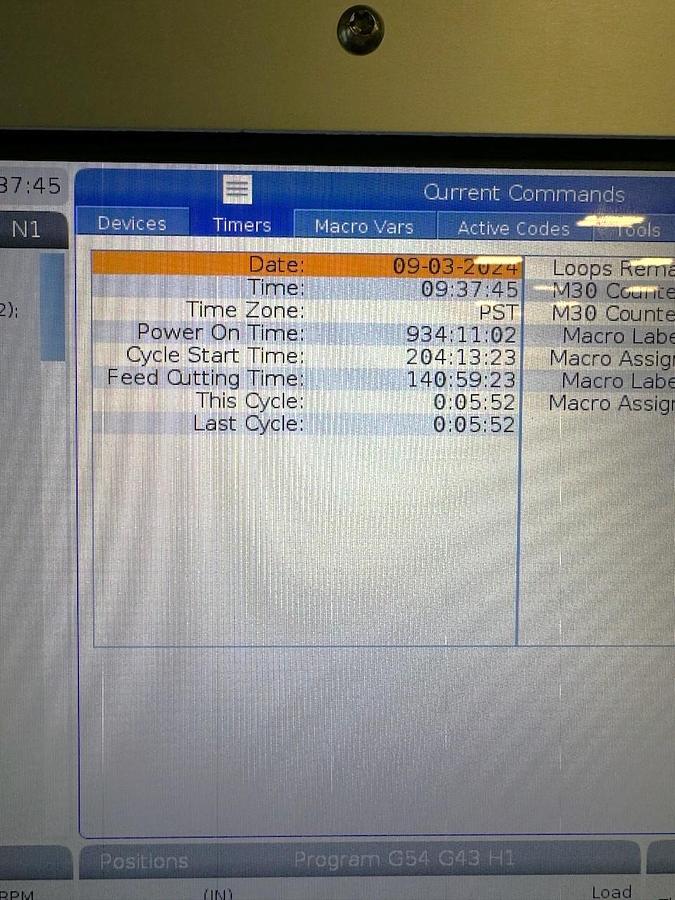

**Power On Hours 934**
**Cycle Start Hours 204**
**Feed Cutting Hours 140**
Specifications
| Manufacturer | Haas |
| Model | EC-1600ZT-5AX |
| Year | 2022 |
| Condition | Used |
| Stock Number | 120120 |
| Table Size | 64" x 36" |
| Maximum Table Load | 10,000 lbs |
| B-Axis Table Rotation | Full 4th Axis |
| X-axis travel | 64" |
| Y-Axis Travel | 50" |
| Z-Axis Travel | 40" |
| Spindle Taper | CAT 50 |
| Spindle Speed | 7,500 RPM |
| Spindle Motor | 30 HP 2-Speed Geared Head |
| Tool Magazine Capacity | 50 Position Tool Changer |
| Rapid Traverse Rates | 540 IPM |
| Maximum Tool Diameter / Length / Weight | 10" / 20" / 30 lbs |
| Machine Dimensions LxWxH | 190"x144"x135" |
| Machine Weight | 30,000 lbs |
